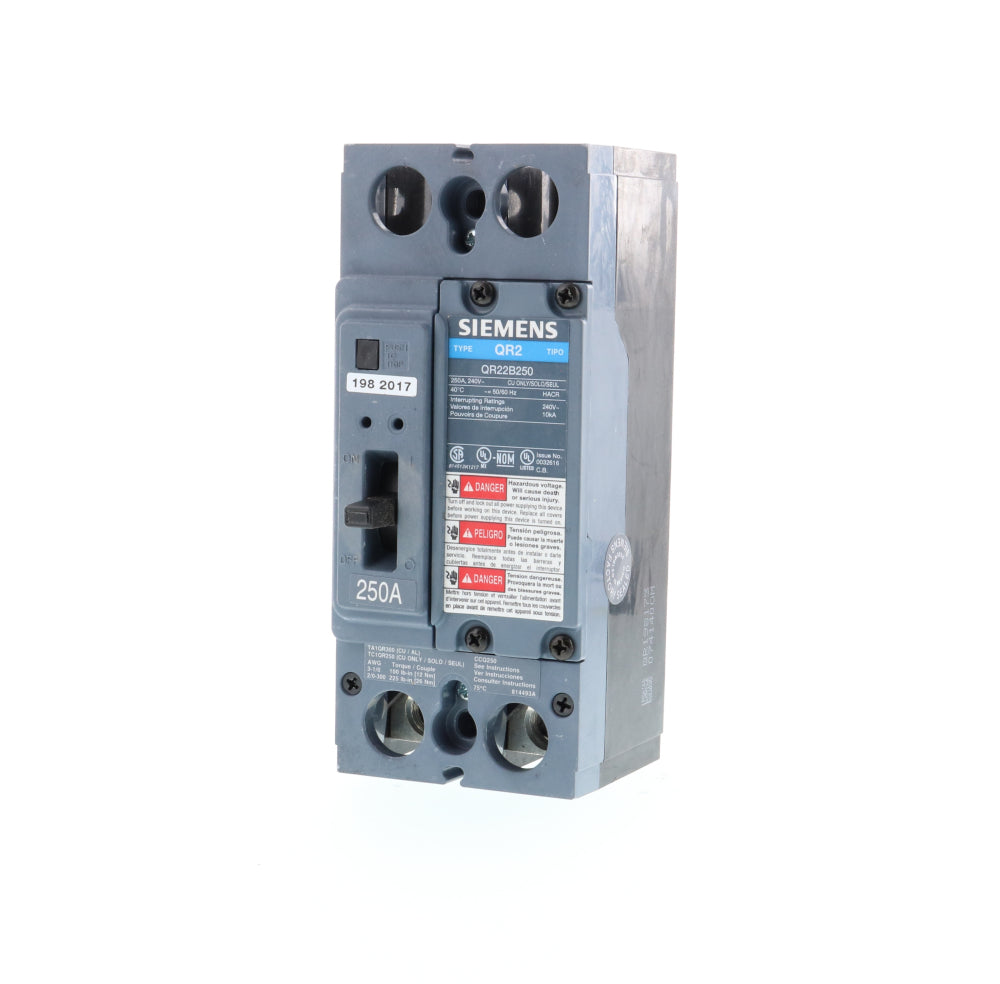

QR22B250L - Siemens 250 Amp 240 Volt 2 Pole Molded Case Circuit Breaker

QR22B250L

QR22B250L is a Siemens 250 Amp, 240 Volt, 2 Pole molded case circuit breaker designed for reliable circuit protection.This Siemens QR Series breaker features a thermal-magnetic trip unit with a 10kA interrupt rating at 240V. It is a bolt-on type breaker suitable for use in load centers, panelboards, and switchboards. The breaker is UL489, CSA, and NOM certified, rated for 40°C ambient operation, and supports wire sizes from 6 AWG to 1/0 AWG. It includes line/load side lugs and a push-to-trip button for testing.

Key Specifications
• Amperage: 250 Amp
• Voltage: 240 Volt AC
• Poles: 2 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V
• Series/Frame: QR Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL489, CSA, NOM
• Wire Range: 6 AWG to 1/0 AWG
• Ambient Temperature Rating: 40°C
• Push-to-Trip Button: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QR22B250L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QR Series
• Type : QR2
• Voltage : 240
• Amperage : 250
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 804766136191
• GTIN : 00804766136191
• Country of Origin : Mexico
• Dimensions : 7.087 x 4.331 x 3.937 inch
• Weight : 3.197
