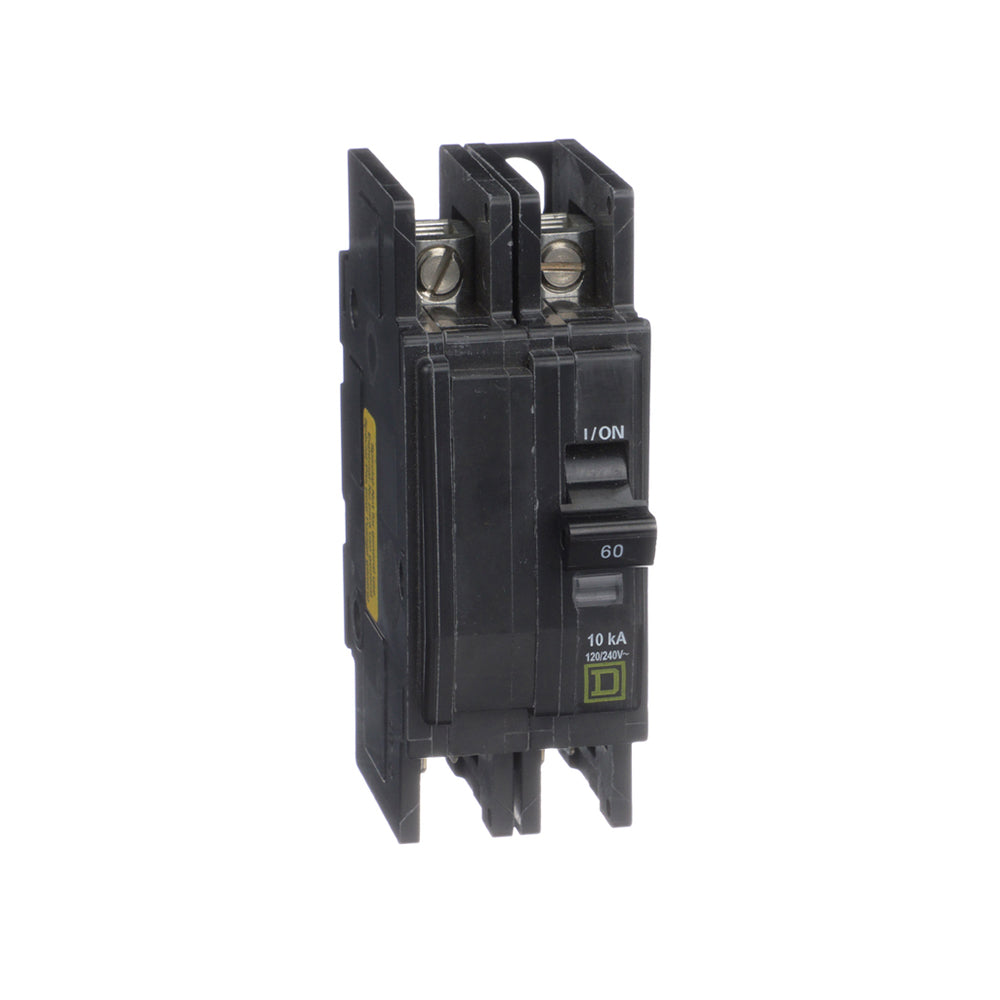

QOUQ260 - Square D 60 Amp 2 Pole 120/240VAC Thermal Magnetic Circuit Breaker 10kA Bolt-On QOU Frame

QOUQ260

QOUQ260 is a 60 Amp, 2 Pole thermal magnetic circuit breaker from Square D designed for 120/240VAC and 48VDC applications with a 10kA interrupt rating.This Square D QOUQ260 breaker features a bolt-on connection, LI trip functions (long-time and instantaneous), and is suitable for residential and commercial use including HVAC and refrigeration equipment.

Key Specifications
• Amperage: 60 Amps
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Interrupt Rating: 10kA at 120/240VAC
• Mounting Type: Unit, Surface, DIN Rail compatible
• Connection Type: Bolt-On
• Trip Unit: Thermal Magnetic with LI functions
• Frame/Series: QOU
• Certifications: UL, CSA, IEC, HACR
• Wire Size Range: AWG 14 to AWG 2 Aluminum/Copper
• Terminal Connection: Slotted Box Line and Load Side Lug
• Dimensions (LxWxH): 2.95" x 1.5" x 4.05"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOUQ260
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901323402
• GTIN : 785901323402
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.77 lb
• Certification : IEC, UL Listed, CSA
• Wire Size : AWG 14...AWG 2 aluminium/copper
