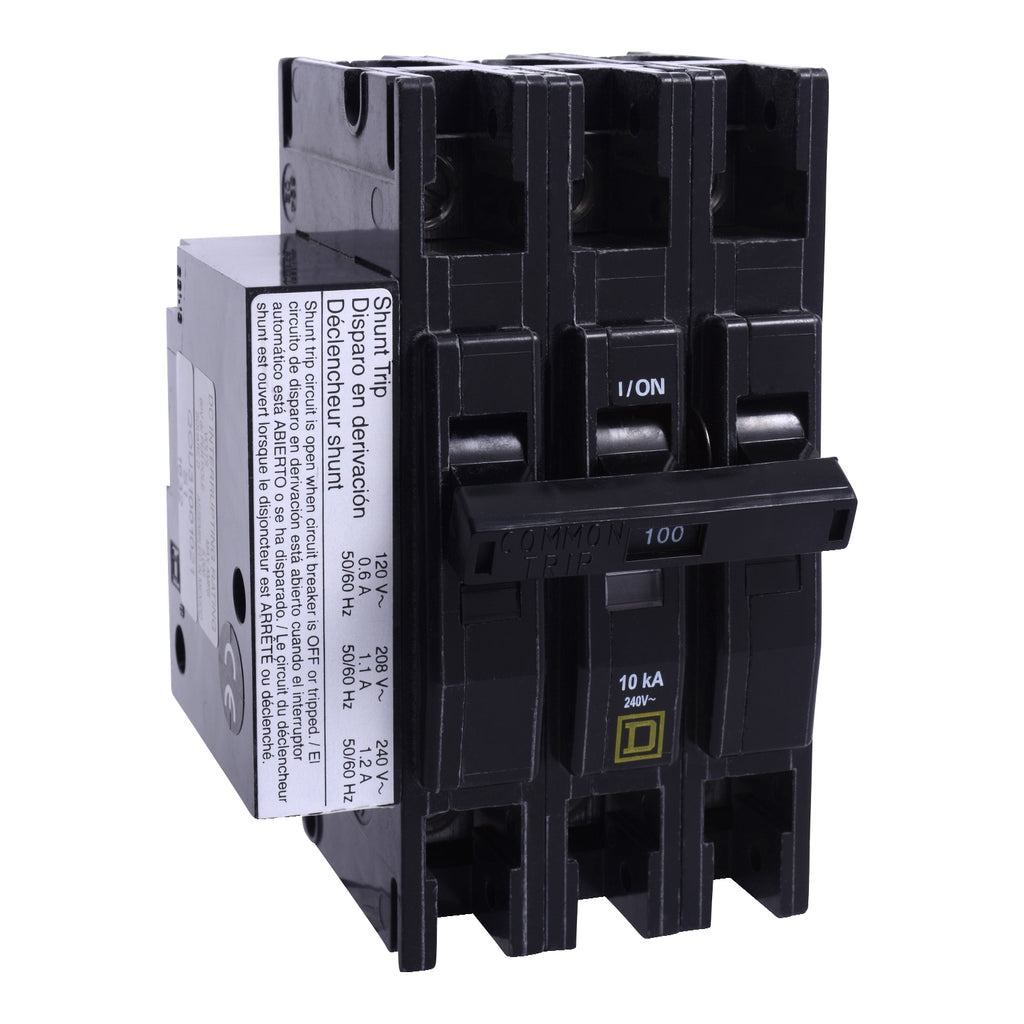

QOU3501021 - Square D 50A 240V 3-Pole Miniature Circuit Breaker Shunt Trip QOU Frame

QOU3501021

QOU3501021 is a Square D 3-pole miniature circuit breaker rated for 50 amps and 240 volts AC with a shunt trip feature.

This unit mount circuit breaker features a 10 kA interrupt rating at 120/240 VAC, thermal magnetic trip unit with long-time and instantaneous protection, and is designed for use in air conditioning, refrigeration, and heating equipment. It has a compact size with dimensions approximately 4.05" length, 3" width, and 2.95" depth, and supports lug-to-lug or universal mounting. Certified to UL, IEC, and CSA standards, it provides reliable circuit protection in a QOU 100A frame size.

Key Specifications
• Amperage: 50A
• Voltage Rating: 240V AC
• Number of Poles: 3
• Interrupt Rating: 10 kA at 120/240 VAC
• Mounting Type: Unit Mount (Bolt-On, Lug to Lug)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Frame Size: QOU 100A
• Shunt Trip Feature Included
• Certifications: UL Listed, IEC, CSA
• Dimensions: 4.05" L x 3" W x 2.95" D
• Wire Size: Minimum 14 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU3501021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Distribution Equipment
• Item Subcategory : Miniature
• Voltage : 240 240
• Functions : Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)

Product Data

• UPC : 785901518655
• GTIN : 00785901518655
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 3 in (76.2 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.41
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
