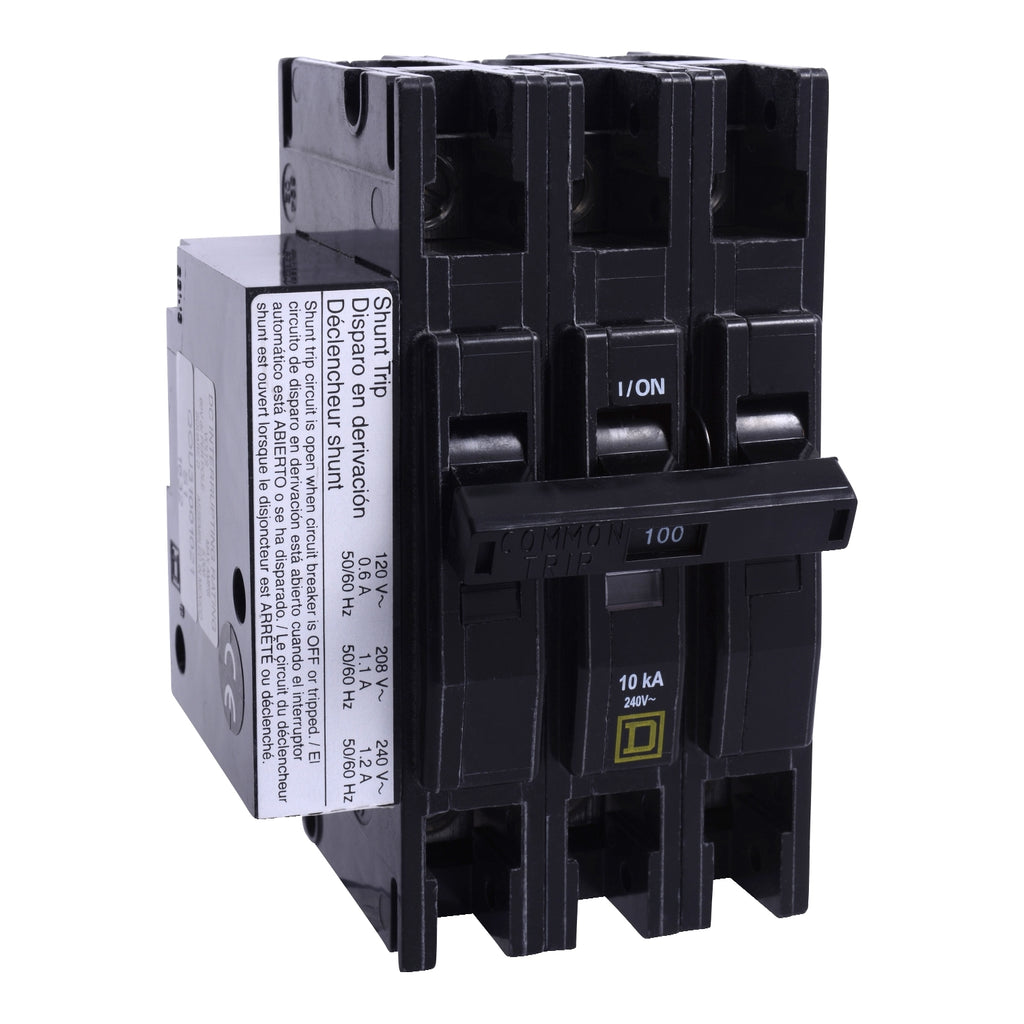

QOU3301042 - Square D 30A 3 Pole 240VAC Miniature Circuit Breaker with Shunt Trip 10kA Interrupt Rating

QOU3301042

QOU3301042 is a Square D 30 Amp, 3 Pole miniature circuit breaker designed for 240 VAC applications with a 10kA interrupt rating and shunt trip feature.This circuit breaker features a thermal/magnetic trip unit, box lug connections for 14 to 2 AWG wire, and DIN rail flush mounting. It is rated for 30 amps at 240 volts AC with a 10,000 amp interrupt capacity. The breaker is UL and CSA certified, suitable for industrial and commercial electrical protection, and operates reliably up to 104 degrees Fahrenheit.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Interrupt Rating: 10 kA
• Trip Unit: Thermal/Magnetic with Shunt Trip
• Mounting Type: DIN Rail Flush
• Connection Type: Box Lug (14 to 2 AWG)
• Dimensions: 2.95 in L x 3 in W x 4.05 in H
• Temperature Rating: 104°F
• Certifications: UL, CSA
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU3301042
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901586623
• GTIN : 00785902000000
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 3 in (76.2 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.41
• Wire Size : AWG 14...AWG 2 aluminium/copper
