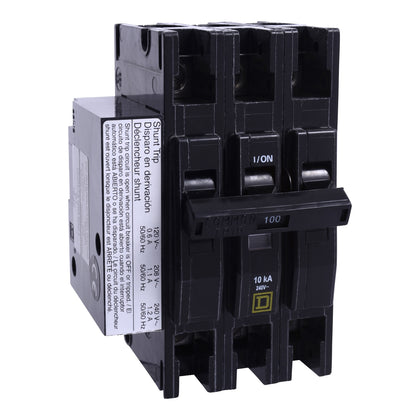

QOU3151021 - Square D 15 Amp 3 Pole 240 VAC Molded Case Circuit Breaker with Shunt Trip

QOU3151021

QOU3151021 is a 15 Amp, 3 Pole molded case circuit breaker from Square D designed for reliable overcurrent protection in distribution equipment.This QOU series breaker features a 240 VAC voltage rating with a 10kA interrupt rating and includes a shunt trip for remote tripping capability. It uses slotted box lugs for line-side connections and supports wire sizes from 14 AWG to 2/0 AWG copper or aluminum. The breaker is UL listed and suitable for AC and DC applications up to 48 VDC.

• Amperage: 15 Amp
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 3
• Interrupt Rating: 10,000 A (10 kA)
• Series/Frame: QOU
• Trip Unit: Thermal Magnetic with Shunt Trip
• Mounting Type: Unit Mount
• Terminal Connection: Slotted Box Lugs
• Wire Size Range: 14 AWG to 2/0 AWG
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU3151021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Distribution Equipment
• Item Subcategory : Miniature
• Voltage : 240 240
• Functions : Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)

Product Data

• UPC : 785901518549
• GTIN : 00785901518549
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 3 in (76.2 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.16
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
