Product Info
- Manufacturer:Schneider Electric
Description
QOU3101200

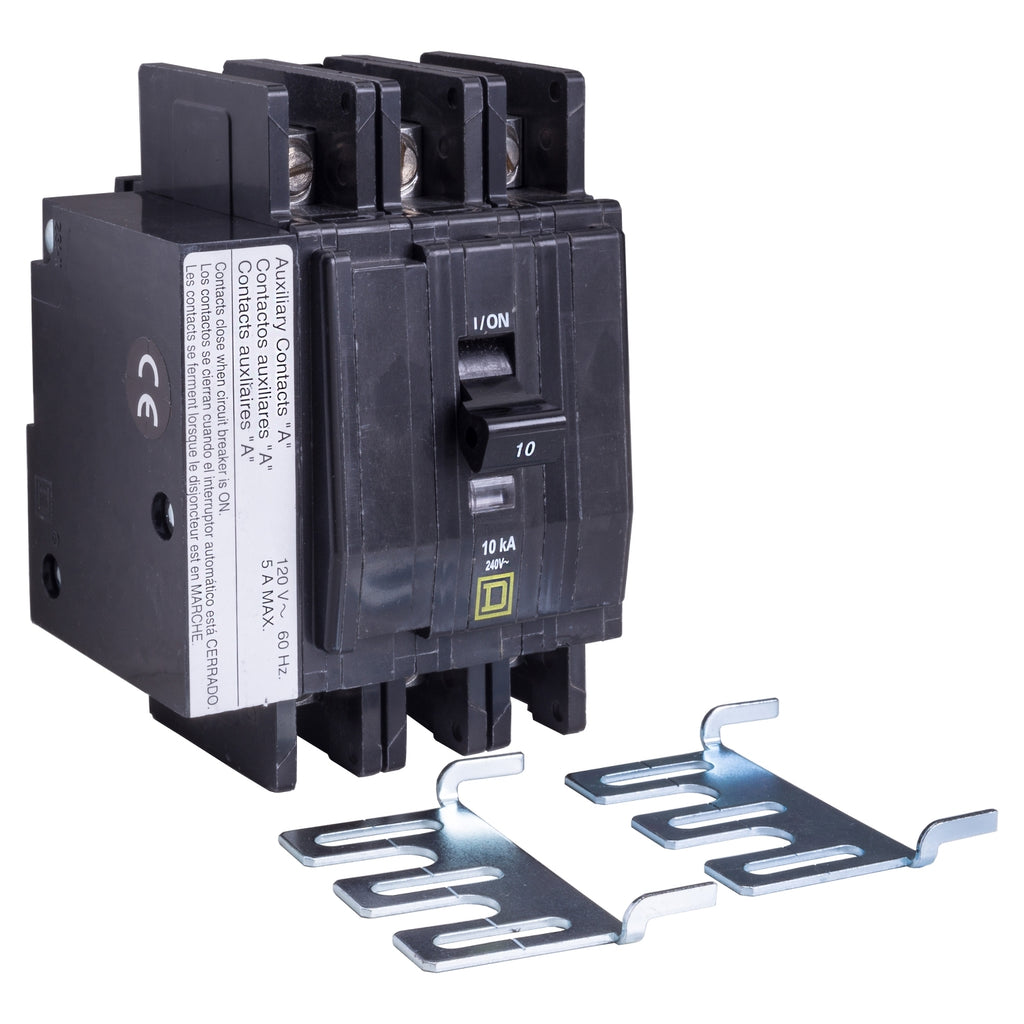

QOU3101200 is a Square D 10 amp, 3-pole miniature circuit breaker designed for 240 VAC applications with a 10kA interrupt rating.This QOU series breaker features a thermal magnetic trip unit and slotted box lug connections on both line and load sides. It is rated for 10,000 amps interrupt capacity at 120/240 volts AC and suitable for use in residential and commercial electrical distribution systems. The breaker includes an auxiliary switch and is designed for unit mounting.
- Amperage: 10 A
- Voltage Rating: 240 VAC
- Number of Poles: 3
- Interrupt Rating: 10 kA at 120/240 VAC
- Mounting Type: Unit Mounted (lugs on both ends)
- Trip Unit: Thermal Magnetic
- Electrical Connection: Slotted box lugs, line and load side
- Series/Frame: QOU
- Auxiliary Switch: Normally open
- Certifications: UL 489 Listed
Specifications
- Part Number: QOU3101200
- Manufacturer : Schneider Electric
- Brand : Square D
Product Data
- Country of Origin : Mexico
- Dimensions : 4.05 in (102.87 mm) x 3 in (76.2 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
- Weight : 1.75
