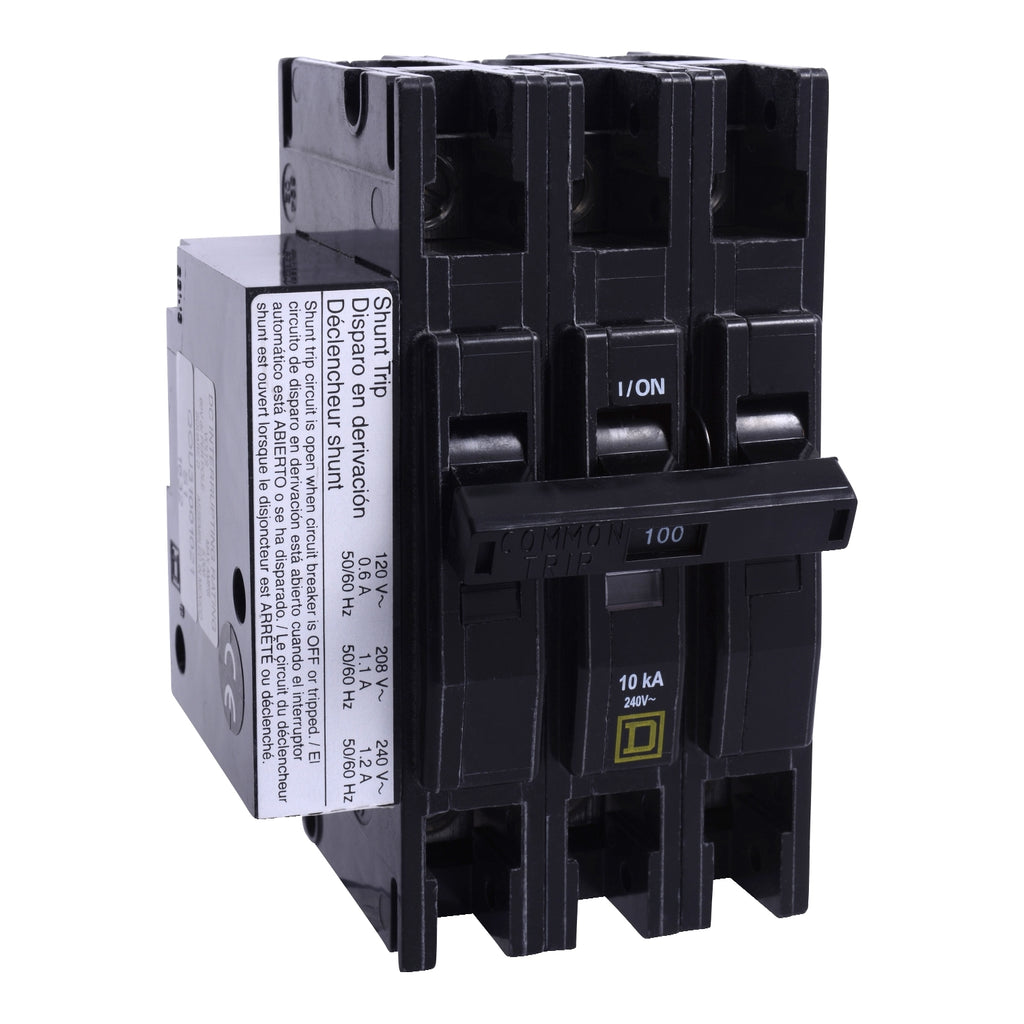

QOU31001021 - Square D 100A 3 Pole 240V Miniature Circuit Breaker Shunt Trip 10kA

QOU31001021

QOU31001021 is a 3 pole, 100 amp miniature circuit breaker from Square D designed for panel mounting with shunt trip functionality.This thermal magnetic molded case breaker supports 120/240 VAC and 60 VDC voltage ratings with a 10kA interrupt rating. It features slotted box lugs accepting 14 AWG to 2/0 AWG copper or aluminum wire, UL and CSA certifications, and a compact size of approximately 4.45" height, 3" width, and 2.95" depth.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 120/240 VAC, 60 VDC
• Number of Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 10kA
• Trip Unit: Shunt Trip
• Wire Size Range: 14 AWG to 2/0 AWG Copper/Aluminum
• Certifications: UL Listed, CSA Approved
• Frame/Series: QOU
• Dimensions: 4.45" H x 3" W x 2.95" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU31001021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Distribution Equipment
• Item Subcategory : Miniature
• Voltage : 240 240
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)

Product Data

• UPC : 785901090342
• GTIN : 00785901090342
• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 3 in (76.2 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.86
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
