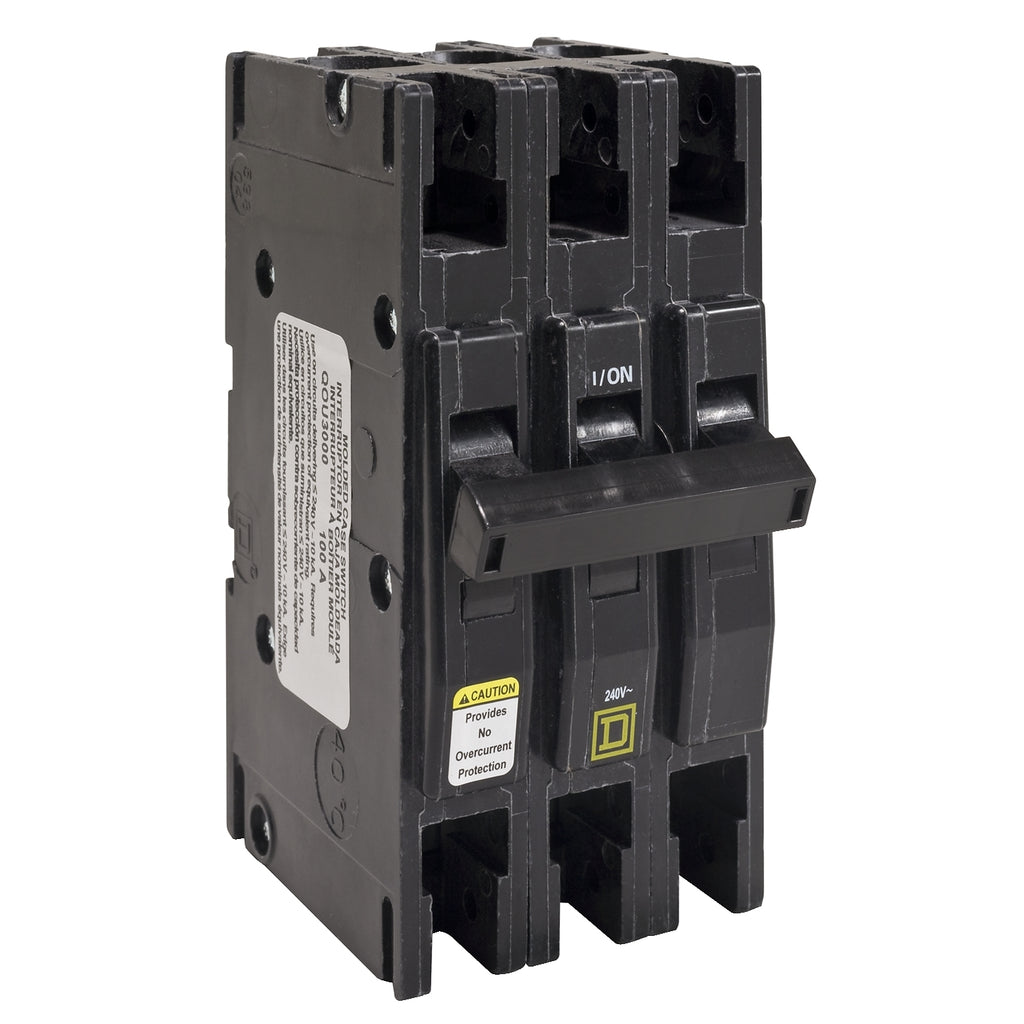

QOU30001 - Square D 125A 240VAC 3 Pole Non-Automatic Molded Case Circuit Breaker QOU Frame

QOU30001

QOU30001 is a 3 pole, 125A, 240VAC non-automatic molded case circuit breaker from the Square D QOU series, designed for reliable power distribution in commercial and industrial applications. This unit features a plug-in mounting style, 10kAIC interrupting rating at 120/240V, and is suitable for use with QO series load centers. The QOU30001 is HACR rated and includes slotted box lugs for both line and load connections, supporting wire gauges from AWG 12 to AWG 2/0 (aluminum or copper).Key Specifications:

• Part Number: QOU30001
• Manufacturer: Square D
• Series/Frame: QOU
• Amperage: 125A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC at 120/240V
• Protection Type: Non-Automatic
• Terminal Connection: Slotted Box Lugs (Line & Load)
• Wire Gauge: AWG 12 to AWG 2/0 (Aluminum/Copper)
• Certifications: UL, CSA, HACR, RoHS, REACh

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU30001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : NA - No Overcurrent Protection
• Protection : Non-Automatic

Product Data

• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.35
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
