QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker

Save $51.60
SKU: QOU260-New
Condition: New
Price:
$40.86 $92.46
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

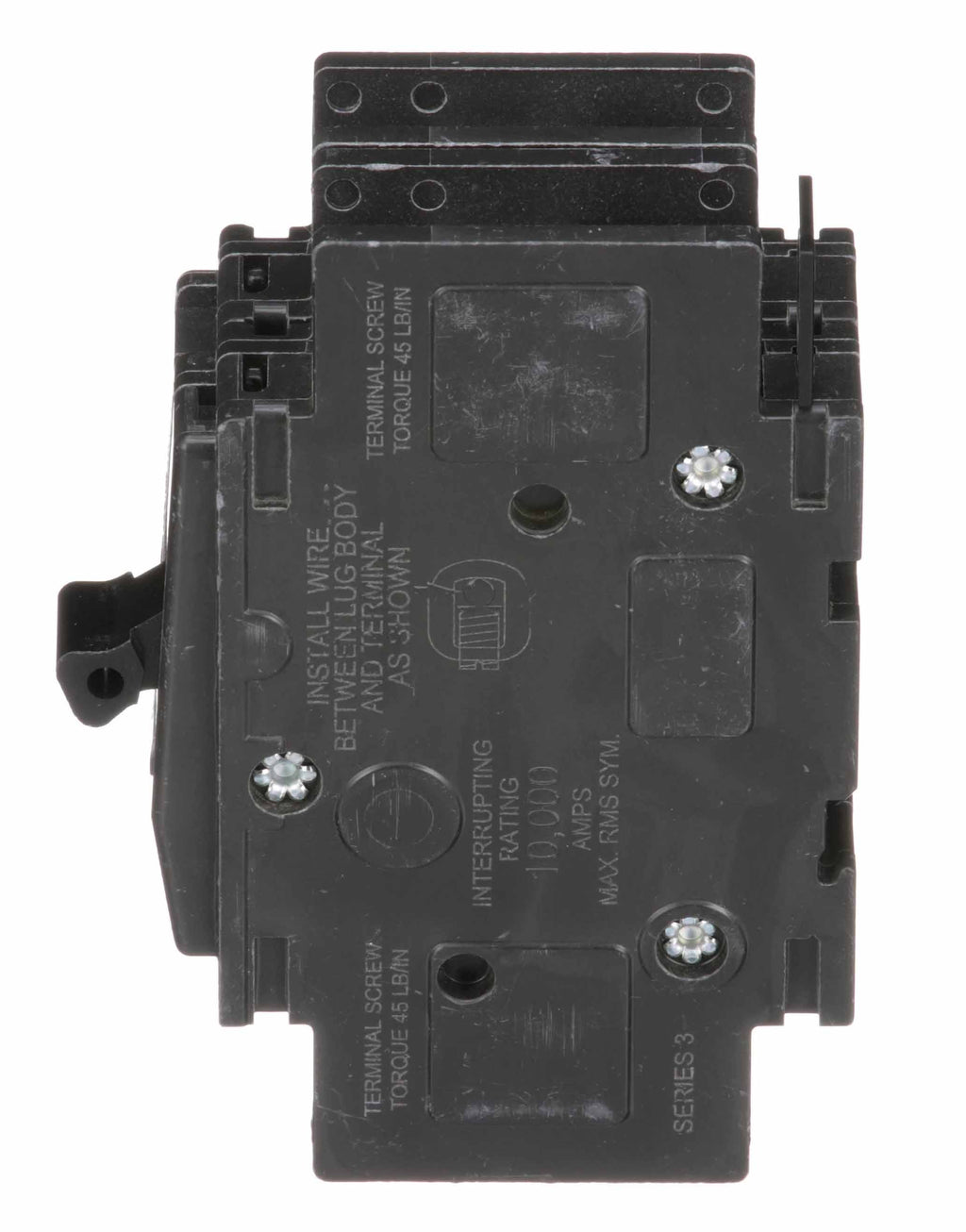

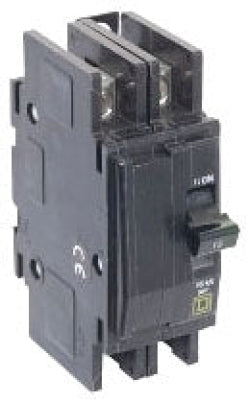

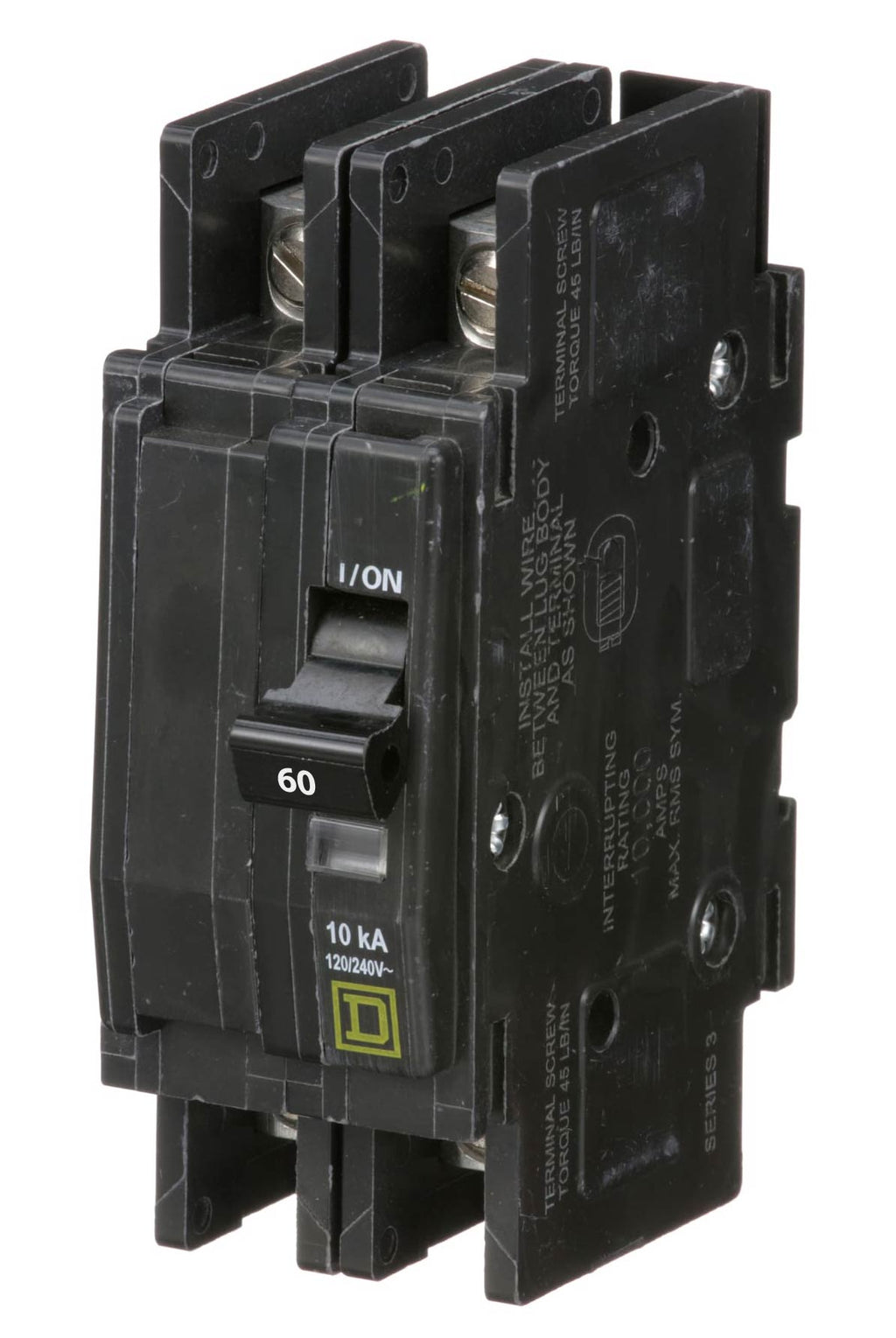

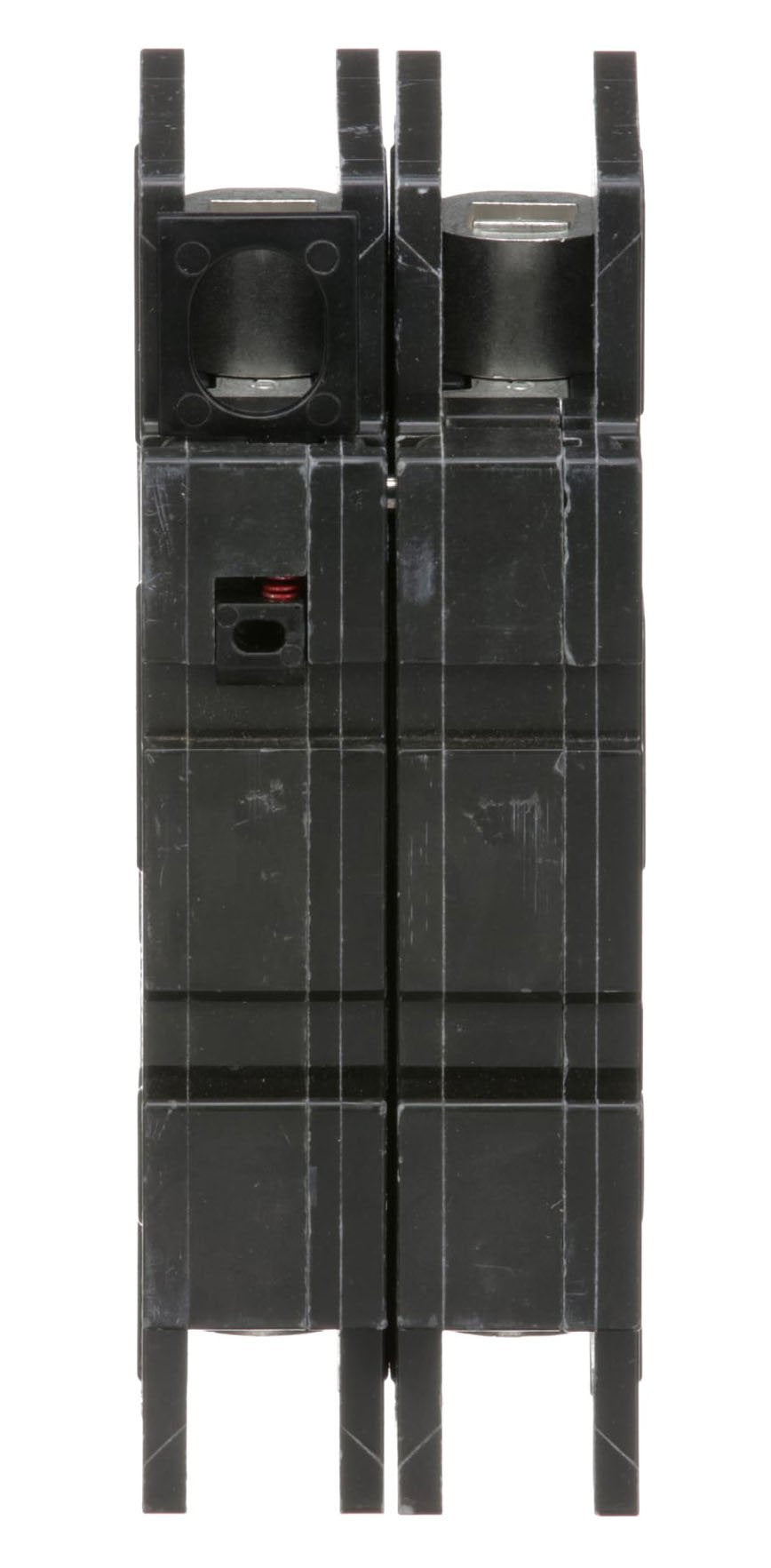

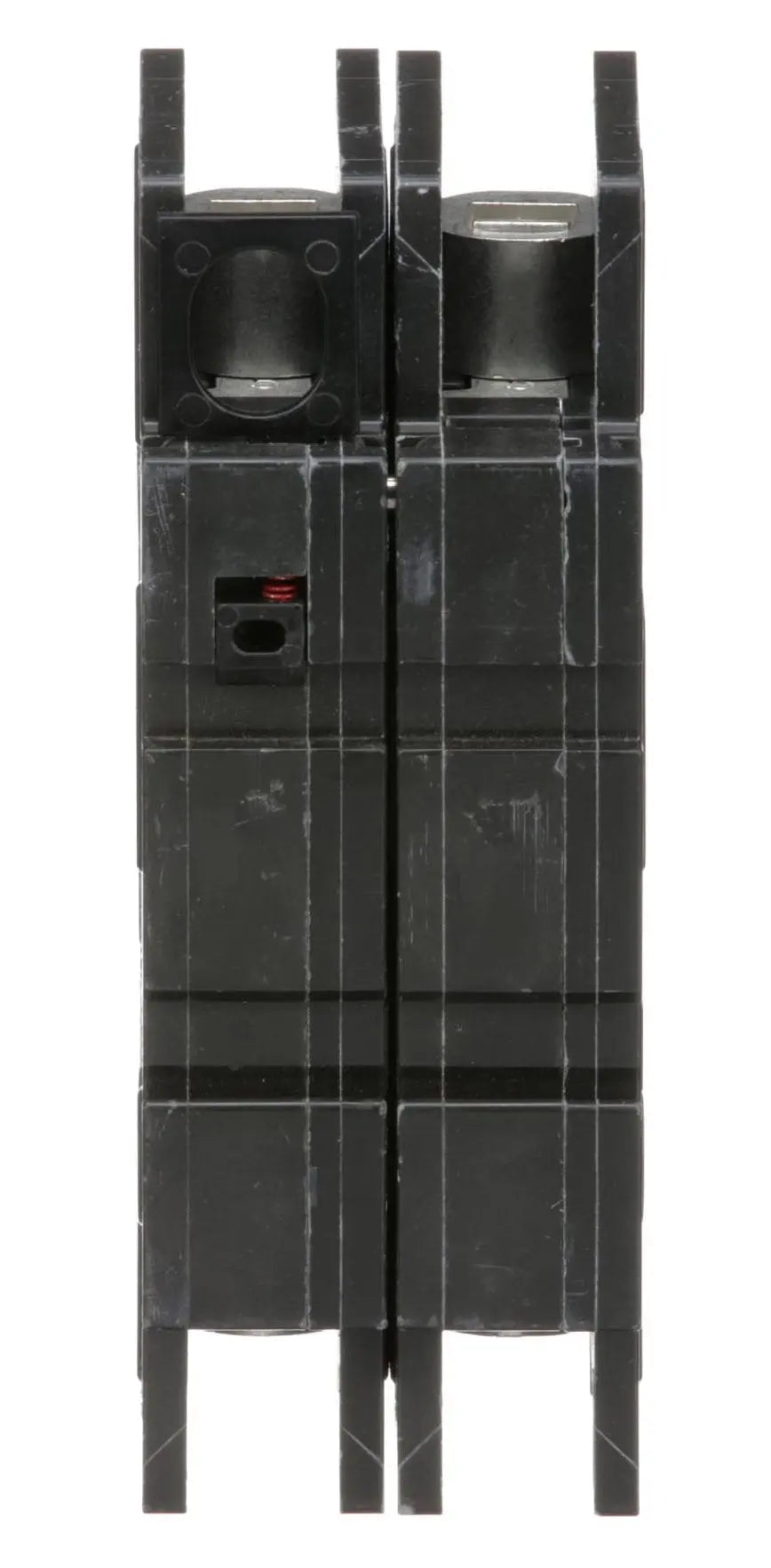

QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 - Square D Bolt-On 60 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply
QOU260 – Square D 60A 240V 2-Pole Miniature Circuit Breaker - Essential Electric Supply

Description

QOU260


QOU260 is a 2 pole, 60 amp, 120/240 Volt unit mount circuit breaker designed for reliable overcurrent protection.The QOU260 circuit breaker features thermal magnetic trip protection with a 10kA interrupting rating at 120/240VAC. It supports mounting types including unit, surface, and DIN rail, and accepts wire sizes from AWG 14 to AWG 2 for both aluminum and copper conductors. This breaker is UL, CSA, and IEC certified and includes long-time and instantaneous trip functions for enhanced protection.
  • Manufacturer: Encompass Supply Chain Solutions Inc
  • Amperage: 60 Amps
  • Voltage: 120/240 VAC, 48 VDC
  • Poles: 2
  • Mounting Type: Unit, Surface, DIN Rail
  • Interrupt Rating: 10kAIC at 120/240 VAC
  • Series/Frame: QOU
  • Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
  • Certifications: UL, CSA, IEC
  • Connection Type: Bolt-On
  • Wire Gauge: AWG 14 to AWG 2 Aluminum/Copper
  • Dimensions (HxWxD): 4.05 x 1.5 x 2.95 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU260
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 120/240
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Unit Mount
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901418801
  • GTIN : 00785901418801
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 0.8 lb
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
