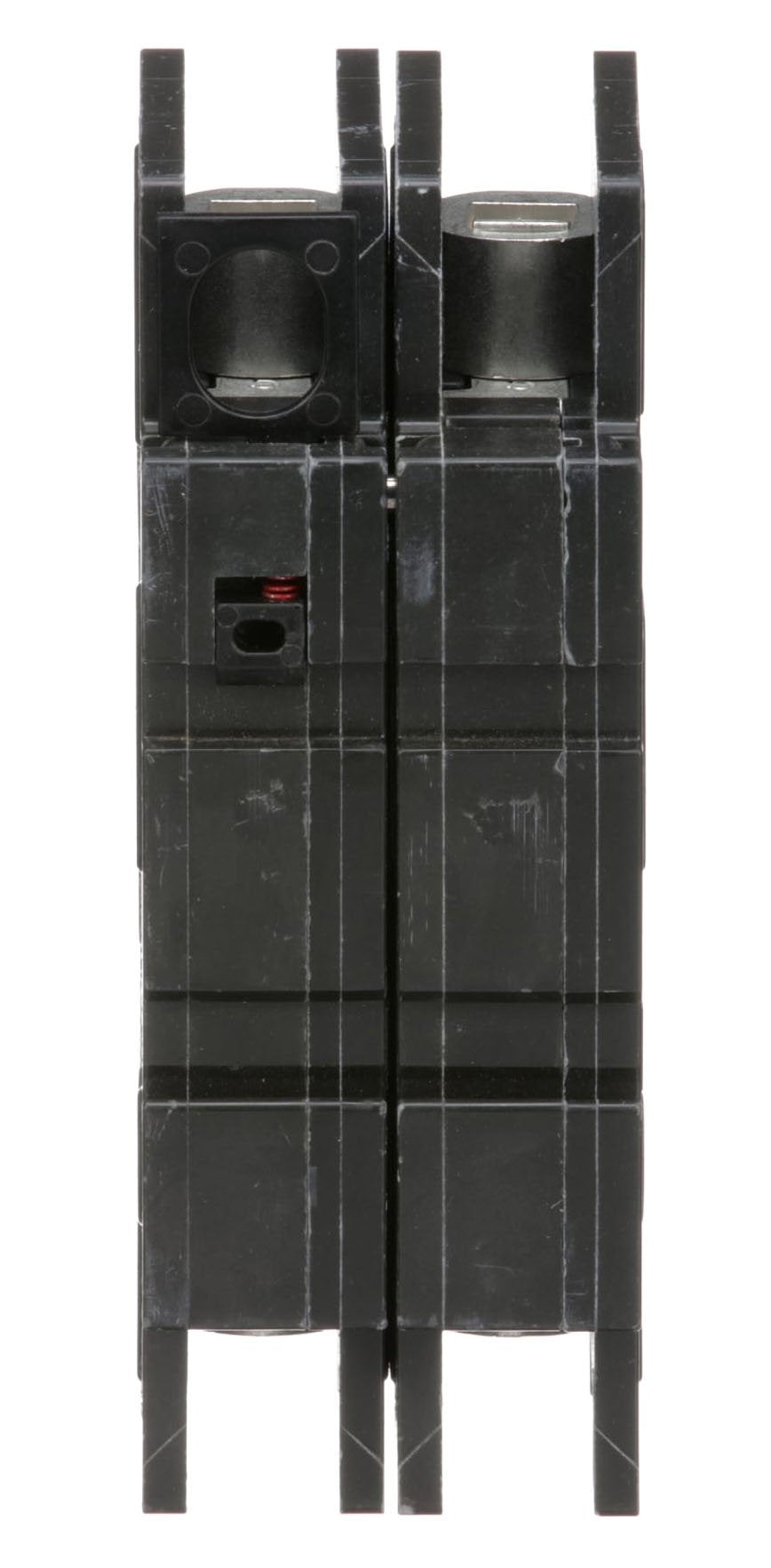

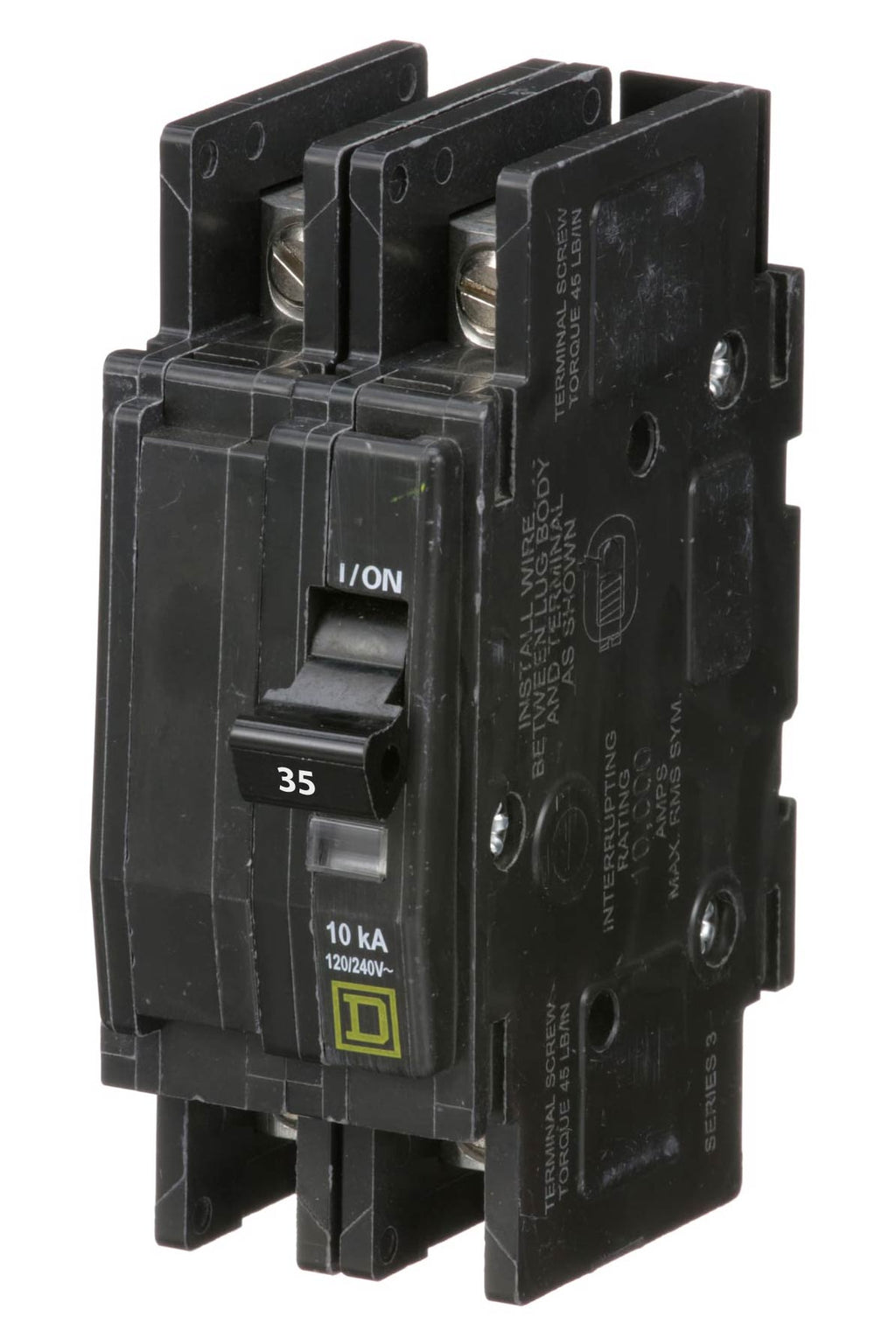

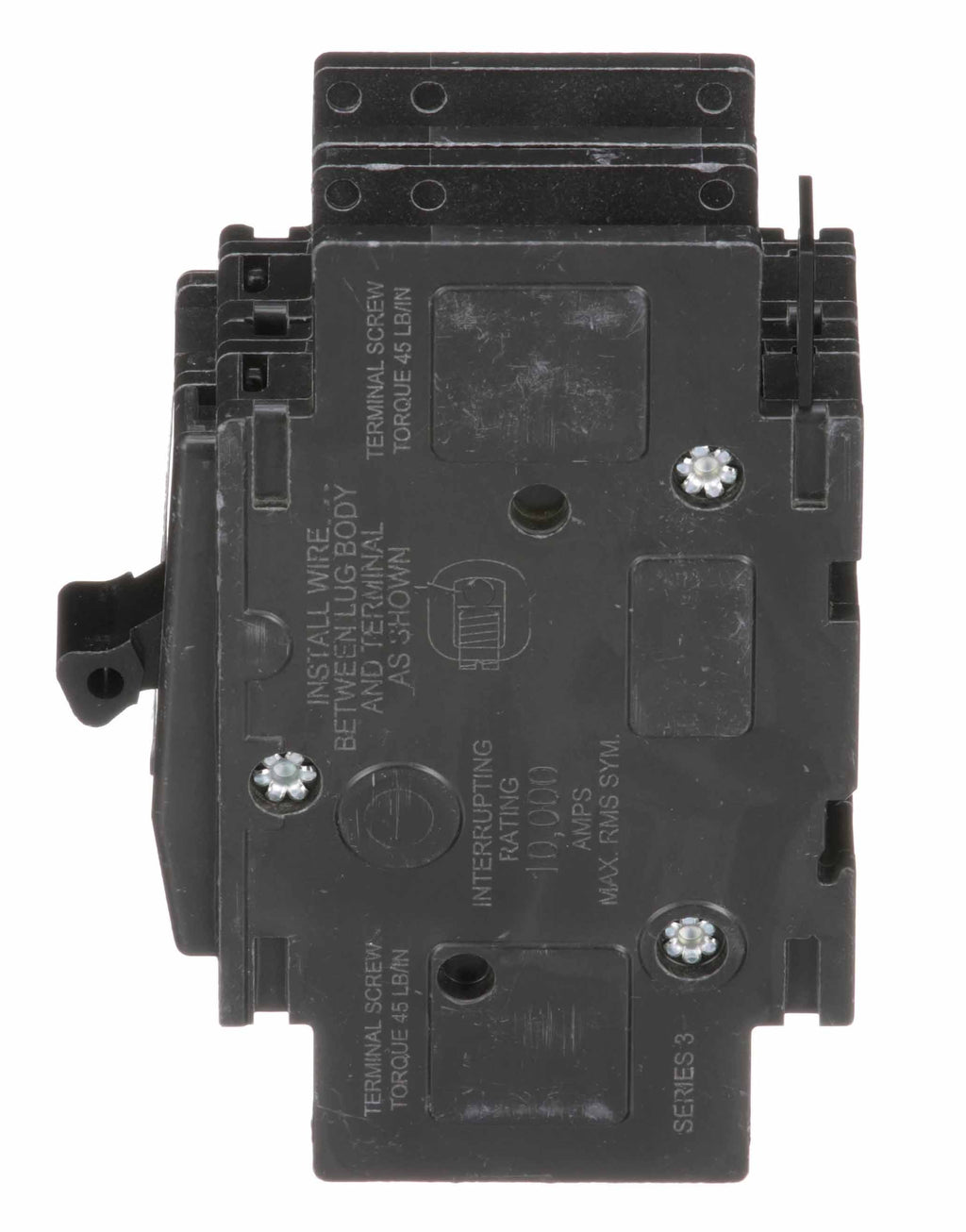

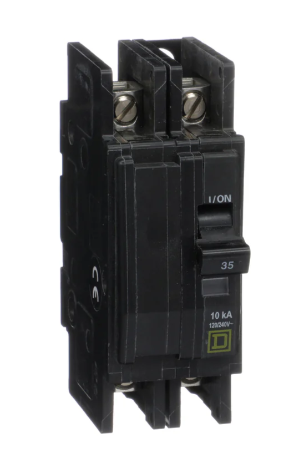

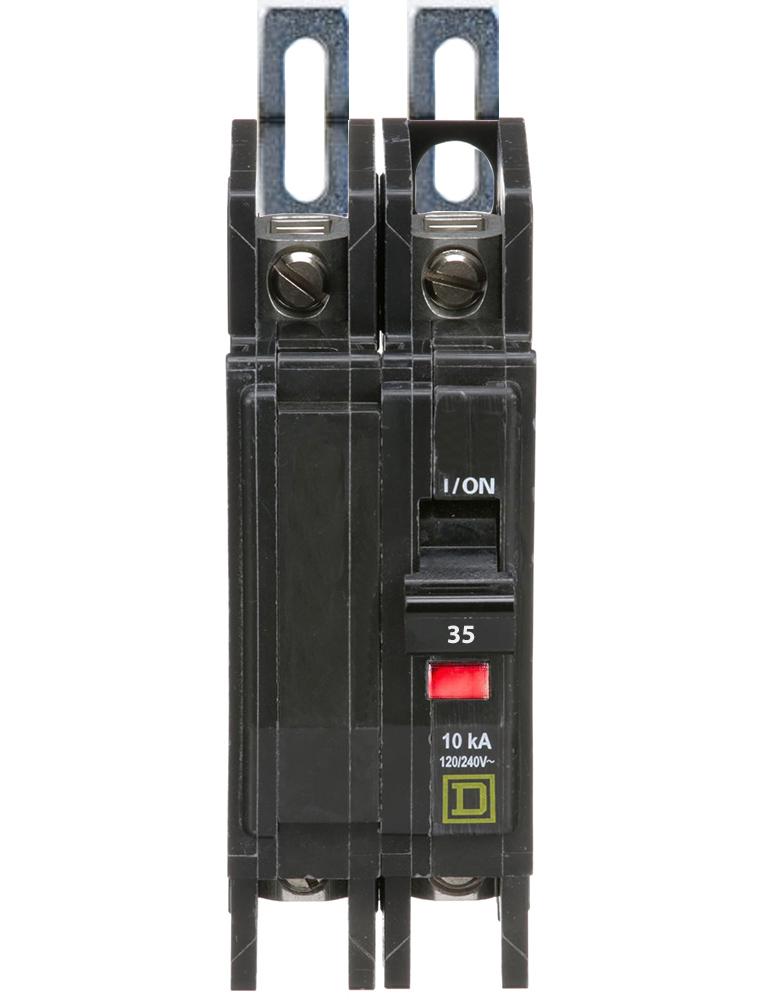

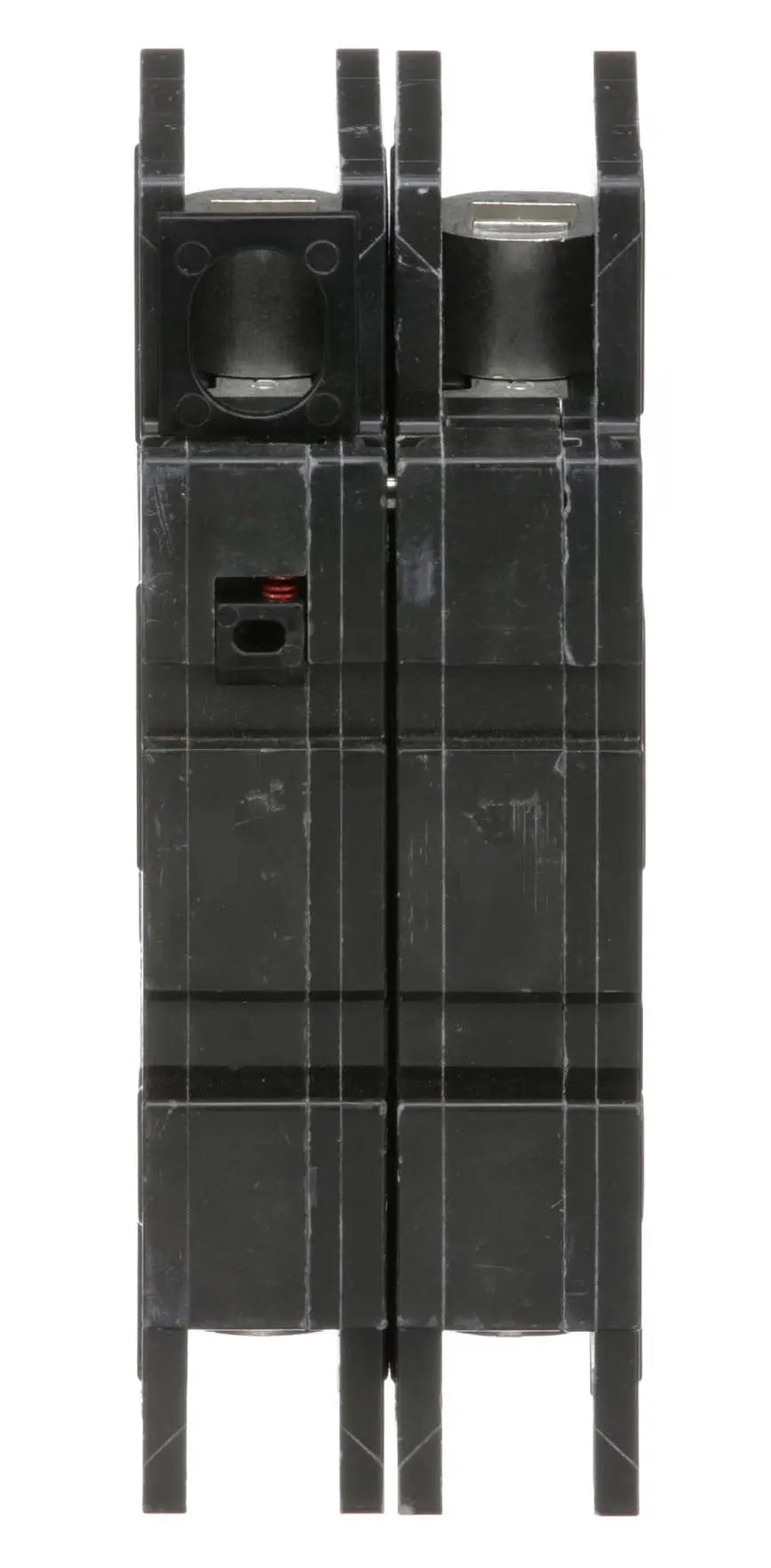

QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating

Save $53.60
SKU: QOU235-New
Condition: New
Price:
$38.86 $92.46
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOU235 - Square D Unit Mount 120/240 VACV 35A 2 pole circuit breaker 10kA@240V - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU235 - Square D Unit Mount 120/240 VACV 35A 2 pole circuit breaker 10kA@240V - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply
QOU235 - Square D 35 Amp 2-Pole Circuit Breaker 120/240V Thermal Magnetic 10kA Interrupt Rating - Essential Electric Supply

Description

QOU235


QOU235 is a Square D 2-pole circuit breaker rated for 35 amps and 120/240 volts AC with a thermal magnetic trip unit and 10 kA interrupt rating.This panel-mounted miniature circuit breaker features lug-in/lug-out connections on both line and load sides, designed for reliable protection in residential and light commercial electrical systems. It complies with California Proposition 65 standards and supports 48 V DC applications with a 5 kA interrupt rating. The breaker is part of the QOU series/frame and provides robust short-circuit protection with a 10,000-amp interrupt capacity at 120/240 VAC.
    Key Specifications
    • Amperage: 35 Amps
    • Voltage: 120/240 VAC, 48 VDC
    • Poles: 2
    • Mounting Type: Panel Mount
    • Interrupt Rating: 10 kA AC, 5 kA DC
    • Trip Unit: Thermal Magnetic
    • Connection Type: Lug In/Lug Out
    • Series/Frame: QOU
    • Standards: California Proposition 65
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU235
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 120/240
  • Amperage : 35
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Unit Mount
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901489153
  • GTIN : 00785901489153
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 0.77
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
