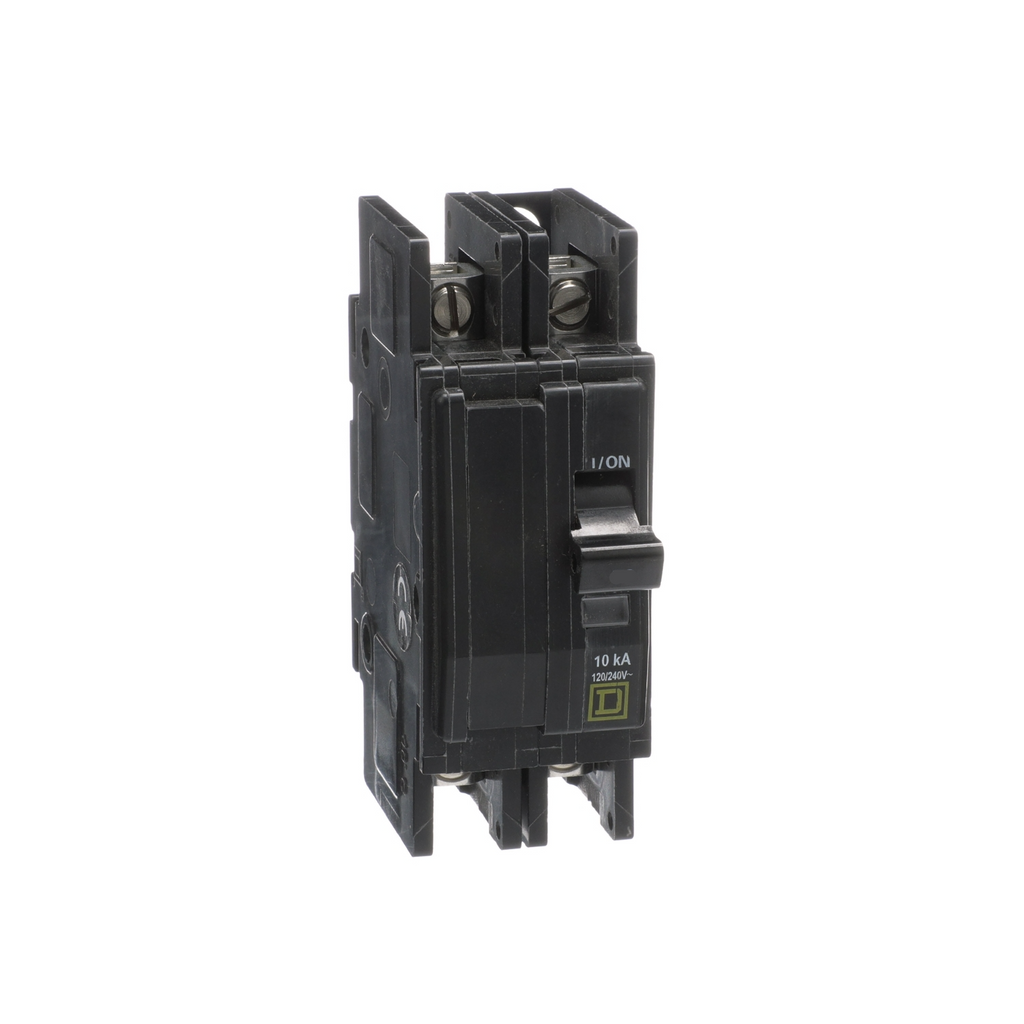

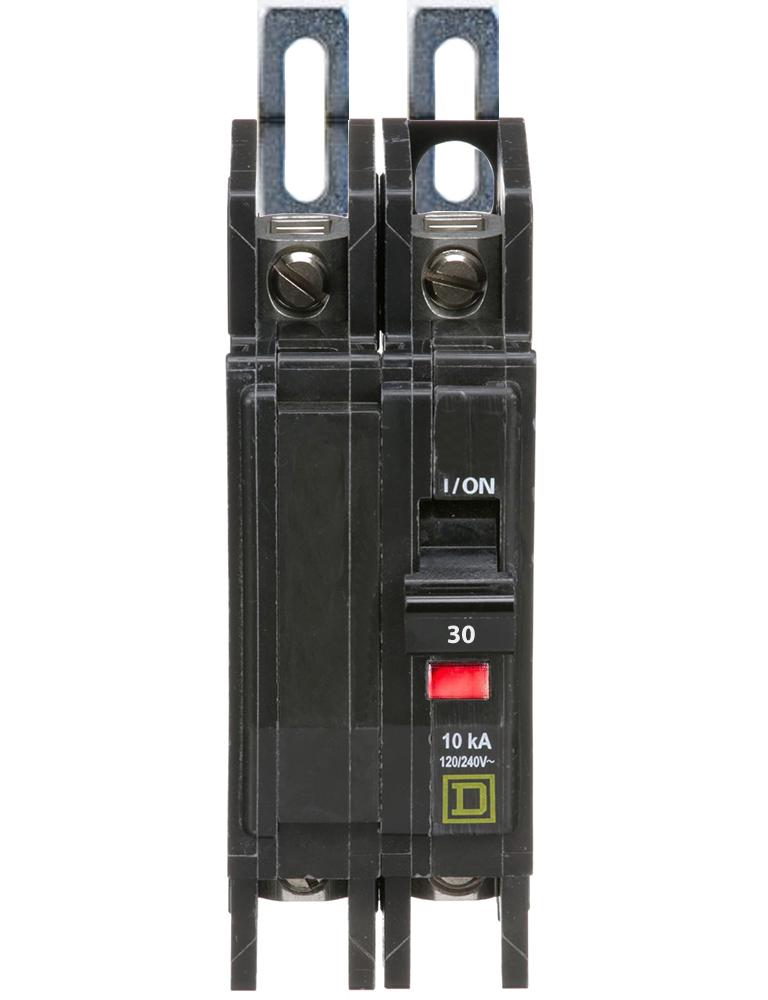

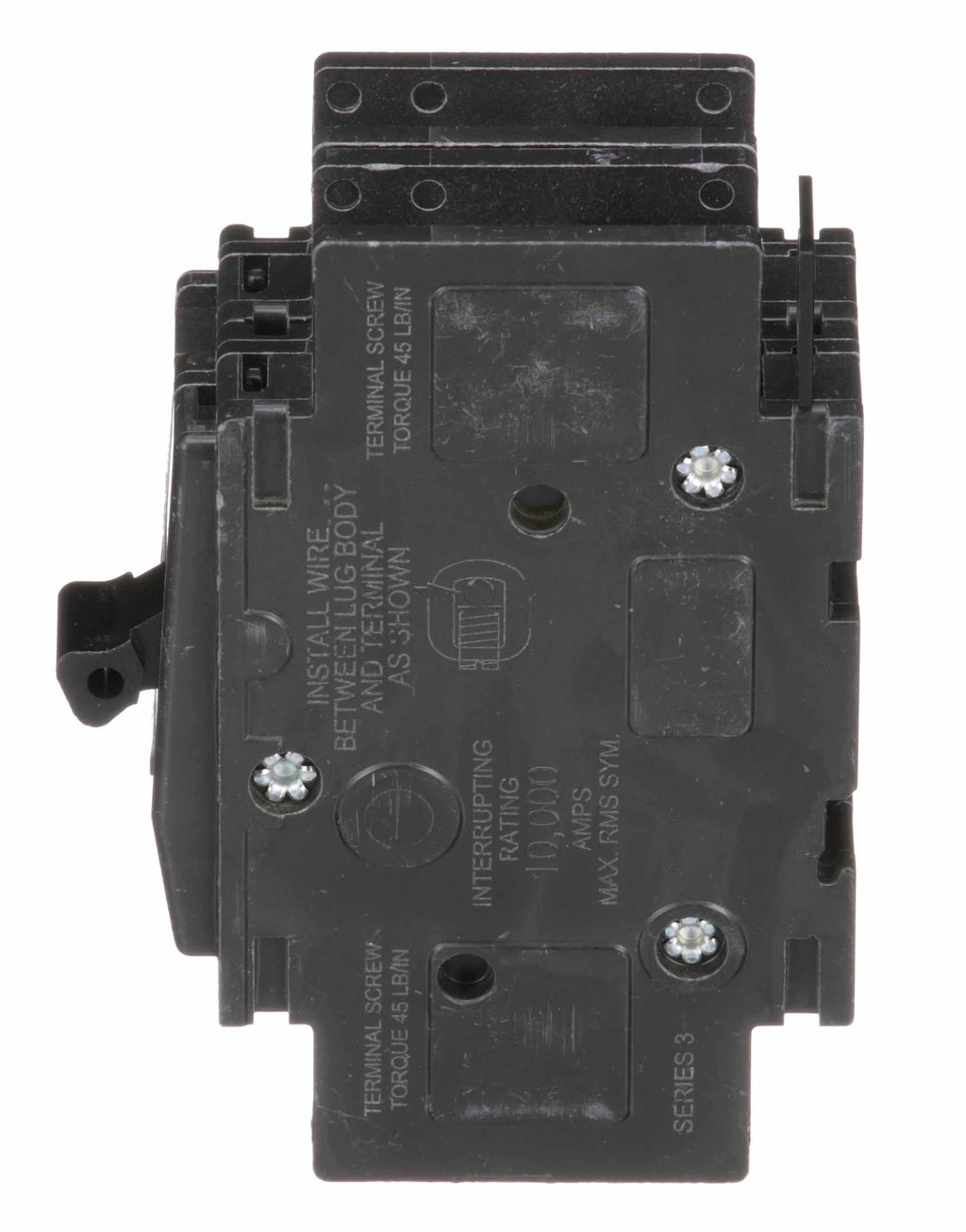

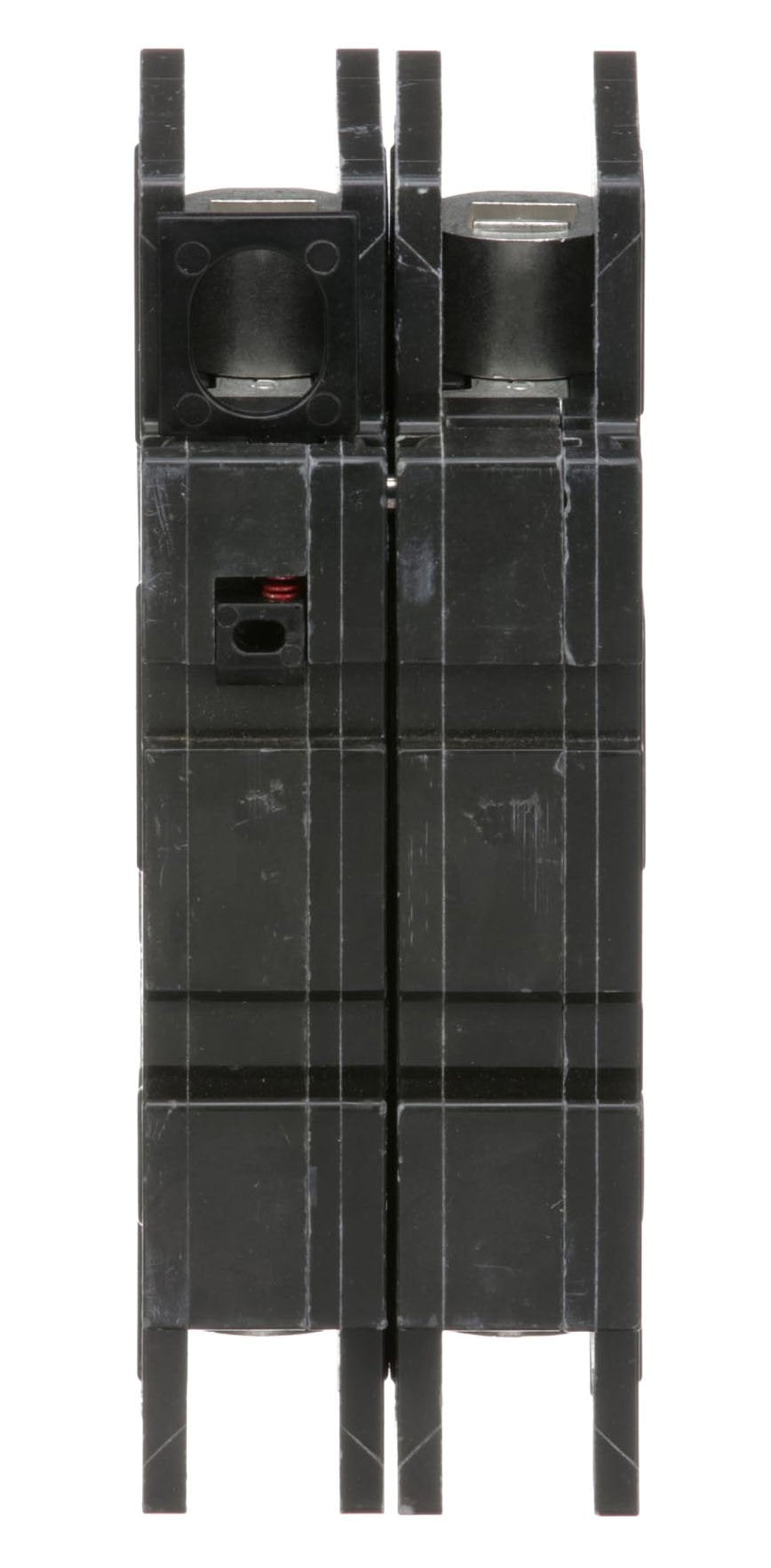

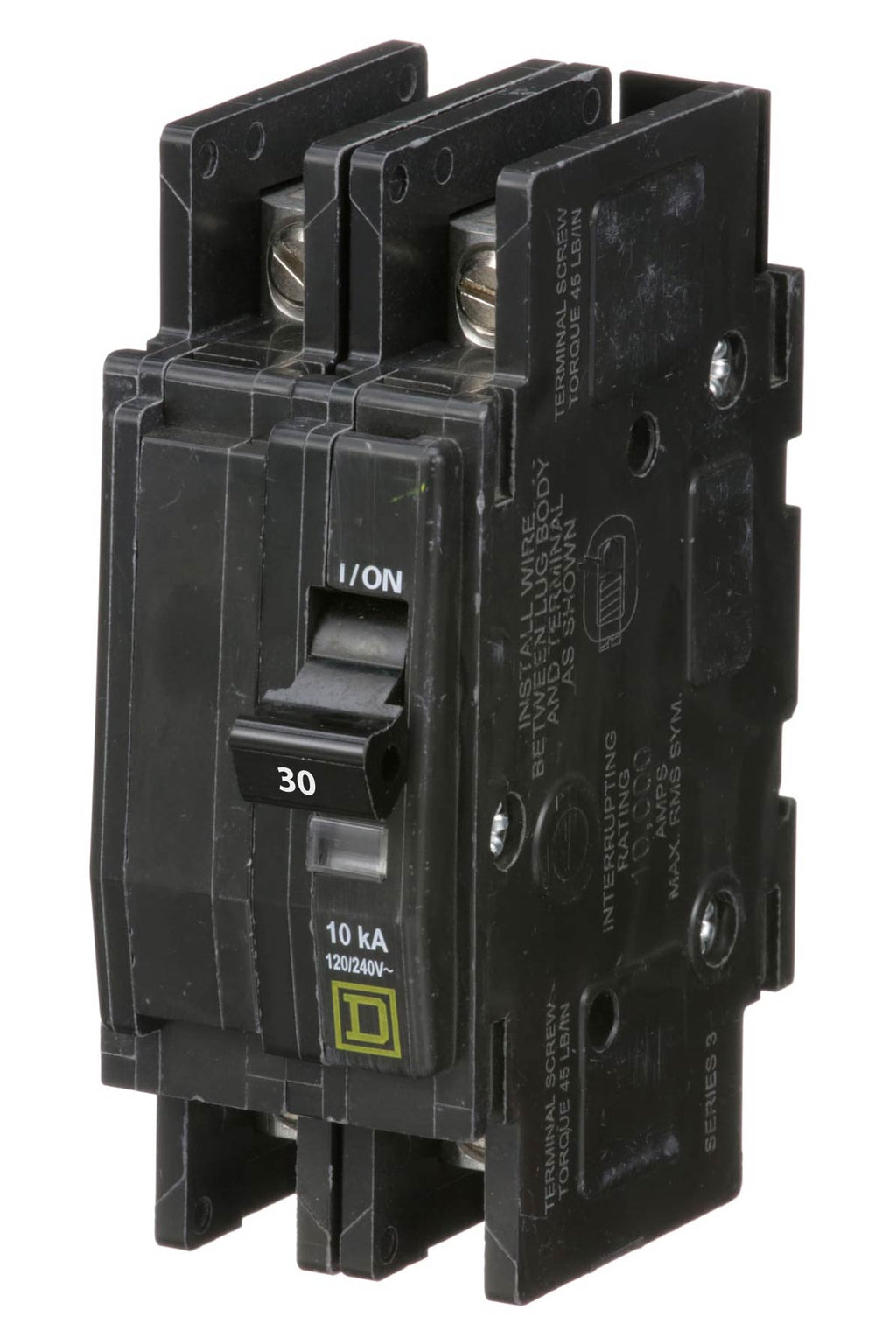

QOU230 - Square D 30 Amp 2 Pole 120/240VAC Thermal Magnetic Circuit Breaker

QOU230

QOU230 is a 30 Amp, 2 Pole thermal magnetic circuit breaker from Square D designed for 120/240VAC and 48VDC applications.This Square D QOU230 circuit breaker features a bolt-on connection type with a 10kA interrupting rating at 120/240VAC. It includes long-time and instantaneous trip functions (LI) and supports wire sizes from AWG 14 to AWG 2 for both aluminum and copper conductors. The breaker is UL, CSA, and IEC certified and is suitable for use with air conditioning, refrigeration, and heating equipment. It mounts on unit, surface, or DIN rail and complies with HACR standards.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Interrupt Rating: 10kAIC at 120/240VAC
• Mounting Type: Unit, Surface, DIN Rail
• Connection Type: Bolt-On
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Wire Gauge: AWG 14 to AWG 2 (Copper/Aluminum)
• Certifications: UL, CSA, IEC
• Frame Type: QOU
• Standards: HACR
• Operating Temperature: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU230
• Manufacturer : Schneider Electric
• Brand : Rheem
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901418719
• GTIN : 00785901418719
• Country of Origin : Mexico
• Dimensions : 1.5 in x 4.05 in x 4.05 in
• Weight : 1
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
