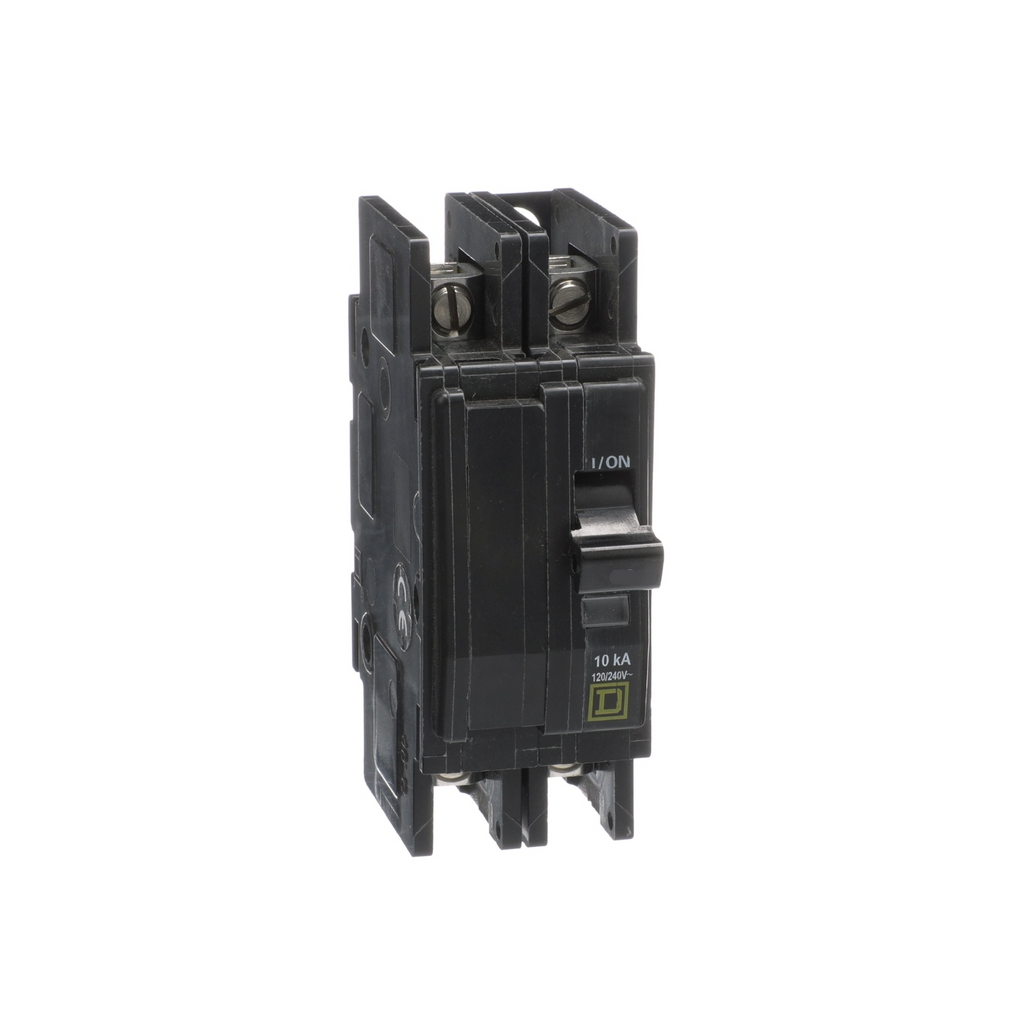

QOU220VH - Square D 20 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker

Save $74.30
SKU: QOU220VH-New
Condition: New
Price:
$129.82 $204.12
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOU220VH - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU220VH - Essential Electric Supply

Description

QOU220VH


QOU220VH is a 2 pole thermal magnetic miniature circuit breaker designed for 120/240V AC applications with a 20 ampere rating.This Square D QOU series breaker features a molded case design suitable for OEM use, providing reliable overcurrent protection with a thermal magnetic trip unit. It supports line/load lug connections and accommodates wire sizes from 14 to 2 AWG copper or aluminum. The breaker has a 10 kA interrupt rating at both 120V and 240V AC, ensuring safe interruption of fault currents. Its compact size and standard mounting make it ideal for residential and light commercial electrical panels.
  • Amperage: 20 Amps
  • Voltage Rating: 120/240 VAC
  • Poles: 2
  • Interrupt Rating: 10 kA at 120V and 240V AC
  • Trip Unit: Thermal Magnetic
  • Wire Size Range: 14 to 2 AWG Copper/Aluminum
  • Terminal Type: Slotted Box Lug Line/Load
  • Mounting Type: Standard OEM
  • Series: QOU
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU220VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 120/240
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901679837
  • GTIN : 00785901579830
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 0.77
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
