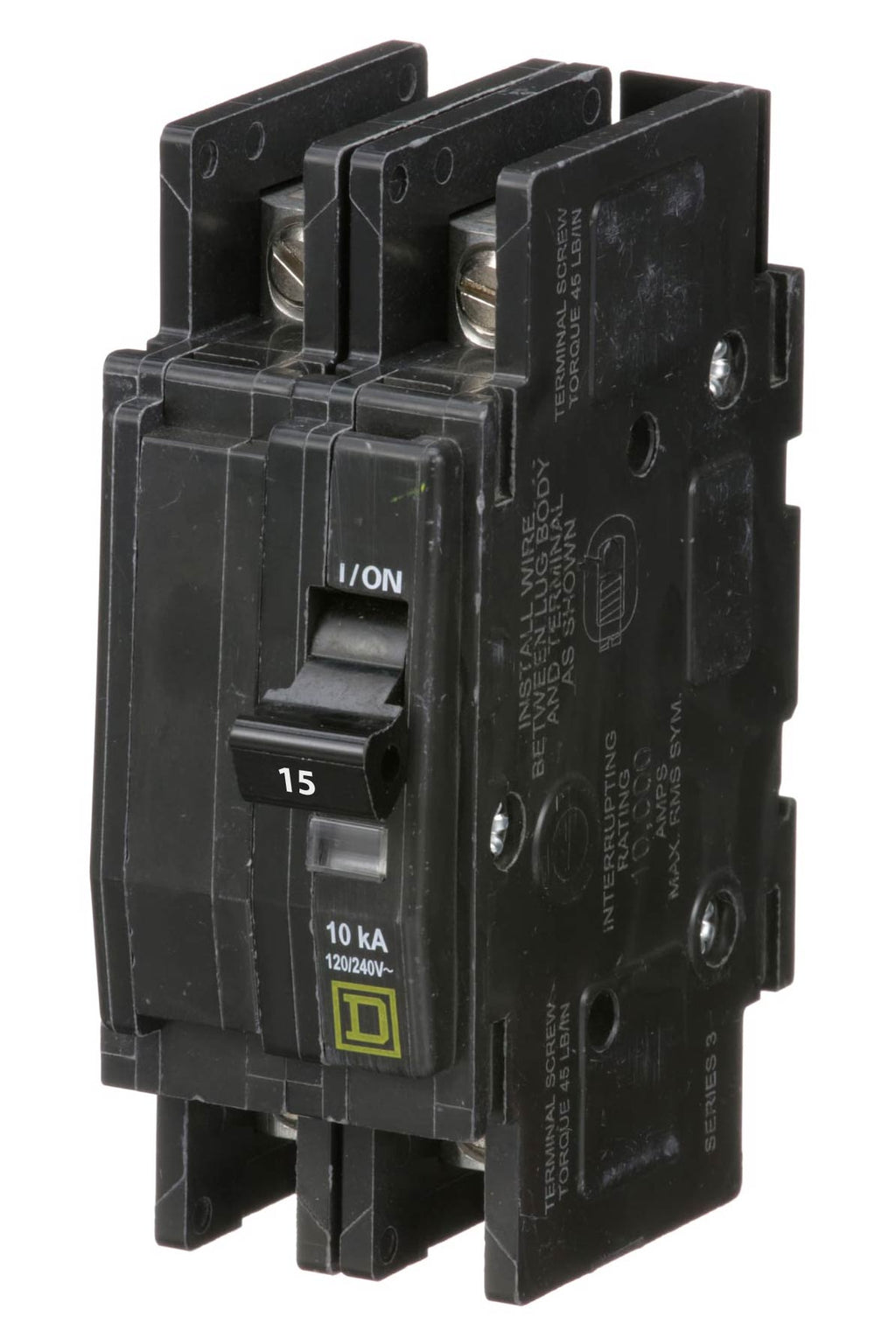

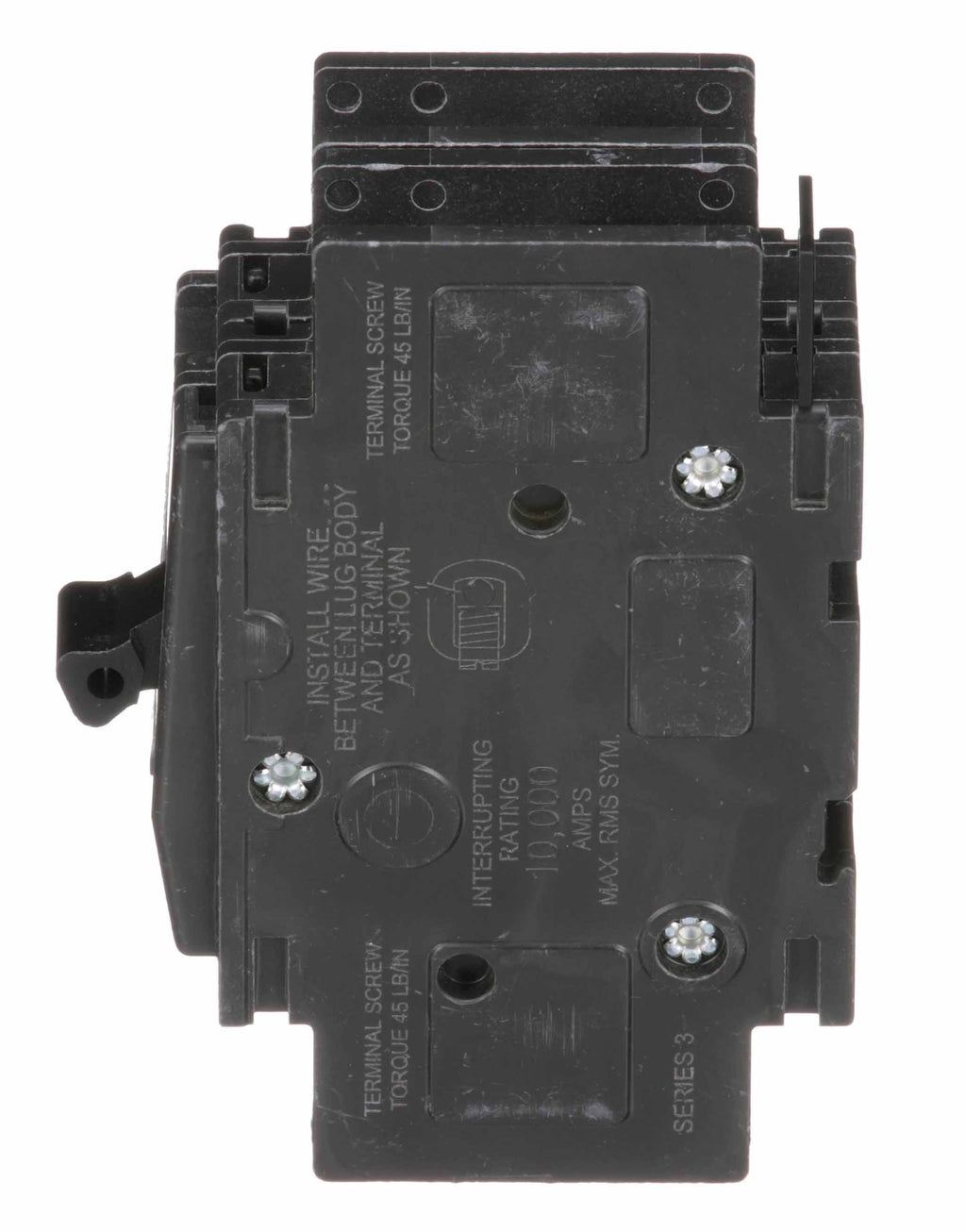

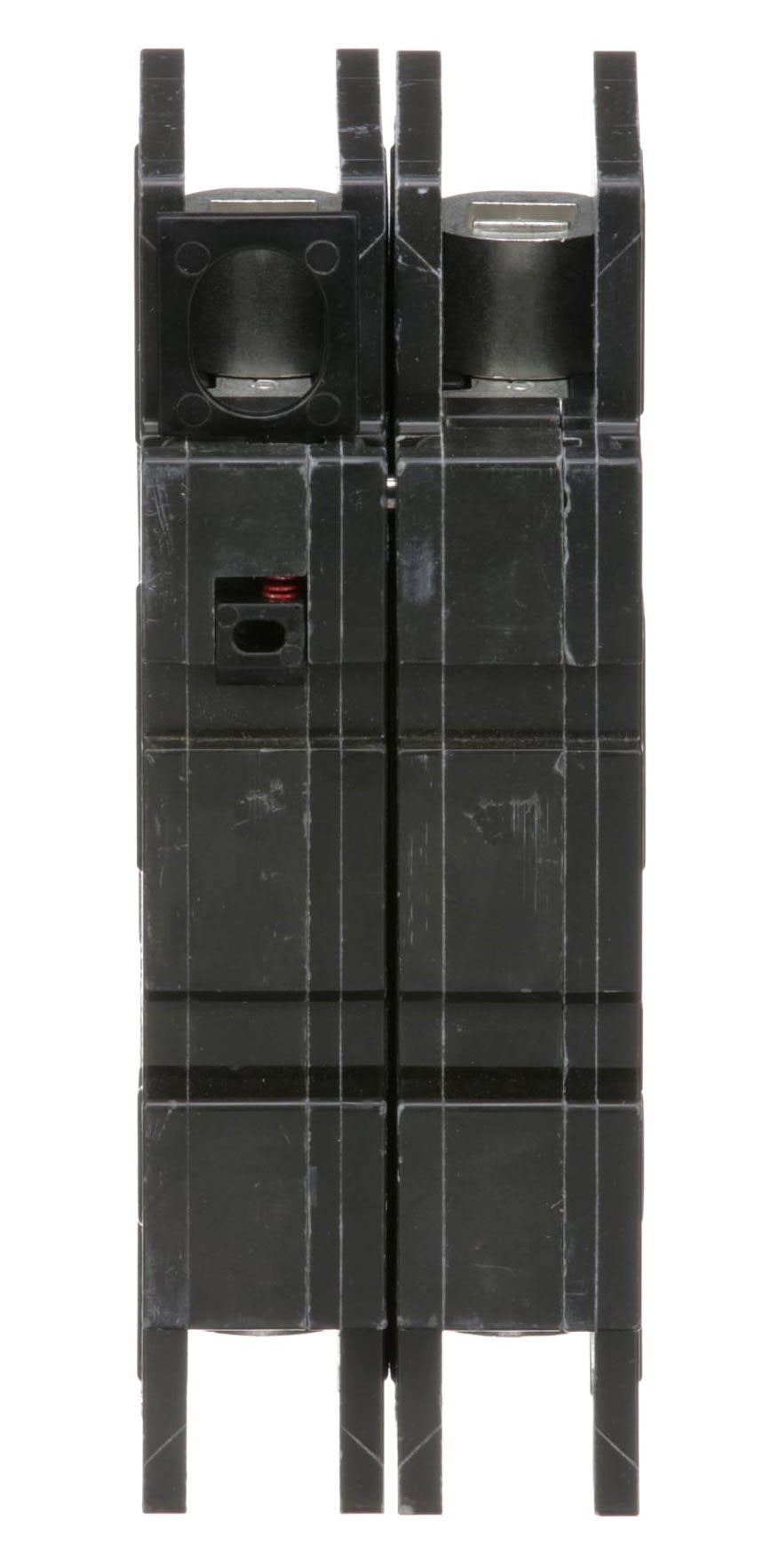

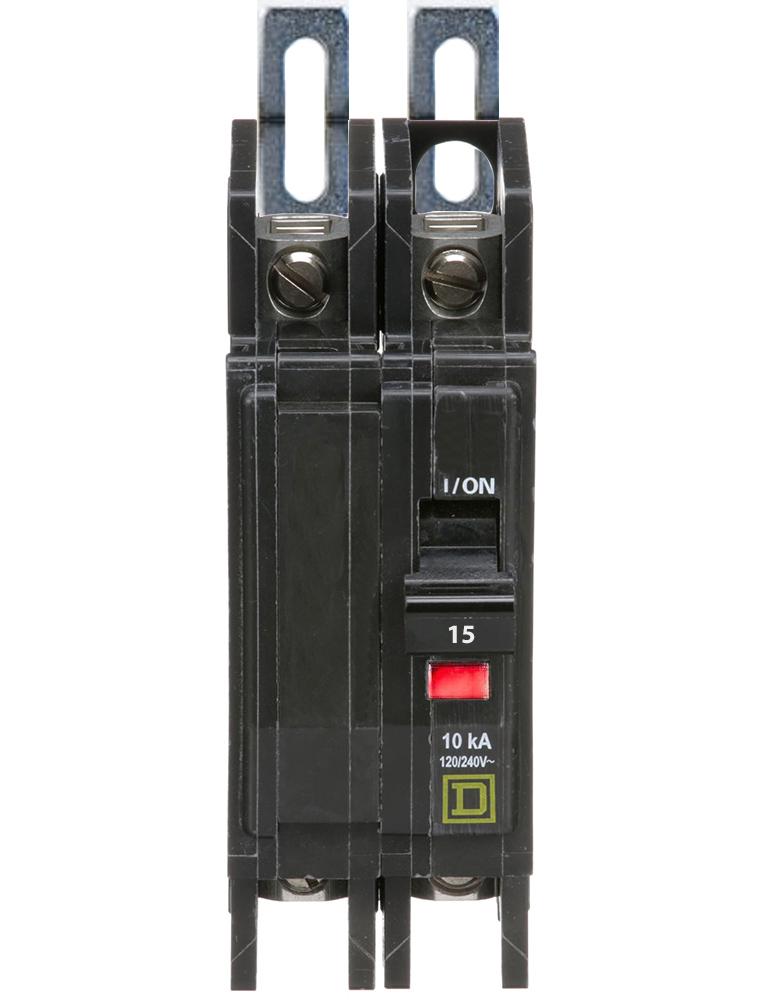

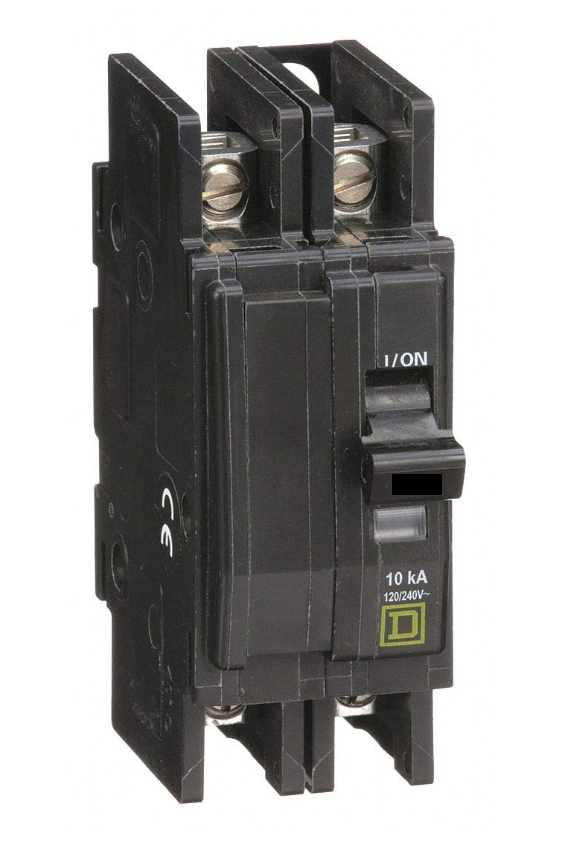

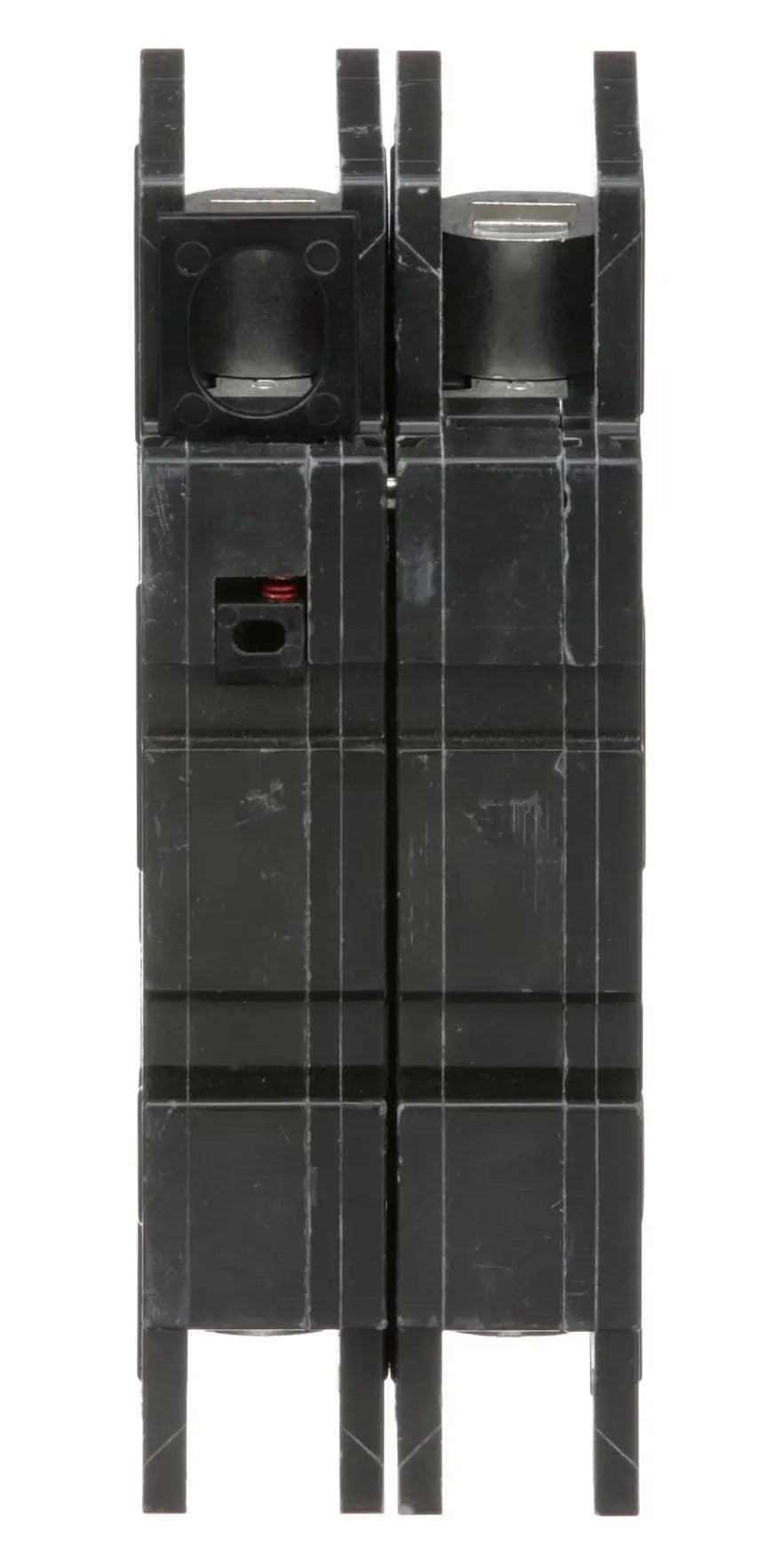

QOU215 - Square D 15A 2 Pole Miniature Circuit Breaker 120/240V 10kA QOU Series

QOU215

QOU215 is a Square D 15 Amp 2 Pole miniature circuit breaker designed for 120/240 Volt applications with a 10kA interrupt rating.This QOU series circuit breaker features thermal magnetic trip units and unit mount installation for reliable overcurrent protection.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 2
• Mounting Type: Unit mount (DIN rail compatible)
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Wire Size: AWG 14 to AWG 2 aluminum/copper
• Terminal Type: Slotted box lugs (line and load side)
• Dimensions: 4.05 in height, 1.5 in width, 2.95 in depth
• Trip Unit: Thermal magnetic
• Certifications: UL Listed, CSA
• Series/Frame: QOU

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU215
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901418658
• GTIN : 00785901418658
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.369
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
