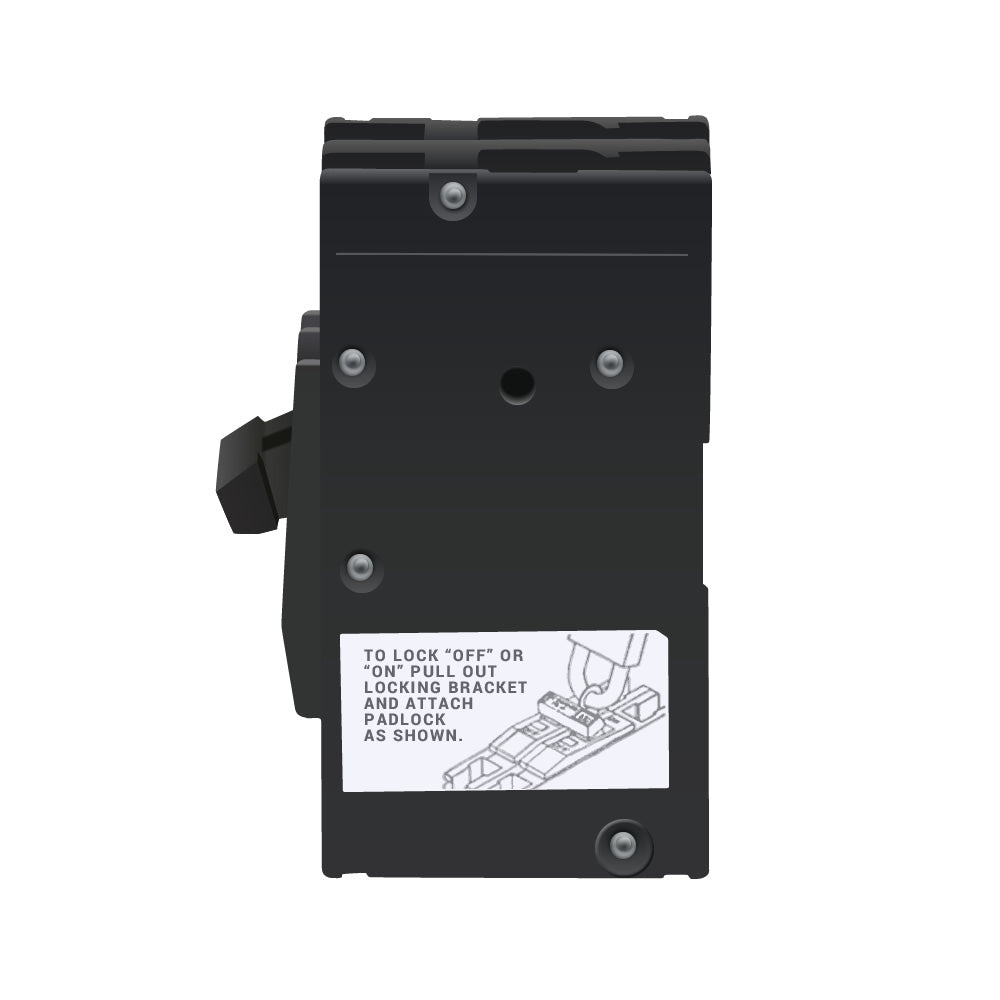

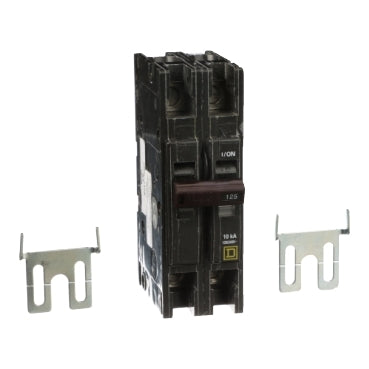

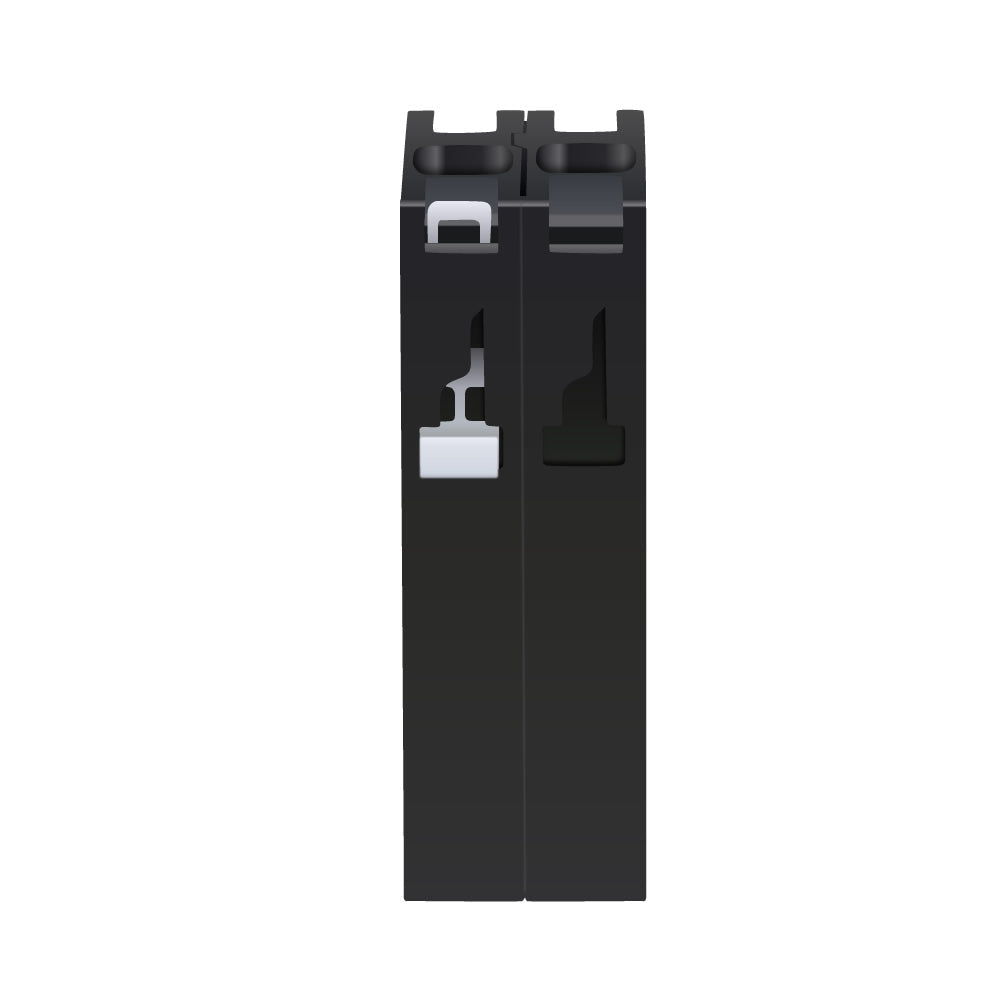

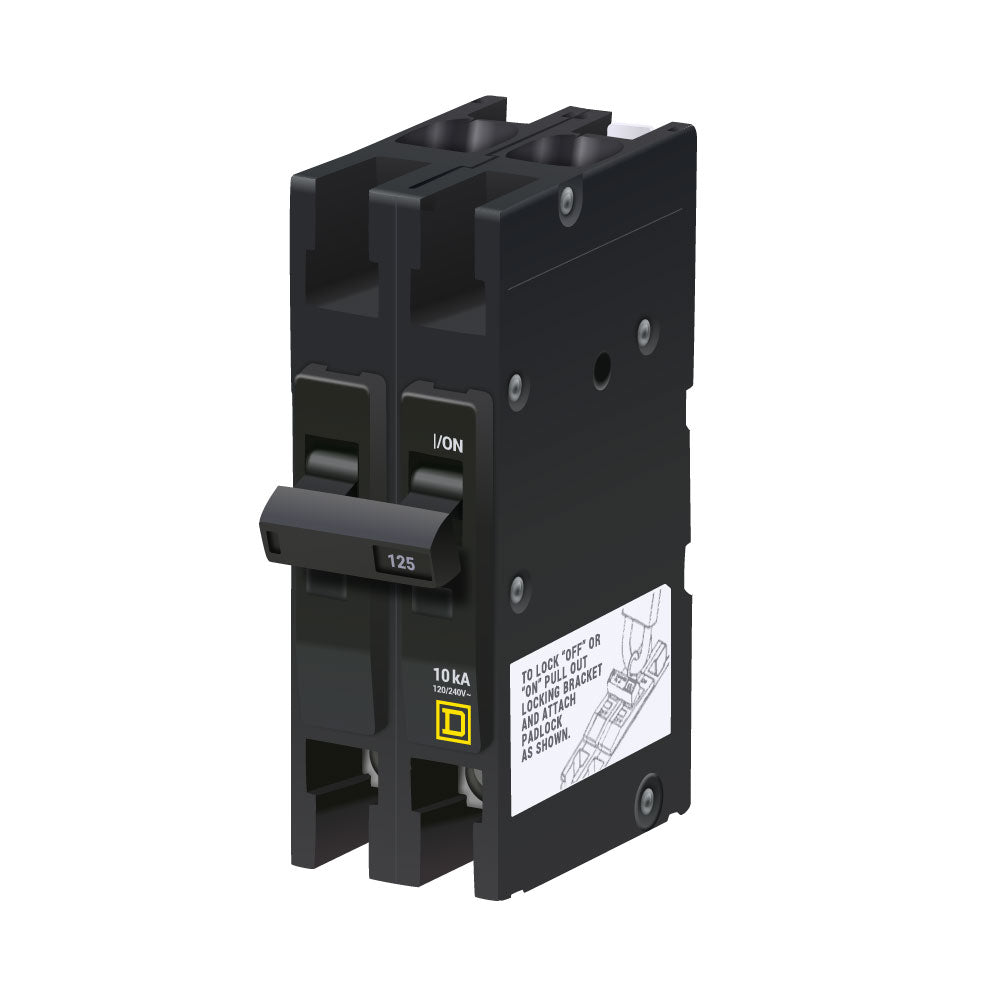

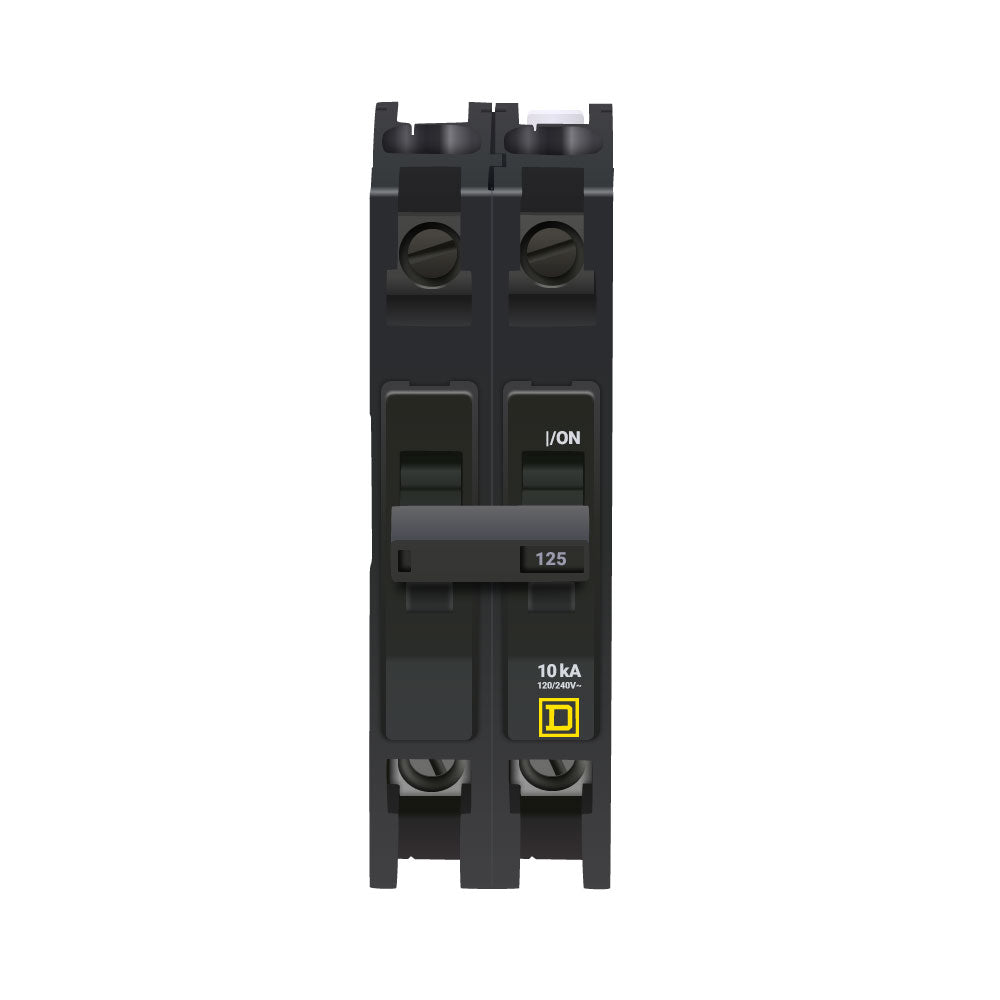

QOU2125 - Square D 125A 2 Pole 120/240V Thermal Magnetic Circuit Breaker DIN Rail Mount

QOU2125

QOU2125 is a Square D 125 Amp, 2 Pole miniature circuit breaker designed for 120/240V AC applications with thermal magnetic trip protection.This circuit breaker features a 10 kA interrupt rating, thermal/magnetic trip unit, and is suitable for single-phase systems. It mounts on DIN rail or flush and uses box lug connections compatible with 12 to 2/0 AWG wire. The breaker operates at 50/60 Hz frequency and is rated for 104 degrees Fahrenheit ambient temperature.

• Amperage: 125 A
• Voltage: 120/240 V AC
• Poles: 2
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic
• Mounting Type: DIN Rail/Flush
• Connection Type: Box Lug
• Wire Size: 12 to 2/0 AWG
• Frequency: 50/60 Hz
• Phase: Single
• Dimensions: 2.95 in L x 1.5 in W x 4.45 in H
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU2125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Slotted Box Lug (Non-Reversible Line and Load)
• Frame Size : 100A/QOU
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901060765
• GTIN : 00785901060765
• Country of Origin : Mexico
• Dimensions : 4.45 in (113.03 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
