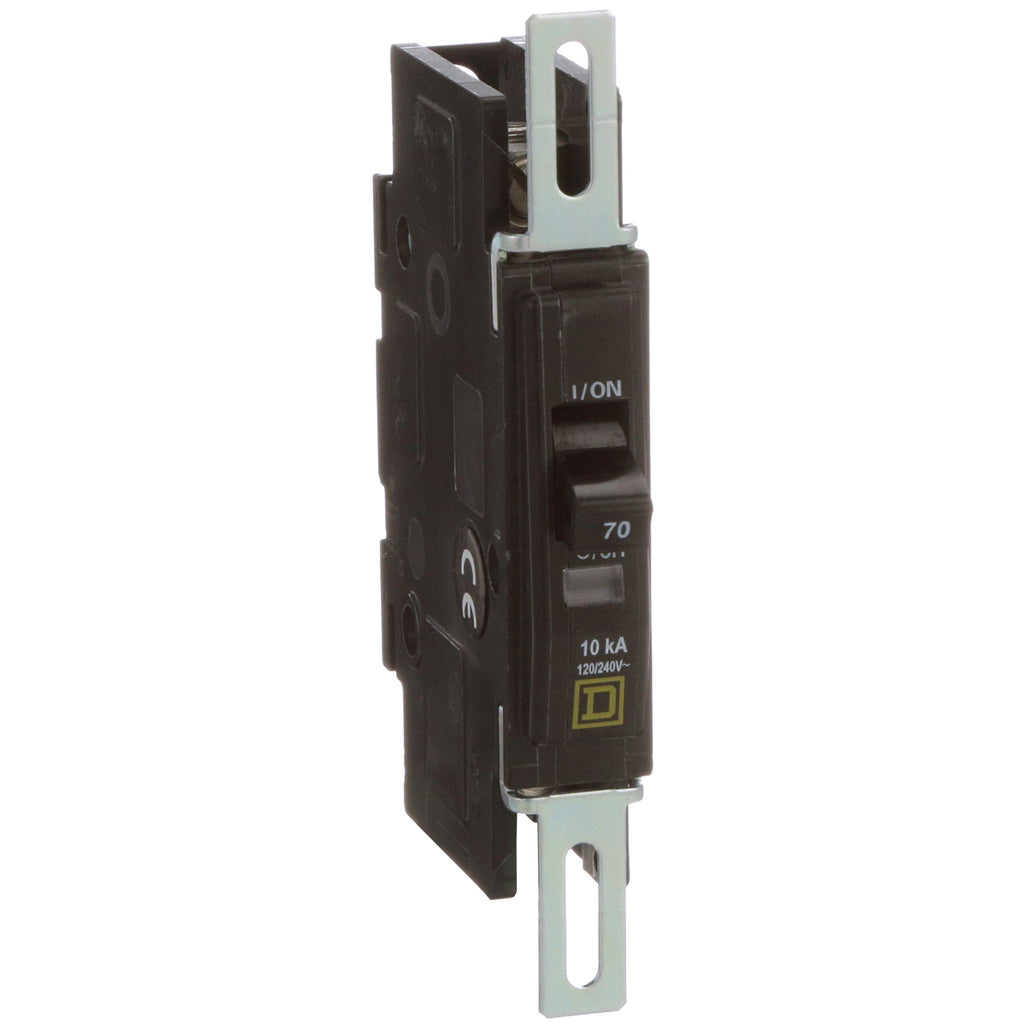

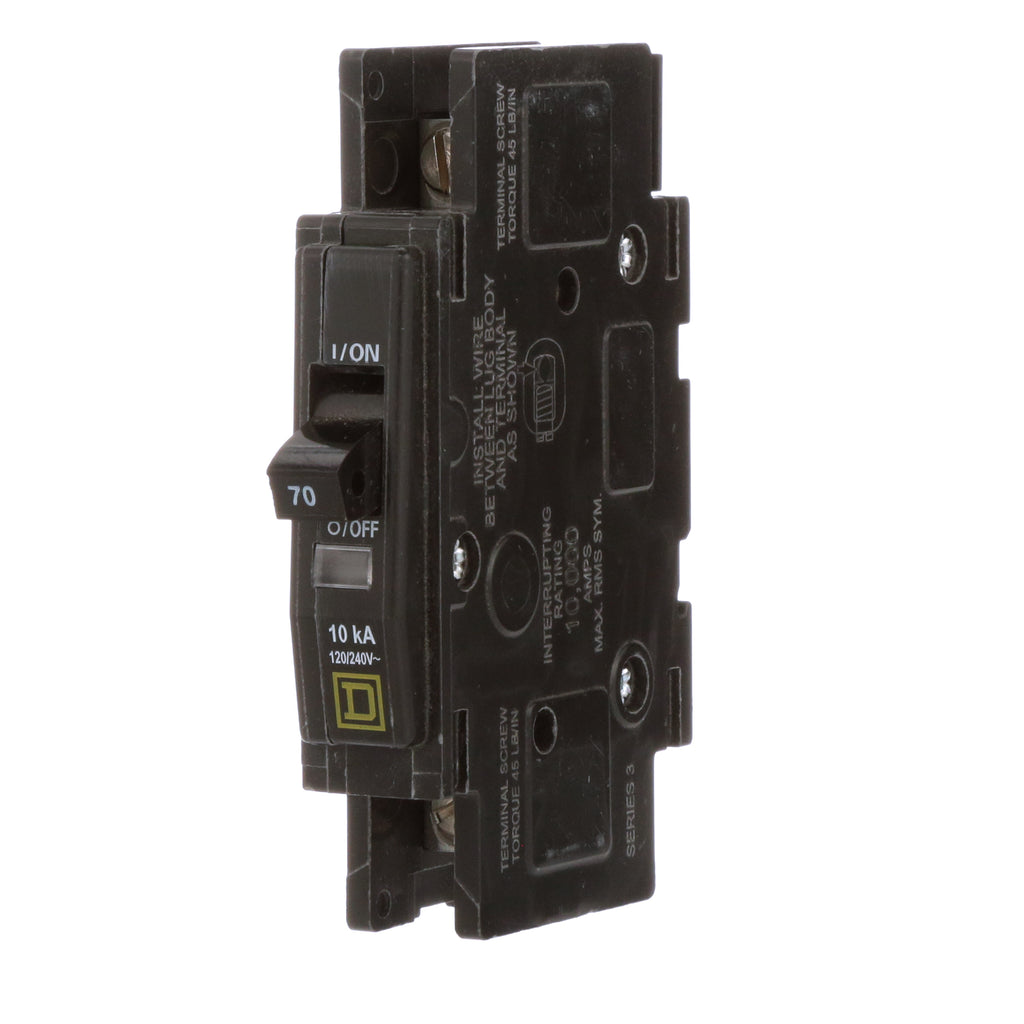

QOU170 - Square D 70 Amp 1 Pole 120/240V Bolt-On Circuit Breaker ED Frame

QOU170

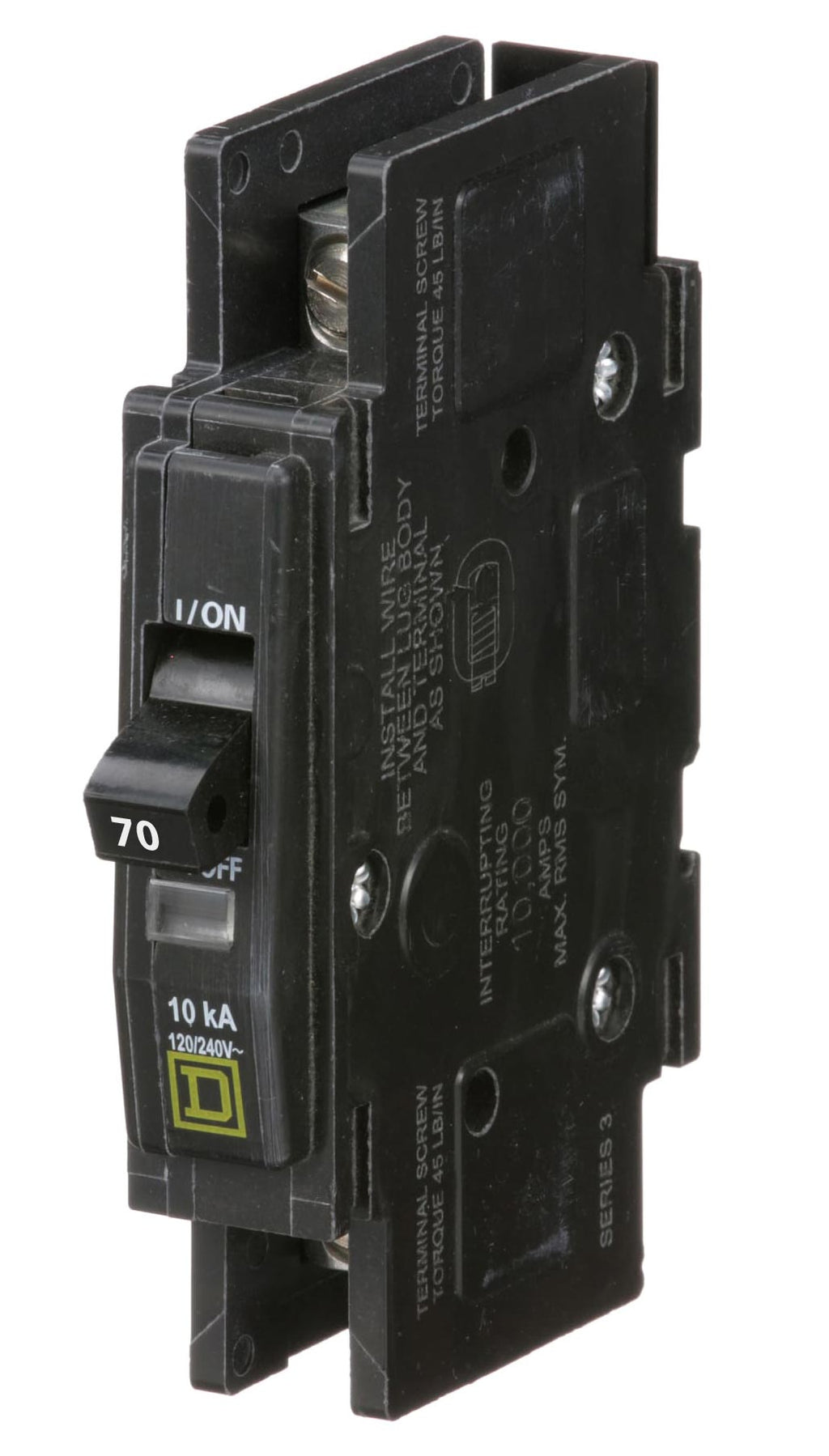

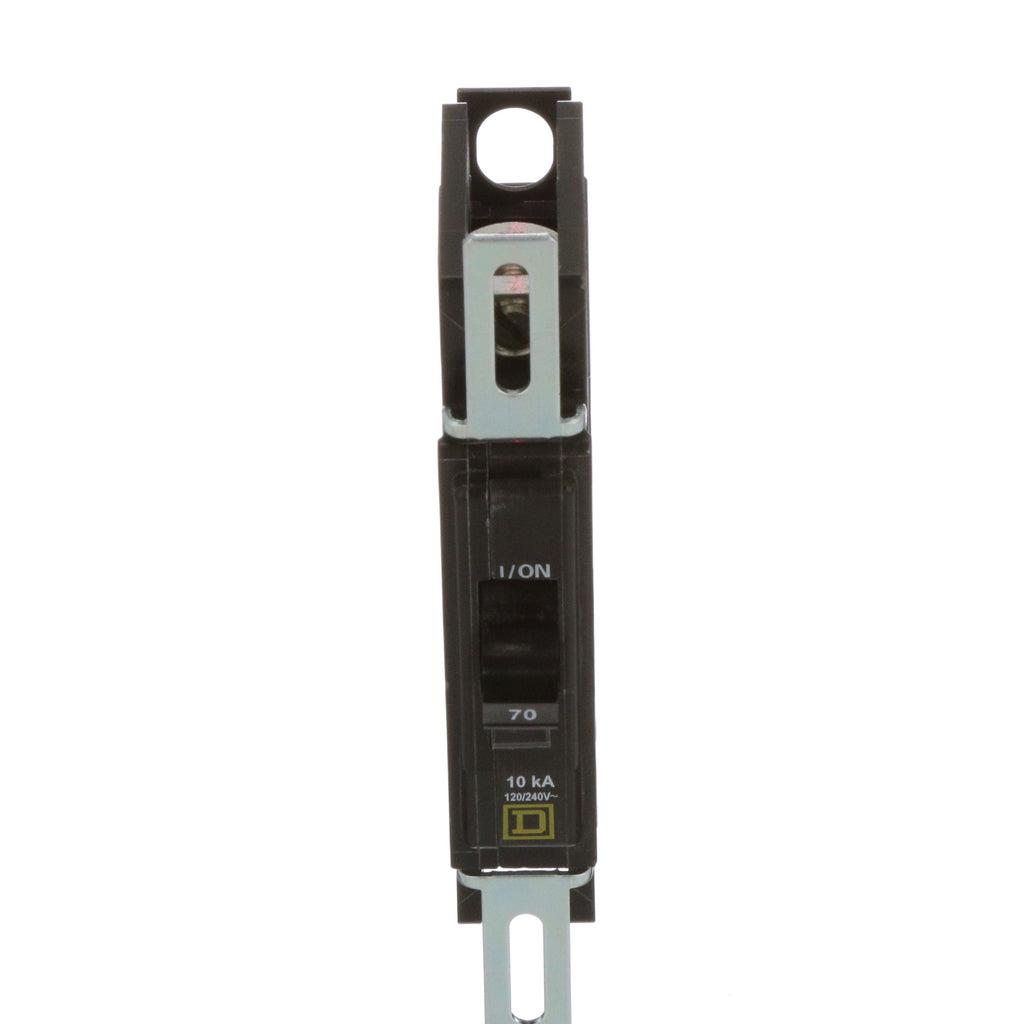

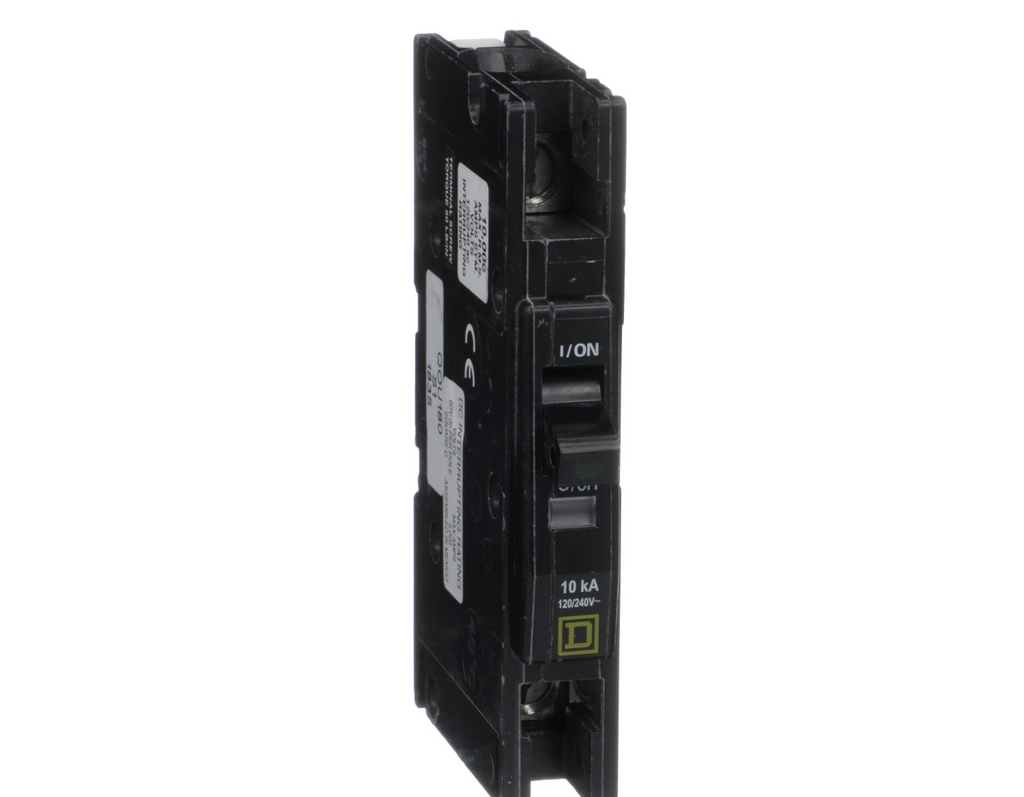

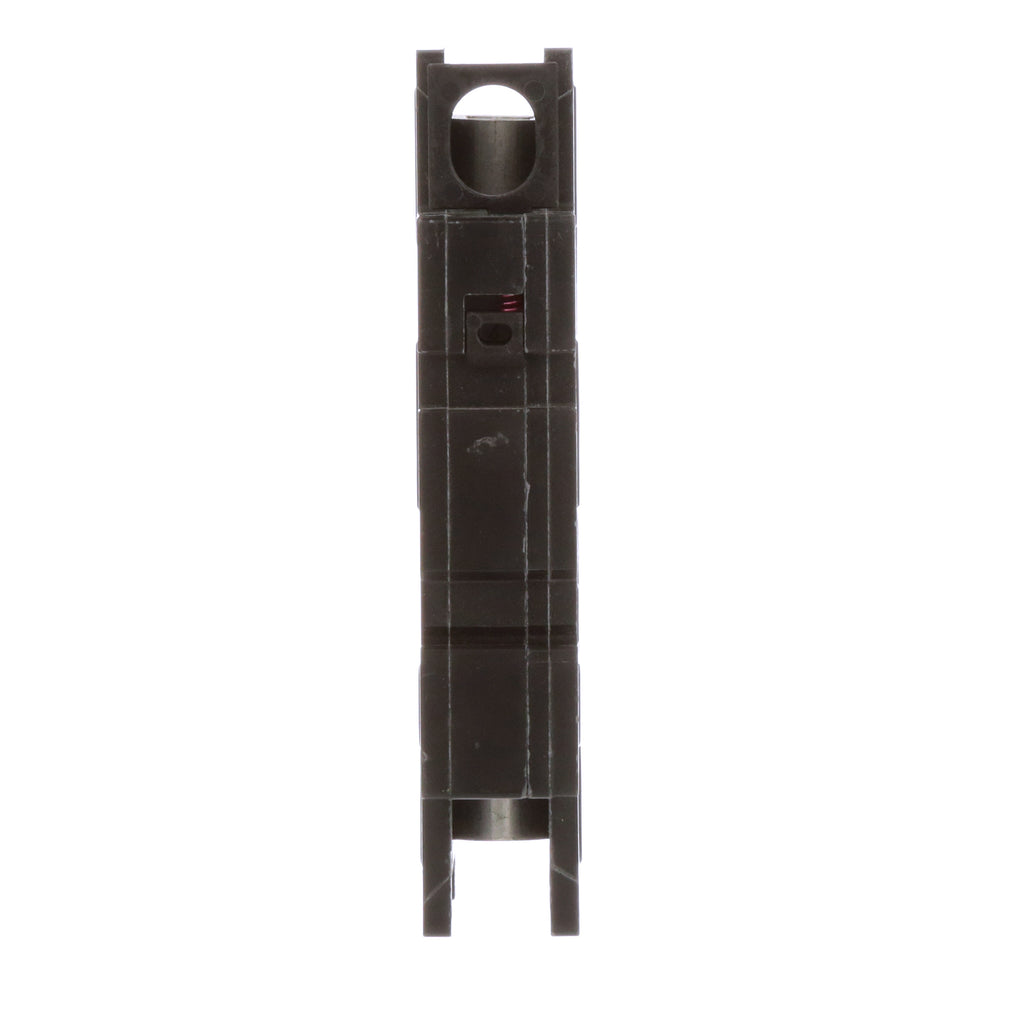

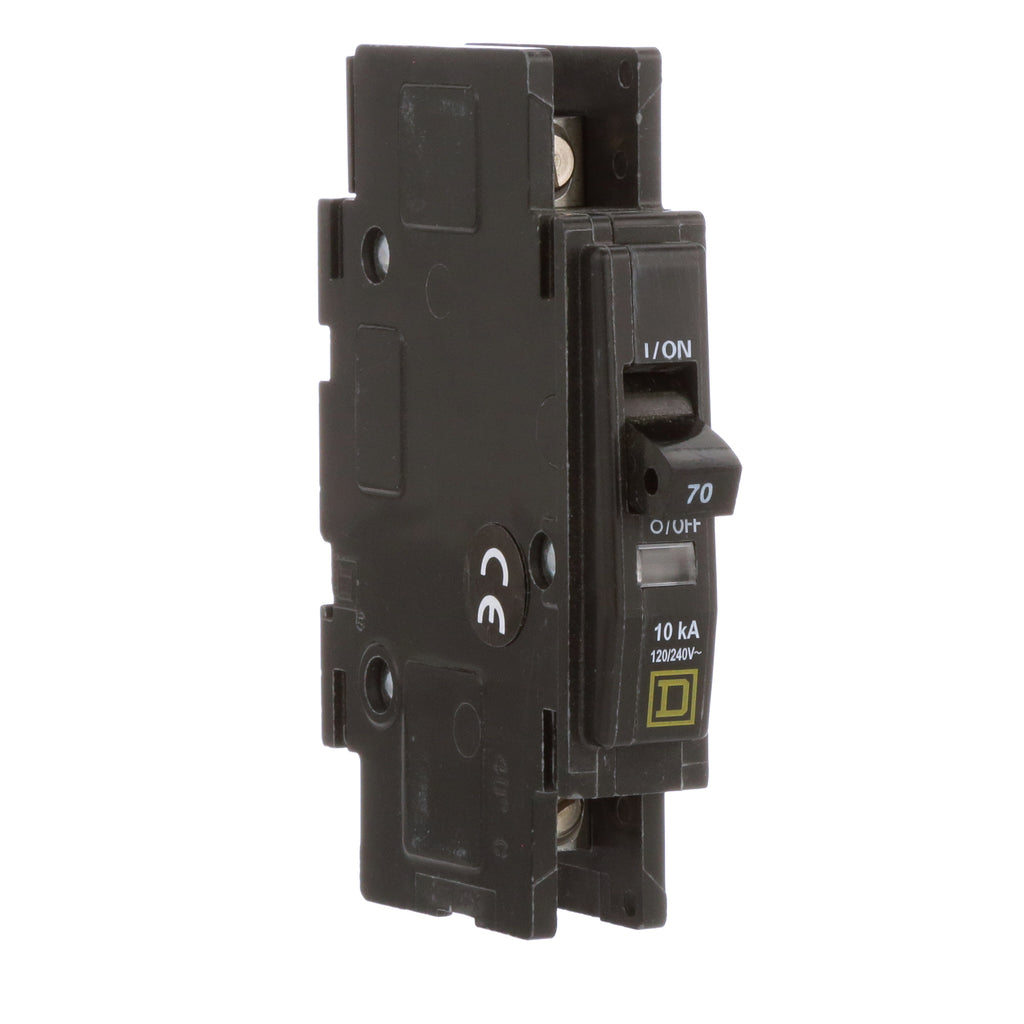

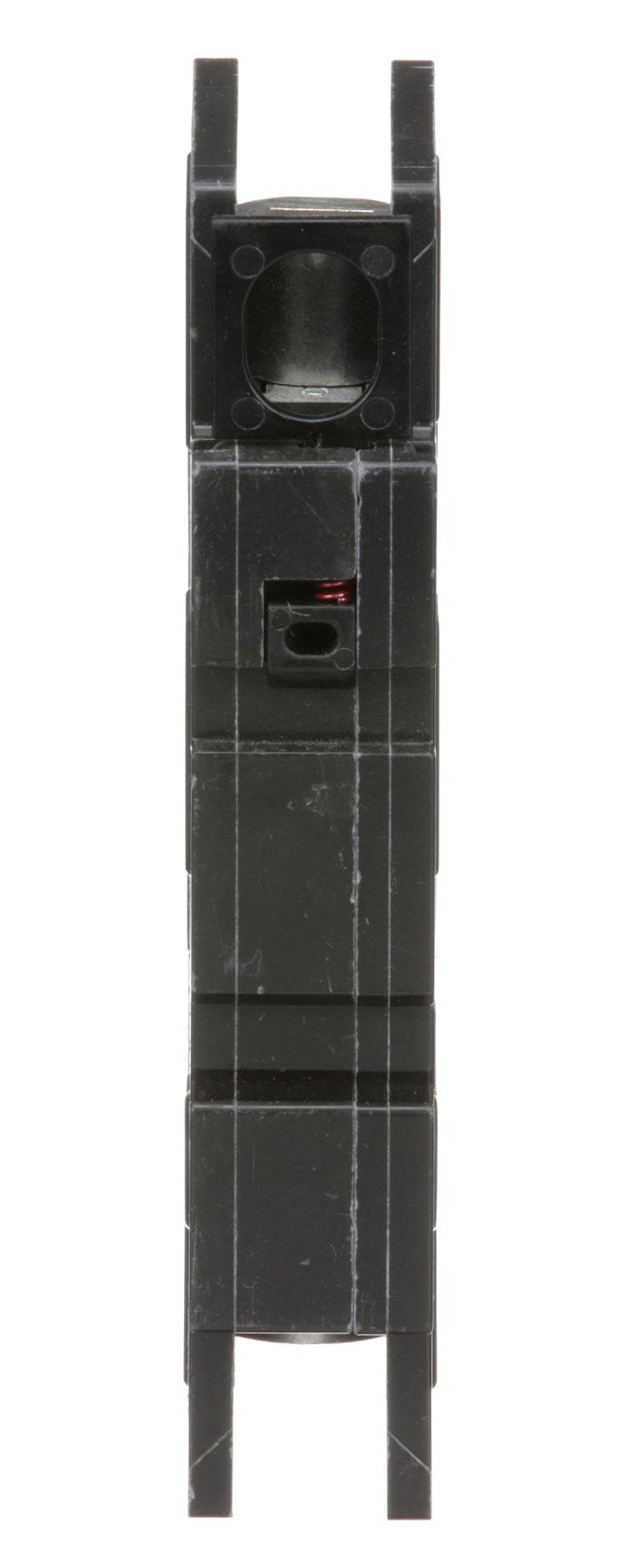

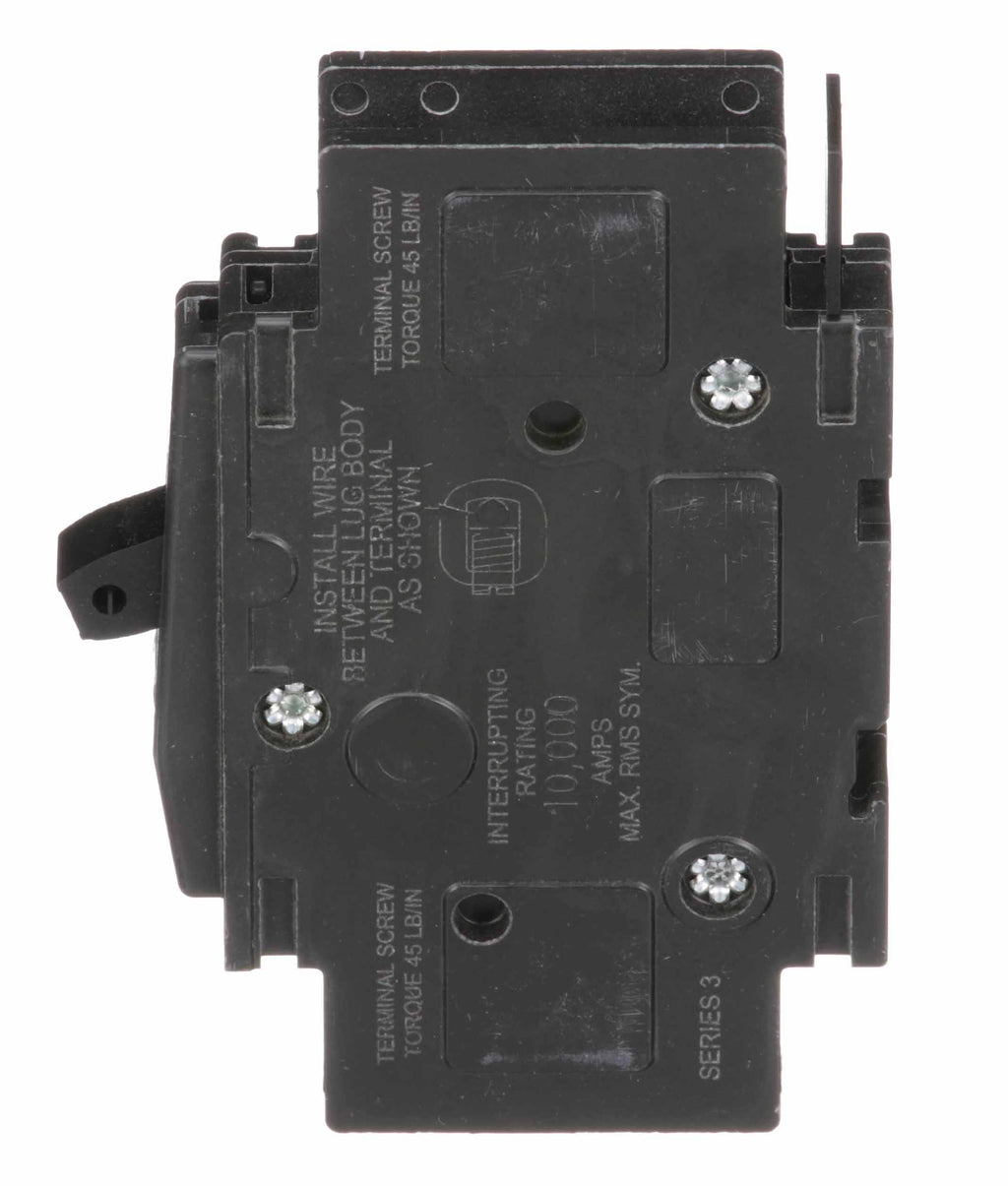

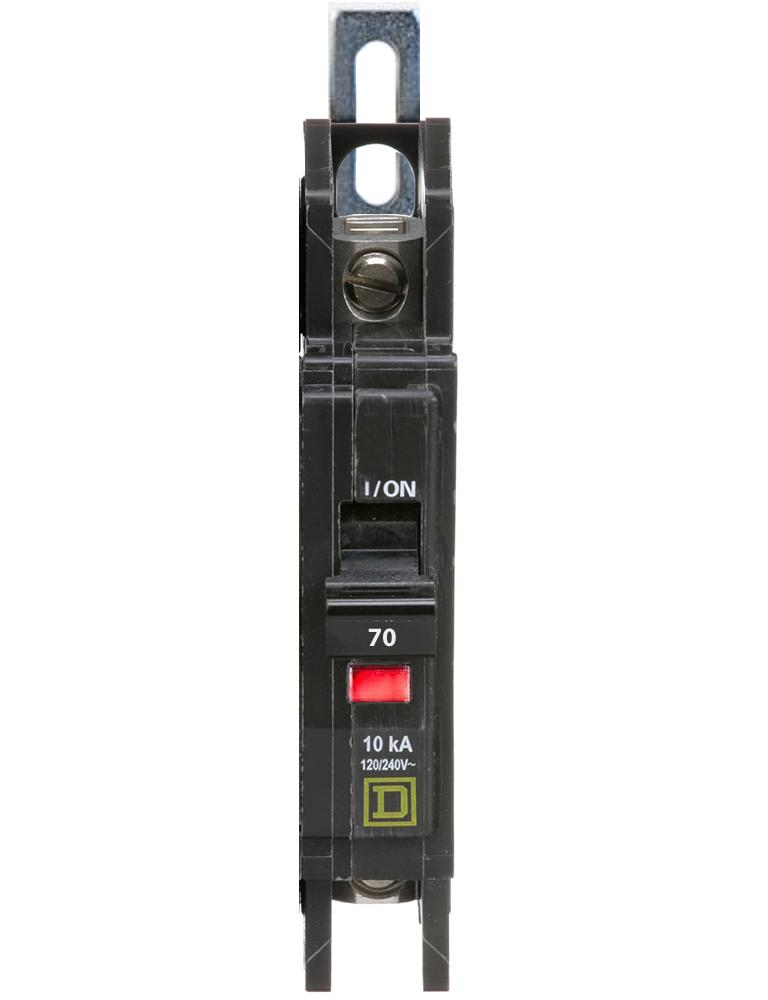

QOU170 is a Square D 70 Amp single-pole circuit breaker designed for residential and commercial electrical protection.This QOU series breaker features a bolt-on mounting type with an ED frame, rated for 120/240 volts AC. It has a 10 kA interrupt rating at 120/240 VAC and uses slotted box lugs for line and load side connections. The breaker supports wire sizes from 14 to 2 AWG copper or aluminum and is suitable for standard miniature circuit breaker panels.

Key Specifications
• Amperage: 70 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 VAC
• Frame Type: ED
• Trip Unit: Thermal Magnetic
• Connection Type: Slotted Box Lugs
• Wire Range: 14 to 2 AWG Copper/Aluminum
• Series: QOU
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOU170
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901509868
• GTIN : 00785901509868
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.37
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 12...AWG 2/0 aluminium/copper
