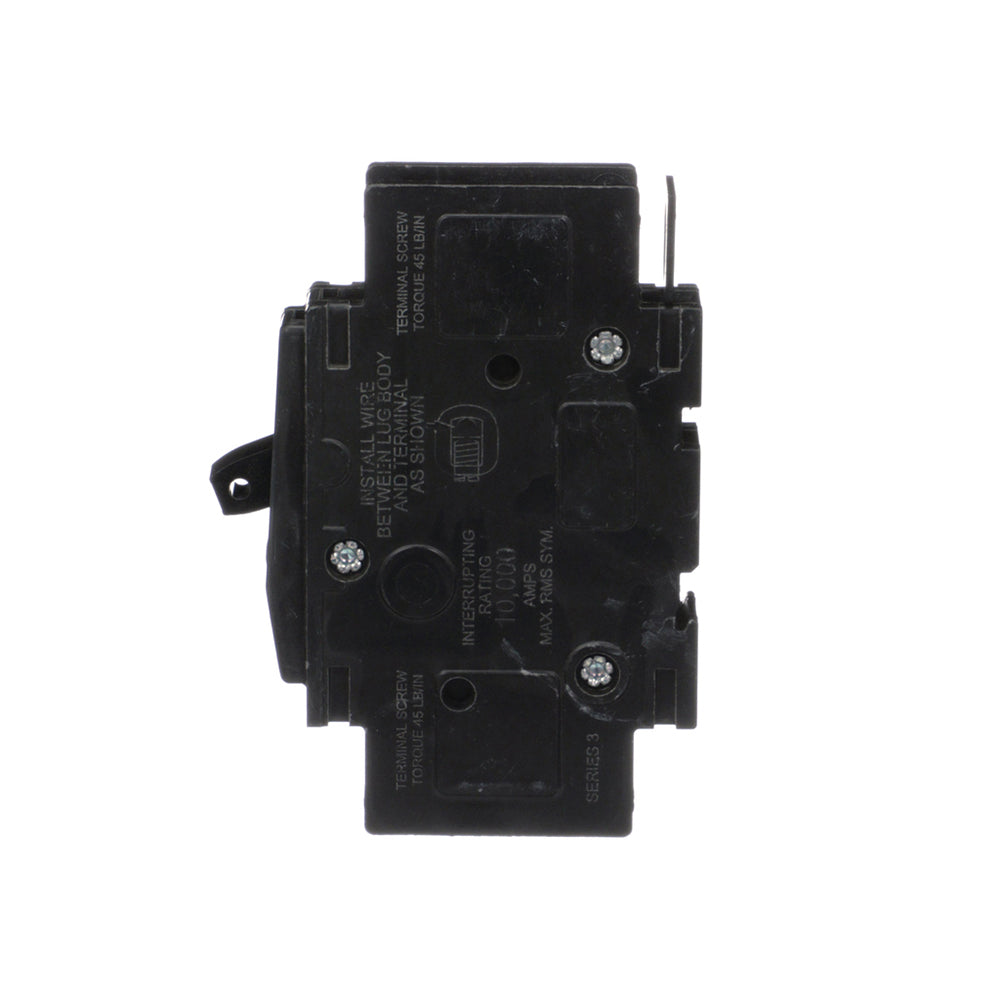

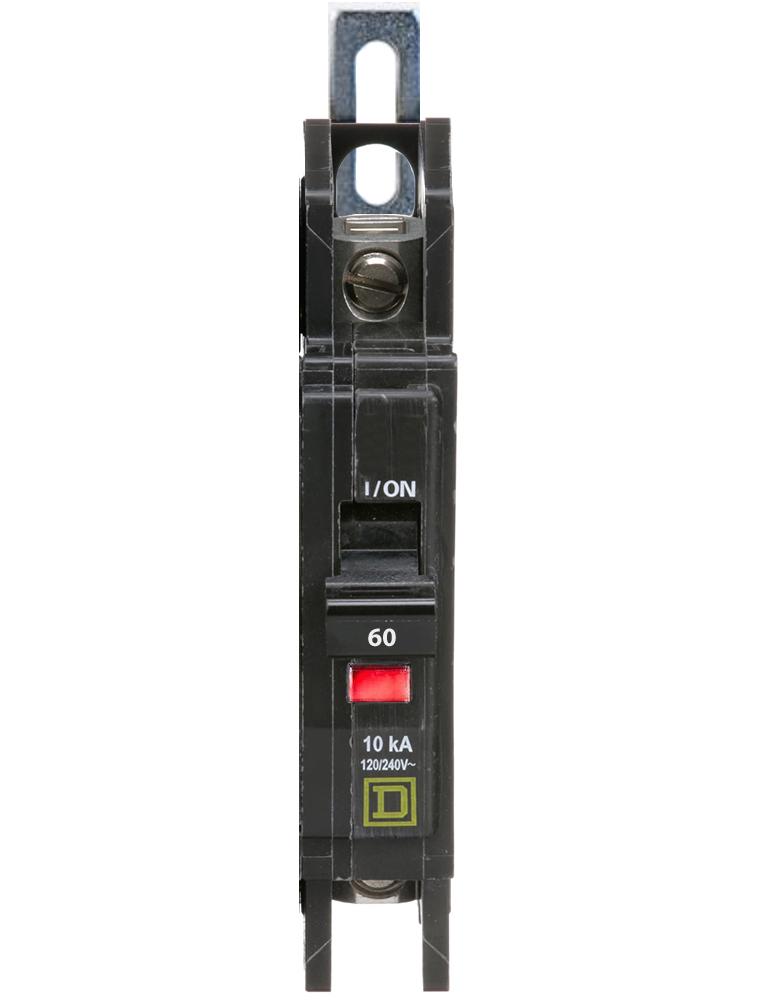

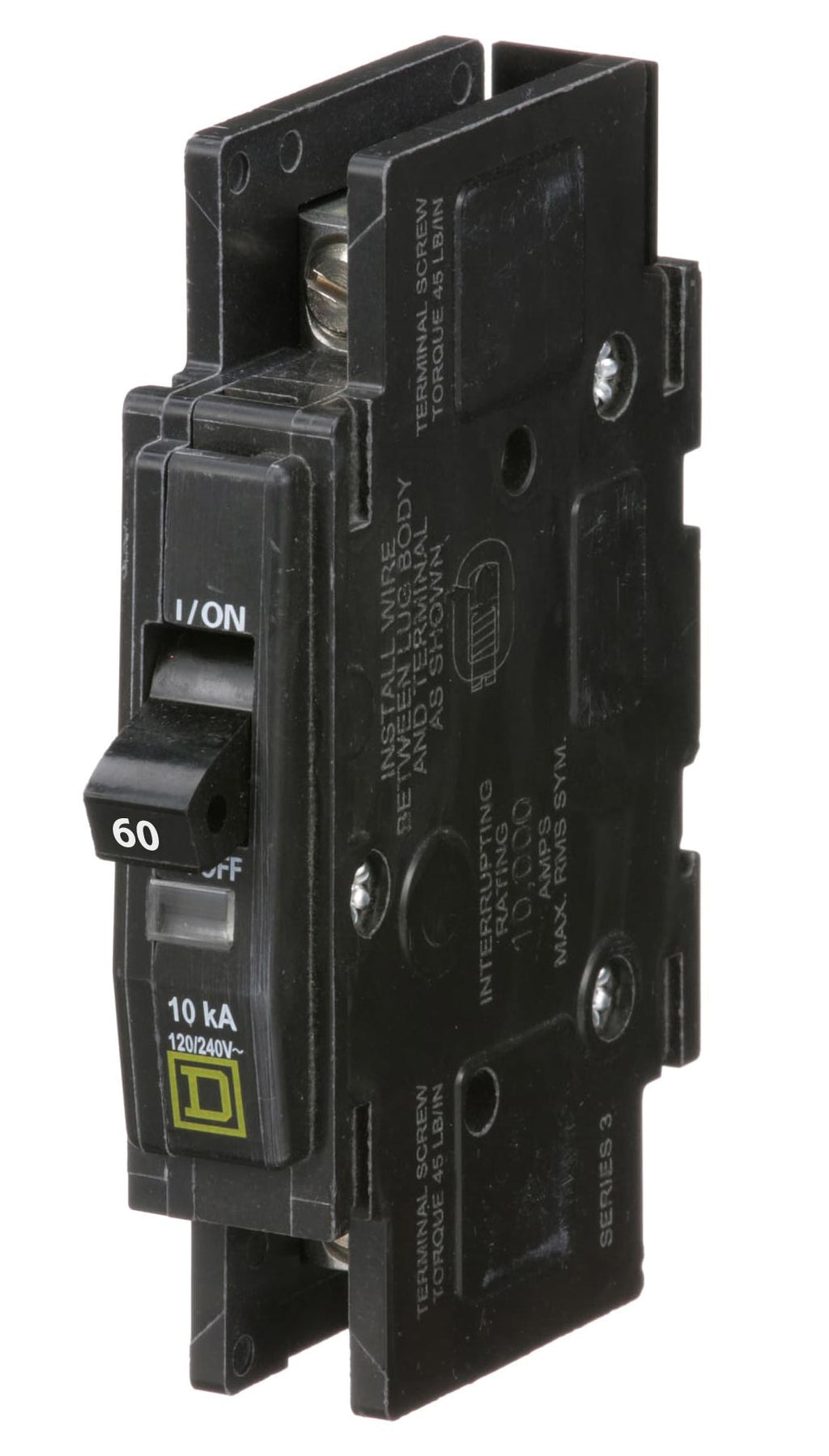

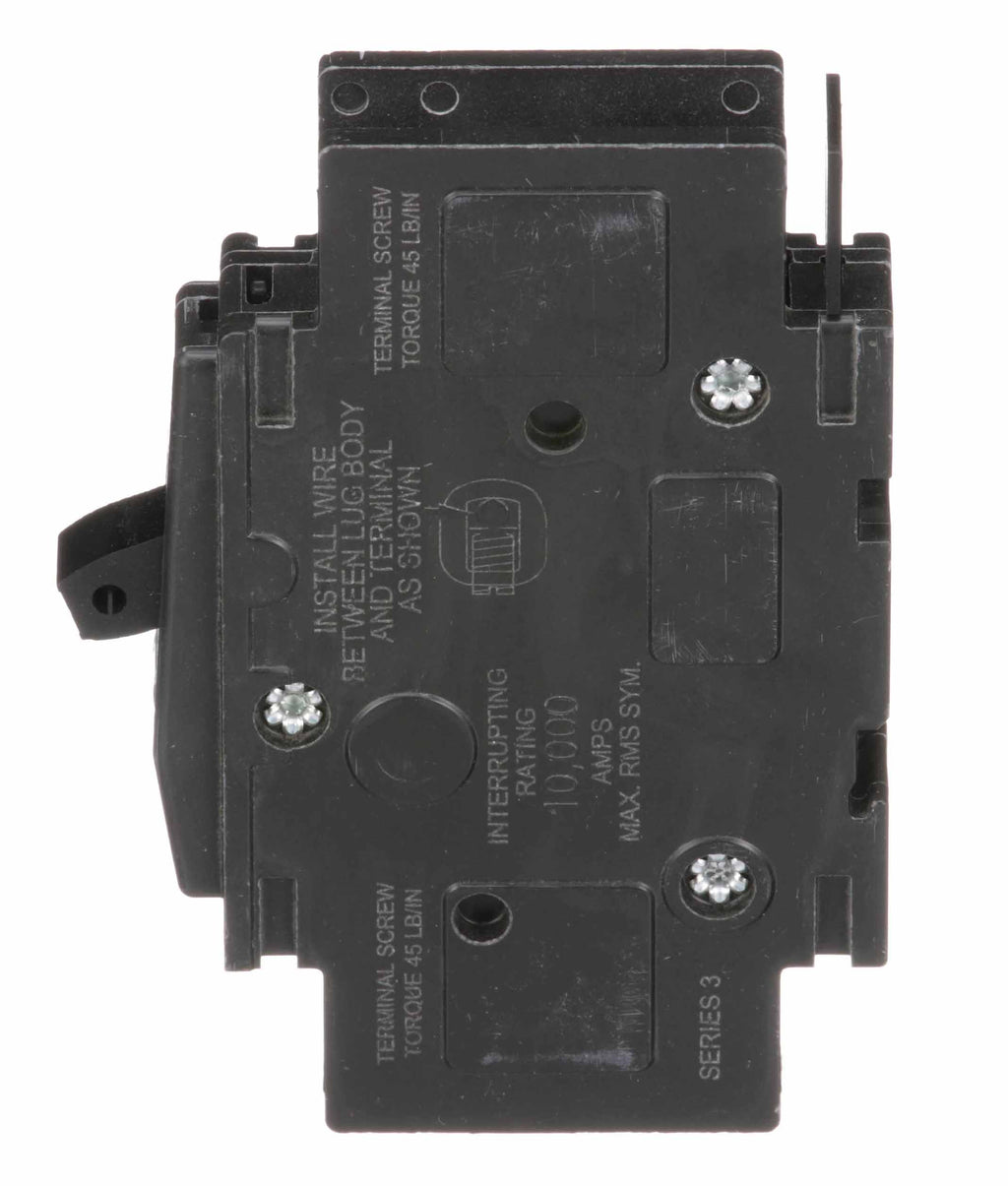

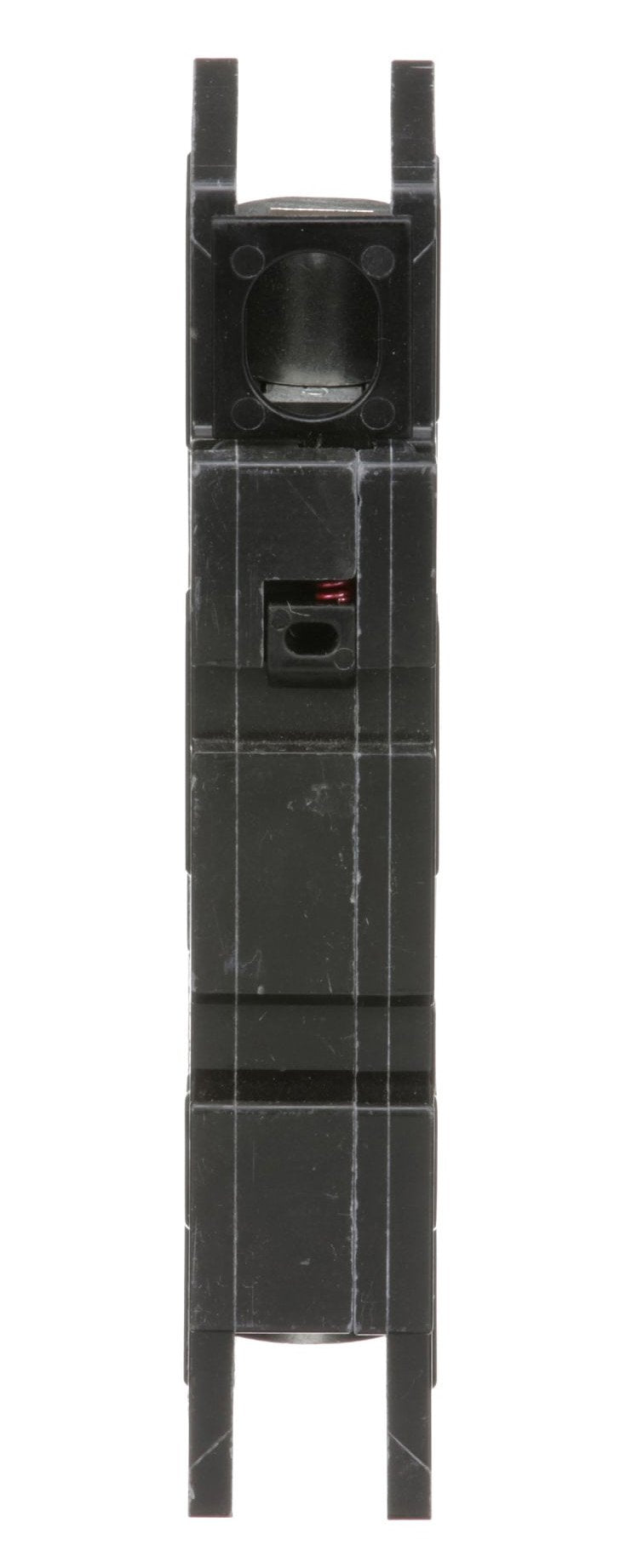

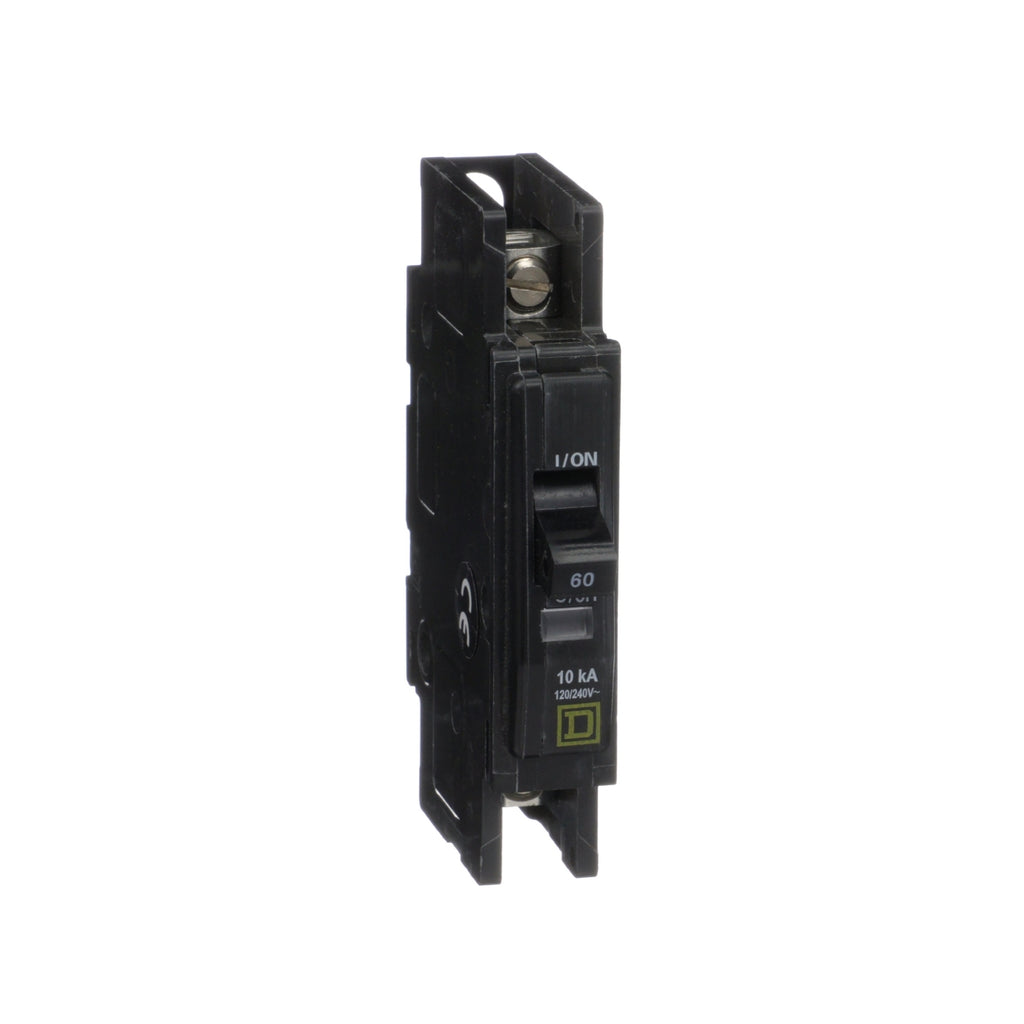

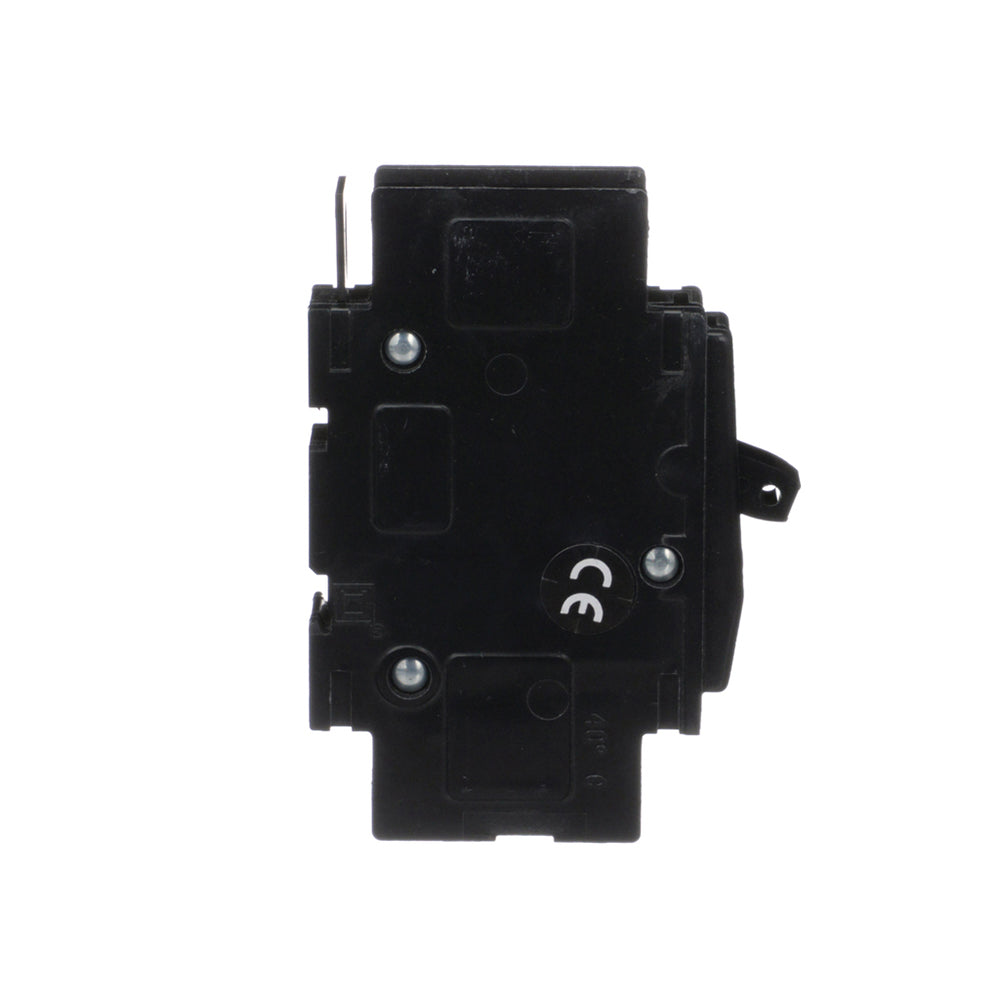

QOU160 - Square D 60 Amp 1 Pole Miniature Circuit Breaker 120/240V 10kA Interrupt Rating

QOU160

QOU160 is a Square D 60 Amp 1 Pole miniature circuit breaker designed for reliable overcurrent protection in residential and commercial applications.This QOU series breaker features a 10 kA interrupt rating at 120/240 VAC, suitable for standard circuit protection with unit mount installation. It supports 120/240 V AC and 48 V DC systems, with slotted box lug connections on both line and load sides. Certified by UL, CSA, and IEC, it accommodates AWG 14 to AWG 2 copper or aluminum wiring.

• Amperage: 60 A
• Voltage: 120/240 V AC, 48 V DC
• Number of Poles: 1
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Mounting Type: Unit mount
• Connection Type: Slotted box lugs (line and load side)
• Series/Frame: QOU
• Trip Unit: Standard thermal-magnetic
• Wire Range: AWG 14 to AWG 2 (copper/aluminum)
• Dimensions (H x W x D): 4.05 x 0.75 x 2.95 inches
• Certifications: UL listed, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOU160
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Type : QOU
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Unit Mount
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Slotted Box Lug (Reversible Line and Load)
• Frame Size : 100A/QOU
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901489344
• GTIN : 00785901489344
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.37
• Panel Type : Air Conditioning and Refrigeration Equipment, Heating
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
