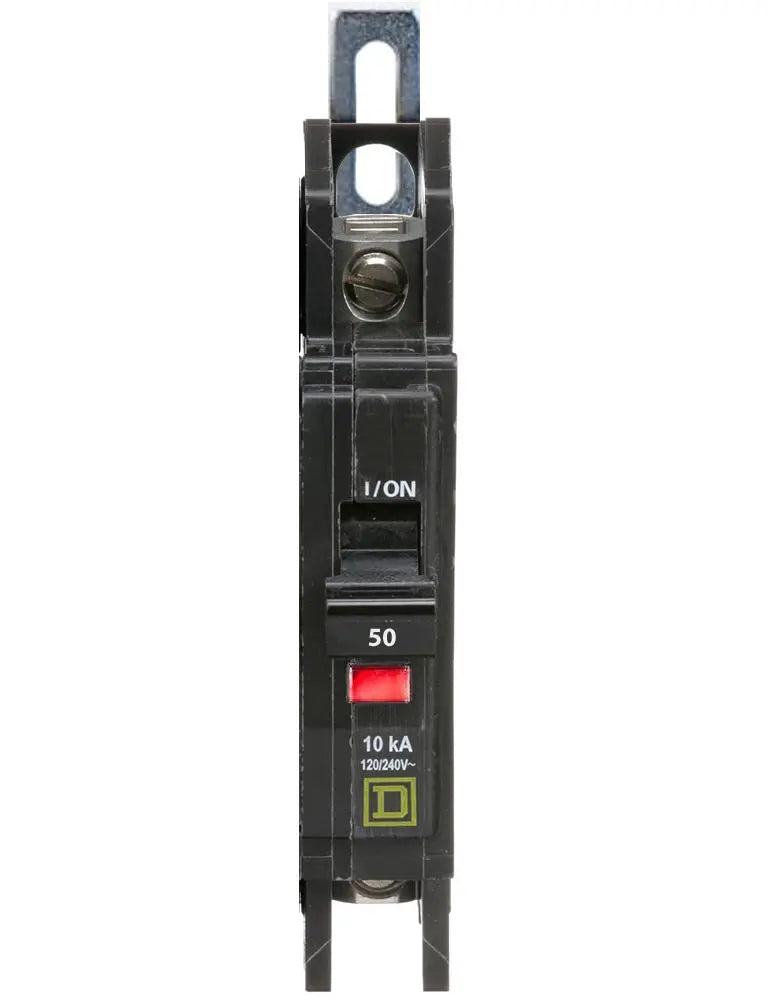

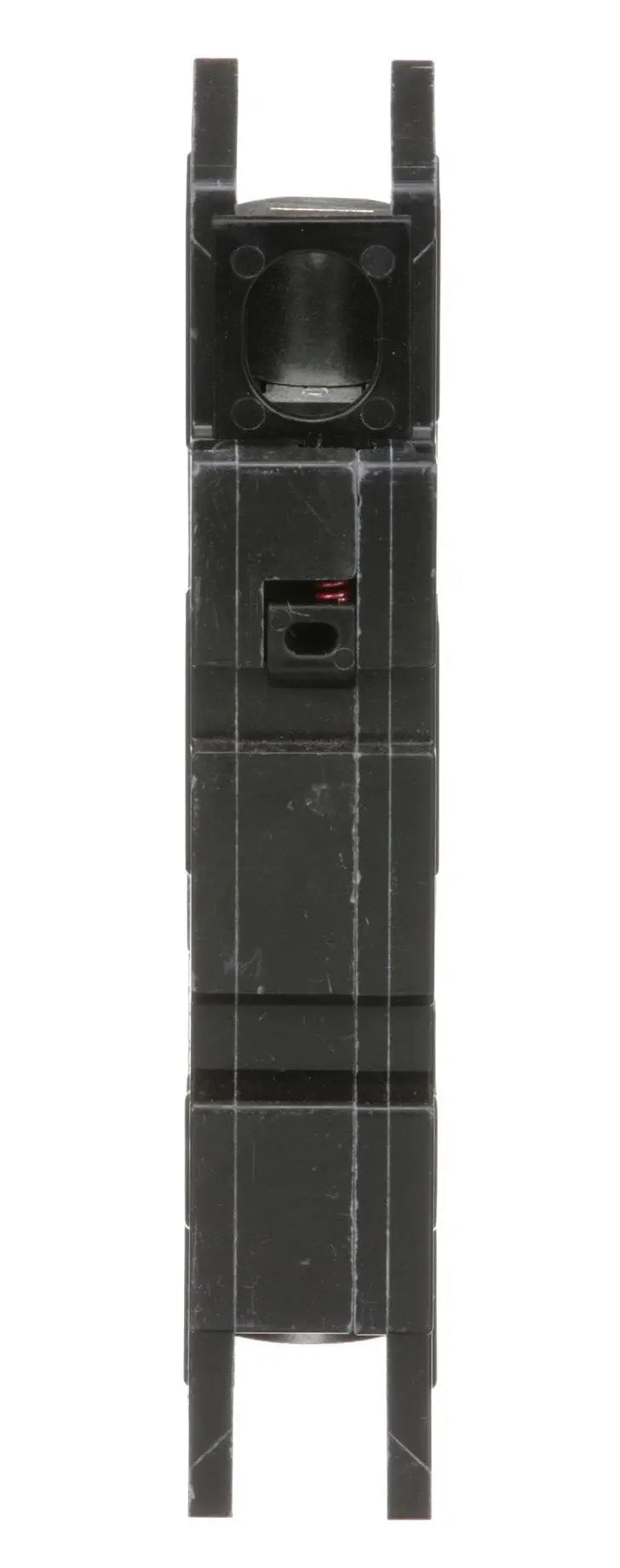

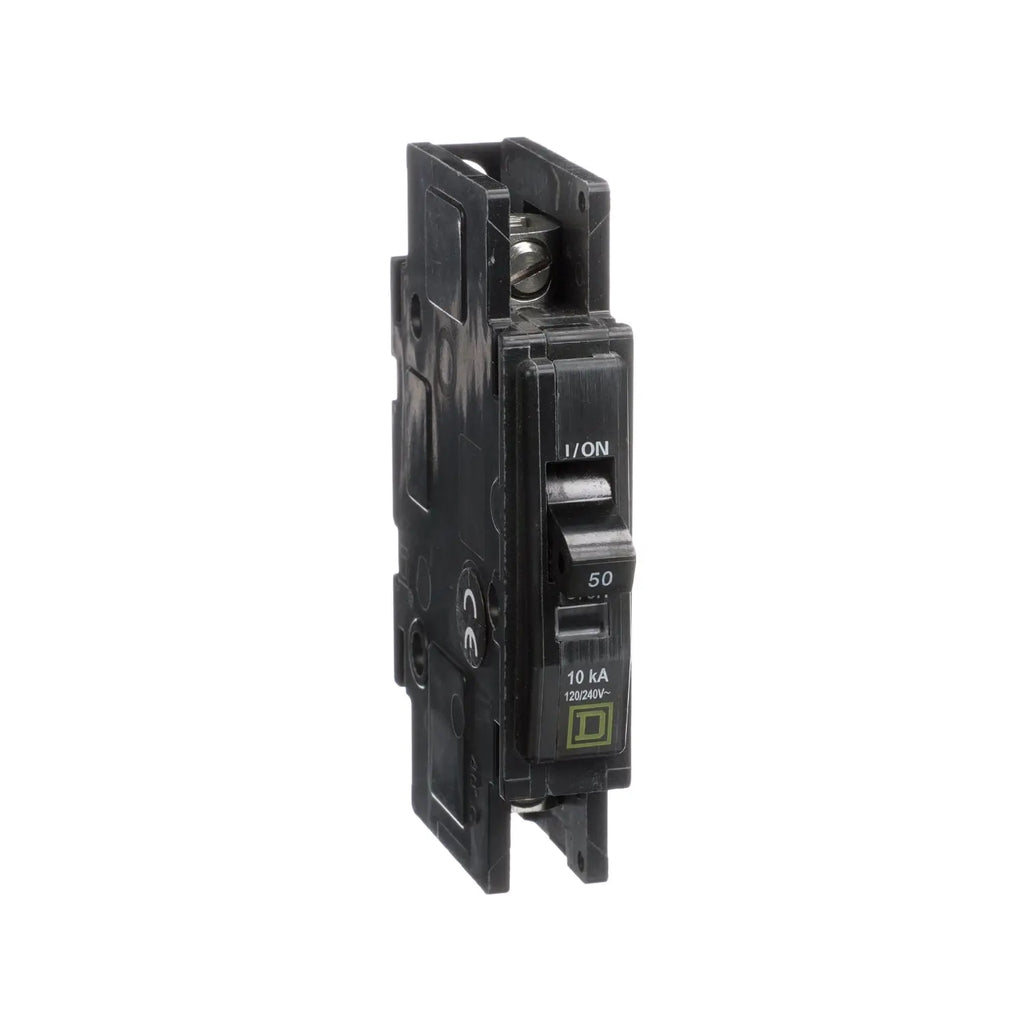

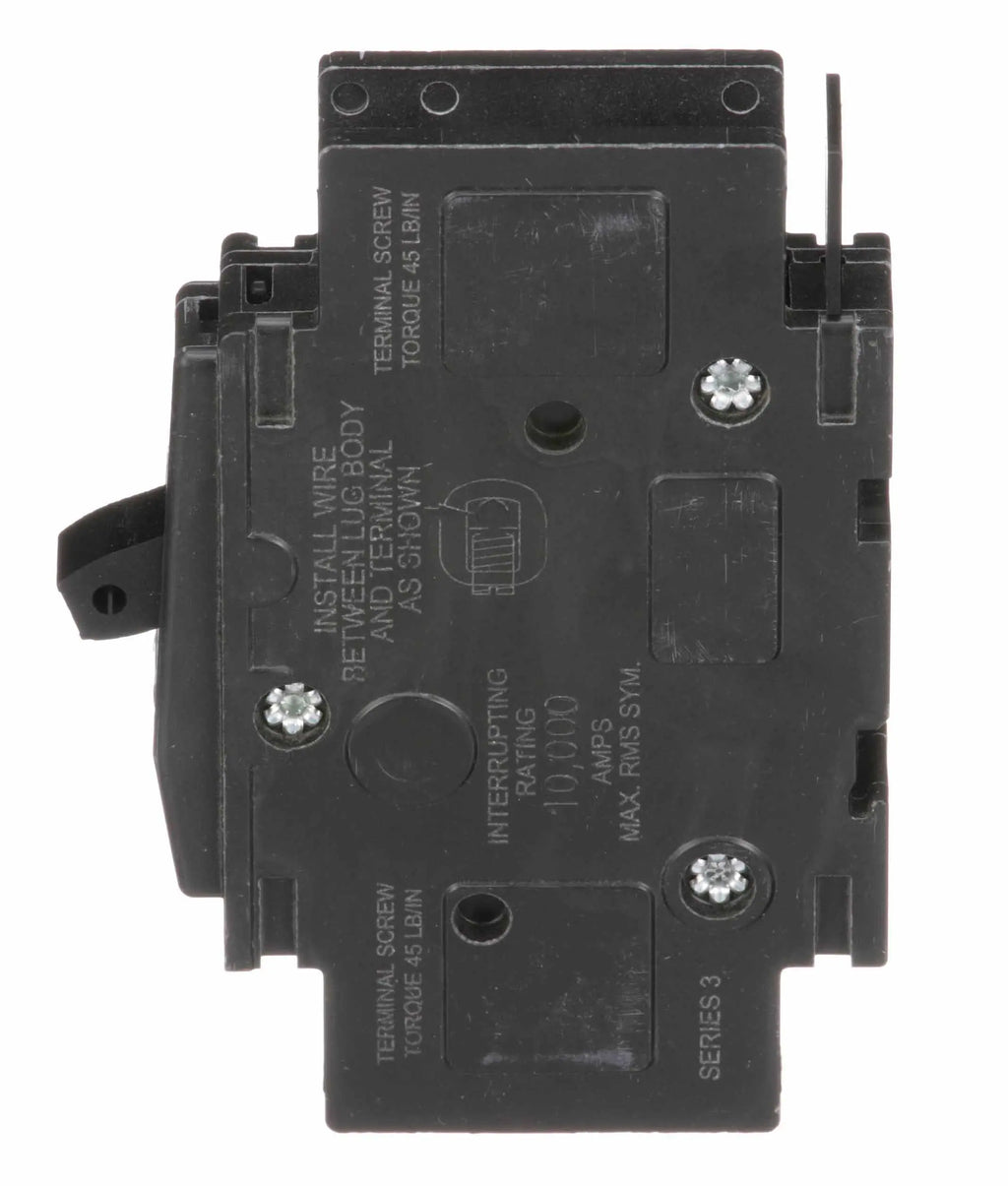

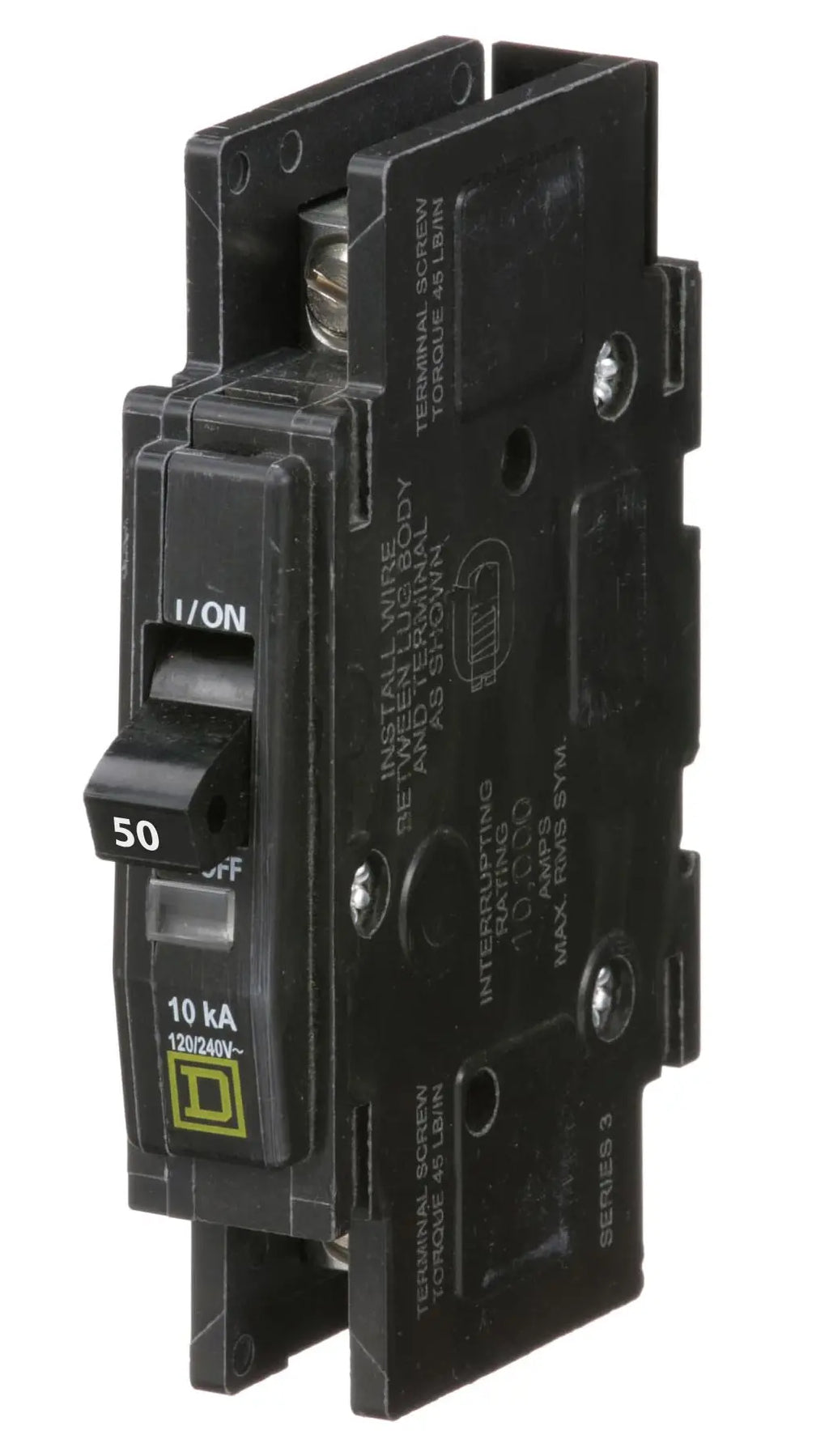

QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic

Save $21.33
SKU: QOU150-New
Condition: New
Price:
$18.87 $40.20
Stock:
20 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOU150 - Square D Bolt-On 50 Amp 1 Pole Circuit Breaker - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOU150 - Square D Bolt-On 50 Amp 1 Pole Circuit Breaker - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply
QOU150 - Square D 50 Amp 120/240V 1 Pole Miniature Circuit Breaker Thermal Magnetic - Essential Electric Supply

Description

QOU150


QOU150 is a Square D 50 Amp miniature circuit breaker designed for reliable overload and short circuit protection in residential and commercial electrical systems.This 1 pole, thermal magnetic trip circuit breaker operates at 120/240 VAC and 48 VDC with a 10 kA interrupt rating. It features a toggle actuator, box lug connections compatible with 14 to 2 AWG wire, and unit mount installation for easy setup. The breaker is UL listed, CSA certified, and IEC compliant, ensuring high safety and quality standards.
  • Brand: Square D
  • Part Number: QOU150
  • Amperage: 50 A
  • Voltage: 120/240 VAC, 48 VDC
  • Poles: 1
  • Interrupt Rating: 10 kA
  • Trip Type: Thermal Magnetic
  • Mounting Type: Unit Mount
  • Connection Type: Slotted Box Lug
  • Wire Size Range: 14 to 2 AWG
  • Certifications: UL Listed, CSA Certified, IEC Compliant
  • Dimensions: 4.05 in H x 0.75 in W x 2.95 in D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QOU150
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOU Series
  • Type : QOU
  • Voltage : 120/240
  • Amperage : 50
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@120V
  • Connection : Unit Mount
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Slotted Box Lug (Reversible Line and Load)
  • Frame Size : 100A/QOU
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901418627
  • GTIN : 00785901418627
  • Country of Origin : Mexico
  • Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
  • Weight : 0.36
  • Panel Type : Air Conditioning and Refrigeration Equipment, Heating
  • Standards : CSA, IEC, UL listed
  • Certification : IEC, UL listed
  • Wire Size : AWG 14...AWG 2 aluminium/copper
