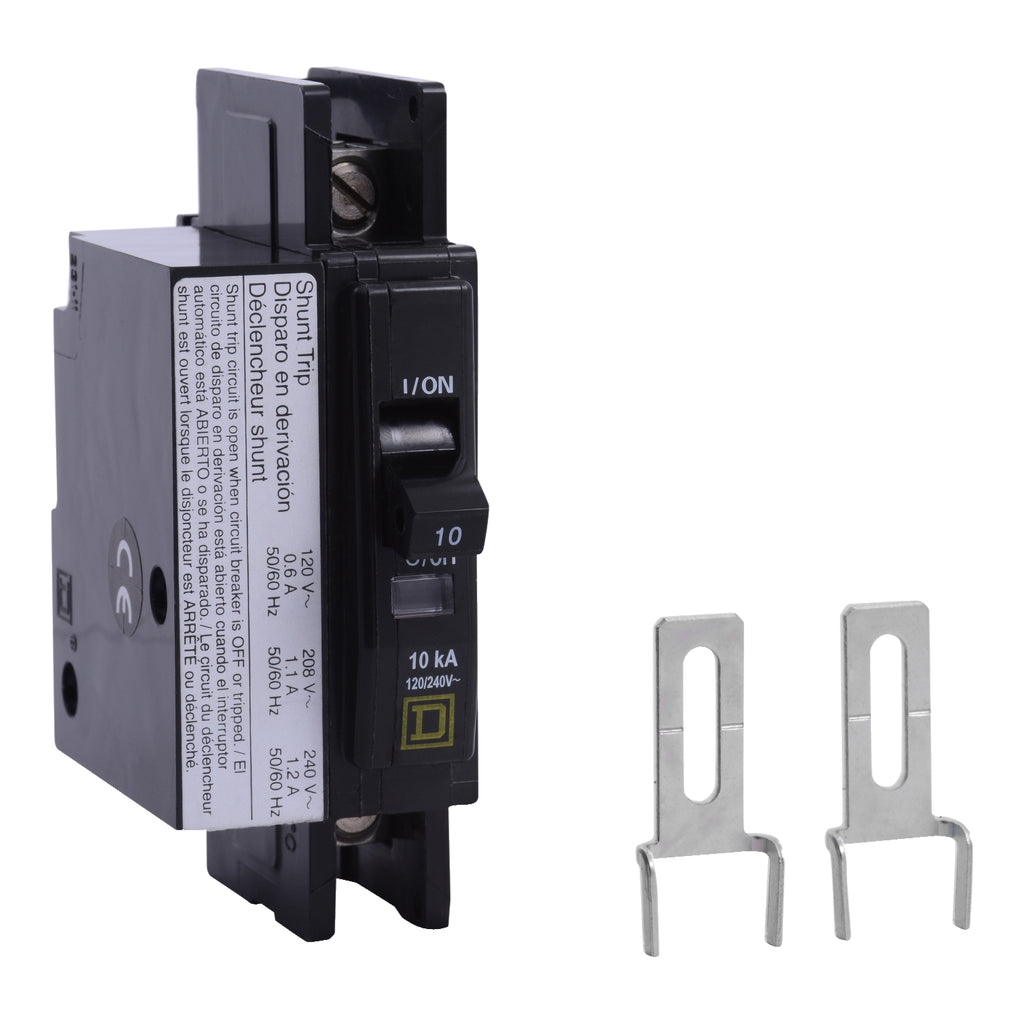

QOU1101021 - Square D 10 Amp 1 Pole Miniature Circuit Breaker 120/240V AC 10kA Shunt Trip

QOU1101021

This thermal magnetic molded case circuit breaker supports 120/240V AC and 48V DC operation with a 10kA interrupt rating at 120/240VAC. It features slotted box lug terminals on both line and load sides, a shunt trip for remote tripping capability, and is designed for unit mount installation. The breaker complies with industry certifications ensuring safety and performance.

Key Specifications
• Amperage: 10 Amps
• Voltage Rating: 120/240V AC, 48V DC
• Number of Poles: 1
• Interrupt Rating: 10kA at 120/240VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic with Shunt Trip
• Terminal Type: Slotted Box Lugs (Line and Load)
• Frame/Series: QOU
• Certifications: Industry Standard Safety Certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: QOU1101021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOU Series
• Voltage : 120
• Amperage : 10
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• Dimensions : 4.05 in (102.87 mm) x 1.5 in (38.1 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.66
• Wire Size : AWG 14...AWG 2 aluminium/copper
