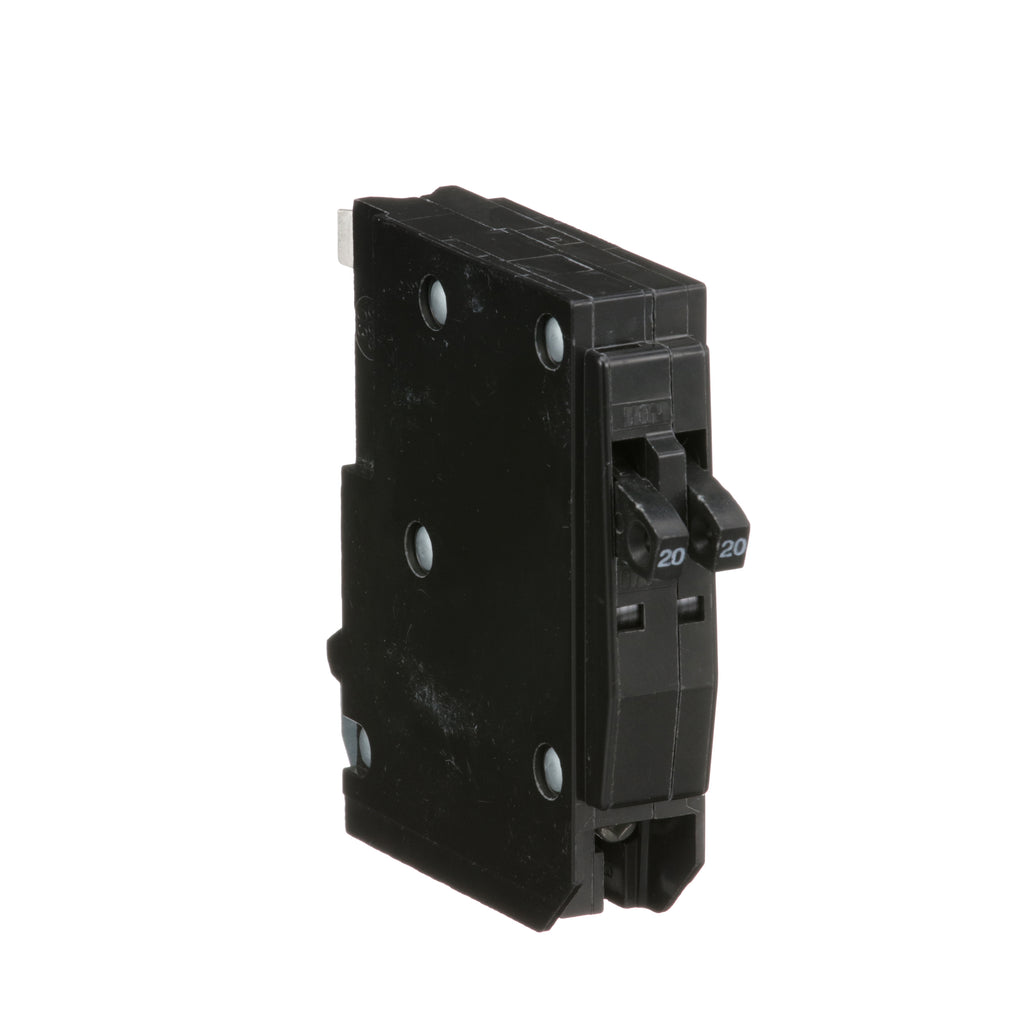

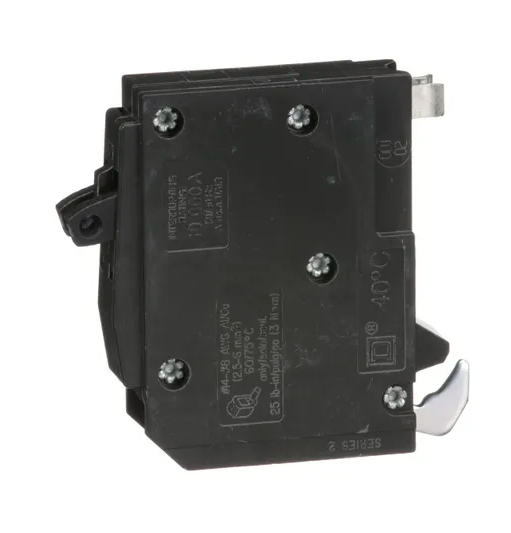

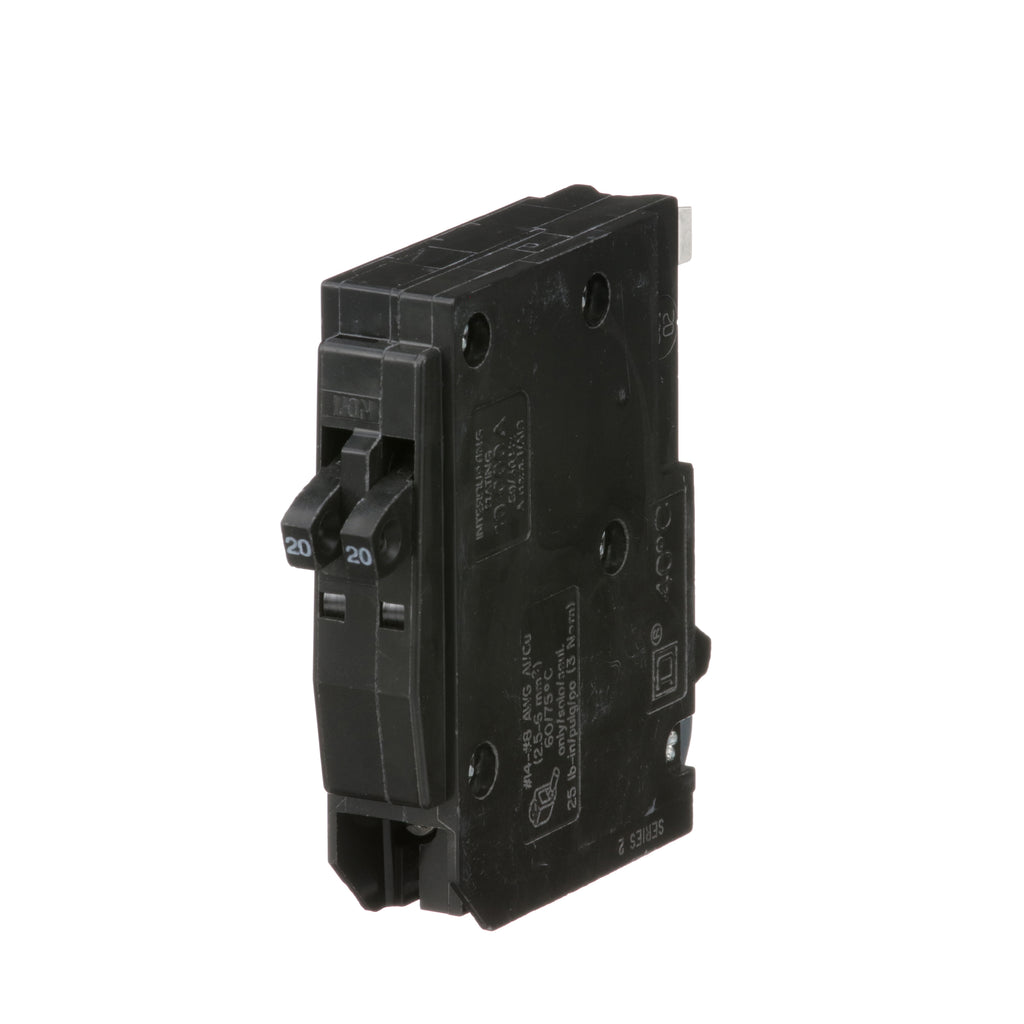

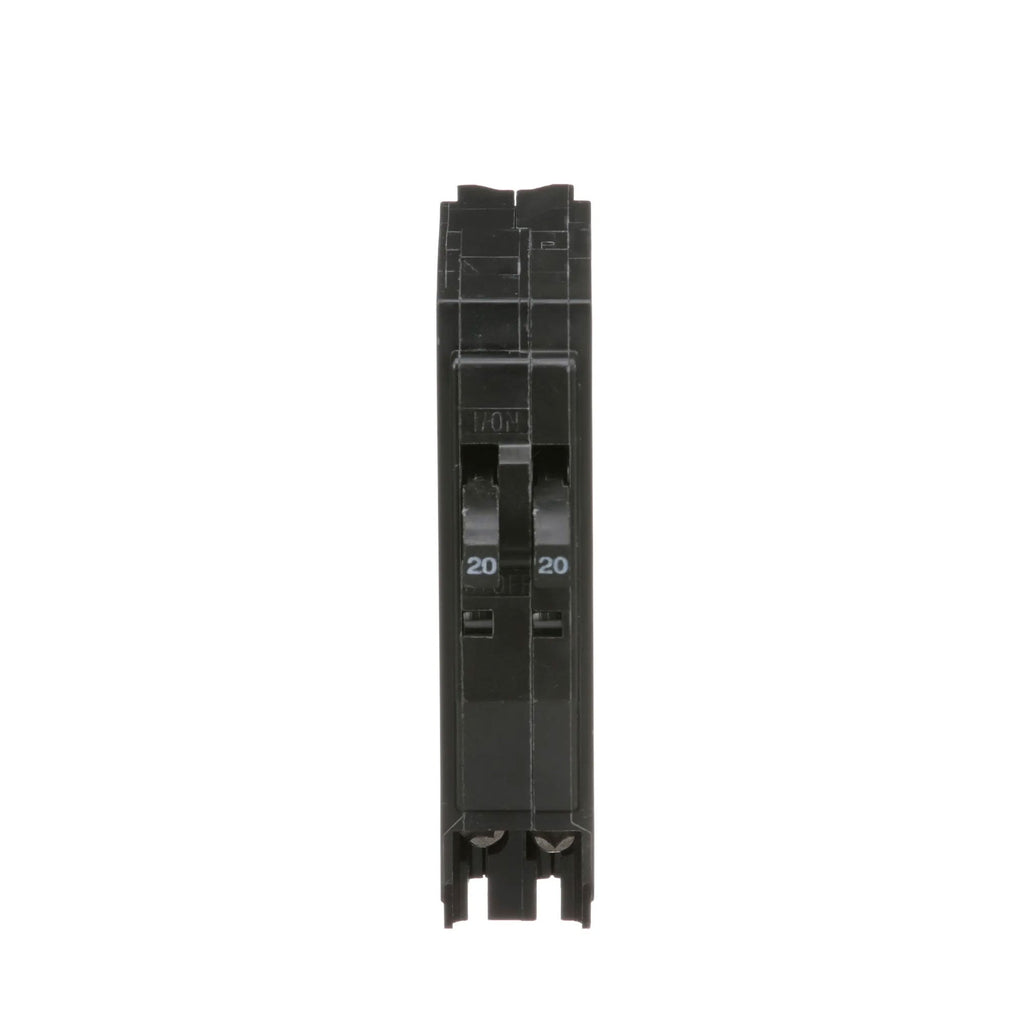

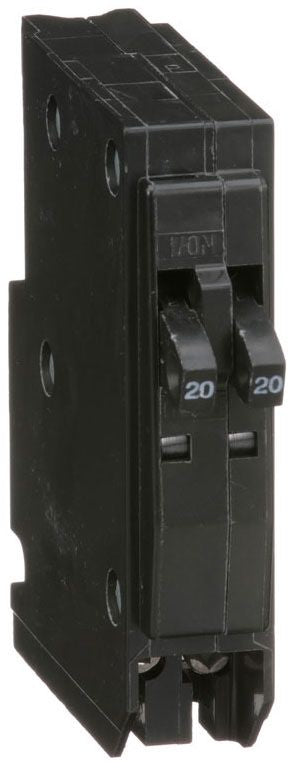

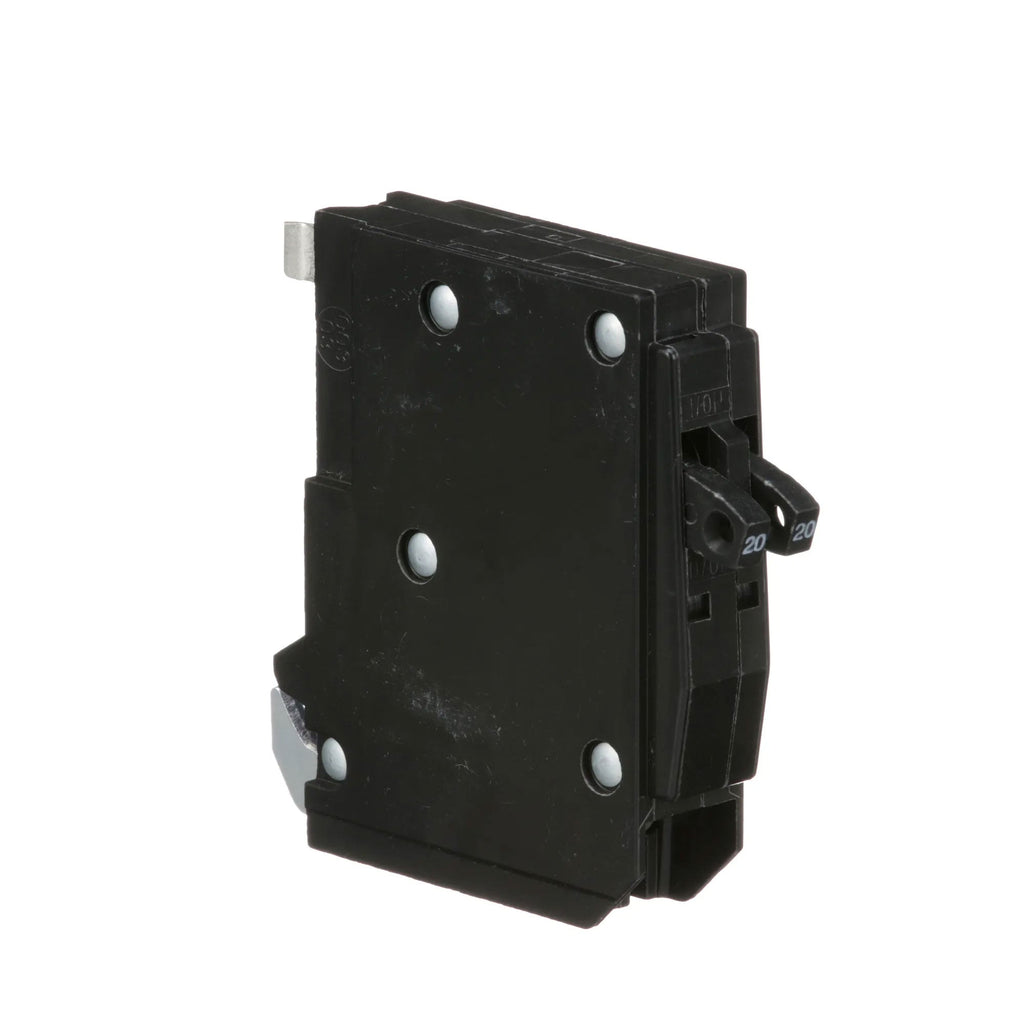

QOT2020 - Square D 20A 120/240V 1-Pole Tandem Circuit Breaker Plug-On Mount 10kA Interrupt Rating

QOT2020

QOT2020 is a Square D 20 Amp 1-Pole tandem circuit breaker designed for 120/240 VAC electrical systems.This thermal magnetic molded case breaker features a plug-on mounting type and provides reliable overload and short circuit protection. It has a 10,000 Amp interrupt rating and supports copper and aluminum wire sizes from 14 to 8 AWG. The breaker includes the exclusive Visi-Trip indicator for easy trip detection and complies with ANSI and UL certifications.

Key Specifications
• Manufacturer: Square D
• Part Number: QOT2020
• Amperage: 20 Amps per pole
• Voltage Rating: 120/240 VAC
• Poles: 1 (Tandem)
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA
• Wire Range: Copper 14-8 AWG, Aluminum 12-8 AWG
• Series: QO
• Trip Unit: Thermal Magnetic
• Certifications: ANSI, UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOT2020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QOT
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Tandem
• Protection : Thermal Magnetic

Product Data

• UPC : 785901418085
• GTIN : 00785901418085
• Country of Origin : Mexico

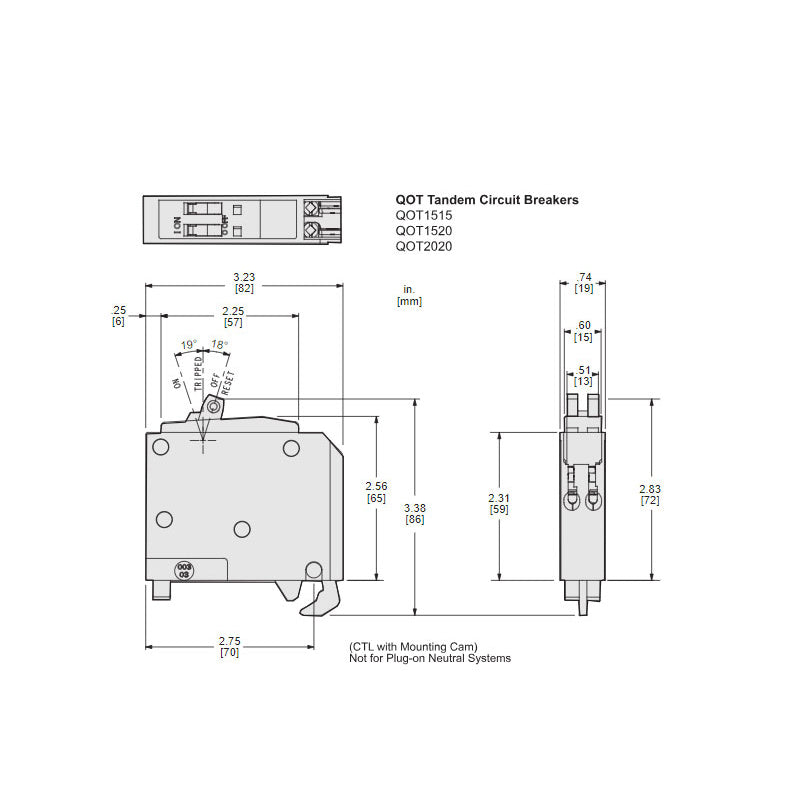

• Dimensions : 3.2 in (82 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.35 lb
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
