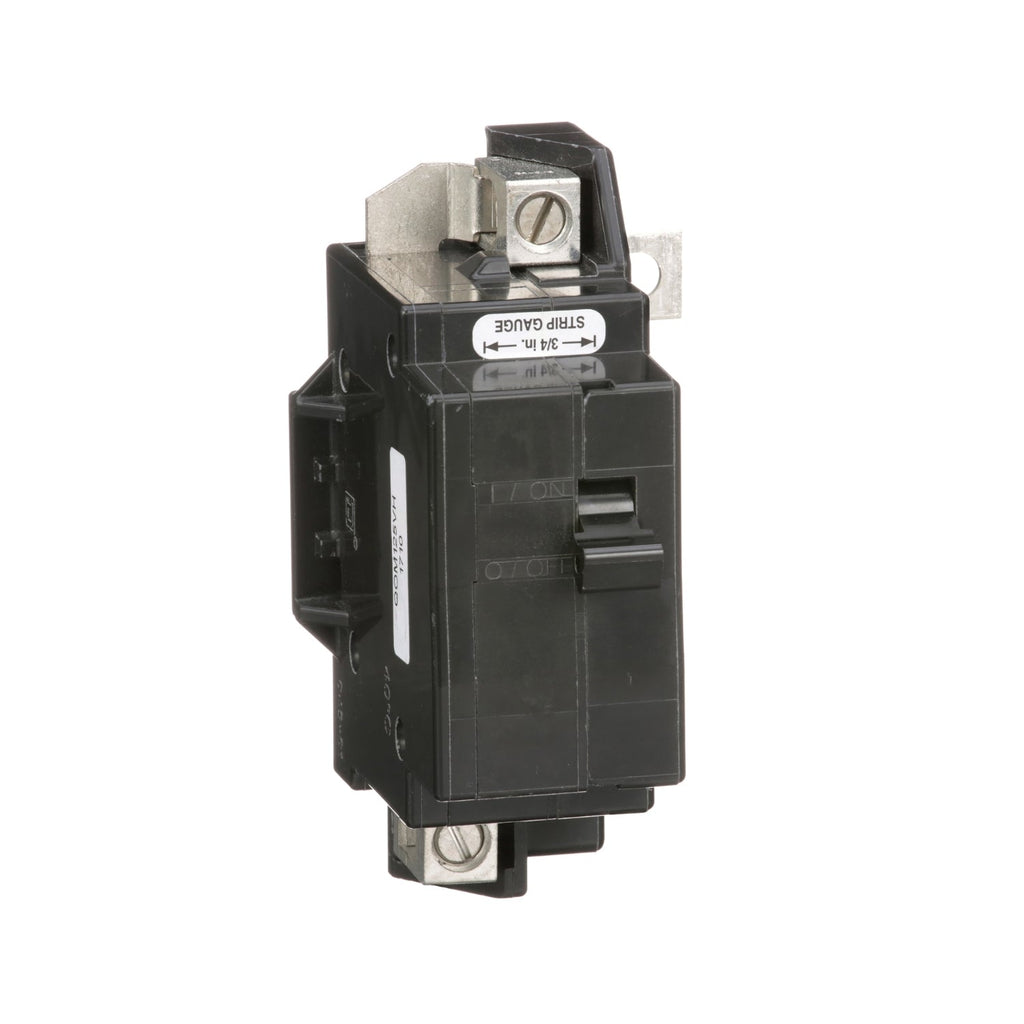

QOM70VH - Square D 70A 2 Pole 120/240VAC Bolt-On Main Circuit Breaker, QO Series, 22kAIC, Thermal Magnetic Trip, UL/CSA

QOM70VH

QOM70VH is a Square D 2-pole, 70 amp main circuit breaker designed for reliable protection in residential and commercial electrical panels.

This thermal magnetic circuit breaker features a bolt-on connection, is rated for 120/240VAC, and offers a high interrupting capacity of 22kAIC. It is part of the QO series, known for durability and ease of installation, and is compatible with QO and Homeline load centers. The QOM70VH includes both long-time and instantaneous trip functions for enhanced circuit protection.

Key Specifications
• Amperage: 70A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 22kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal magnetic (LI – Long-time and Instantaneous)
• Certifications: UL, CSA
• Connection: Lugs
• Wire Size: 12 to 2/0 AWG (Aluminum/Copper)
• Temperature Rating: 40°C
• Configuration: Main breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM70VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 2 AWG
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054719
• GTIN : 00785901054719
• Country of Origin : Mexico
• Dimensions : 5.08 in (129 mm) x 3.5 in (88 mm) x 5 in (127 mm) (Height x Width x Depth)
• Weight : 1.25
• Panel Type : Homeline Load Center, QO Load Center
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to AWG 2/0, Aluminum/Copper
