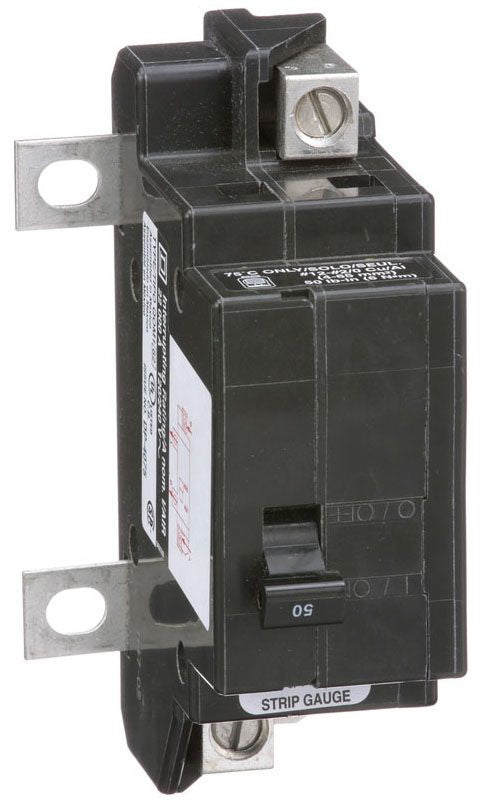

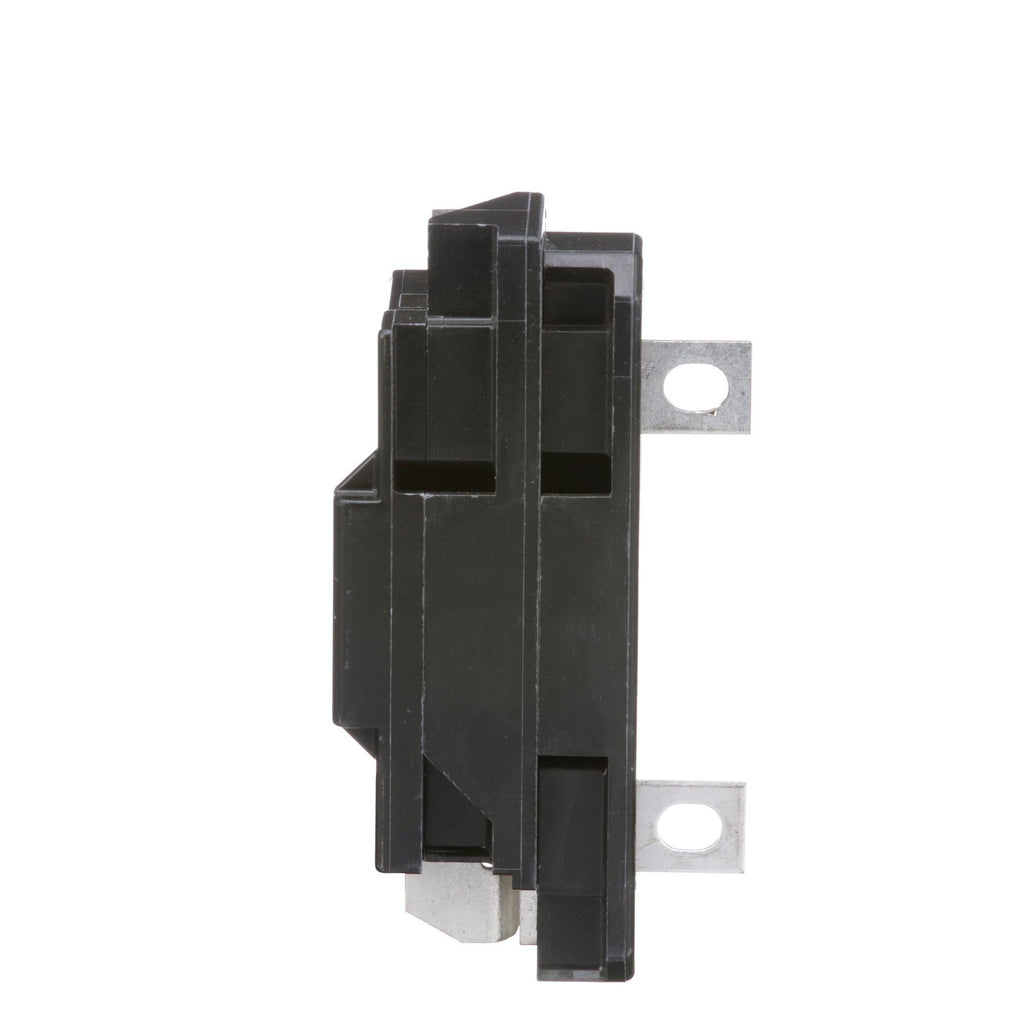

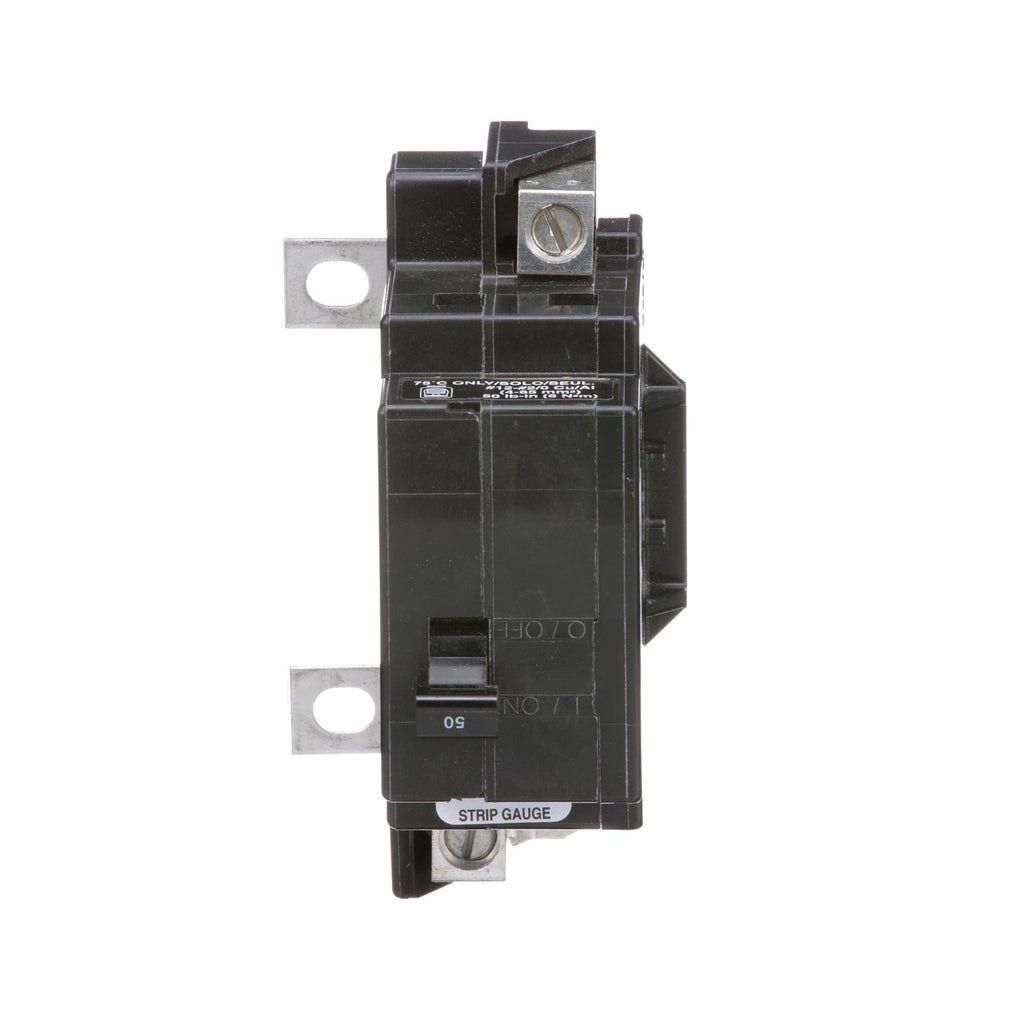

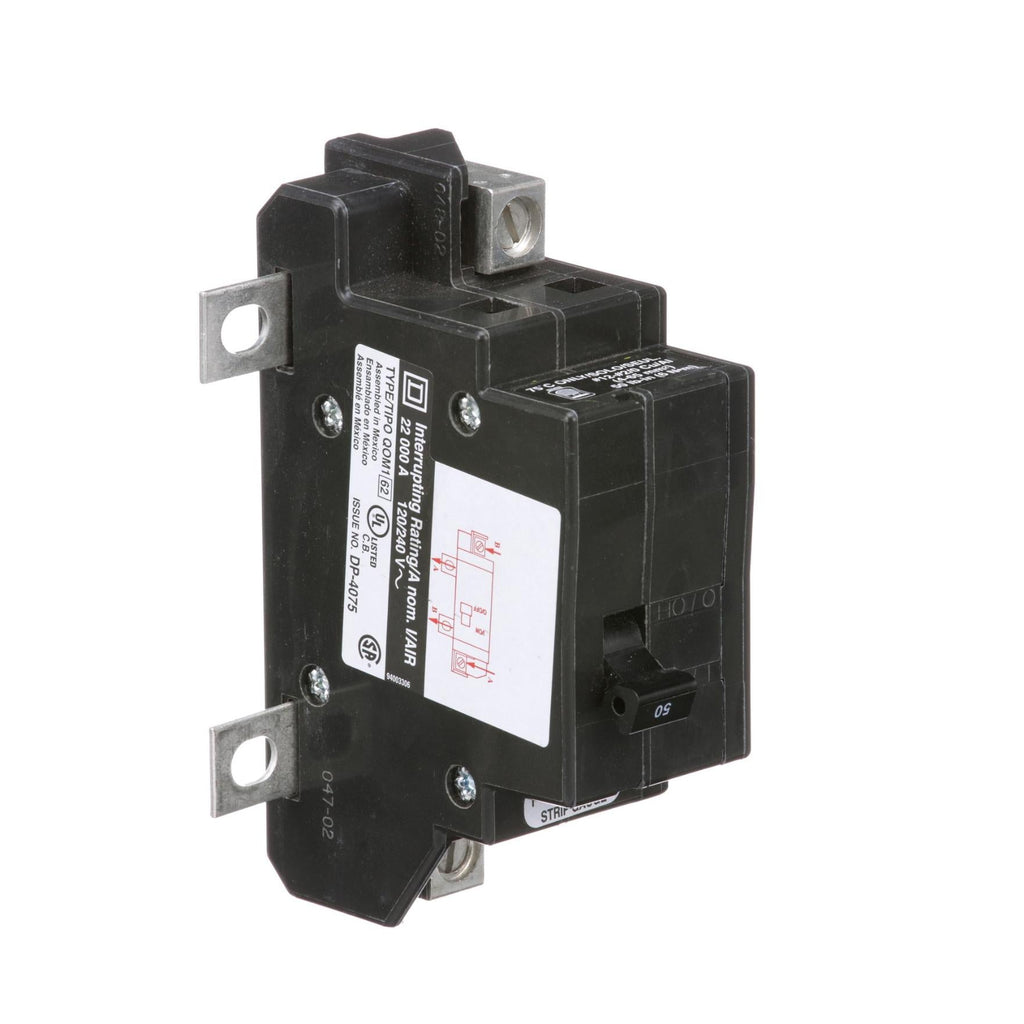

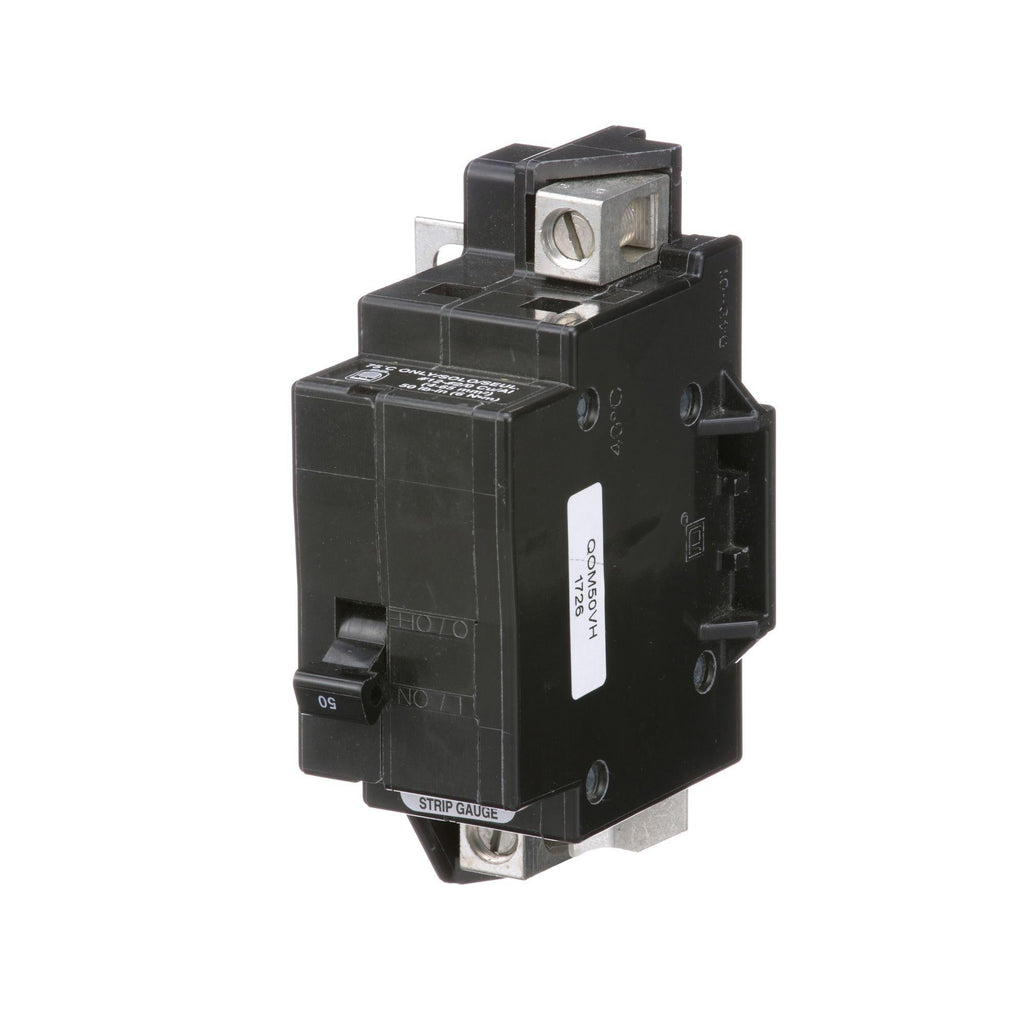

QOM50VH - Square D QO 50A 2 Pole 120/240V AC Bolt-On Main Circuit Breaker 22kA Interrupt

QOM50VH

QOM50VH is a Square D QO series main circuit breaker designed for reliable protection in load center applications. This 2 pole, 50 amp breaker features a bolt-on mounting design and thermal magnetic trip technology for robust circuit protection. The QOM50VH is rated for 120/240V AC operation and offers a 22kA interrupt rating, making it suitable for a wide range of residential and light commercial installations. Its compact footprint and plug-on neutral design allow for faster, easier installation and maintenance.

• Part Number: QOM50VH
• Manufacturer: Square D
• Series: QO
• Amperage Rating: 50 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Phase: 1 ph
• Frequency: 50/60 Hz
• Trip Type: Thermal Magnetic
• Wire Size: 4 to 2/0 AWG
• Approvals: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM50VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901879596
• GTIN : 00785901879596
• Country of Origin : Mexico
• Dimensions : 5.08 in (129 mm) x 3.5 in (88 mm) x 5 in (127 mm) (Height x Width x Depth)
• Weight : 1.335
• Panel Type : QO Load Center, Homeline Load Center
• Standards : UL Listed, CSA
• Certification : UL Listed CSA Certified CE Marked
• Wire Size : AWG 4 to AWG 2/0, Aluminum/Copper
