QOM2125VH1021 - Square D 125A 120/240V 2 Pole QO Frame Circuit Breaker Bolt-On AC Shunt Trip

QOM2125VH1021

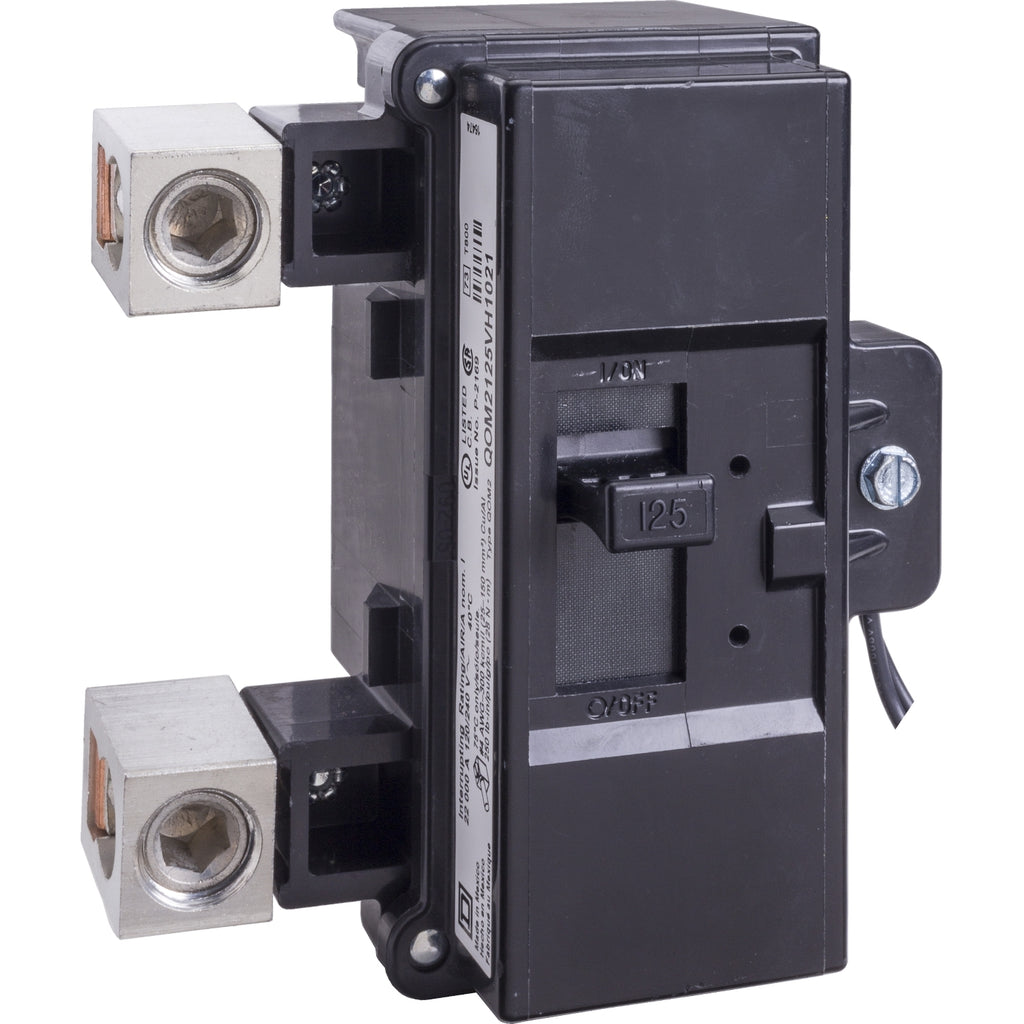

QOM2125VH1021 is a Square D 2 pole circuit breaker with 125 ampere rating and 120/240 VAC voltage designed for QO load centers.This QOM series breaker features a bolt-on mounting type, thermal magnetic trip unit with long-time and instantaneous trip functions, and a 22 kA interrupting rating at 120/240 VAC. It supports wire sizes from AWG 4 to 300 kcmil copper or aluminum and is UL and CSA certified for reliable circuit protection.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 22 kA at 120/240 VAC
• Frame Size: QO
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: Lugs
• Wire Size Range: AWG 4 to 300 kcmil (Copper/Aluminum)
• Phase: Single Phase
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2125VH1021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901158189
• GTIN : 00785901158189
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 5.08 in (129 mm) x 3.6 in (91 mm) (Height x Width x Depth)
• Weight : 2.745
• Wire Size : AWG 4 to 300KCmil, Copper/Aluminum
