QOM2125VH - Square D 125 Amp 2 Pole 120/240VAC Bolt-On Main Circuit Breaker, QO Series, 22kAIC, Thermal Magnetic Trip, UL/CSA

QOM2125VH

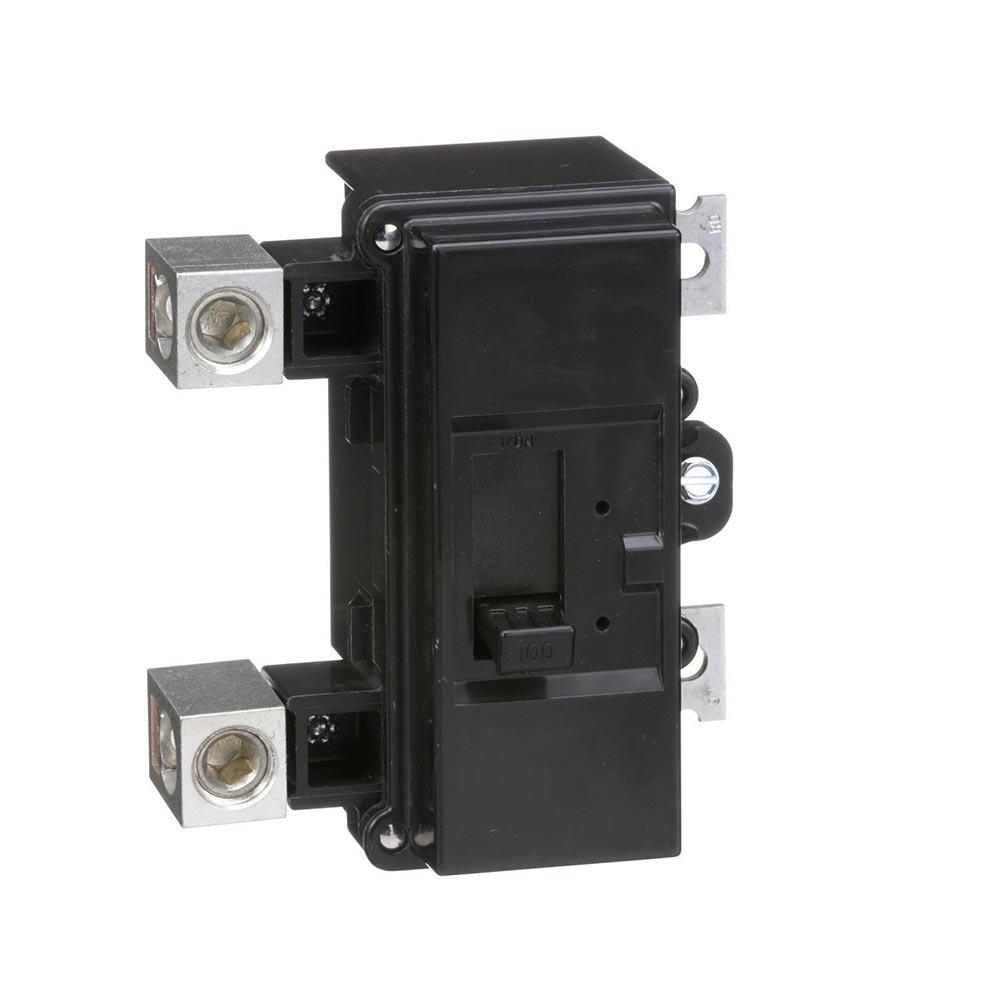

QOM2125VH is a Square D 2 pole, 125 amp, 120/240VAC bolt-on main circuit breaker designed for QO and Homeline load centers.

This thermal magnetic circuit breaker features a 22kA interrupting rating, long-time and instantaneous trip functions, and is approved for use with 4 AWG to 300 kcmil copper or aluminum wire. It is UL and CSA listed, ensuring compliance with North American safety standards.

Key Specifications
• Amperage: 125A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 22kAIC at 120/240VAC
• Series/Frame: QO
• Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
• Certifications: UL, CSA
• Connection: Lugs
• Wire Size: 4 AWG to 300 kcmil (copper/aluminum)
• For Use With: QO Load Center, Homeline Load Center
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM2125VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 120/240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901021971
• GTIN : 00785901021971
• Country of Origin : Mexico
• Dimensions : 5.6 in (142 mm) x 3.6 in (91 mm) x 5.08 in (129 mm) (Height x Width x Depth)
• Weight : 2.65
• Panel Type : Homeline Load Center, QO Load Center
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
