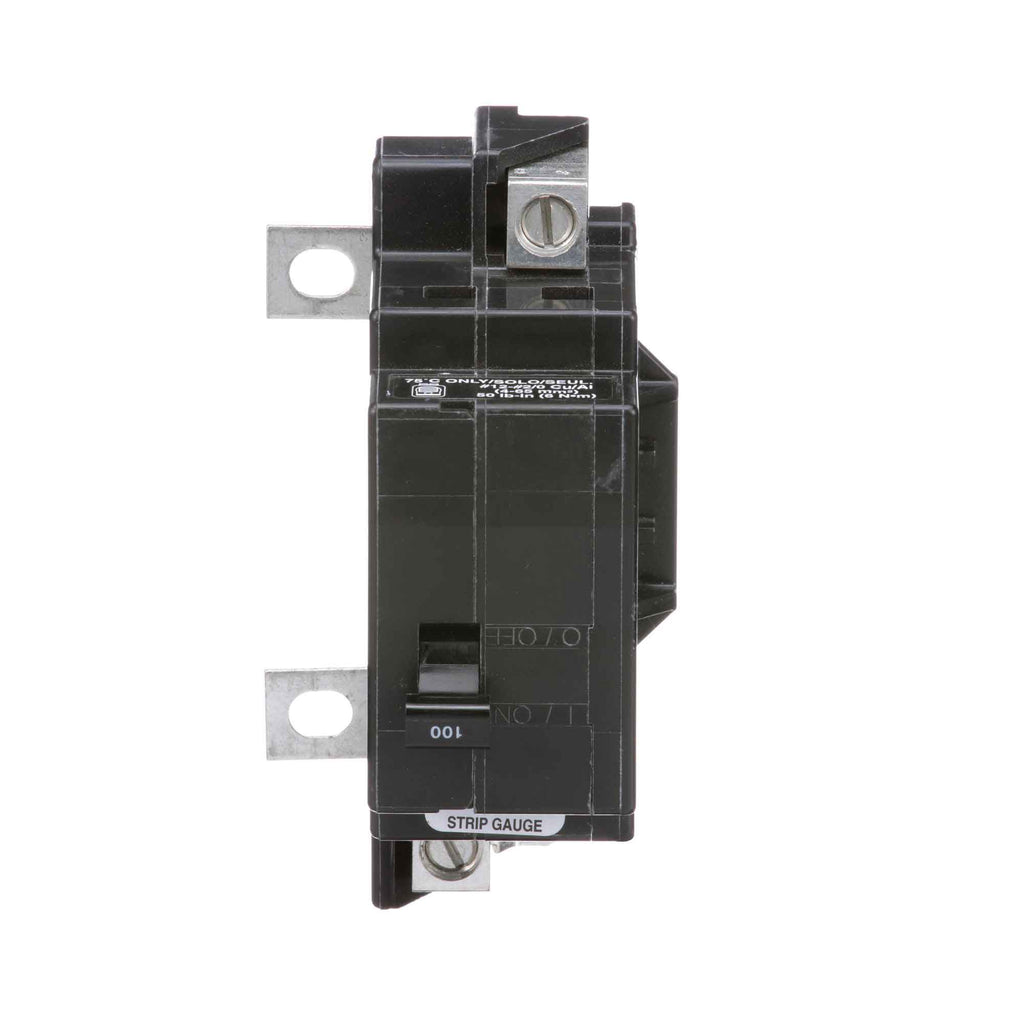

QOM100VH - Square D 100 Amp 2 Pole 120/240V Bolt-On Circuit Breaker 22kA Interrupt Rating QOM Frame

QOM100VH

QOM100VH is a Square D 2 pole, 100 amp, 120/240VAC bolt-on circuit breaker designed for reliable overcurrent protection.This thermal magnetic molded case circuit breaker features a 22kA interrupting rating at 120/240 volts, suitable for single-phase applications. It includes LI (long-time and instantaneous) trip functions and is UL and CSA certified. The breaker fits QOM series load centers and supports bolt-on mounting for secure installation.

Key Specifications
• Manufacturer: Square D
• Part Number: QOM100VH
• Amperage: 100 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 22kA at 120/240 VAC
• Series/Frame: QOM
• Trip Unit: Thermal Magnetic with LI functions
• Phase: Single Phase
• Certifications: UL, CSA
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM100VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 120/240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG Max. Wire Size 2 AWG
• Breaker Type : Main Breaker
• Protection : Thermal Magnetic

Product Data

• UPC : 785901004035
• GTIN : 00785901004035
• Country of Origin : Mexico
• Dimensions : 5 in x 5.09 in x 5.08 in
• Weight : 1.37
• Panel Type : Square D 125 Amp Single Phase Convertible Load Centers (QOM1 Frame Size)
• Standards : CSA, UL Listed
• Certification : UL Listed
