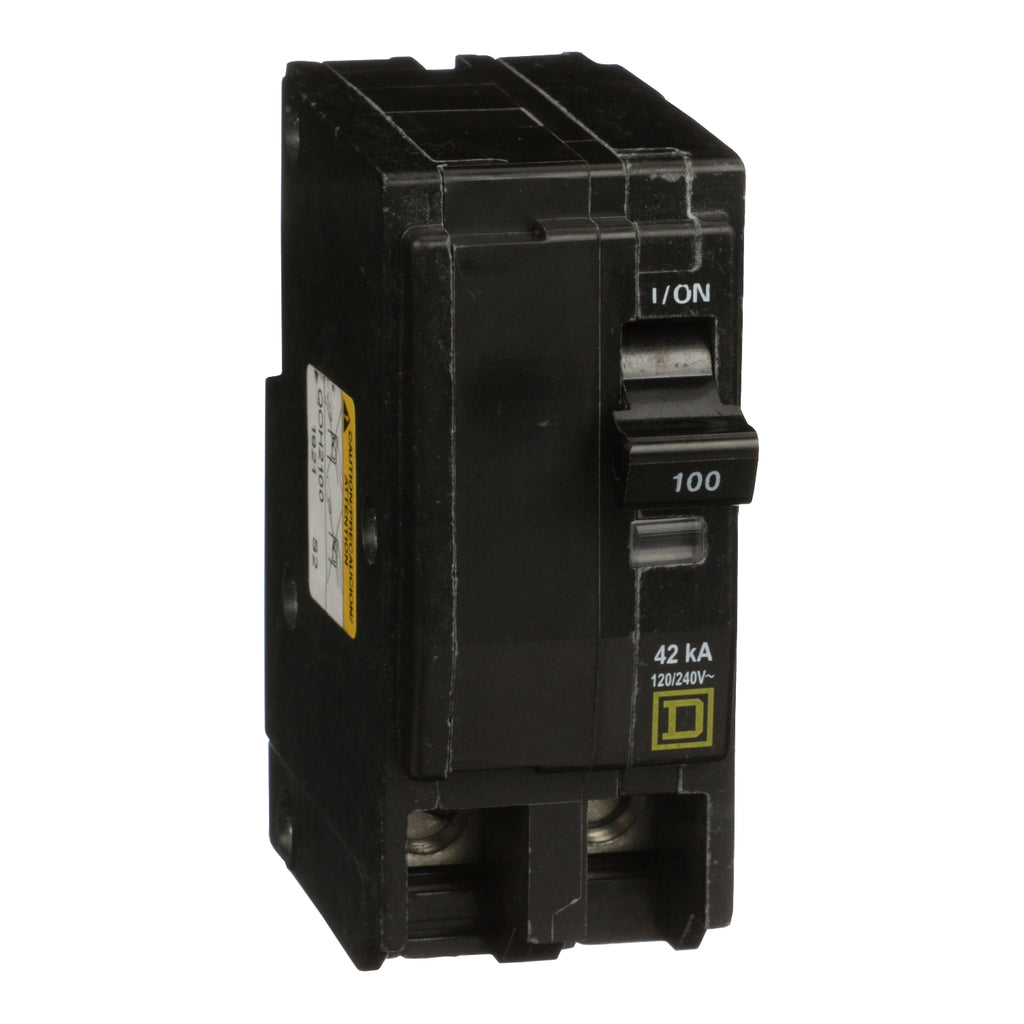

QOH2100 - Square D 100A 240V 2 Pole Plug-In Circuit Breaker 42kA Interrupt Rating

QOH2100

QOH2100 is a Square D 2 pole, 100 amp, 120/240 Volt plug-in circuit breaker with a 42kA interrupt rating.This miniature circuit breaker features a plug-on neutral design for faster installation and reliable circuit protection. It is rated for 120/240 VAC operation with a 42kA interrupting capacity, suitable for use in QO load centers. The breaker supports conductor sizes from 4 AWG to 2/0 AWG aluminum or copper and includes a common trip mechanism for enhanced safety. It complies with industry standards ensuring durability and performance.

• Amperage: 100 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 42kA @ 120/240 VAC
• Conductor Size: 4 AWG to 2/0 AWG Aluminum/Copper
• Series/Frame: QO
• Trip Unit: Thermal Magnetic, Common Trip
• Certifications: Meets industry standards
• Dimensions: Approx. 2.24" W x 2.91" D x 3.5" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOH2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QOH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 42kA@240V
• Connection : Plug-In
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Box Lugs
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054870
• GTIN : 00785901054870
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.72
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4 to AWG 2/0, Copper/Aluminum
