QOB380VH1021 - Square D 80A 120/240VAC 3 Pole Bolt-On Thermal Magnetic Circuit Breaker

Save $77.12
SKU: QOB380VH1021-New
Condition: New
Price:
$740.88 $818.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

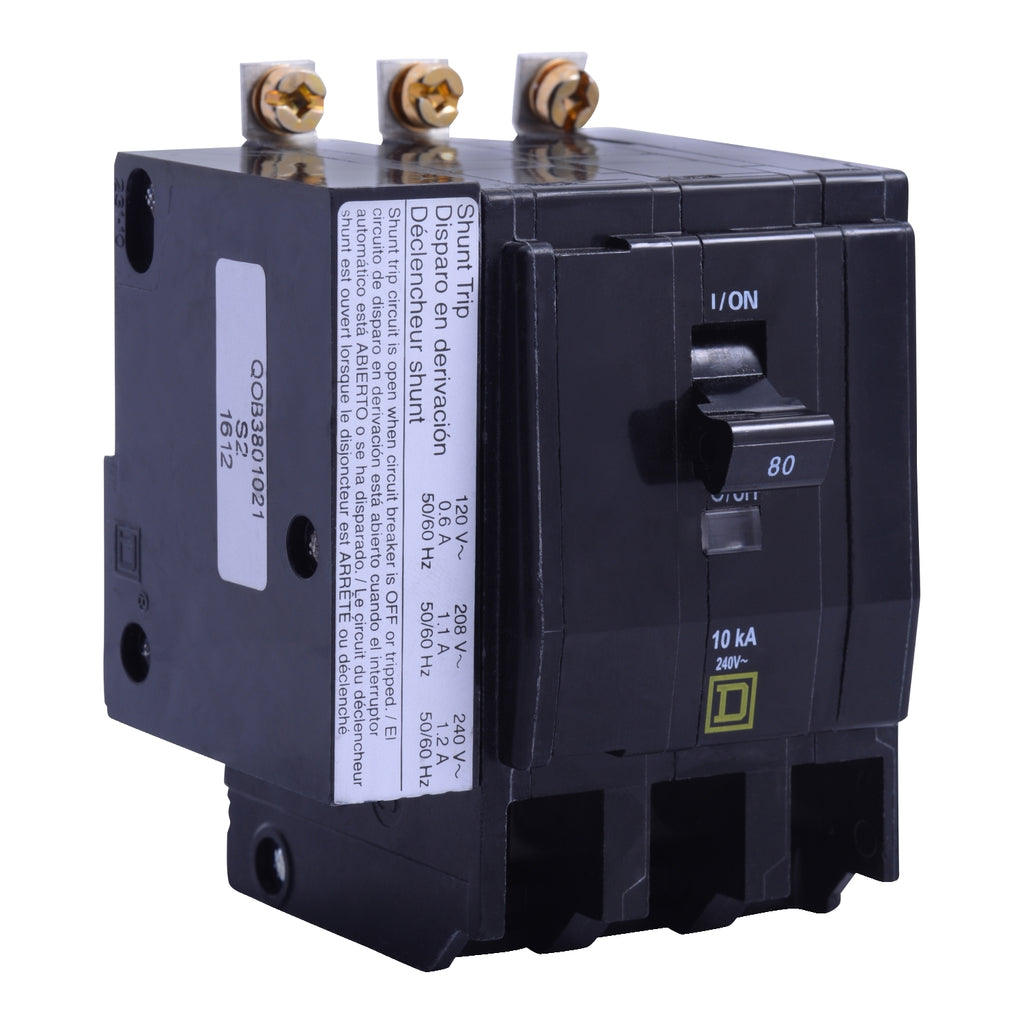

QOB380VH1021 - Square D Bolt-On 240V 80A 3 pole circuit breaker 22kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB380VH1021 - Square D Bolt-On 240V 80A 3 pole circuit breaker 22kA@240V - Essential Electric Supply

Description

QOB380VH1021


QOB380VH1021 is a 3 pole, 80A, 120/240VAC thermal magnetic molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Square D QO series breaker features a bolt-on mounting type, high interrupting capacity, and is suitable for use in QO panelboards. Engineered for durability and safety, the QOB380VH1021 provides long time and instantaneous trip functions, box lug terminals, and supports wire gauges from AWG 4 to AWG 2/0 (copper or aluminum). It meets UL, CSA, RoHS, and REACh standards, and is rated for 22kAIC at 120/240VAC.
  • Part Number: QOB380VH1021
  • Manufacturer: Square D
  • Series/Frame: QO/QOB
  • Amperage: 80A
  • Voltage: 120/240VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupting Rating: 22kAIC at 120/240VAC
  • Protection Type: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Terminal Connection: Box Lugs
  • Certifications: UL, CSA, RoHS, REACh
At Essential Parts, we offer fast shipping, lowest pric(more...)

Specifications

  • Part Number: QOB380VH1021
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901750543
  • GTIN : 00785901750543
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.36
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to AWG 2/0, Copper/Aluminum
