Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB370VH

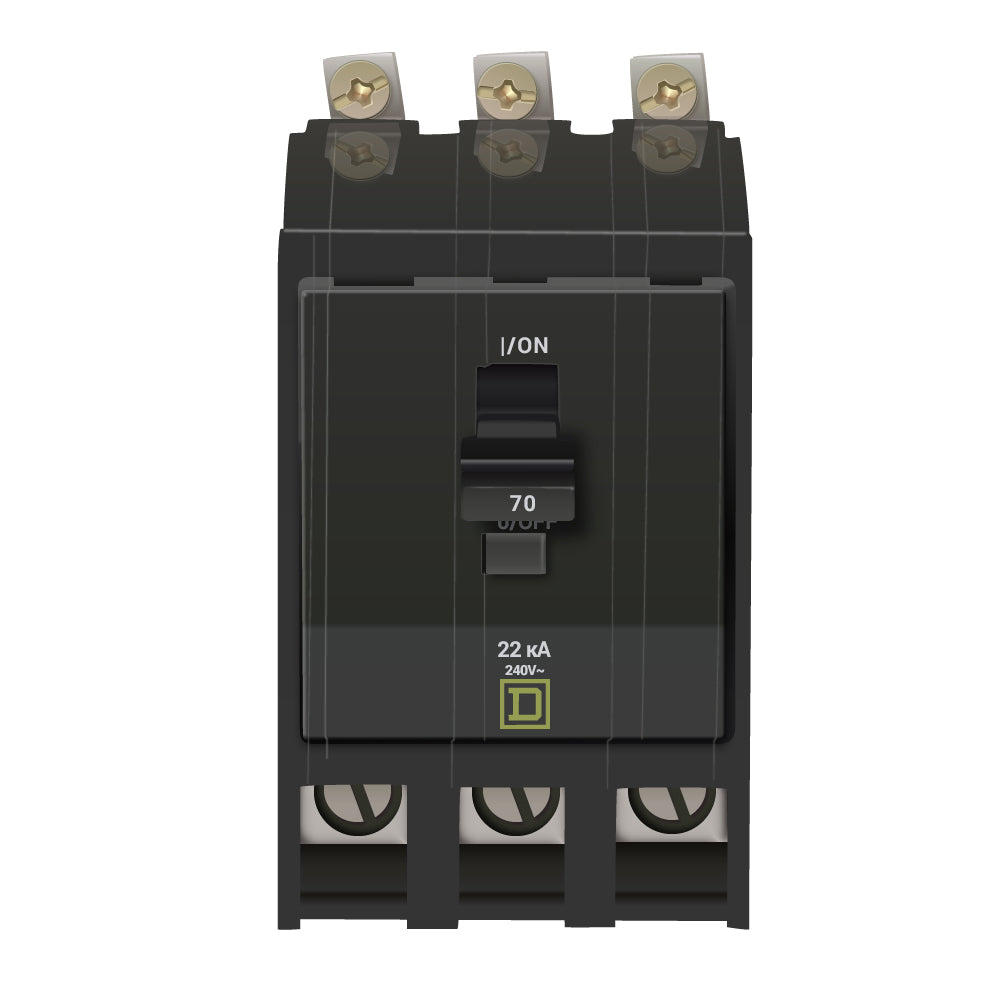

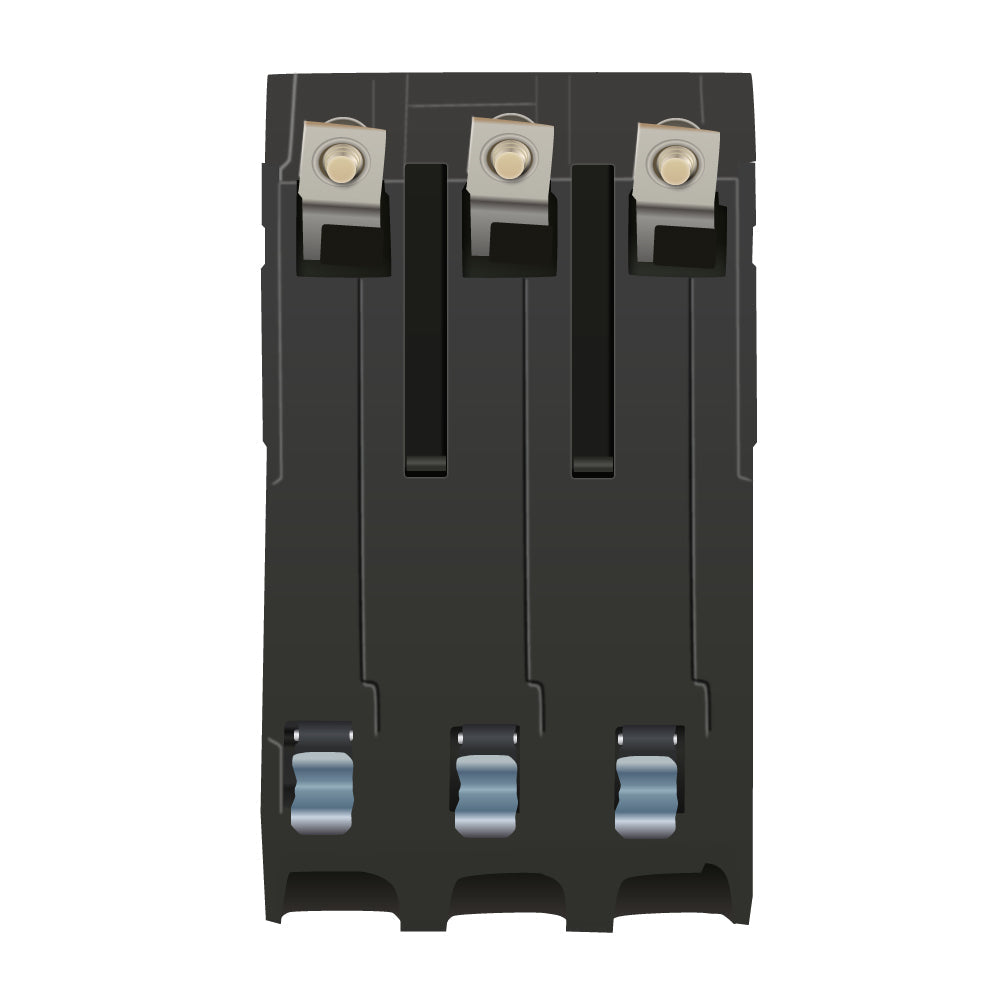

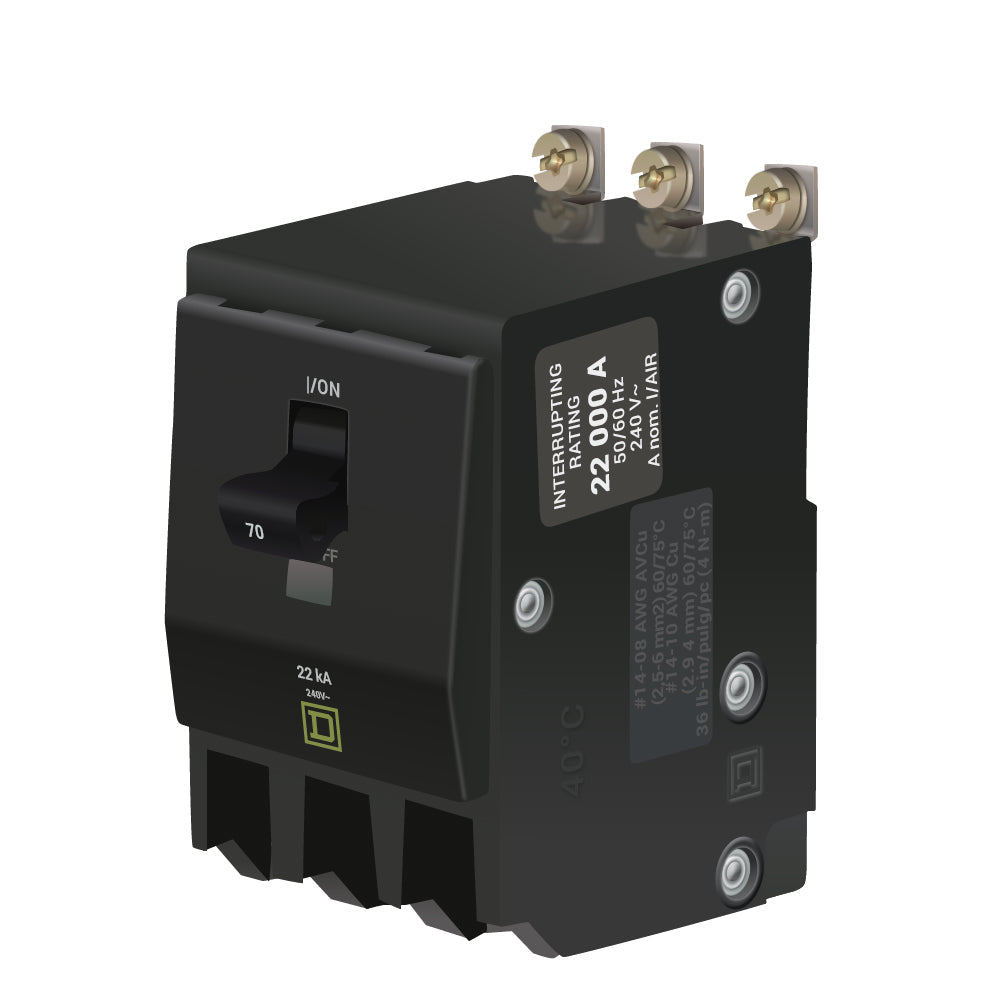

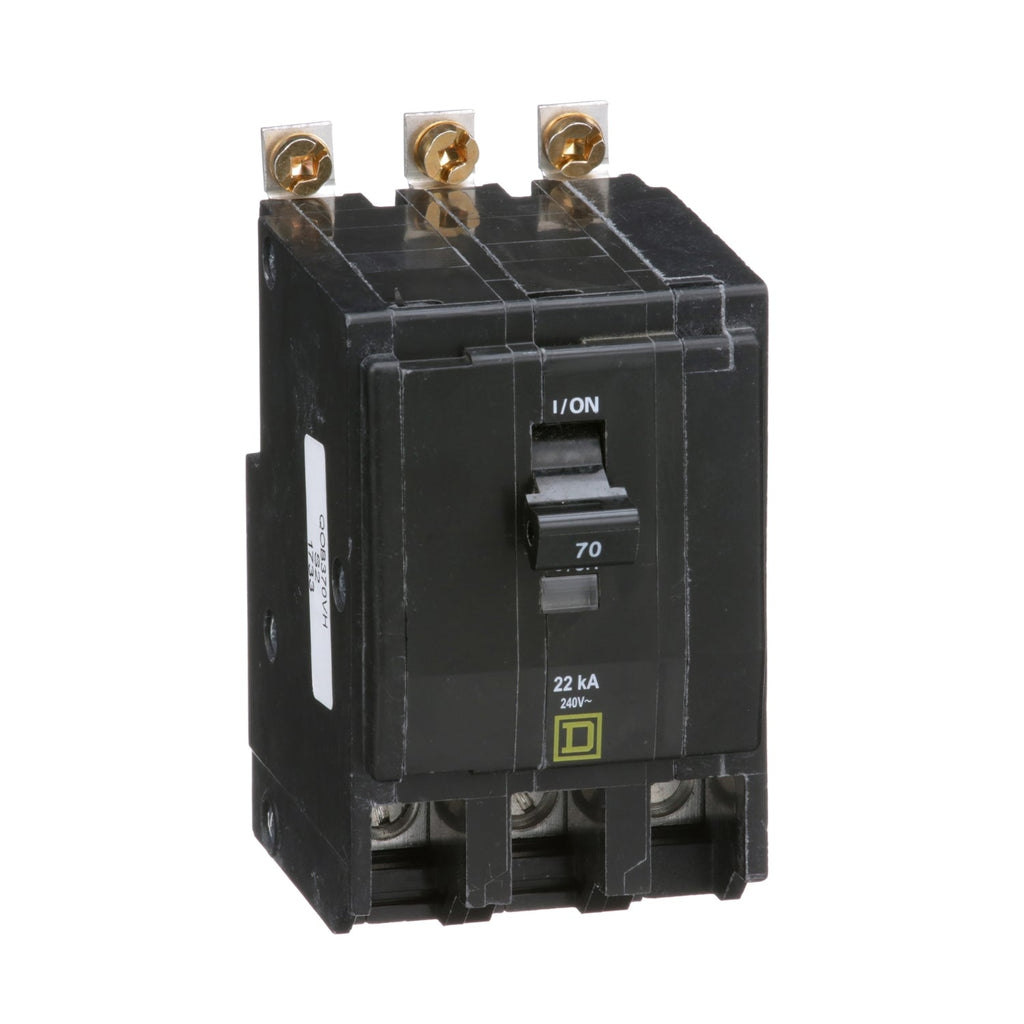

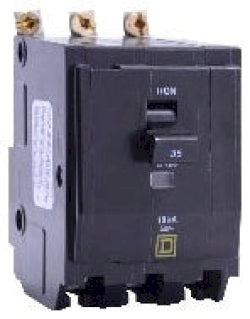

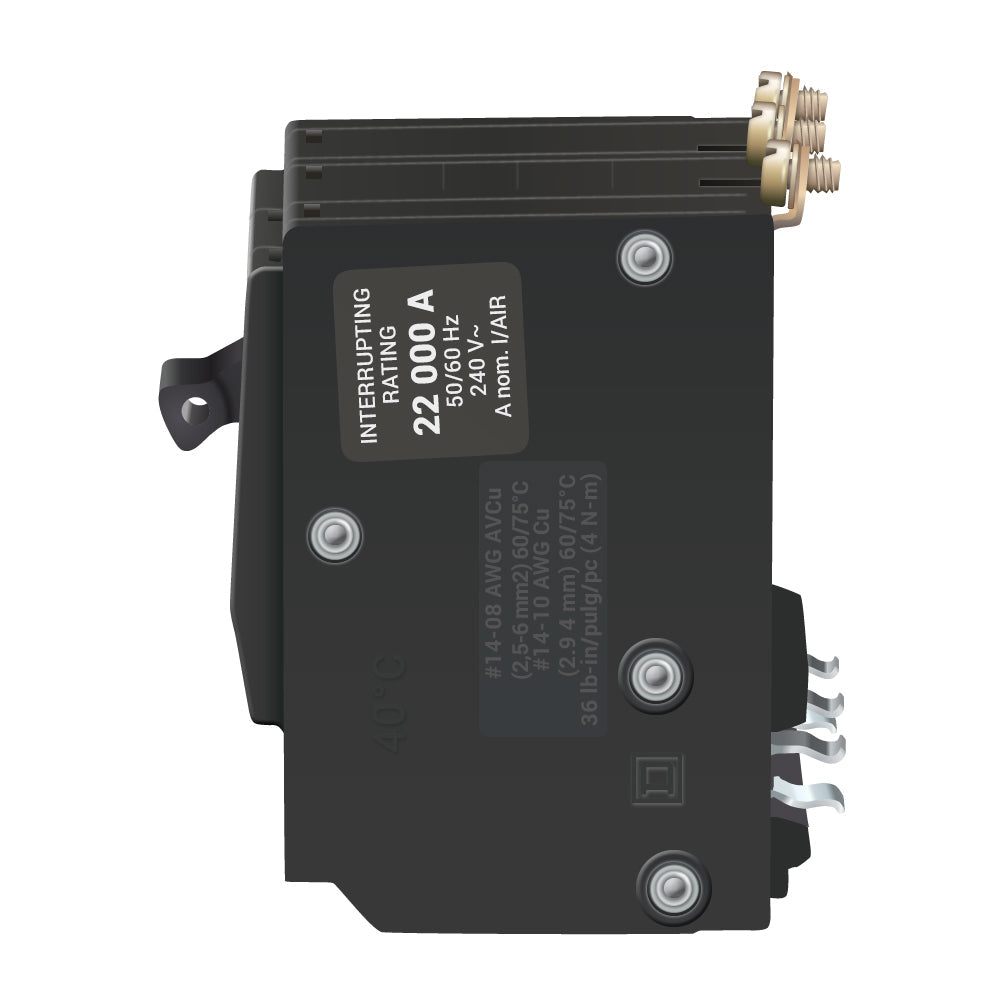

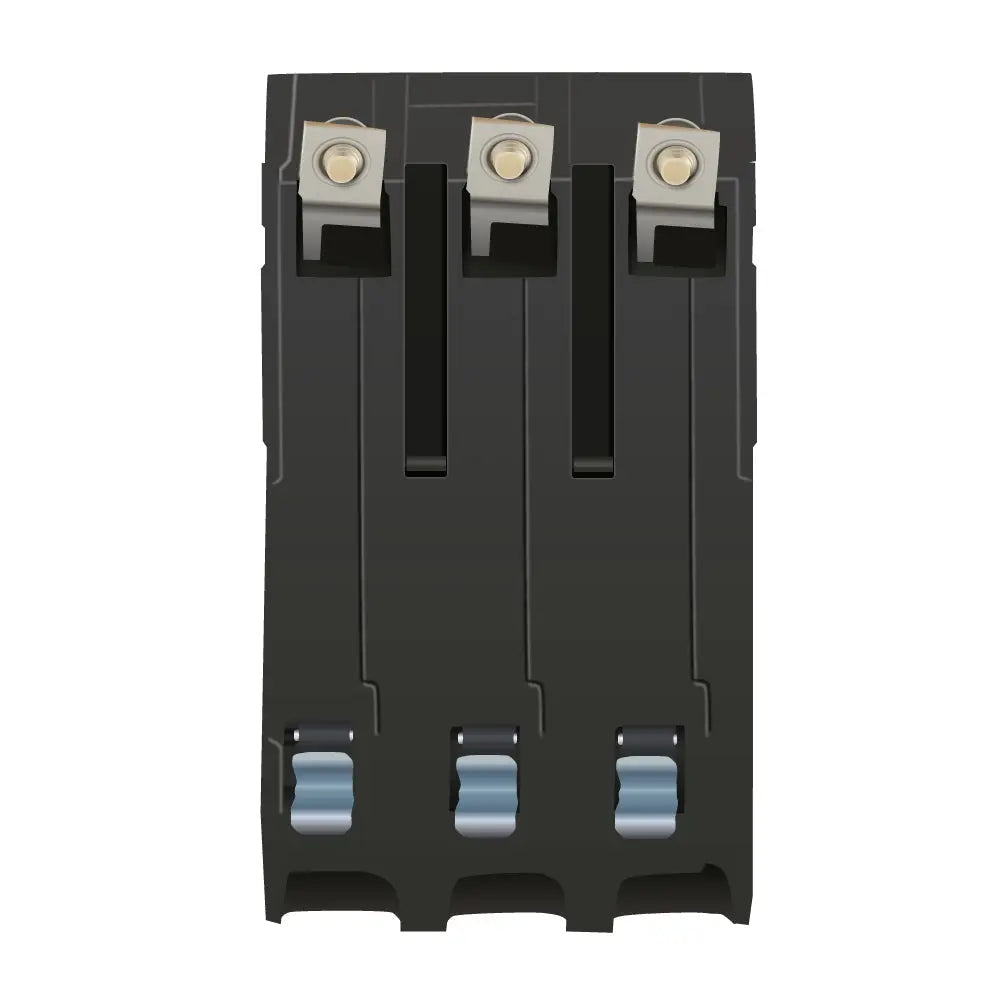

QOB370VH is a Square D 3 pole, 70 amp, 240 volt bolt-on circuit breaker designed for reliable circuit protection.This miniature circuit breaker from the QO series features a thermal magnetic trip unit, 22kA interrupt rating, and bolt-on mounting type. It is UL and CSA certified for safety and performance in residential and commercial electrical panels.
- Manufacturer: Square D
- Part Number: QOB370VH
- Amperage: 70 Amps
- Voltage Rating: 120/240 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA
- Series/Frame: QO
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
Specifications
- Part Number: QOB370VH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : High Interrupting Capacity
- Protection : Thermal Magnetic
Product Data
- UPC : 785901054849
- GTIN : 00785901054849
- Country of Origin : Mexico
- Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 1.06
- Panel Type : Square D NQOD Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 8, AWG 2 copper or aluminium
