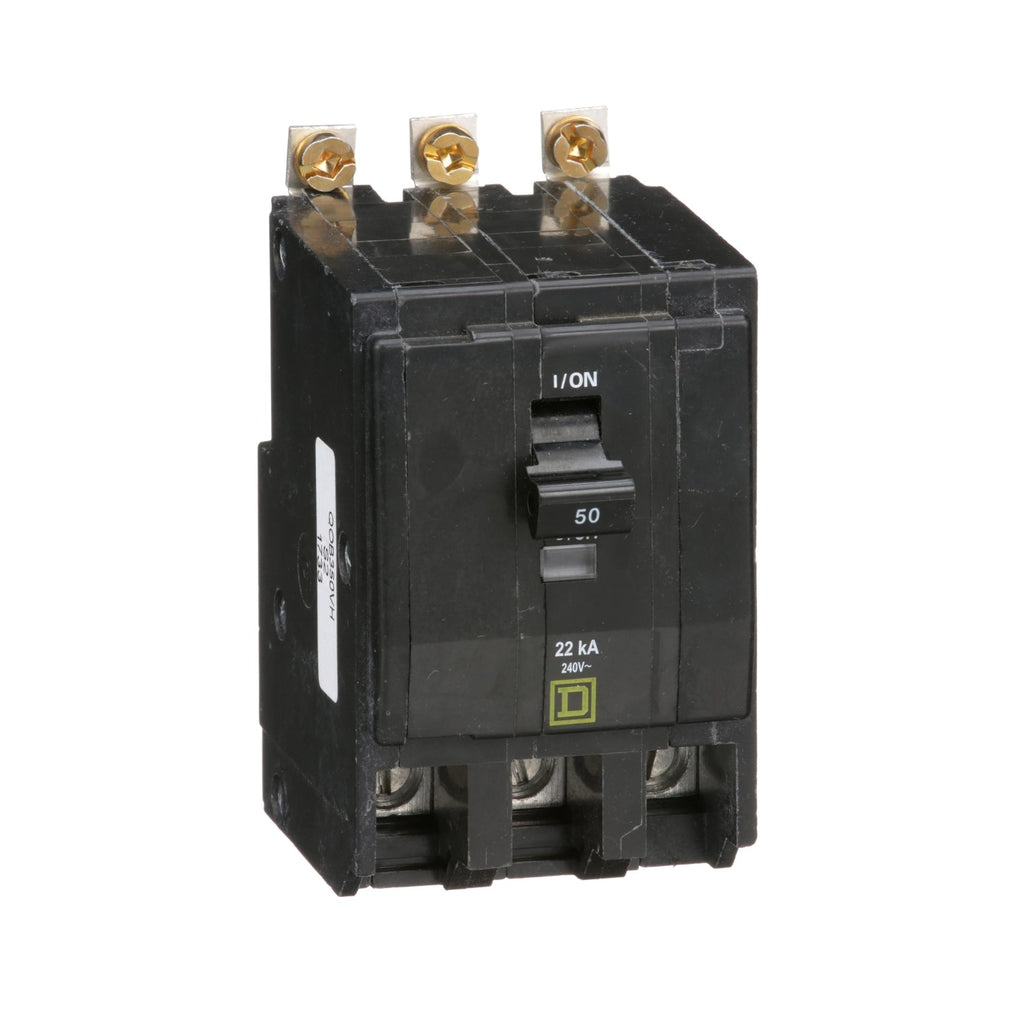

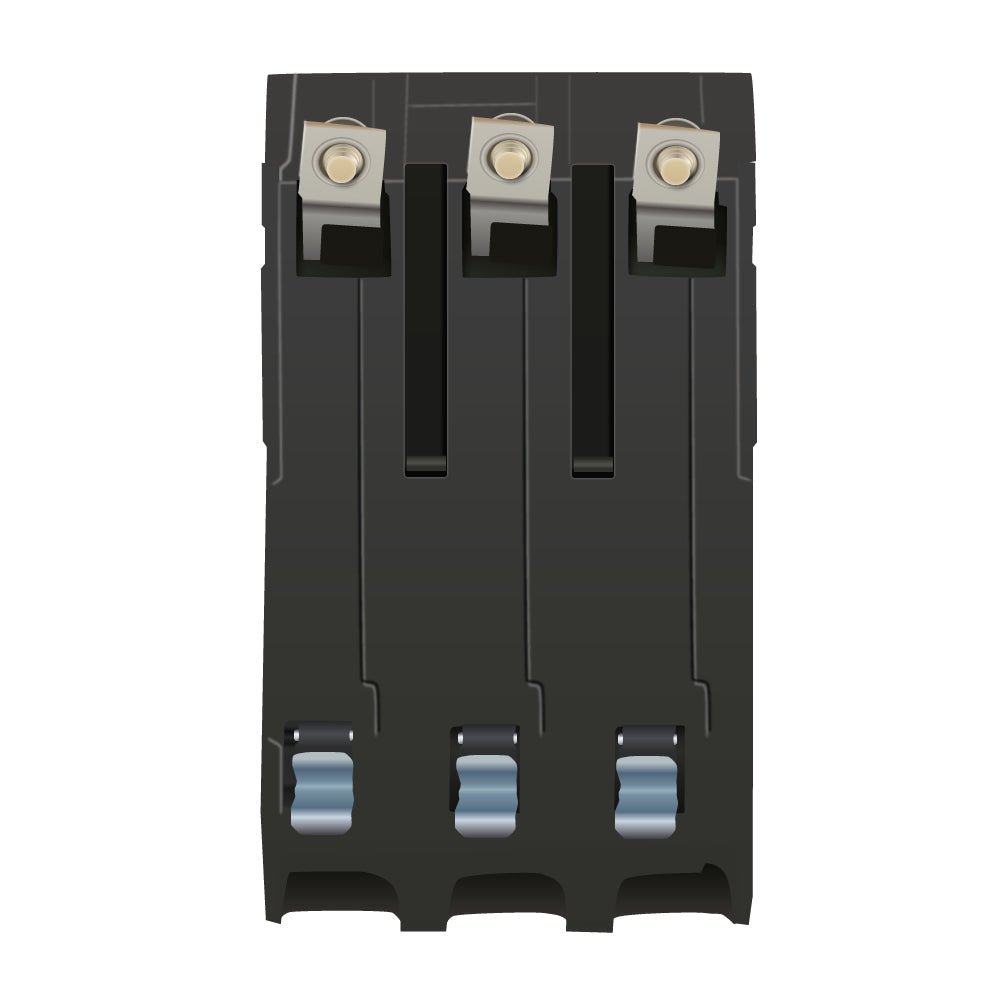

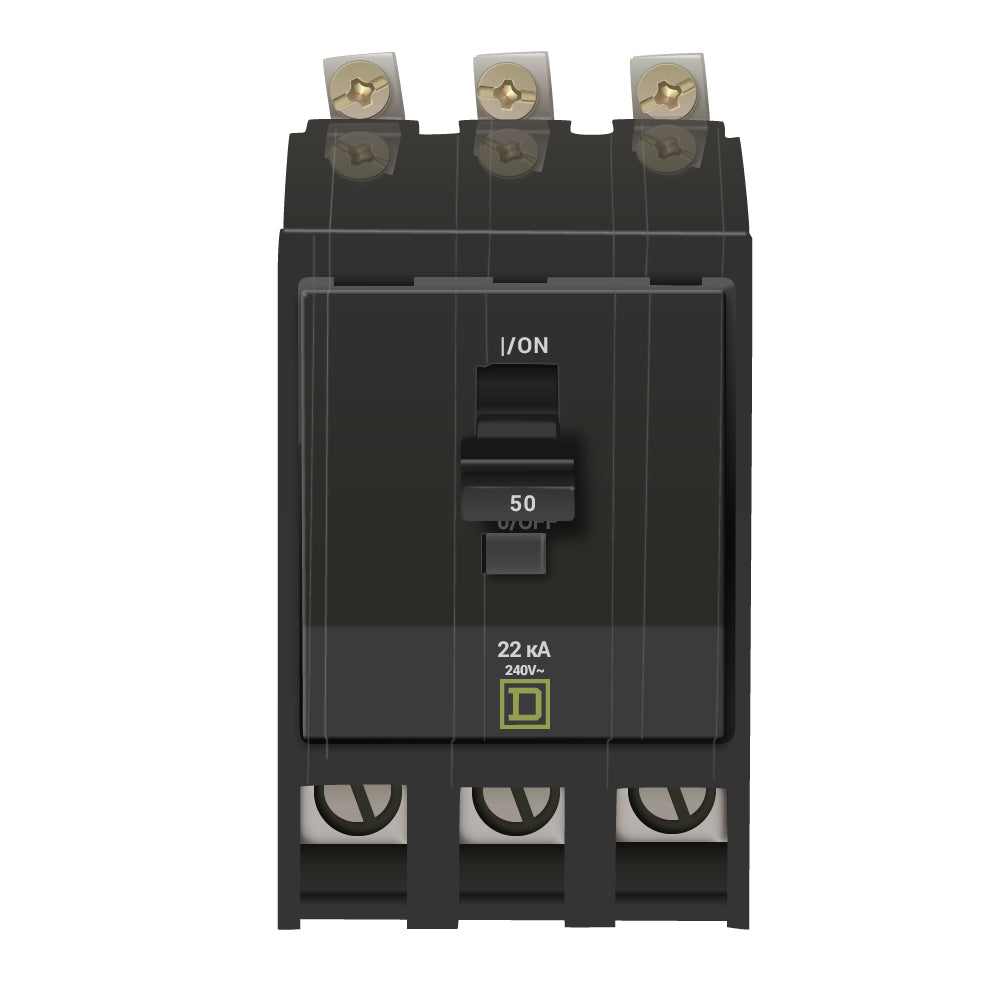

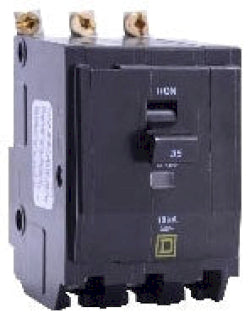

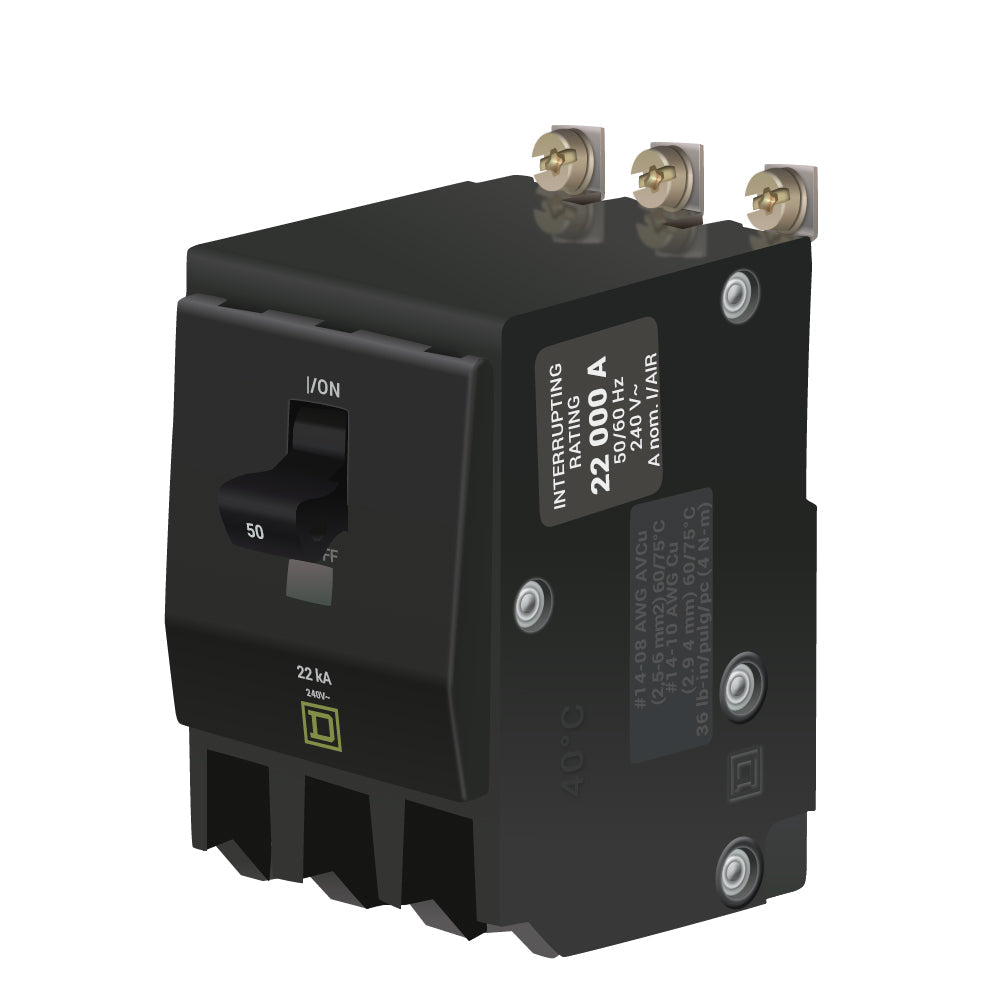

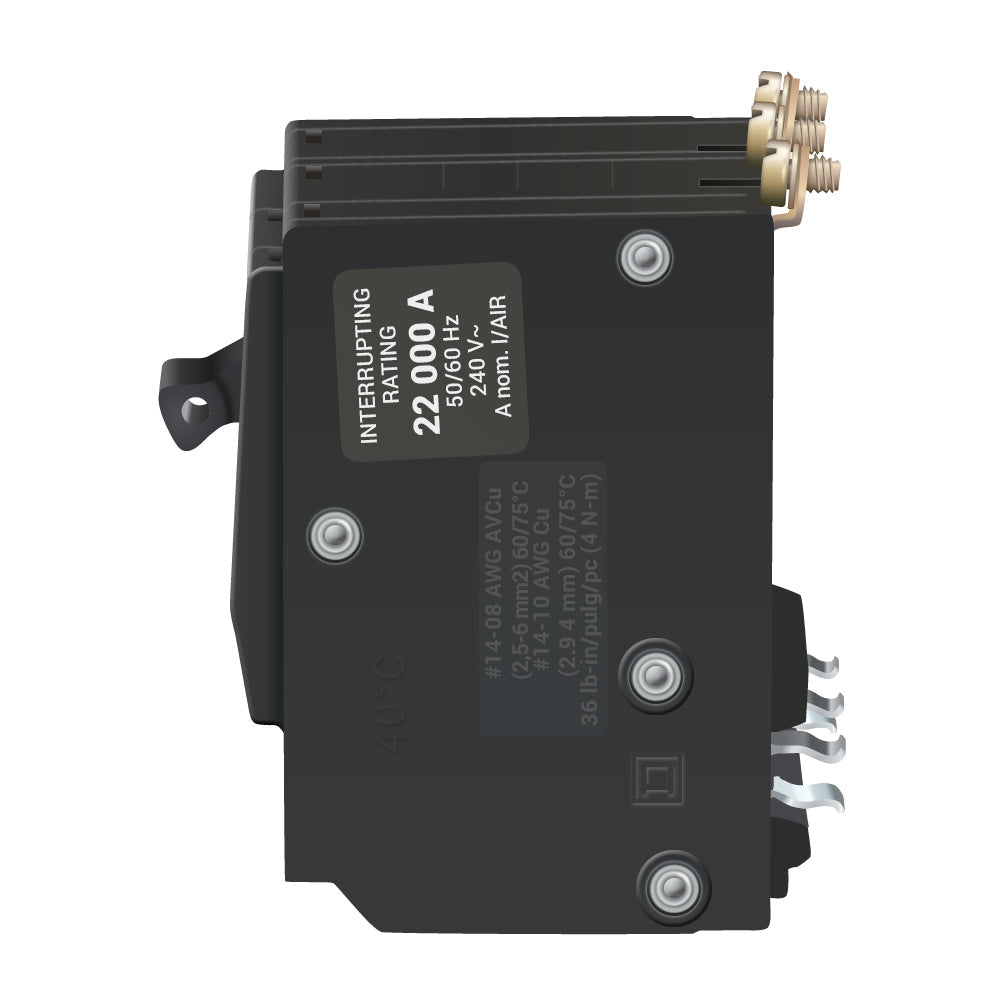

QOB350VH - Square D 50 Amp 120/240V 3 Pole Bolt-On Circuit Breaker 22kA Interrupt Rating

QOB350VH

QOB350VH is a Square D 3 Pole bolt-on circuit breaker rated for 50 Amps and 120/240 Volt AC applications with a 22kA interrupting capacity.This thermal magnetic molded case circuit breaker features long time and instantaneous trip functions, UL and CSA certifications, and is designed for use with NQOD panelboards. It supports copper or aluminum wire sizes from AWG 8 to AWG 2 and operates at a temperature rating of 40¡C.

• Amperage: 50 Amps
• Voltage: 120/240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 120/240 VAC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Certifications: UL, CSA, RoHS, REACh, HACR
• Terminal Connection: Box Lugs
• Wire Size Range: AWG 8 to AWG 2 (Copper or Aluminum)
• Operating Temperature: 40¡C
• Breaker Feature: Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB350VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054825
• GTIN : 00785901054825
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.1
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper or Aluminum
