QOB330PL - Square D 30 Amp 240V 3-Pole Bolt-On Molded Case Circuit Breaker QOB Series

QOB330PL

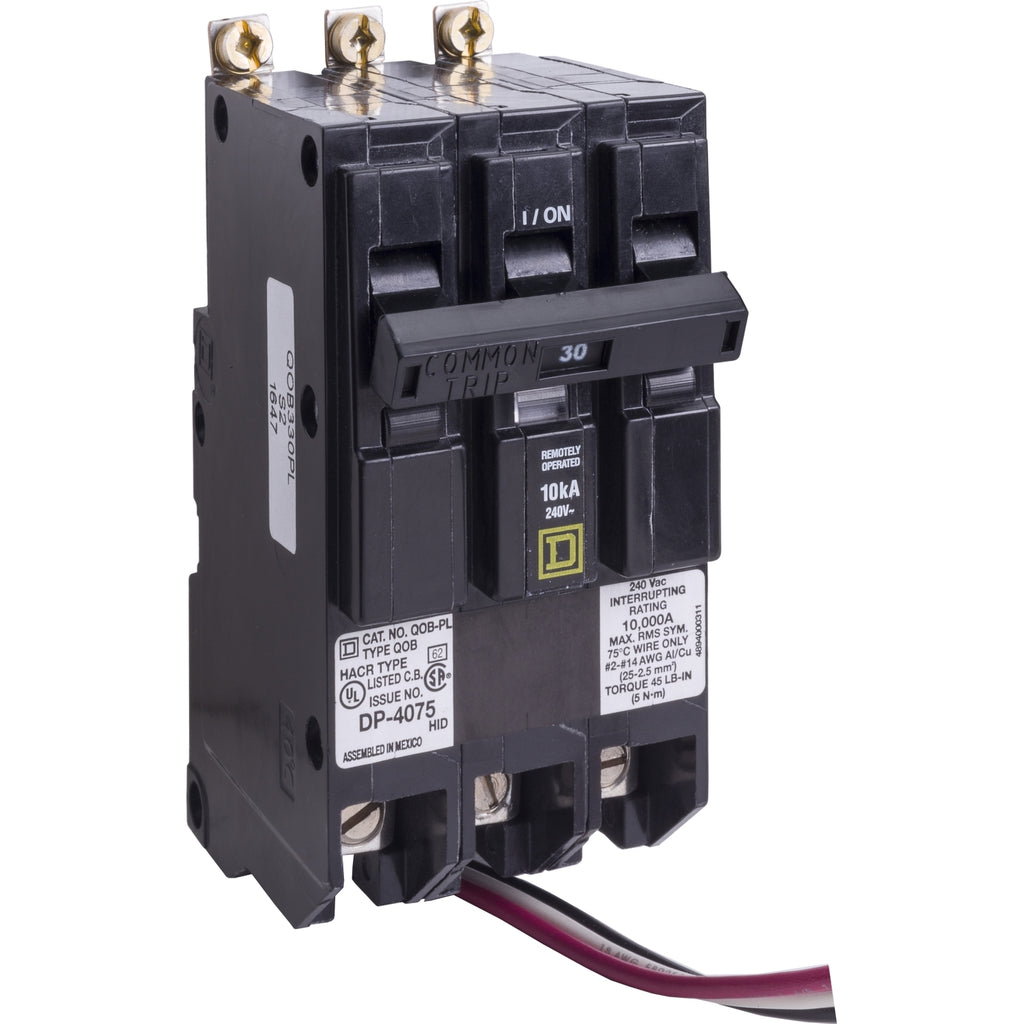

QOB330PL is a 30 Amp, 3-pole molded case circuit breaker from Square D's QOB series designed for bolt-on mounting and rated for 240 volts AC.

This circuit breaker features a thermal magnetic trip unit providing reliable overcurrent protection with a 10 kA interrupt rating at 240 VAC. It supports a bolt-on mounting type and is HACR rated for HVAC applications. The breaker includes a pressure plate electrical connection for secure wiring and is suitable for use with copper or aluminum conductors sized AWG 14 to AWG 8. It is designed for three-phase power systems and offers a compact footprint for efficient panel space usage.

• Manufacturer: Square D
• Part Number: QOB330PL
• Current Rating: 30 Amps
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 VAC, 5 kA at 48 VDC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic
• HACR Rated: Yes
• Wire Size Range: AWG 14 to AWG 8 (Copper or Aluminum)

At Essential Parts, we offer fast shipping,(more...)

Specifications

• Part Number: QOB330PL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 4.6 in (116 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.39
• Standards : CSA, UL Listed
• Certification : UL Listed
