QOB330EPD - Square D 30 Amp 3 Pole 240V Bolt-On Thermal Magnetic Circuit Breaker

Save $521.20
SKU: QOB330EPD-New
Condition: New
Price:
$666.80 $1,188.00
Stock:
5 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

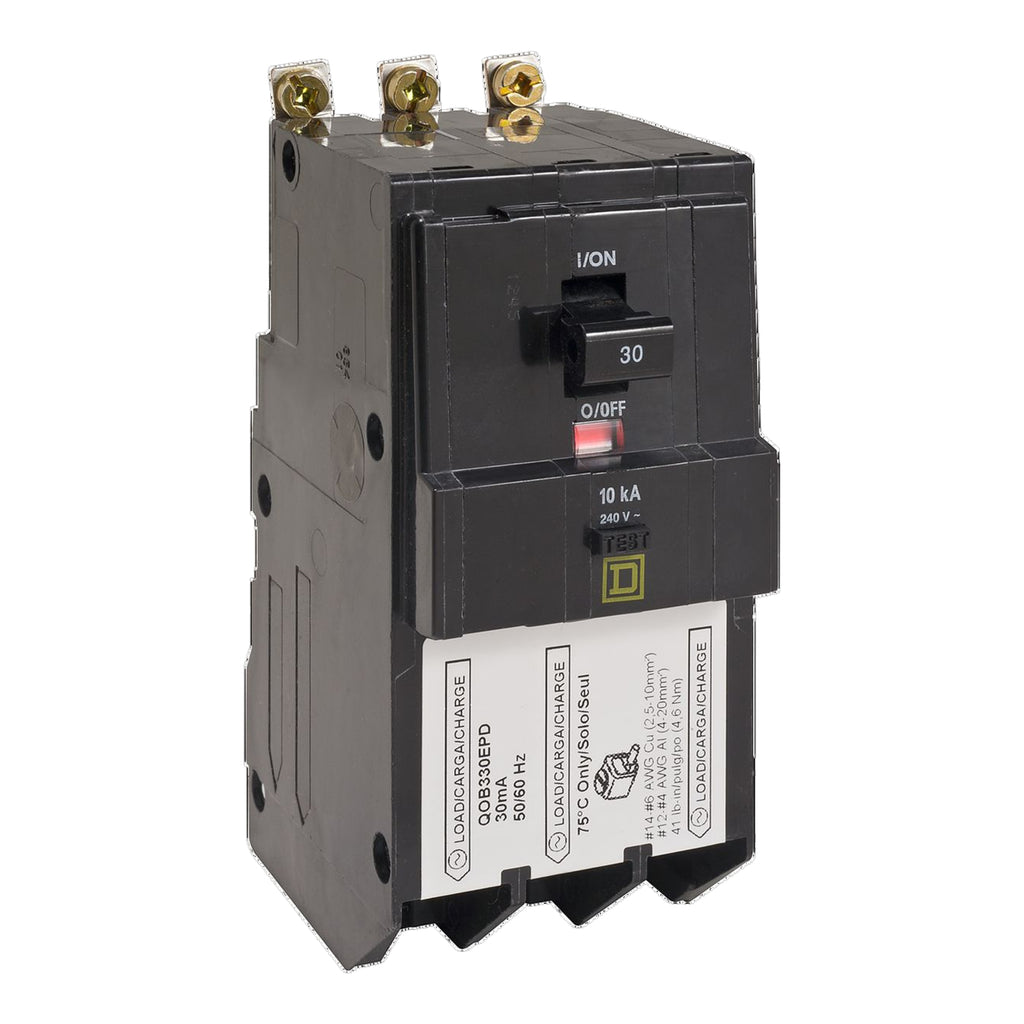

QOB330EPD - Square D Bolt-On 120/240 VACV 30A 3 pole circuit breaker 10kA@120V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB330EPD - Square D Bolt-On 120/240 VACV 30A 3 pole circuit breaker 10kA@120V - Essential Electric Supply

Description

QOB330EPD


QOB330EPD is a Square D 3 pole thermal magnetic circuit breaker rated for 30 amps and 240 volts with bolt-on mounting.This Square D QOB330EPD circuit breaker features a 10 kA interrupting rating at 240 VAC, thermal magnetic trip unit with long-time and instantaneous protection, and is designed for 3-phase applications. It supports wire sizes from 12 to 4 AWG aluminum and 14 to 6 AWG copper with box lug connections. The breaker is UL and CSA certified and constructed with a fiberglass filled thermoset frame for durability.
  • Amperage: 30 A
  • Voltage Rating: 240 VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupting Rating: 10 kA at 240 VAC
  • Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
  • Wire Size: 12-4 AWG Aluminum, 14-6 AWG Copper
  • Connection Type: Box Lug
  • Series/Frame: QOB
  • Certifications: UL, CSA
  • Dimensions: 2.25 in W x 2.91 in D x 4.12 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product (more...)

Specifications

  • Part Number: QOB330EPD
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
  • Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901982678
  • GTIN : 00785901982678
  • Country of Origin : Mexico
  • Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.3
  • Panel Type : QO Load Centers and NQ Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 12...AWG 4 aluminium, AWG 14...AWG 6 copper
