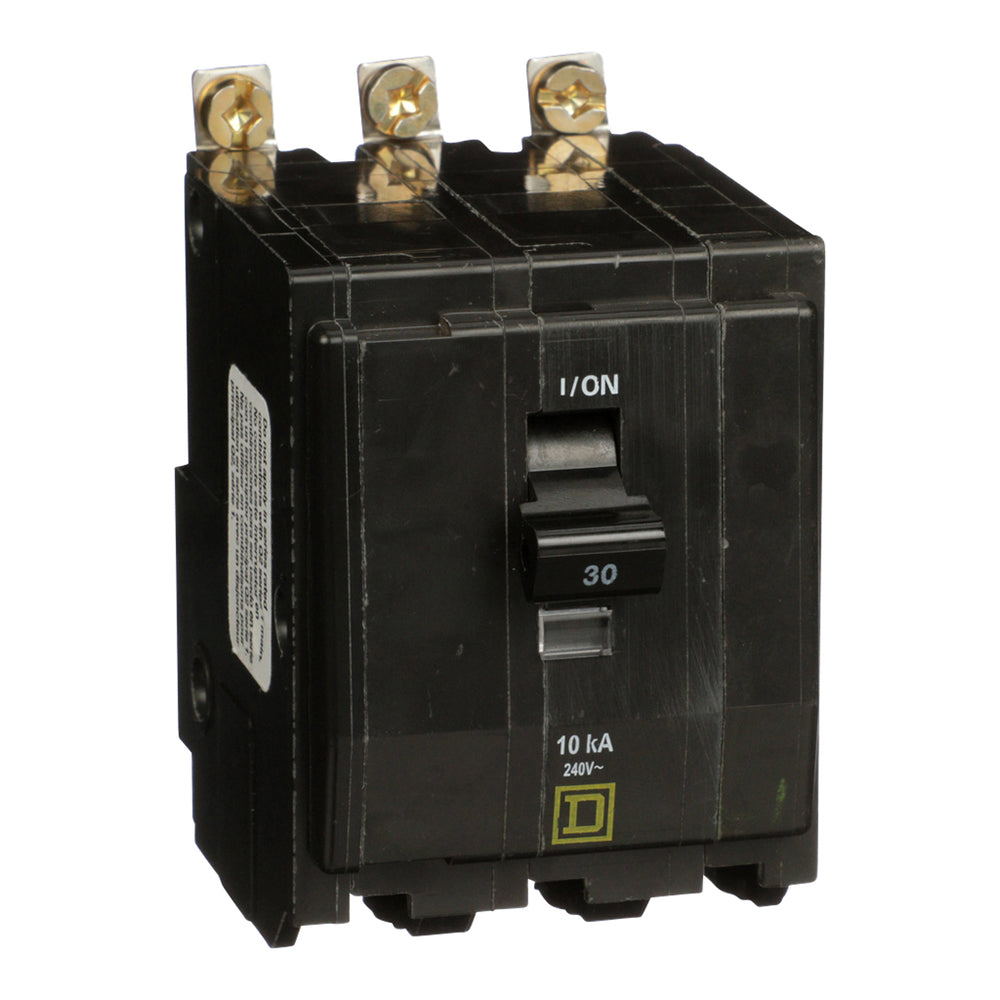

QOB3305237 - Schneider Electric 30A 120/240V 3 Pole Bolt-On Mini Circuit Breaker 10kA Interrupt Rating

QOB3305237

QOB3305237 is a 3 pole, 30 amp, 120/240 Volt bolt-on mini circuit breaker from Schneider Electric designed for reliable circuit protection.This thermal magnetic breaker features a 10kA interrupt rating at 120/240 VAC, suitable for residential and commercial applications. It supports both AC and DC voltages (up to 48 VDC) and is HACR rated for HVAC equipment compatibility. The bolt-on mounting type ensures secure installation in compatible panels.

Key Specifications
• Amperage: 30A
• Voltage Rating: 120/240 VAC, 48 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 120/240 VAC
• Breaker Type: Thermal Magnetic
• HACR Rated: Yes
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Operating Temperature: 104 ¡F (40 ¡C)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOB3305237
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901090229
• GTIN : 00785901090229
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.83
• Standards : CSA, UL Listed
• Certification : UL Listed
