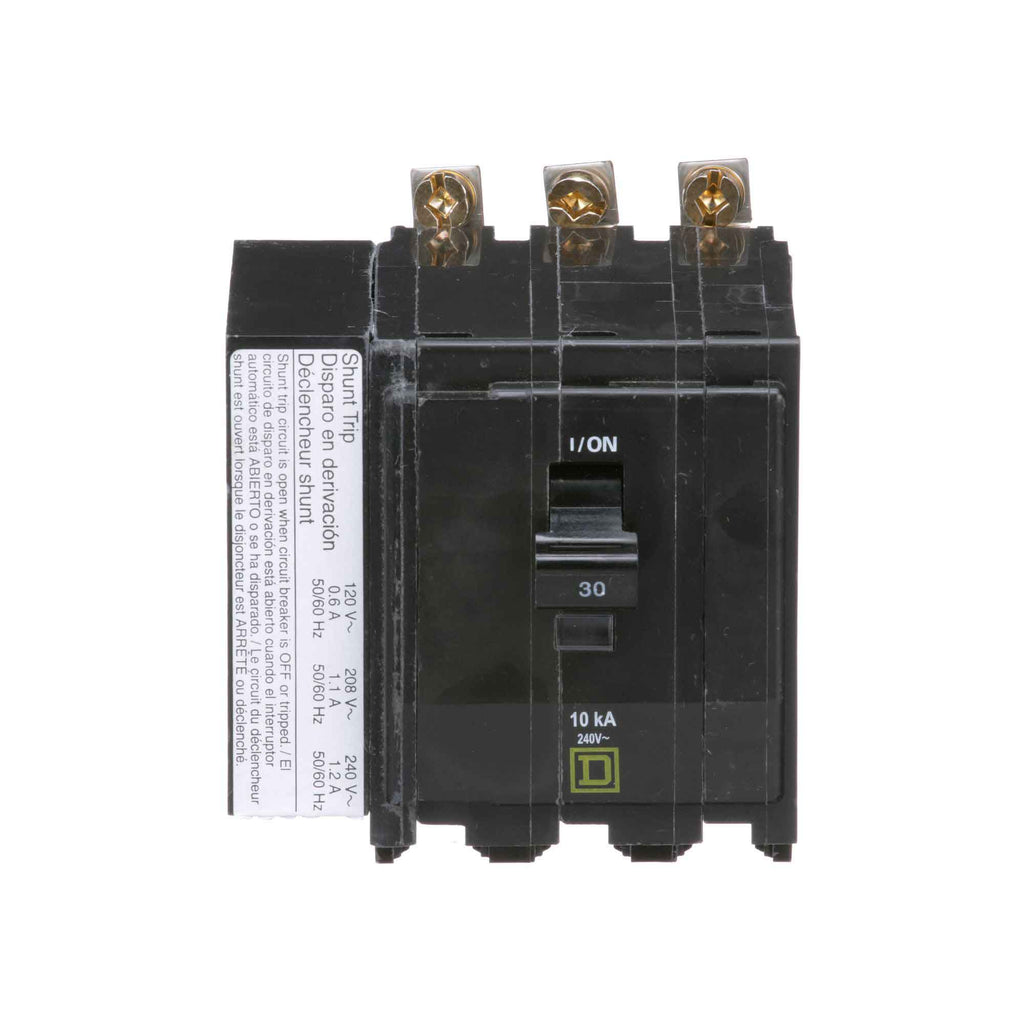

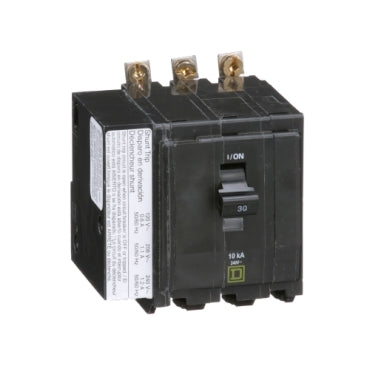

QOB3301021 - Square D QOB Series 3 Pole 30 Amp 120/240VAC Bolt-On Miniature Circuit Breaker with Shunt Trip, 10kAIC, Thermal Magnetic Trip, UL/CSA Certified

QOB3301021

This thermal magnetic molded case circuit breaker features a 10kA interrupting rating at 120/240VAC, pressure plate terminal connections, and is compatible with QOB Series load centers. It offers both long-time and instantaneous trip functions for enhanced circuit protection and is rated for use with copper or aluminum wire (AWG 14 to 8). The QOB3301021 is UL and CSA certified, meets HACR standards, and is compliant with California Proposition 65.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC, 48VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 120/240VAC, 5kAIC at 48VDC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic (LI Ð Long-Time and Instantaneous)
• Certifications: UL, CSA, HACR
• Connection: Pressure Plate
• Wire Range: AWG 14 to 8 (Copper/Aluminum)
• Dimensions: 2.9" x 3" x 3"
• Special Fe(more...)


  Specifications

  • Part Number: QOB3301021
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Shunt Trip
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 785901494409
  • GTIN : 00785901494409
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 3.0 in (76 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 1.2
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14 to AWG 8, Copper/Aluminum
