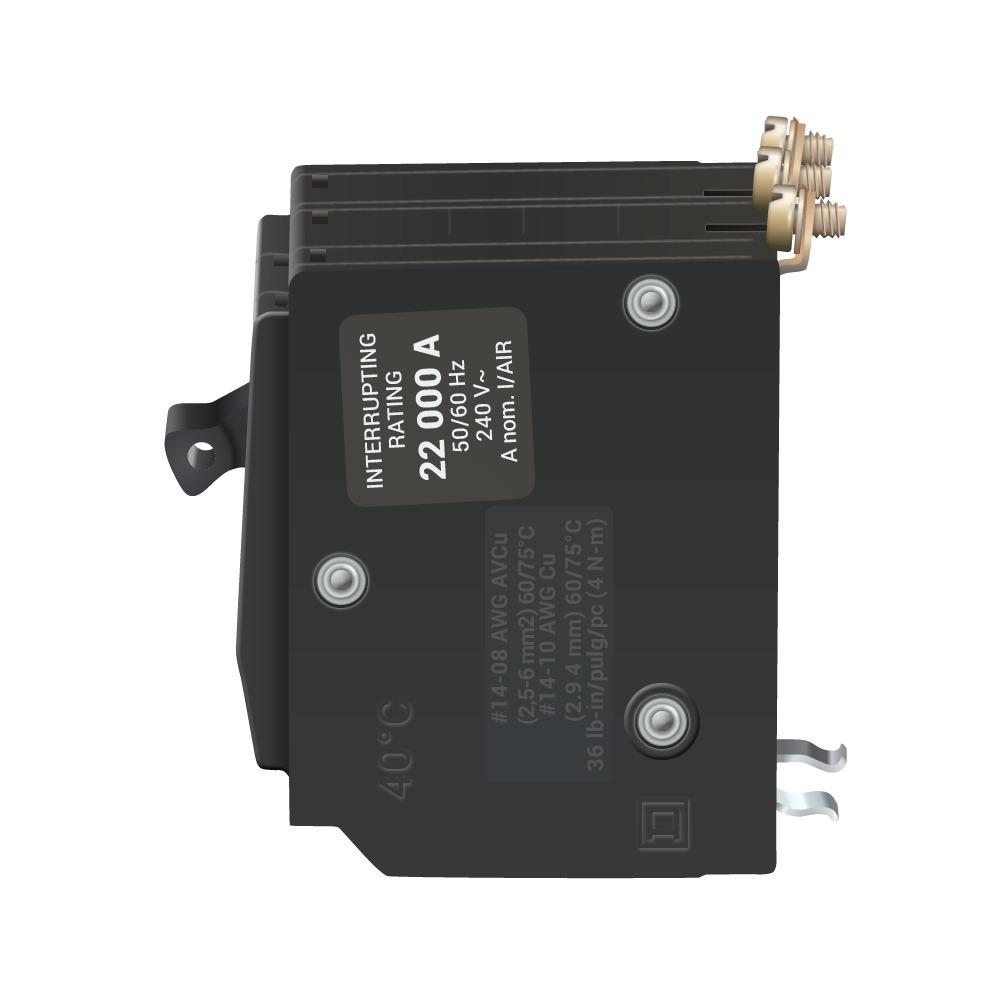

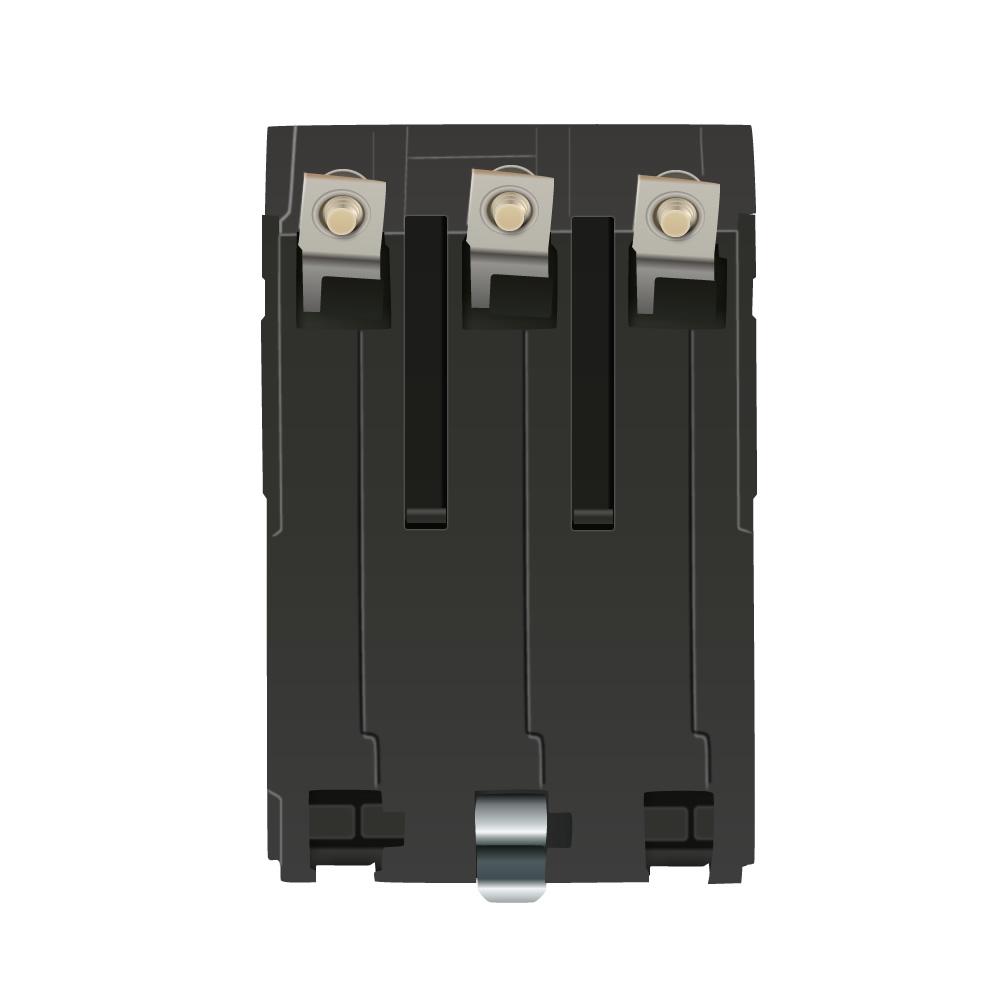

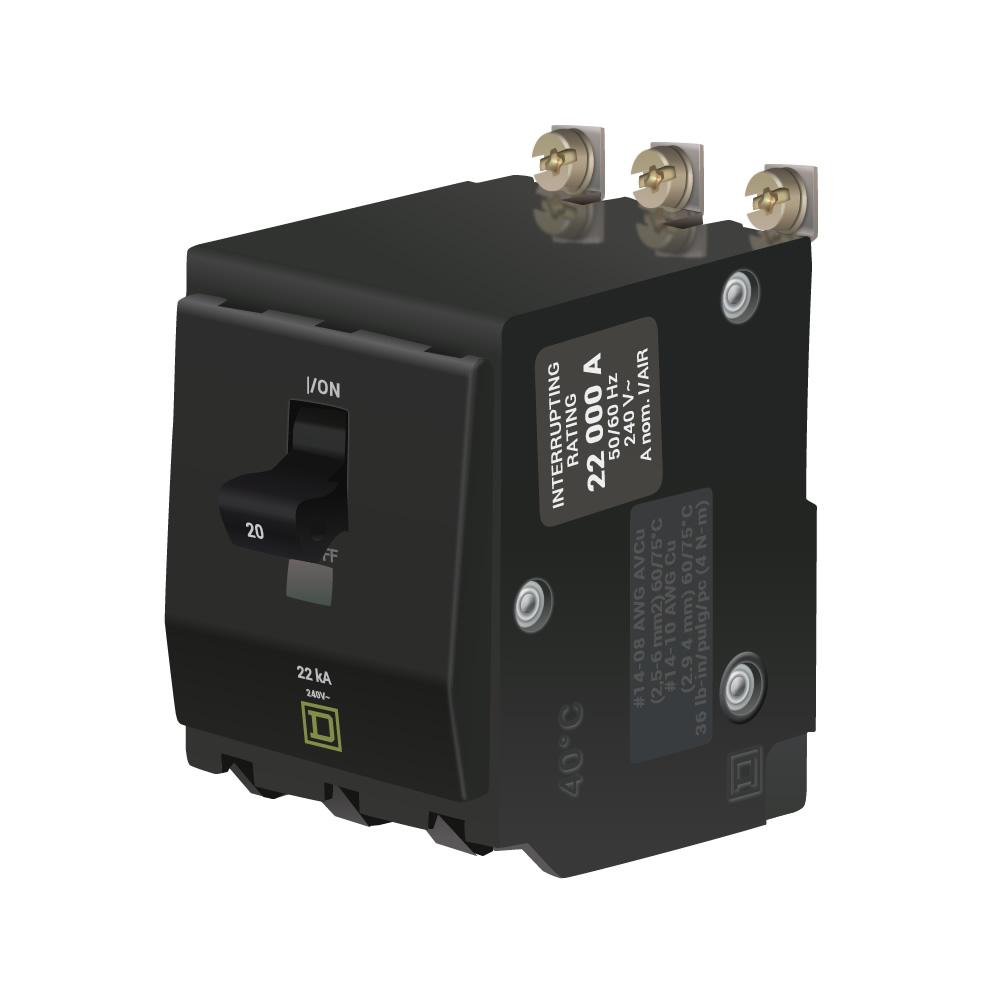

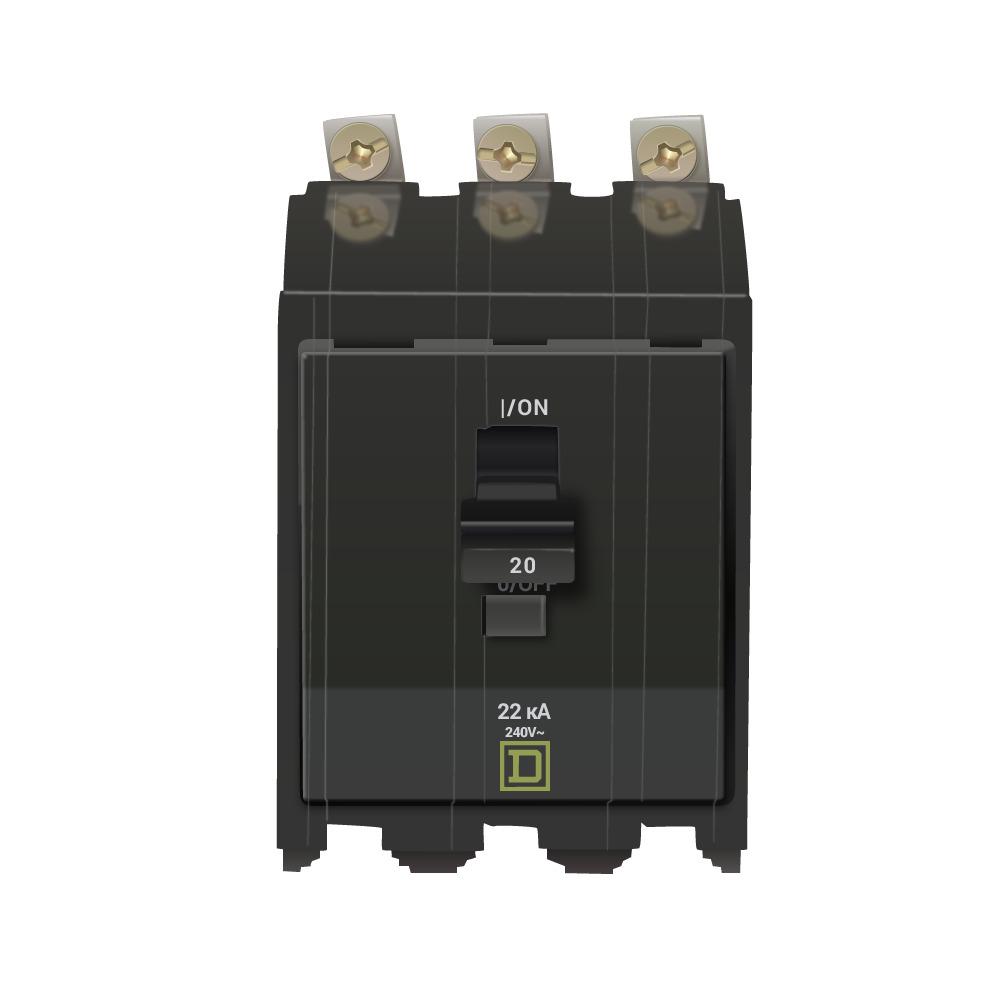

QOB320VH - Square D 20 Amp 3 Pole 120/240V Bolt-On Circuit Breaker 22kA Interrupt Rating

QOB320VH

QOB320VH is a Square D 20 Amp 3 Pole bolt-on circuit breaker designed for 120/240 VAC applications with a 22 kA interrupt rating.This Square D QOB series miniature circuit breaker features thermal magnetic trip units, Visi-Trip indication, and a pressure plate for flexible line protection. It mounts securely with bolts in NQ or NQOD panelboards and is UL listed and CSA certified.

• Amperage: 20 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 3
• Interrupt Rating: 22 kA
• Mounting Type: Bolt-On
• Trip Type: Thermal Magnetic
• Wire Size: 14 to 8 AWG Copper/Aluminum
• Dimensions: 2.91" L x 2.25" W x 3.00" H
• Frequency: 50/60 Hz
• Phase: 3
• Certifications: UL Listed, CSA Certified
• Series/Frame: QOB

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB320VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371960
• GTIN : 00785901371960
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.82
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
