QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified

Save $1,279.32
SKU: QOB315VH-New
Condition: New
Price:
$146.28 $1,425.60
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

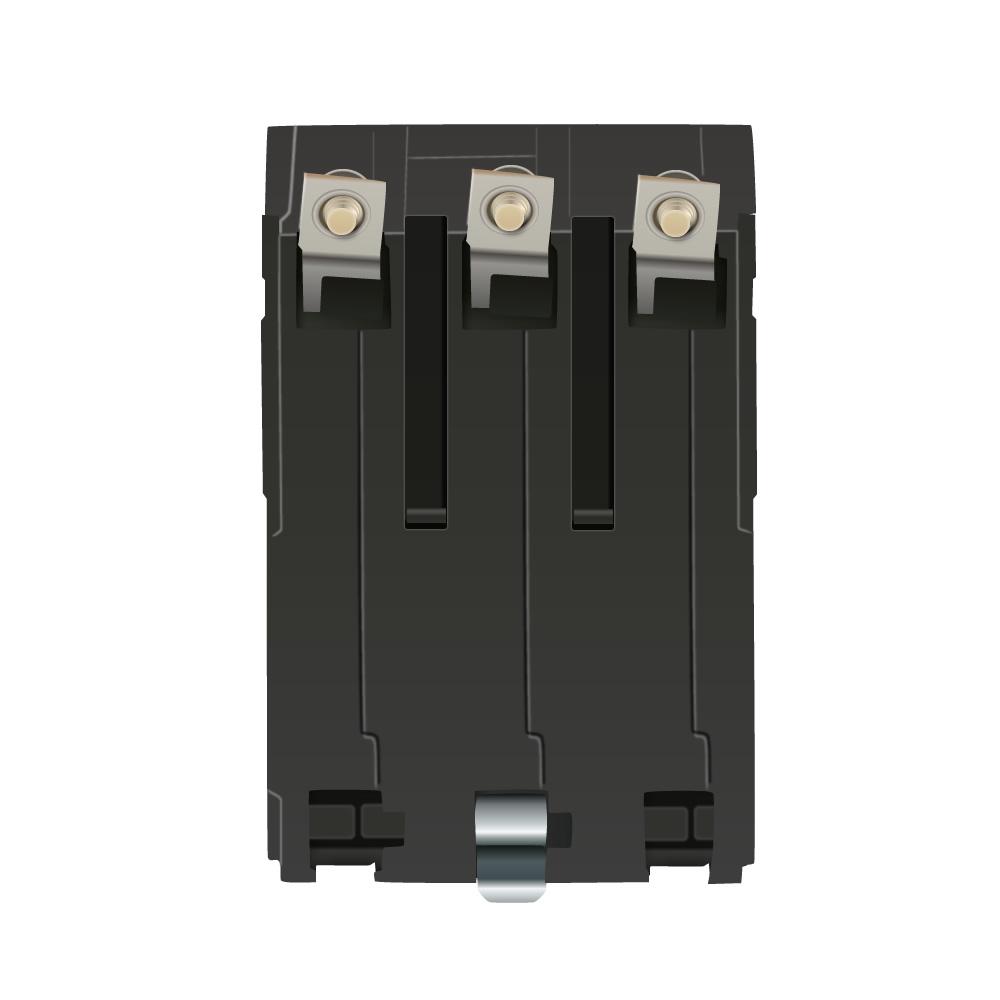

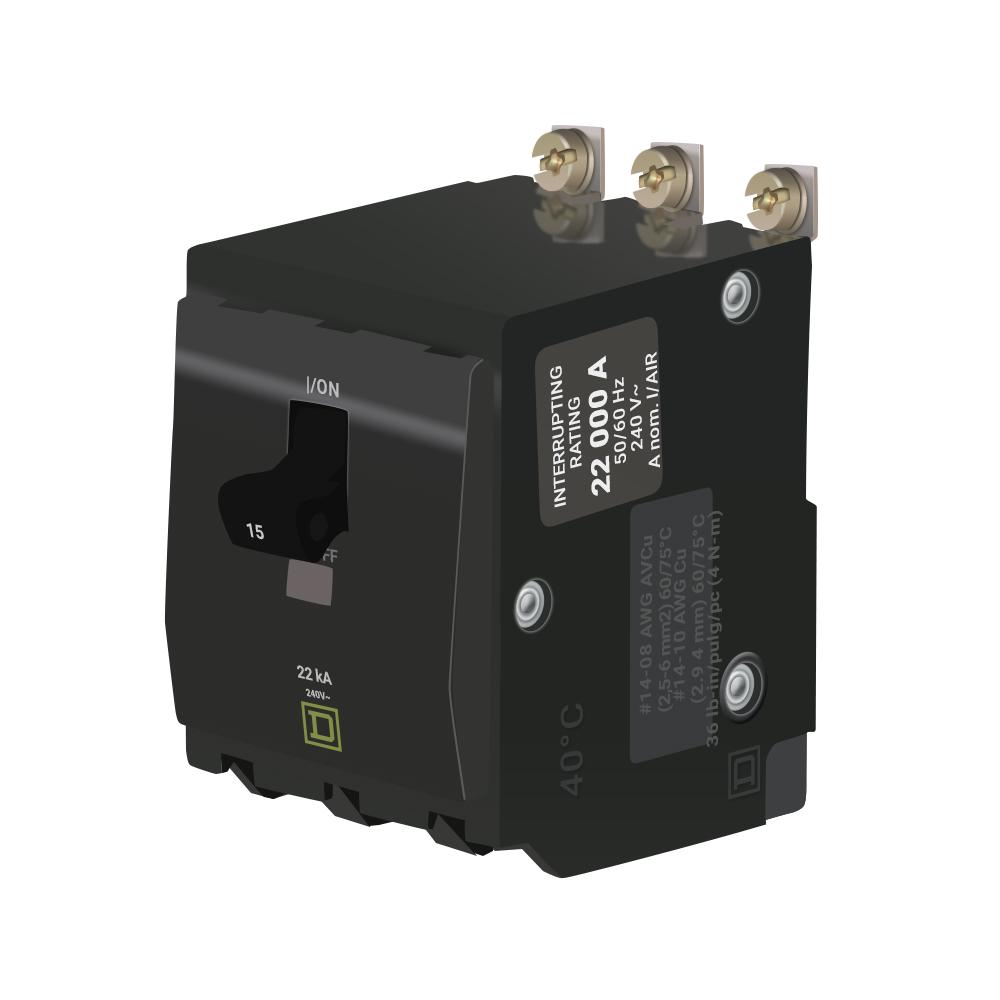

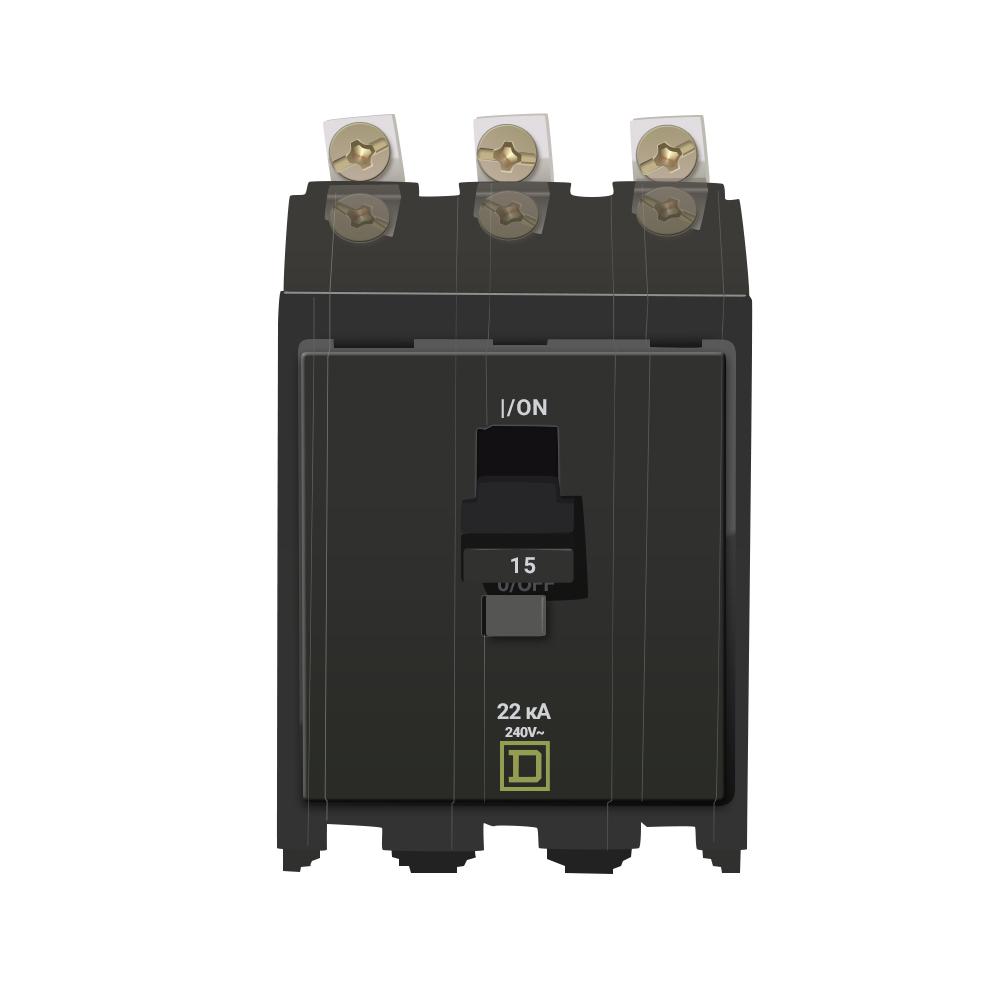

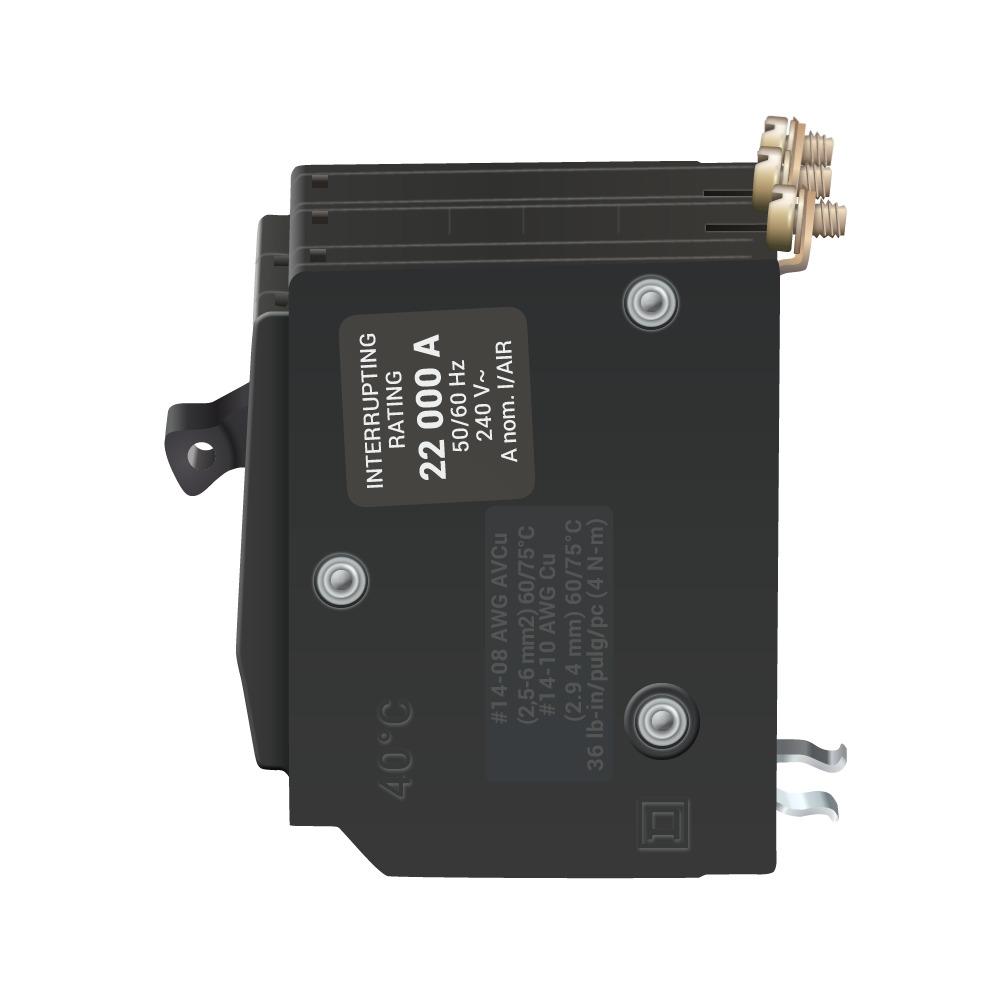

QOB315VH - Square D Bolt-On 15 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB315VH - Square D Bolt-On 15 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply
QOB315VH - Square D 15 Amp 3 Pole 120/240VAC Bolt-On QOB Frame Circuit Breaker, 22kAIC, Thermal Magnetic Trip, UL CSA Certified - Essential Electric Supply

Description

QOB315VH


QOB315VH is a Square D 3 pole, bolt-on miniature circuit breaker designed for reliable protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 15 Amp current rating, 120/240VAC voltage rating, and a high interrupting capacity of 22kAIC. It is part of the QOB series, suitable for use with NQOD panelboards, and is certified to UL and CSA standards. The QOB315VH offers both long time and instantaneous trip functions, pressure plate terminal connections, and supports copper or aluminum wire from AWG 14 to AWG 8.

Key Specifications

  • Amperage: 15 Amp
  • Voltage: 120/240VAC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Interrupt Rating: 22kAIC at 120/240VAC
  • Series/Frame: QOB
  • Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
  • Certifications: UL, CSA, RoHS, REACh, HACR
  • Connection Type: Pressure Plate
  • Wire Range: AWG 14 to AWG 8 (Copper or Aluminum)
  • Temperature Rating: 40 ¡C
  • For Use With: NQOD Panelboards

At Es(more...)

Specifications

  • Part Number: QOB315VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 15
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901371953
  • GTIN : 00785901371953
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.8
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14 to AWG 8, Copper or Aluminum
