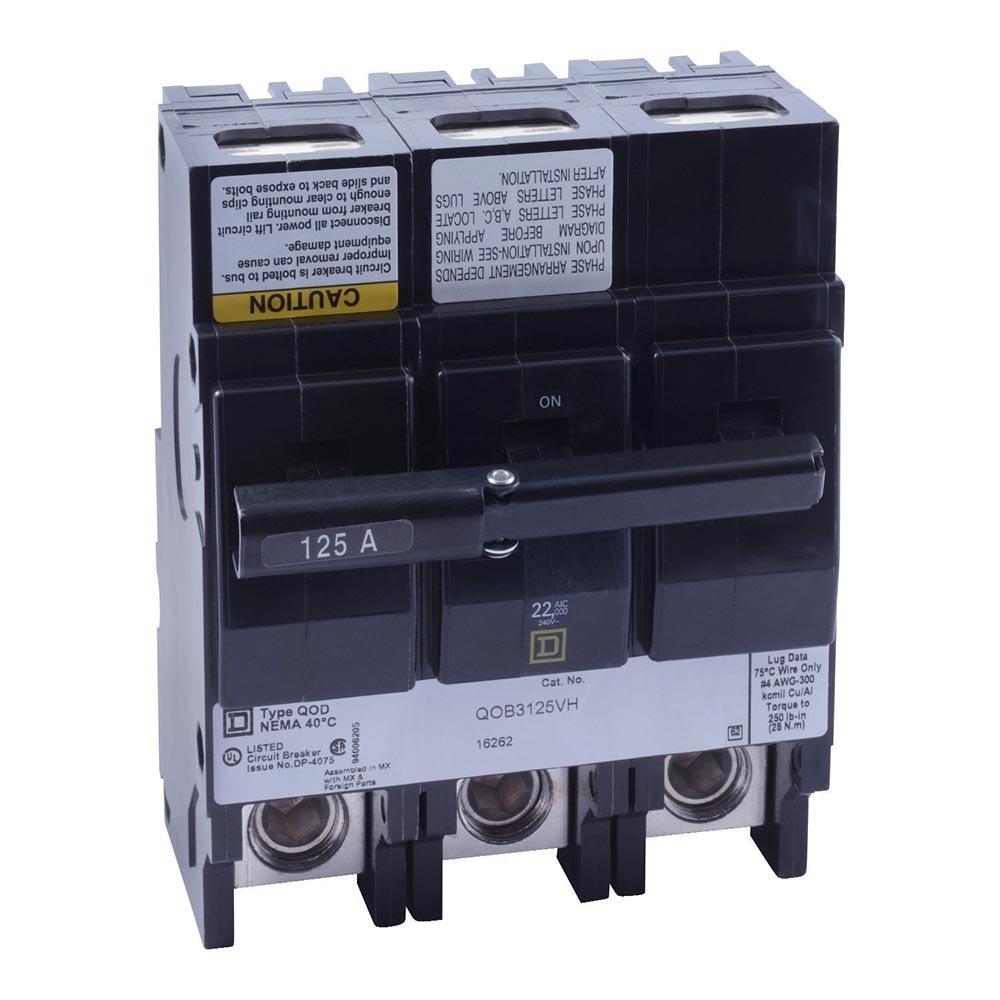

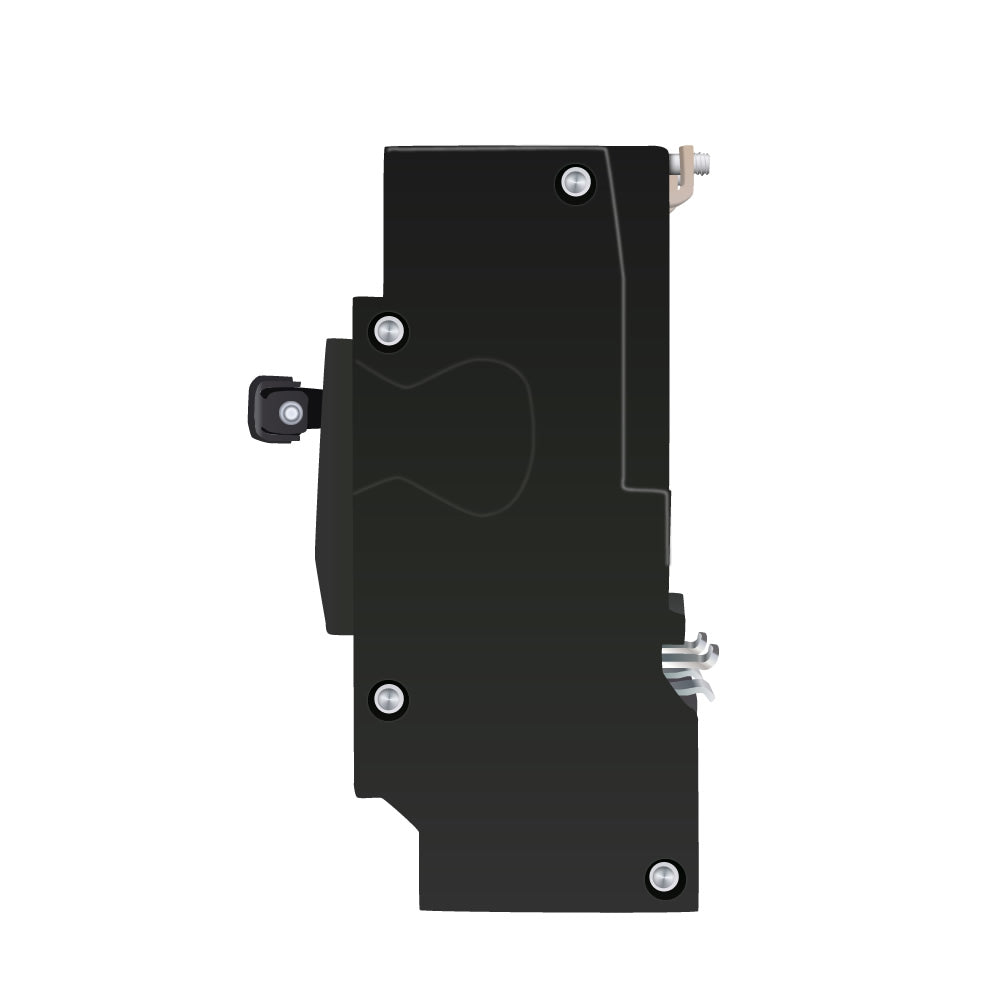

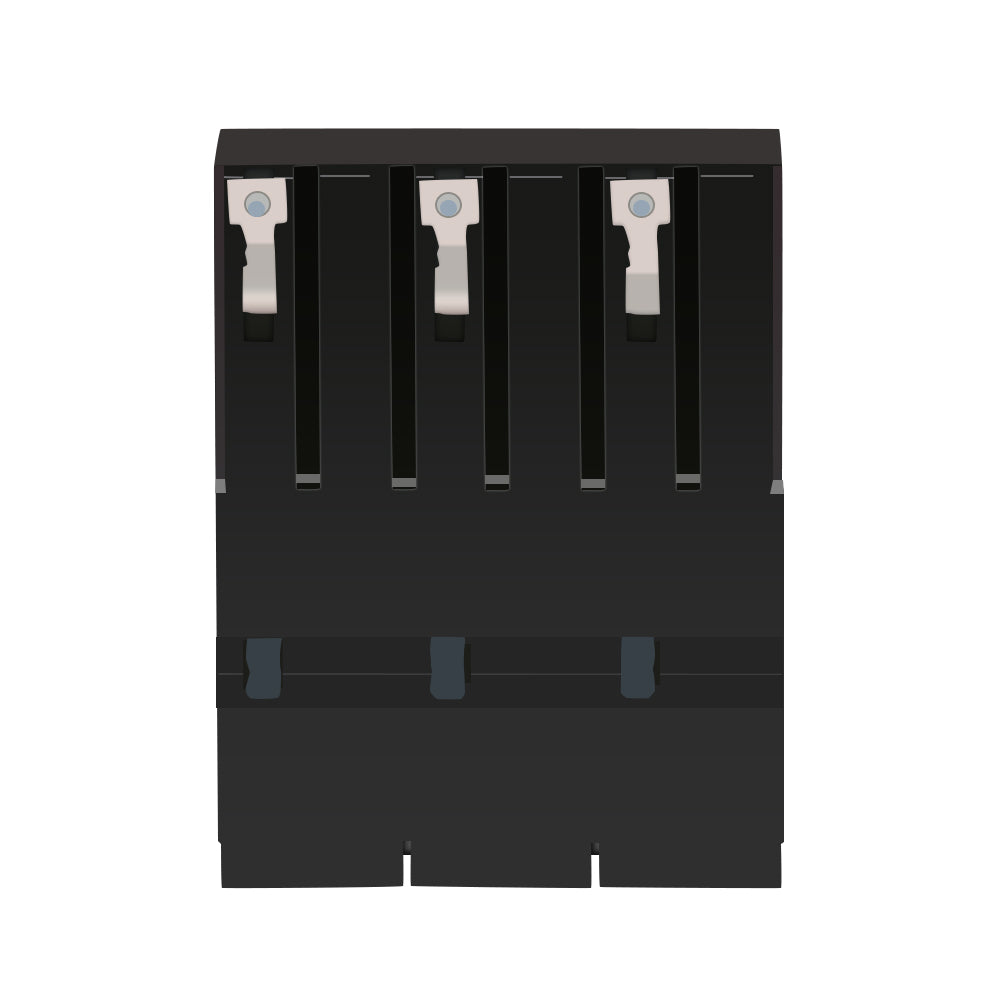

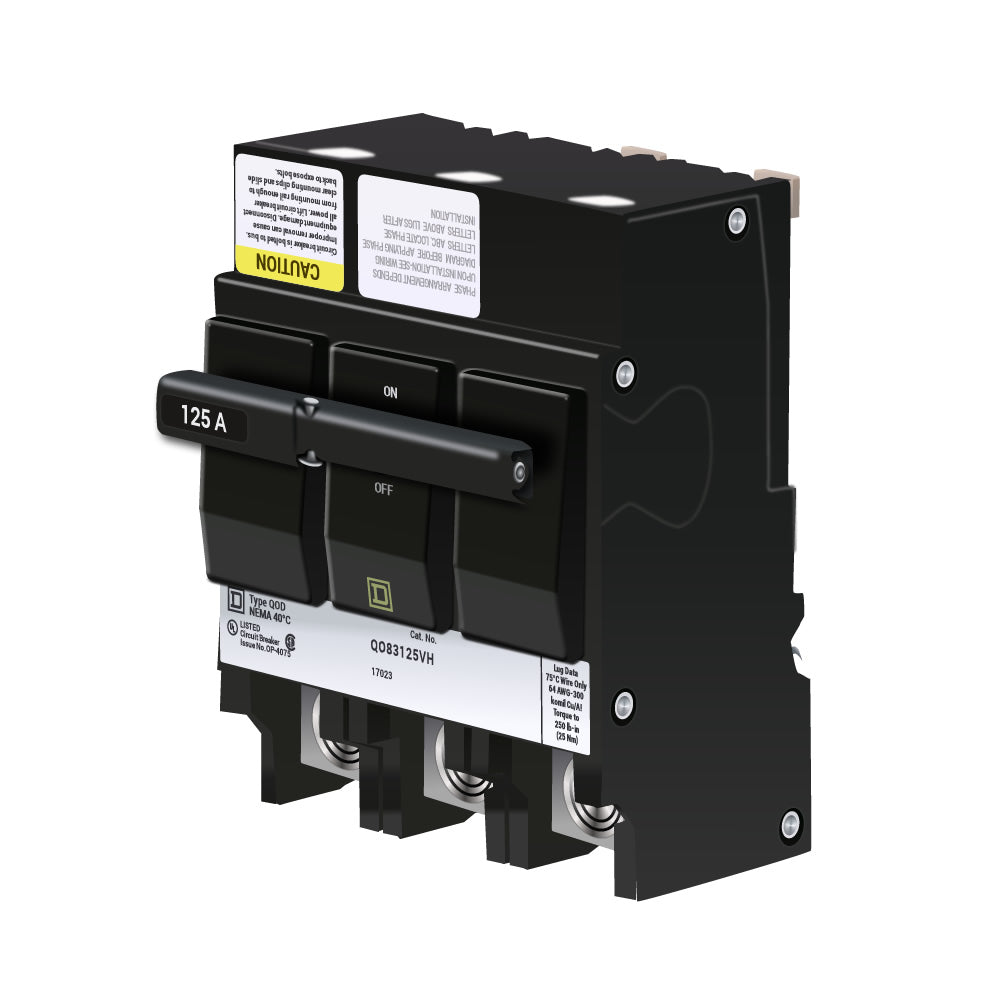

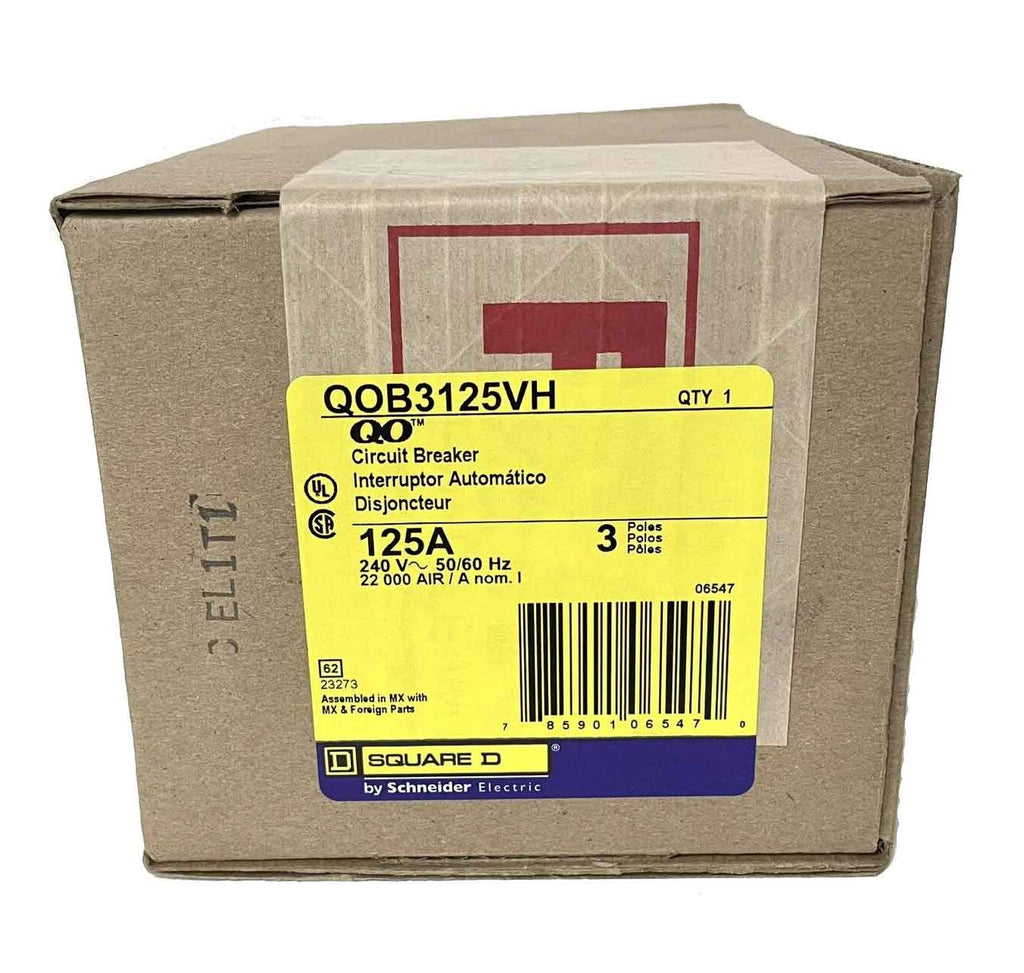

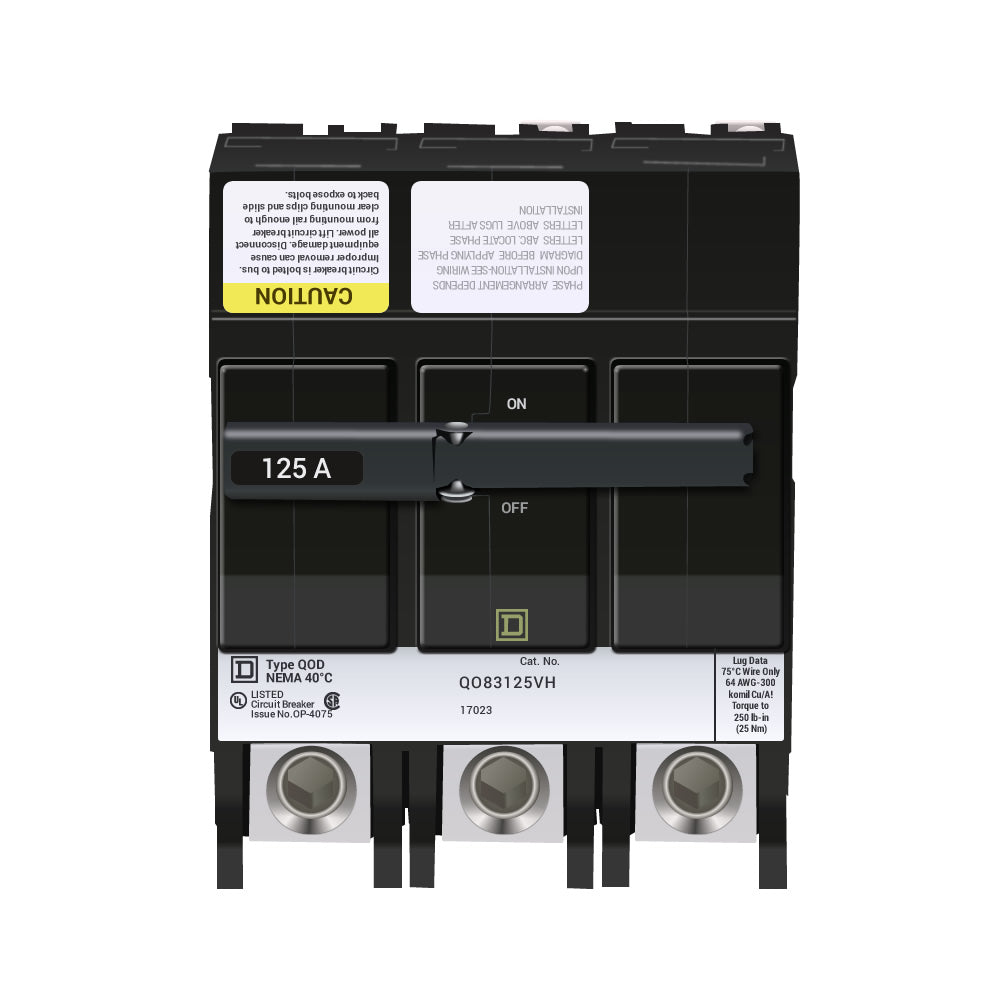

QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA

Save $1,291.85
SKU: QOB3125VH-New
Condition: New
Price:
$661.87 $1,953.72
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOB3125VH - Essential Electric Supply
QOB3125VH - Essential Electric Supply
QOB3125VH - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB3125VH - Essential Electric Supply
QOB3125VH - Essential Electric Supply
QOB3125VH - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB3125VH - Square D 125A 3-Pole Bolt-On Mini Circuit Breaker, 120/240VAC, 22kAIC, QO Series, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply

Description

QOB3125VH


QOB3125VH is a Square D 3-pole, 125A, bolt-on miniature circuit breaker designed for reliable protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 120/240VAC voltage rating, 22kA interrupting capacity, and is compatible with NQOD panelboards. It offers both long time and instantaneous trip functions, box lug terminal connections, and is mercury free. The QOB3125VH is UL and CSA approved, meeting RoHS and REACh standards for environmental compliance.

Key Specifications

  • Amperage: 125A
  • Voltage: 120/240VAC, 48VDC
  • Poles: 3
  • Mounting Type: Bolt-on
  • Interrupt Rating: 22kAIC at 120/240VAC
  • Series/Frame: QO
  • Trip Unit: Thermal magnetic, long time and instantaneous
  • Certifications: UL, CSA, RoHS, REACh
  • Connection: Box lugs
  • Wire Range: AWG 4 to 300 kcmil (copper or aluminum)
  • Actuator: Paddle
  • Temperature Rating: 40¡C

At Essential Parts, we offer fast shipping, lowe(more...)

Specifications

  • Part Number: QOB3125VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 125
  • Phase : 3
  • Poles : 3
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901065470
  • GTIN : 00785901065470
  • Country of Origin : Mexico
  • Dimensions : 5.7 in (145 mm) x 4.5 in (114 mm) x 4.9 in (124 mm) (Height x Width x Depth)
  • Weight : 3.9
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to 300KCmil, Copper or Aluminum
