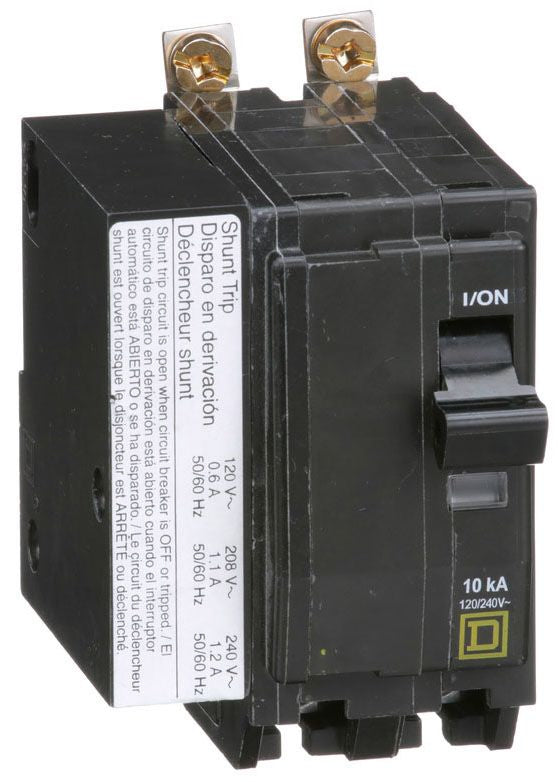

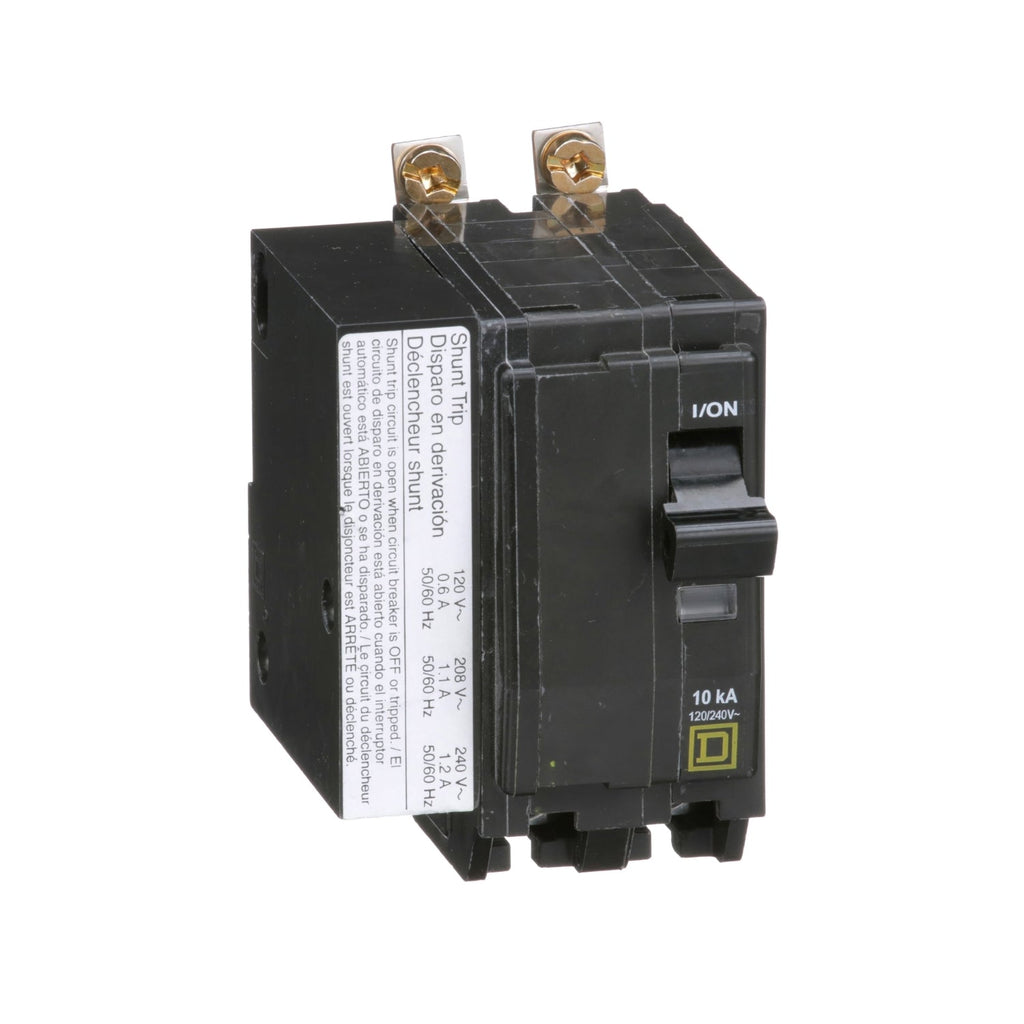

QOB2601021 - Square D 60 Amp 2 Pole Circuit Breaker 120/240V Thermal Magnetic Shunt Trip Bolt-On

QOB2601021

QOB2601021 is a Square D 2 pole, 60 amp circuit breaker designed for 120/240 VAC applications with a shunt trip feature.This thermal magnetic circuit breaker features bolt-on installation and a 10kA interrupt rating at 120/240 VAC. It includes a Visi-Trip indicator and is compatible with NQ series panels. The breaker operates with a 120V shunt trip and is UL and CSA certified for safety and reliability.

• 60 Amp current rating
• 2 Pole configuration
• 120/240 VAC voltage rating
• 10kA interrupt rating
• Thermal magnetic trip unit
• Shunt trip operates at 120V
• Bolt-on mounting type
• Visi-Trip indicator feature
• Compatible with NQ series panels
• UL and CSA certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB2601021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901494355
• GTIN : 00785901494355
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.96
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
