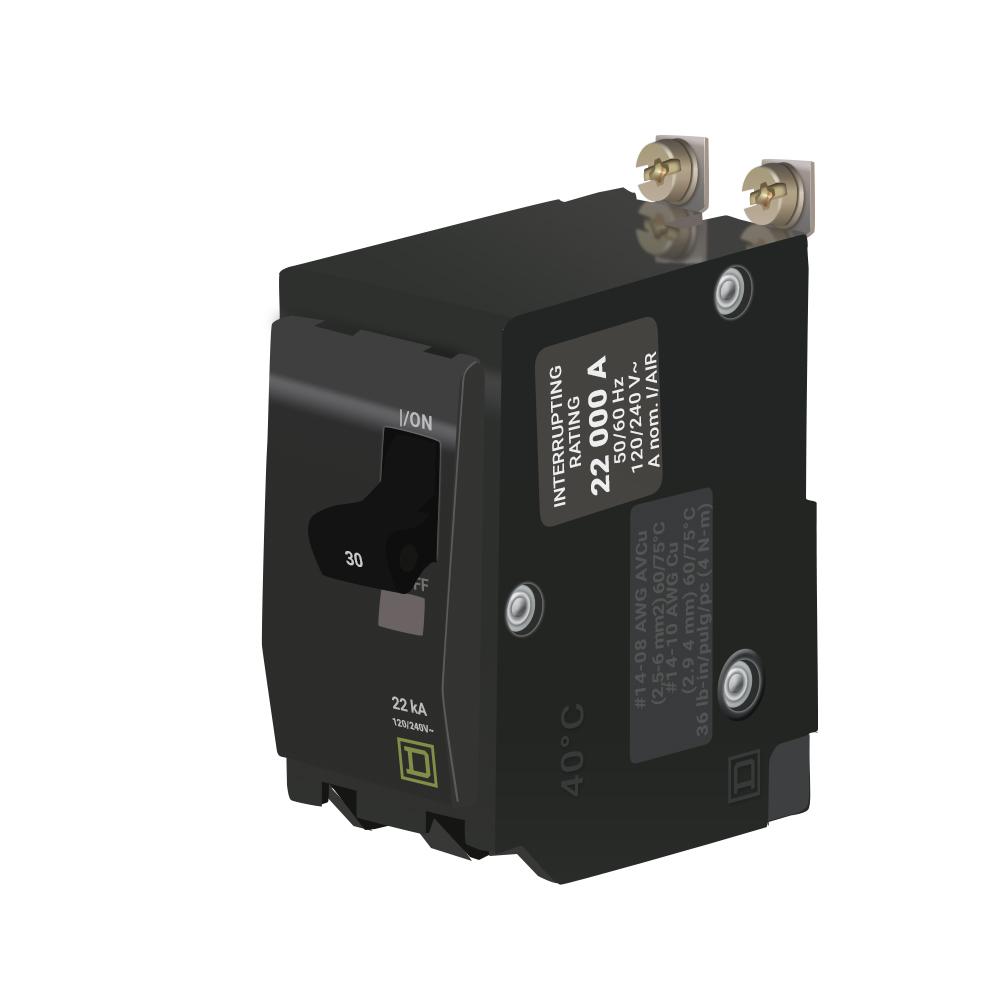

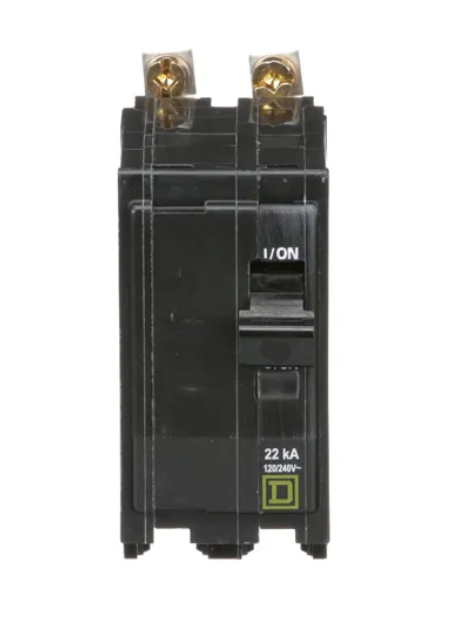

QOB230VH - Square D 30A 2 Pole 120/240VAC Bolt-On Circuit Breaker 22kA Interrupt Rating

QOB230VH

QOB230VH is a Square D 2 pole bolt-on circuit breaker rated for 30 amps and 120/240 volts AC with a 22kA interrupt rating.This thermal magnetic circuit breaker features a bolt-on mounting type, lug terminals for aluminum or copper wire sizes 8 to 2 AWG, and is HACR rated for reliable circuit protection. It is UL and CSA listed and designed for single-phase electrical systems.

• Manufacturer: Square D
• Series: QOB
• Amperage: 30A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Trip Unit: Thermal Magnetic
• Wire Size: 8-2 AWG Aluminum/Copper
• Certifications: UL Listed, CSA Certified
• Phase: Single
• Frame Type: ED

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB230VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371946
• GTIN : 00785901371946
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.58
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
