Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB230SWN

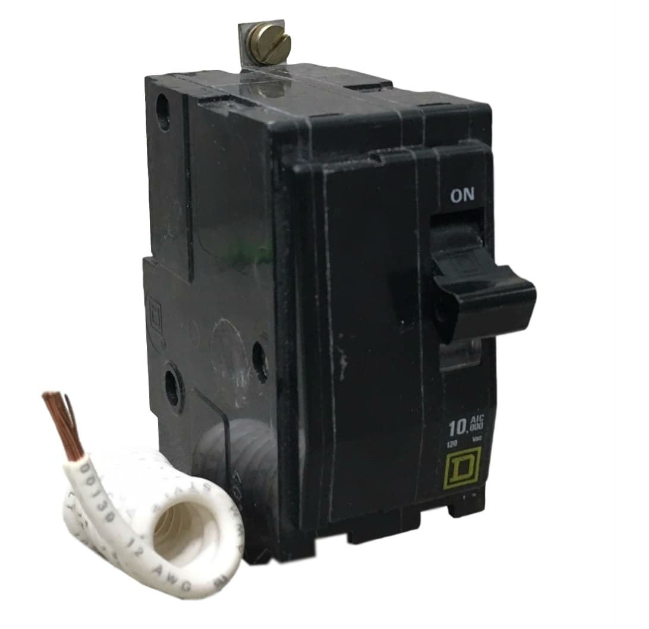

QOB230SWN is a Square D 2 pole, 30 amp, 120 volt bolt-on circuit breaker with switch neutral and 10kA interrupt rating.
This QOB series miniature circuit breaker features thermal magnetic trip unit technology, bolt-on mounting, and supports wire sizes from 14 to 8 AWG aluminum or copper. It is UL and CSA certified for reliable protection in panelboards such as NQOD. The compact dimensions are approximately 1.5 inch wide, 2.91 inch deep, and 3 inch high.
- Key Specifications
- Amperage: 30A
- Voltage: 120V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA (AIC)
- Trip Unit: Thermal Magnetic
- Wire Size Range: 14-8 AWG Aluminum/Copper
- Series/Frame: QOB
- Switch Neutral: Yes
- Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QOB230SWN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Protection : Thermal Magnetic
Product Data
- UPC : 785901341819
- GTIN : 00785901341819
- Country of Origin : Mexico
- Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.631
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14, AWG 8 Copper or Aluminium
