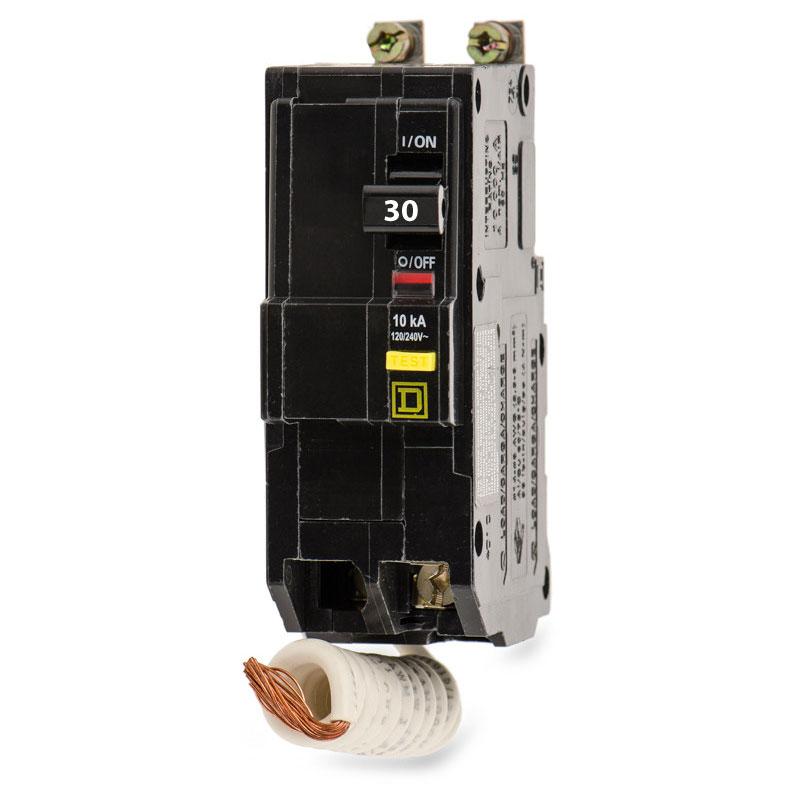

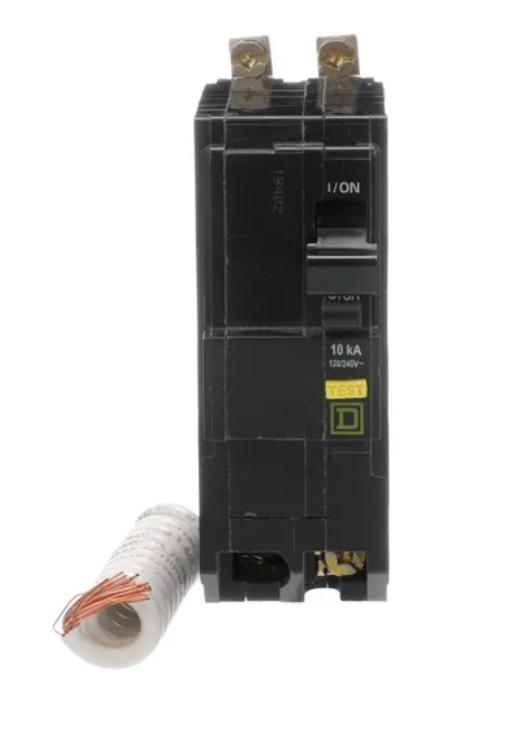

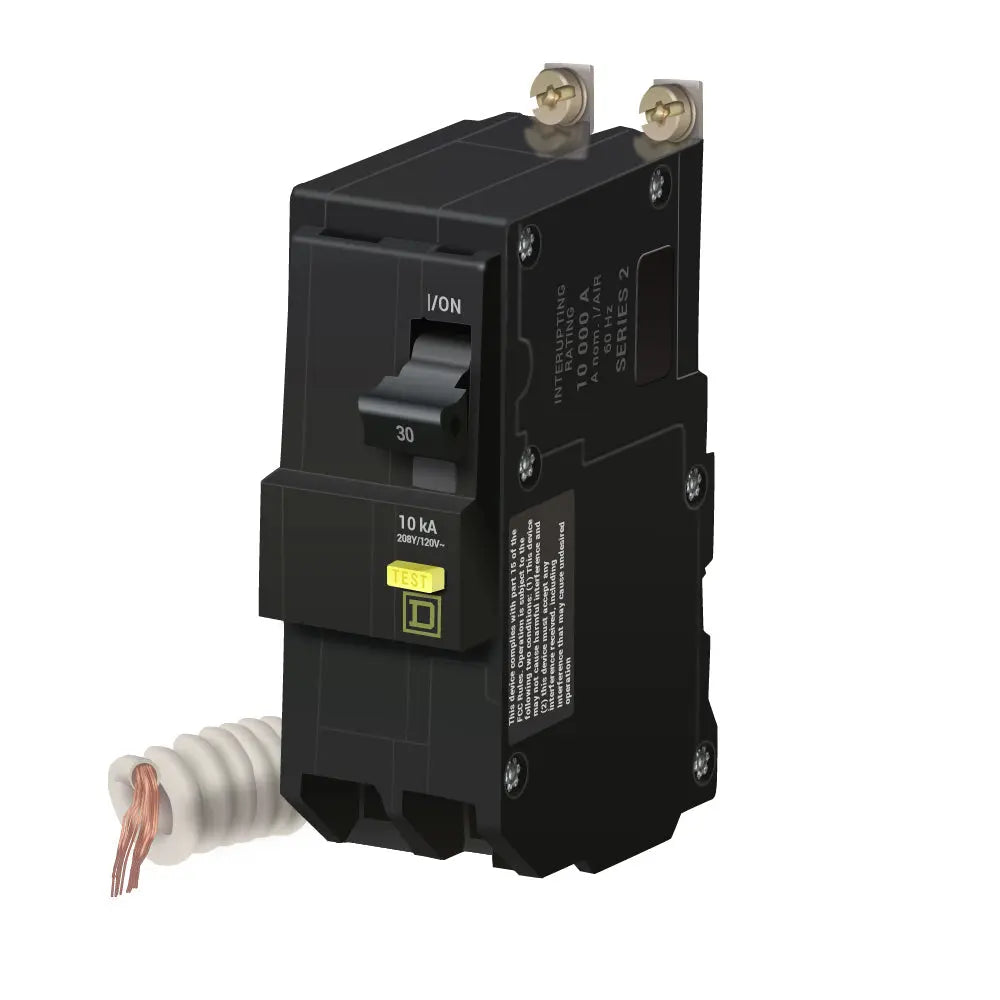

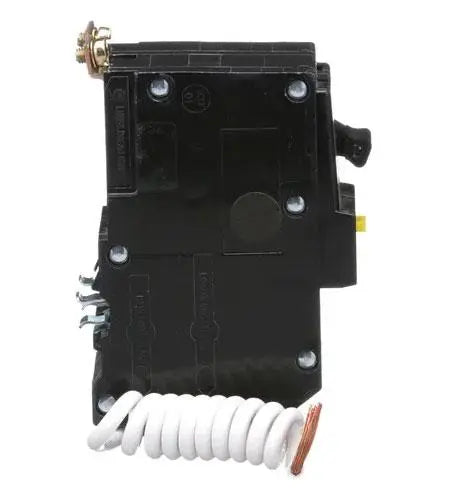

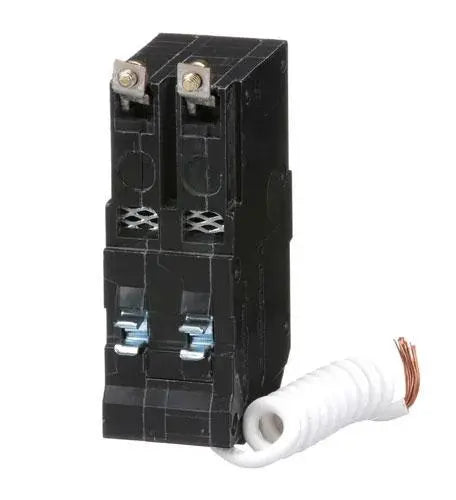

QOB230GFI - Square D 30 Amp 2 Pole 120/240VAC Bolt-On Ground Fault Circuit Breaker 10kA Interrupt Rating

QOB230GFI

QOB230GFI is a Square D 2 pole, 30 amp ground fault circuit breaker designed for 120/240VAC applications with bolt-on mounting.This QOB series molded case circuit breaker features thermal magnetic trip units with long-time and instantaneous protection, a 10kA interrupting rating at 120/240VAC, and a 6mA ground fault trip sensitivity. It is UL and CSA approved for use in Square D QOB load centers and NQ panelboards. The breaker supports wire sizes from AWG 14 to AWG 8 copper and AWG 12 to AWG 8 aluminum with pressure plate terminals.

Key Specifications
• Manufacturer: Square D
• Part Number: QOB230GFI
• Amperage: 30 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240 VAC
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Ground Fault Trip Sensitivity: 6 mA Class A
• Approvals: UL Listed, CSA Certified
• Connection Type: Pressure Plate
• Compatible With: Square D QOB Load Centers and NQ Panelboards

At Essential Parts, we offer &(more...)

Specifications

• Part Number: QOB230GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901563037
• GTIN : 00785901563037
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.881
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
