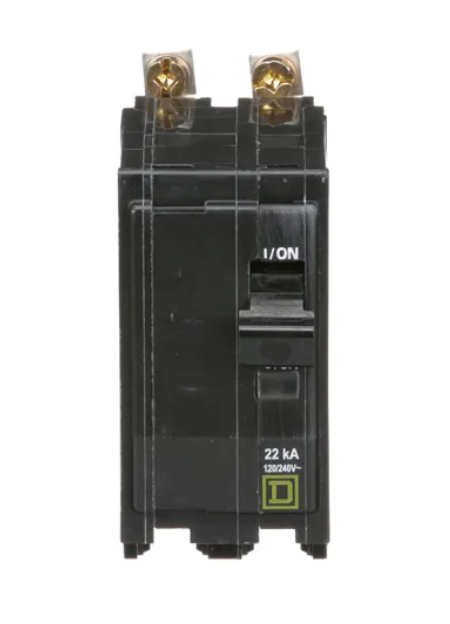

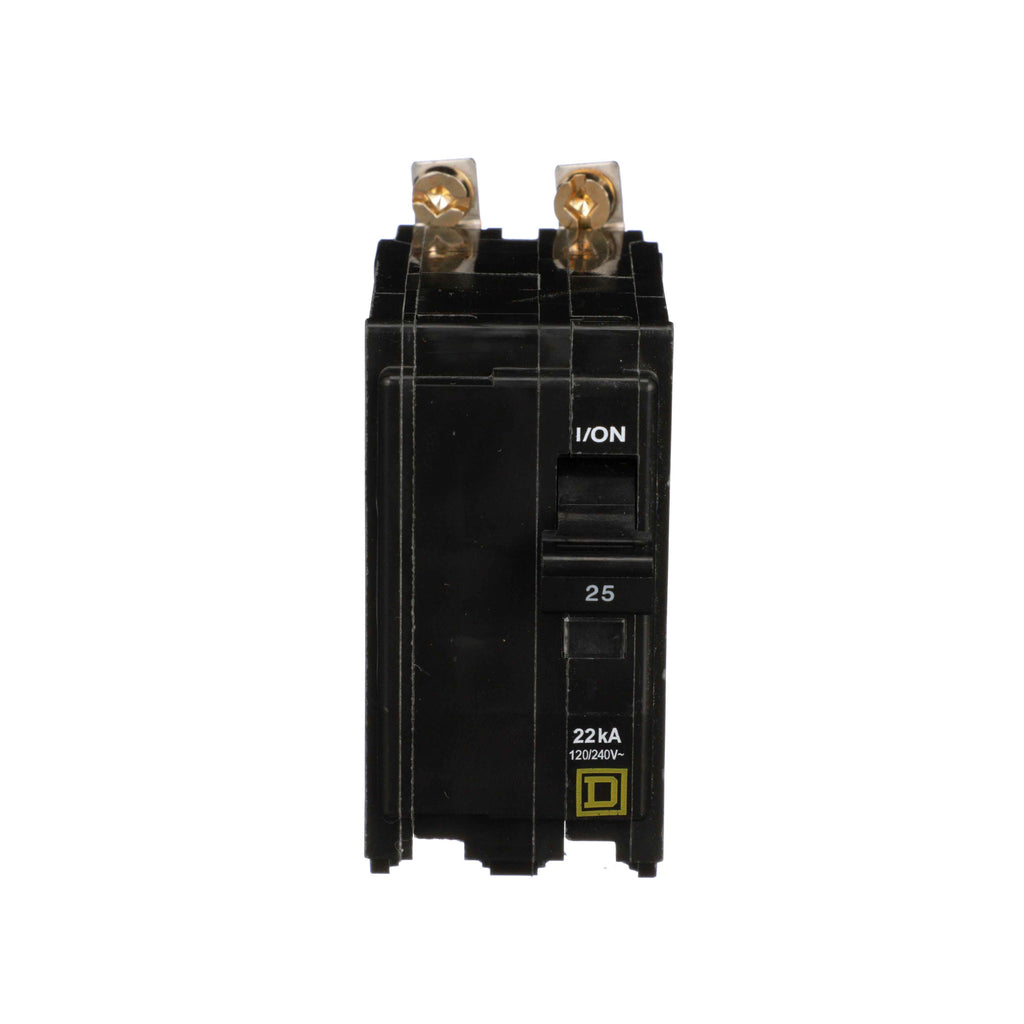

QOB225VH - Square D 25A 2 Pole 240V Bolt-On Miniature Circuit Breaker

QOB225VH

QOB225VH is a 2 pole, 25A miniature circuit breaker designed for reliable protection in QOB series load centers. This Square D breaker features a thermal magnetic trip unit and bolt-on mounting for secure installation. Engineered for use in standard NQ panelboards, the QOB225VH offers a 240VAC voltage rating and a 22kA interrupt rating at 240V. It is UL and CSA listed for safety and compliance in residential and commercial applications.

• Part Number: QOB225VH
• Manufacturer: Square D
• Series: QOB
• Amperage Rating: 25A
• Voltage Rating: 240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA @ 240V
• Trip Unit: Thermal Magnetic
• Frame: Miniature
• Certifications: UL, CSA
• Application: NQ Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB225VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371939
• GTIN : 00785901371939
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.56
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
