QOB220VH - Square D 20 Amp 2 Pole 120/240VAC Bolt-On Circuit Breaker 22kA Interrupt Rating

QOB220VH

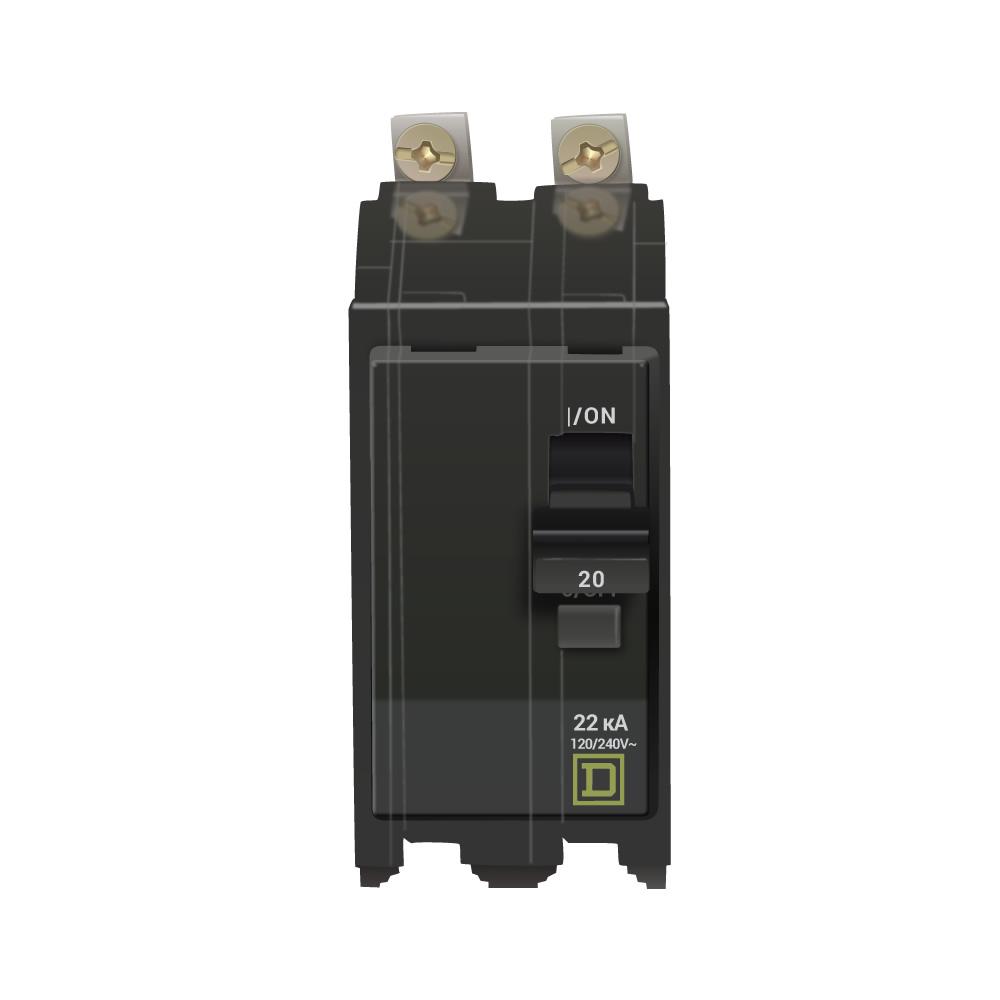

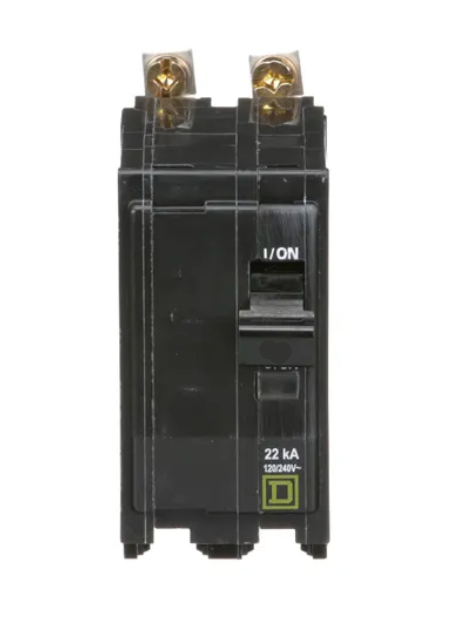

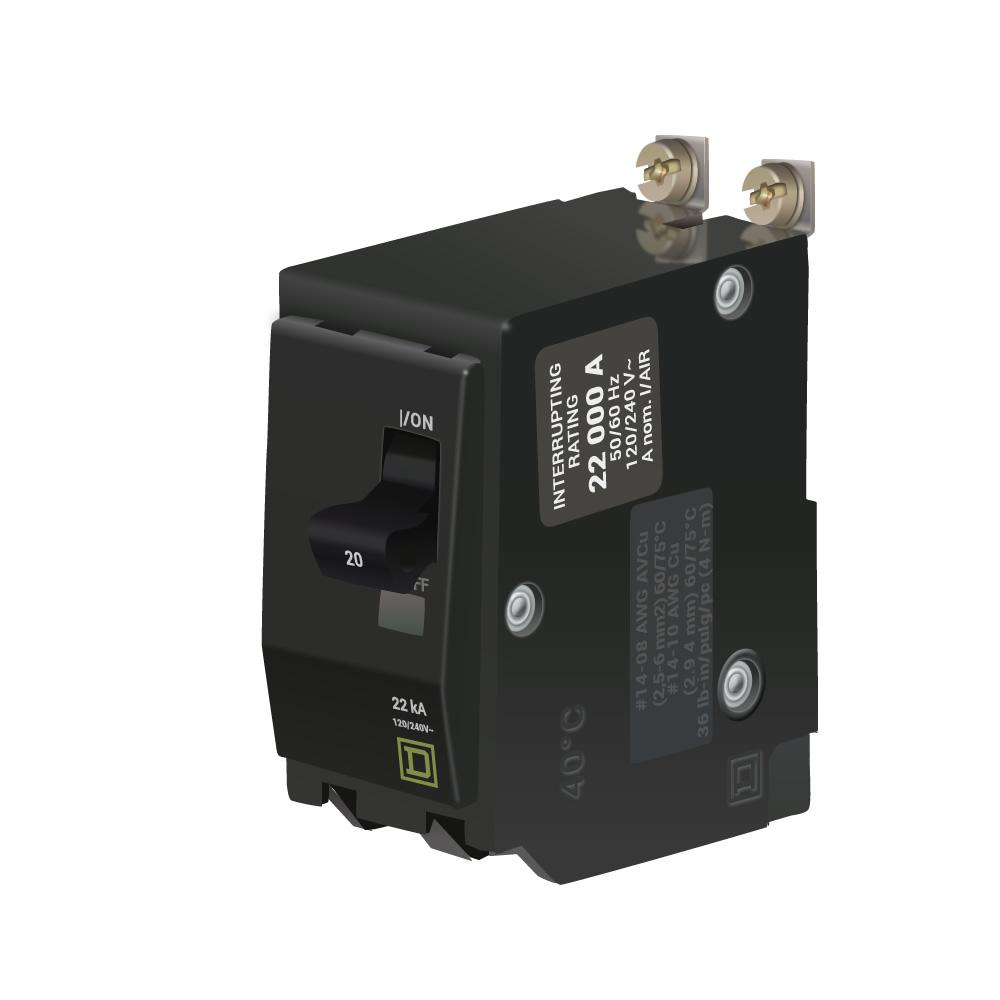

QOB220VH is a Square D 20 Amp, 2 Pole, 120/240VAC bolt-on circuit breaker with a 22 kA interrupt rating designed for reliable overcurrent protection.This miniature circuit breaker features a thermal-magnetic trip unit and a VisiTrip indicator for clear visual trip status. It is compatible with NQ and NQOD panelboards and supports wire sizes from 14 to 8 AWG copper or aluminum. The bolt-on mounting ensures secure installation, and the breaker is UL listed, CSA certified, and HACR rated for heating, air conditioning, and refrigeration applications.

• Amperage: 20 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA
• Series/Frame: QO
• Trip Unit: Thermal-Magnetic
• Wire Size: 14-8 AWG Copper/Aluminum
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions: 3.00" H x 1.50" W x 2.91" D
• Operating Temperature: 104¡F (40¡C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right produ(more...)

Specifications

• Part Number: QOB220VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371922
• GTIN : 00785901371922
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.6
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
