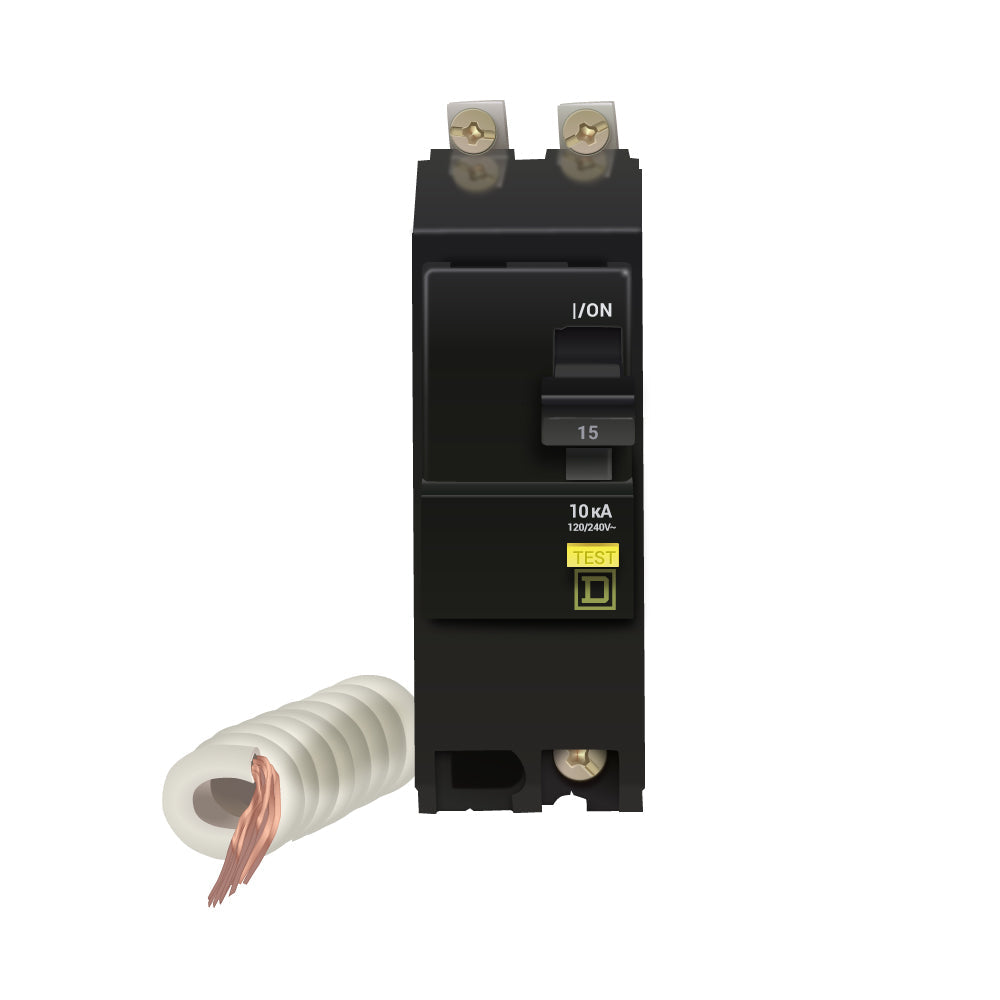

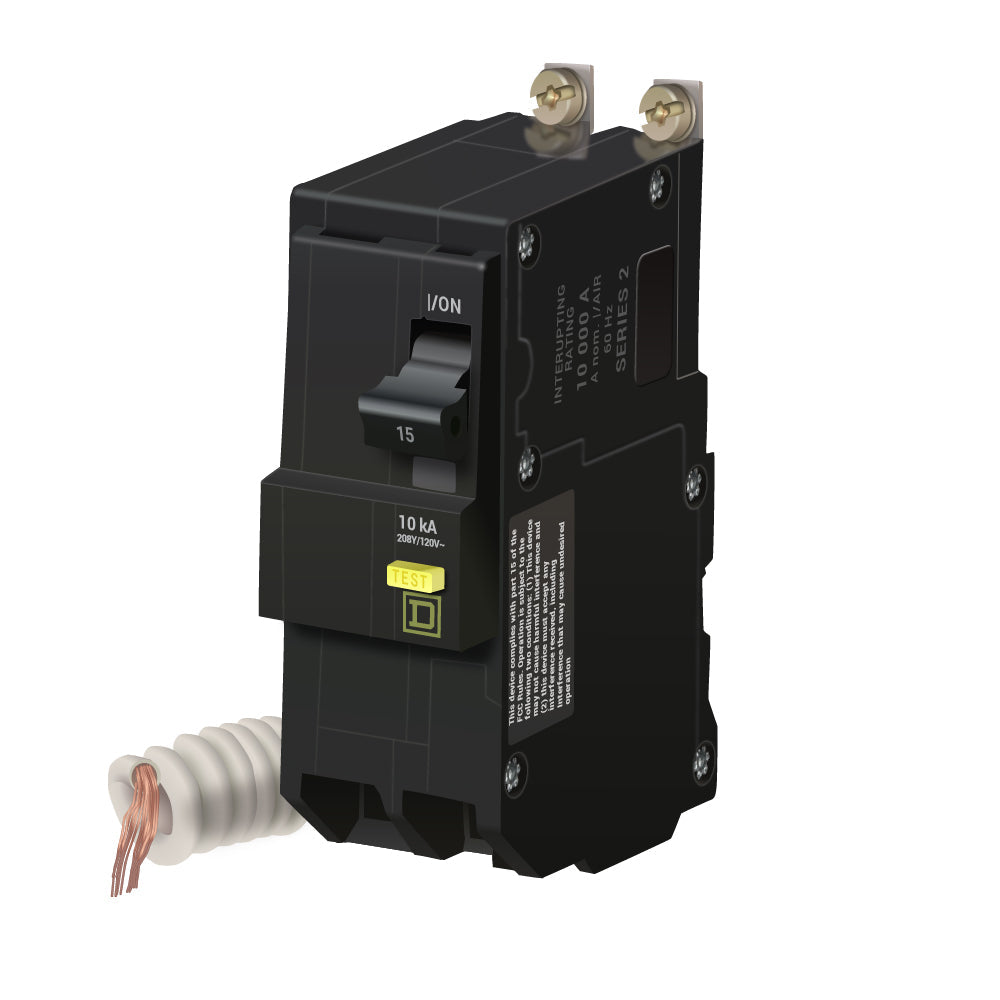

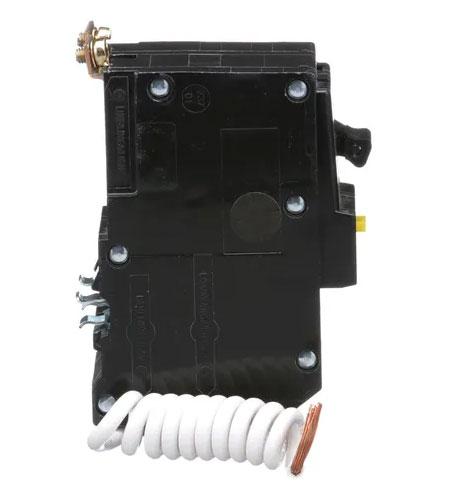

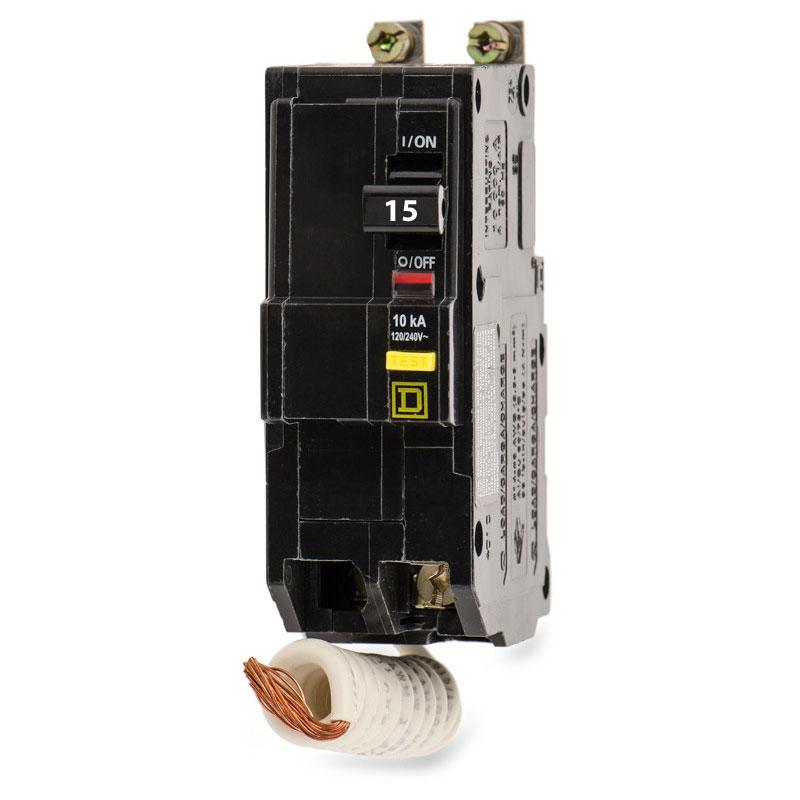

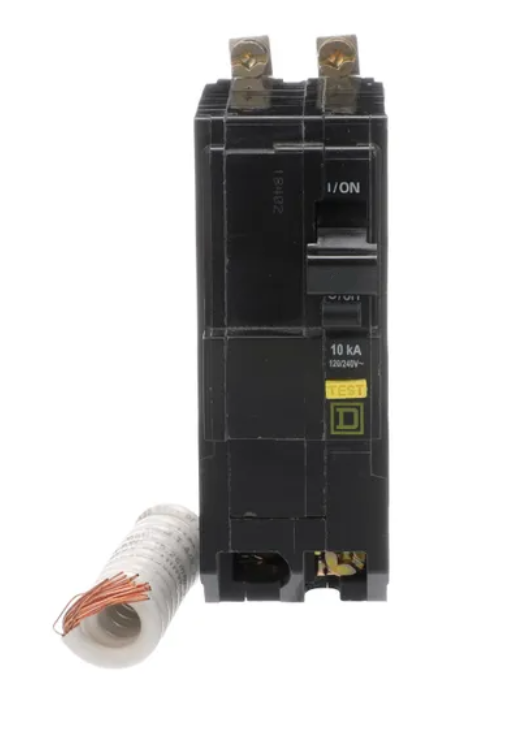

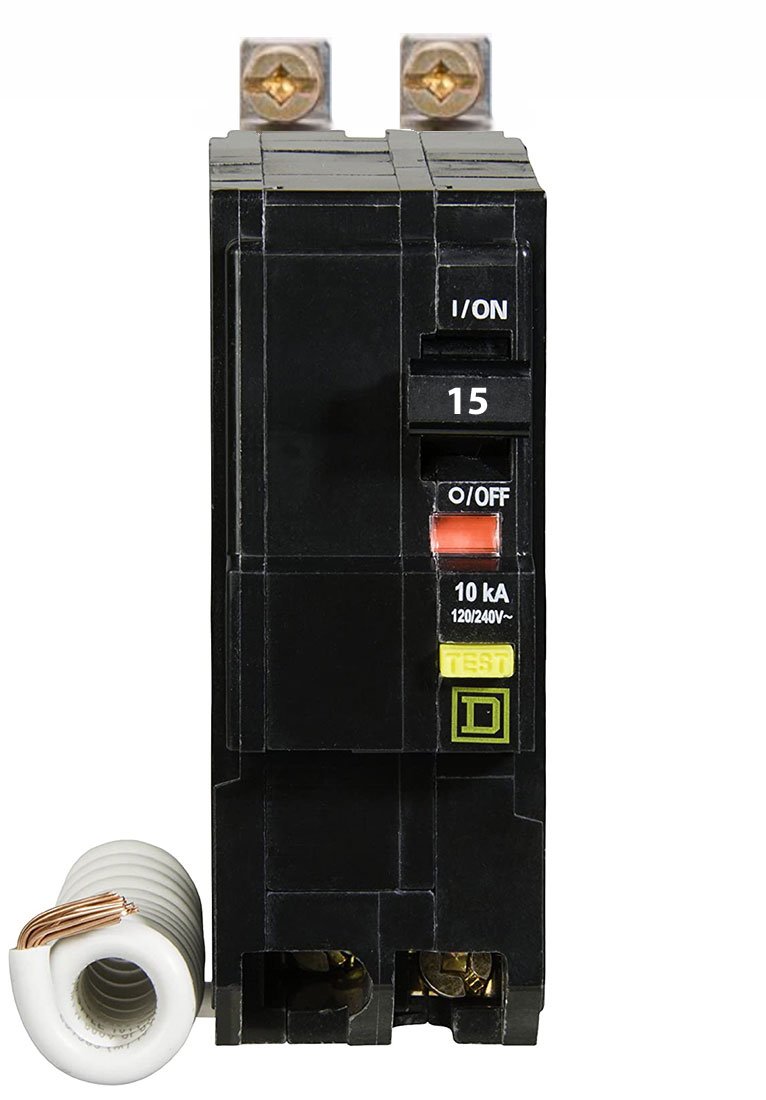

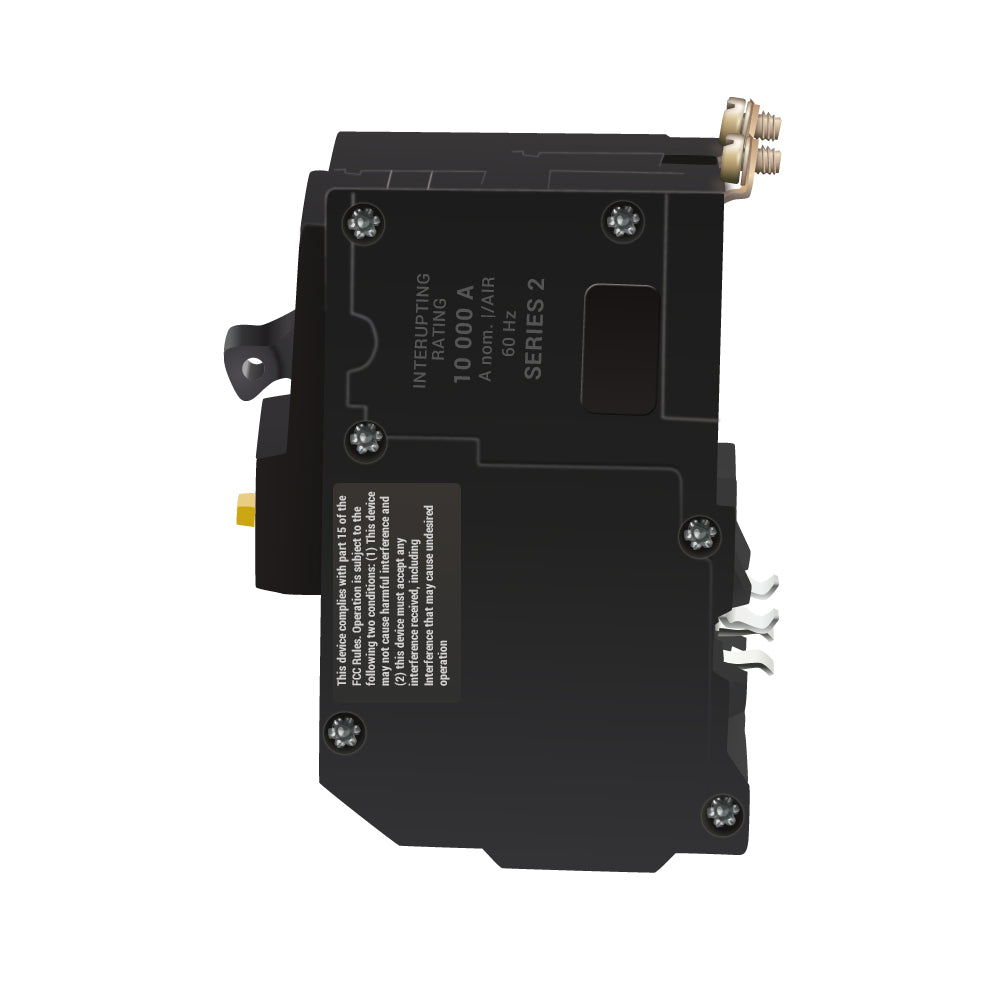

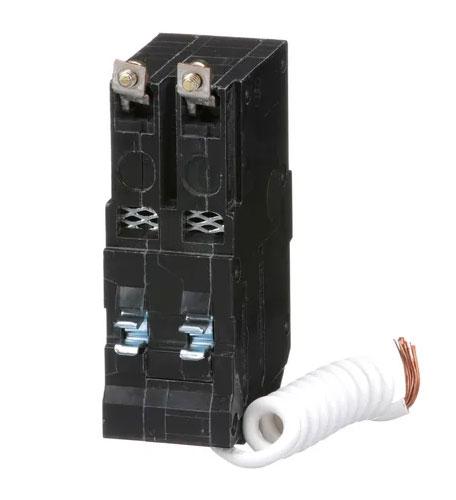

QOB215GFI - Square D 15 Amp 120/240V 2 Pole Bolt-On Ground Fault Circuit Breaker

QOB215GFI

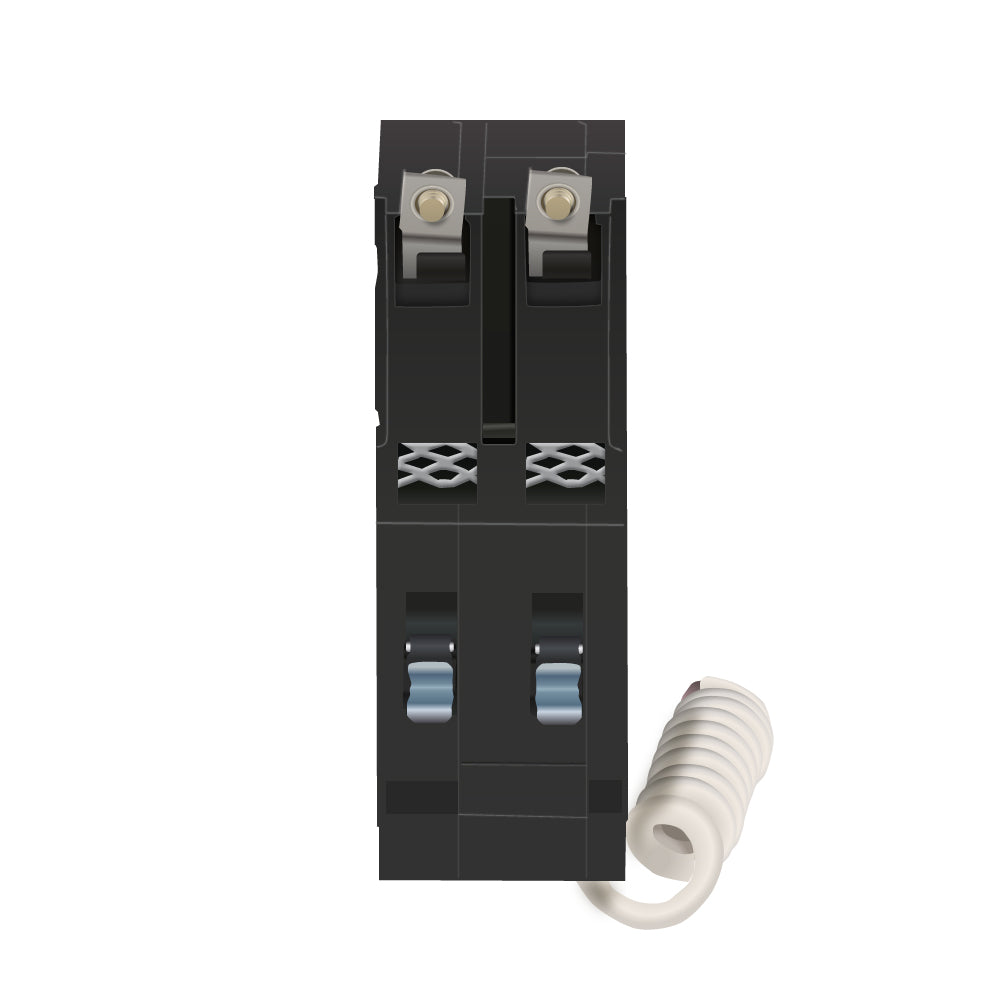

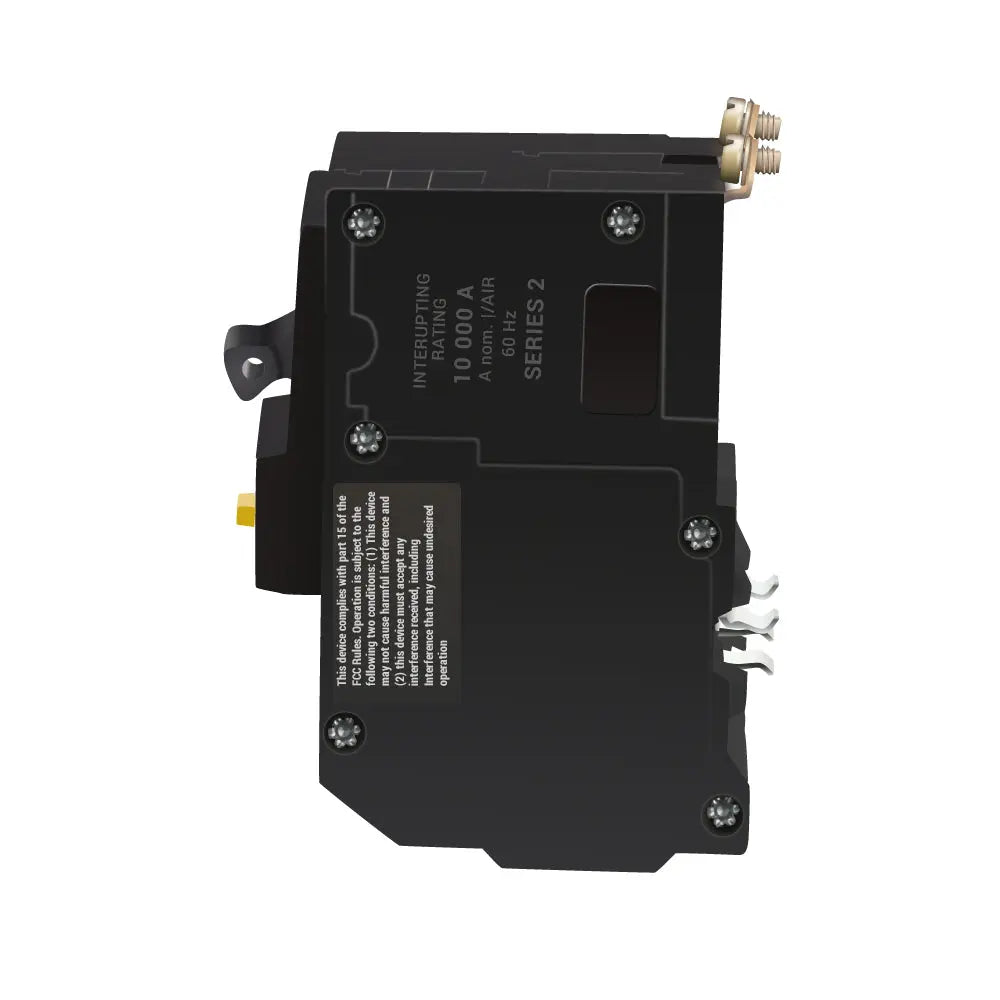

QOB215GFI is a 2 pole, 15 amp, 120/240 volt bolt-on ground fault circuit breaker from Square D designed for enhanced electrical safety.This Square D QOB series circuit breaker features thermal magnetic trip technology with a 10kA interrupt rating at 240V. It is a single-phase, bolt-on mounted device with a 6mA ground fault trip sensitivity, suitable for QOB panelboards. The breaker is UL listed and CSA approved, providing reliable ground fault protection in residential and commercial applications.

Key Specifications
• Manufacturer: Square D
• Series: QOB
• Amperage: 15 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V
• Trip Unit: Thermal Magnetic with Ground Fault Interrupter (6mA)
• Phase: Single Phase
• Certifications: UL Listed, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB215GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901563013
• GTIN : 00785901563013
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
