QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA

Save $898.06
SKU: QOB2125VH-New
Condition: New
Price:
$300.74 $1,198.80
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

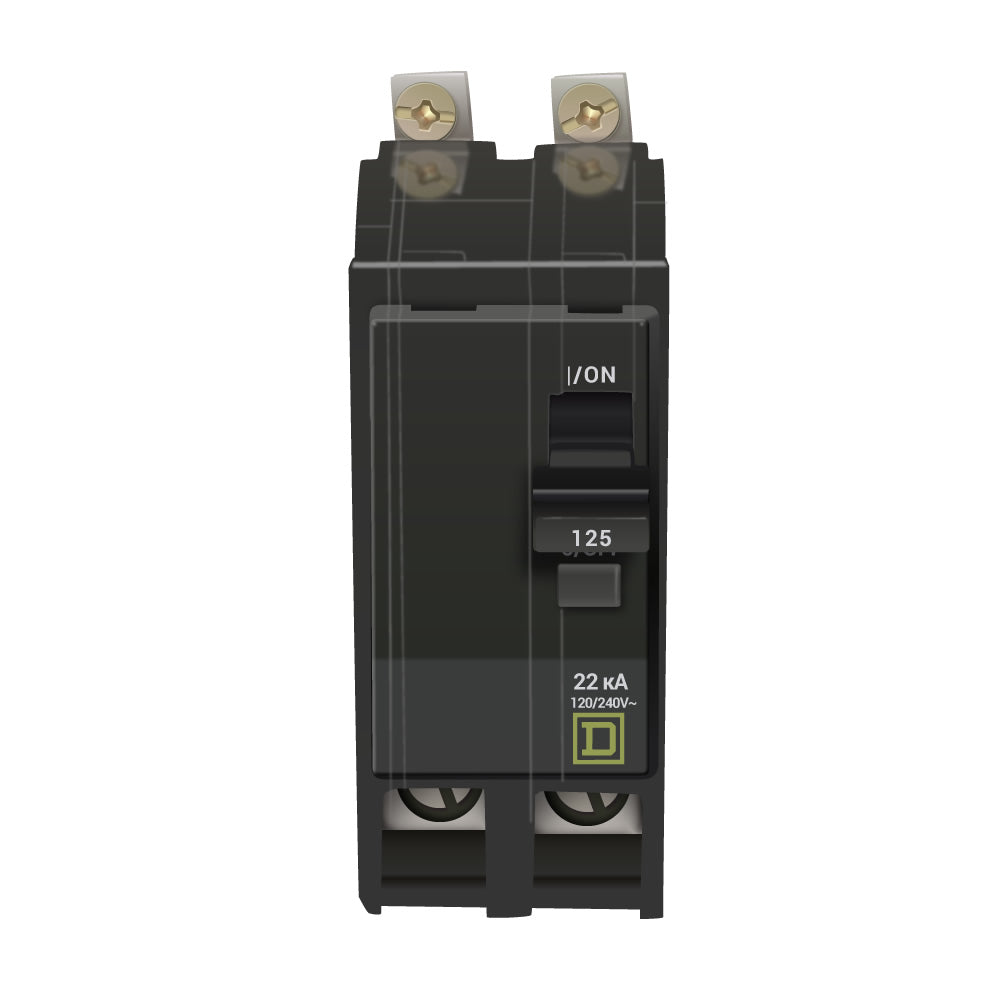

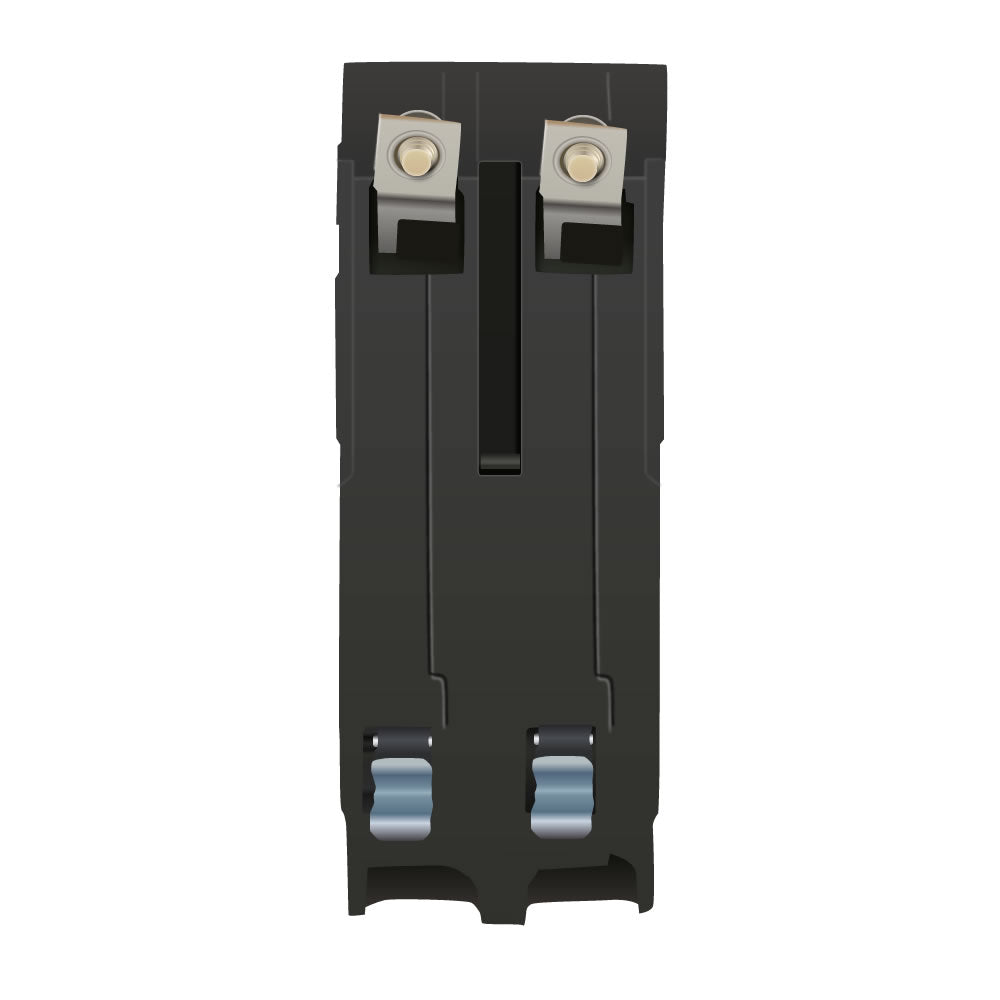

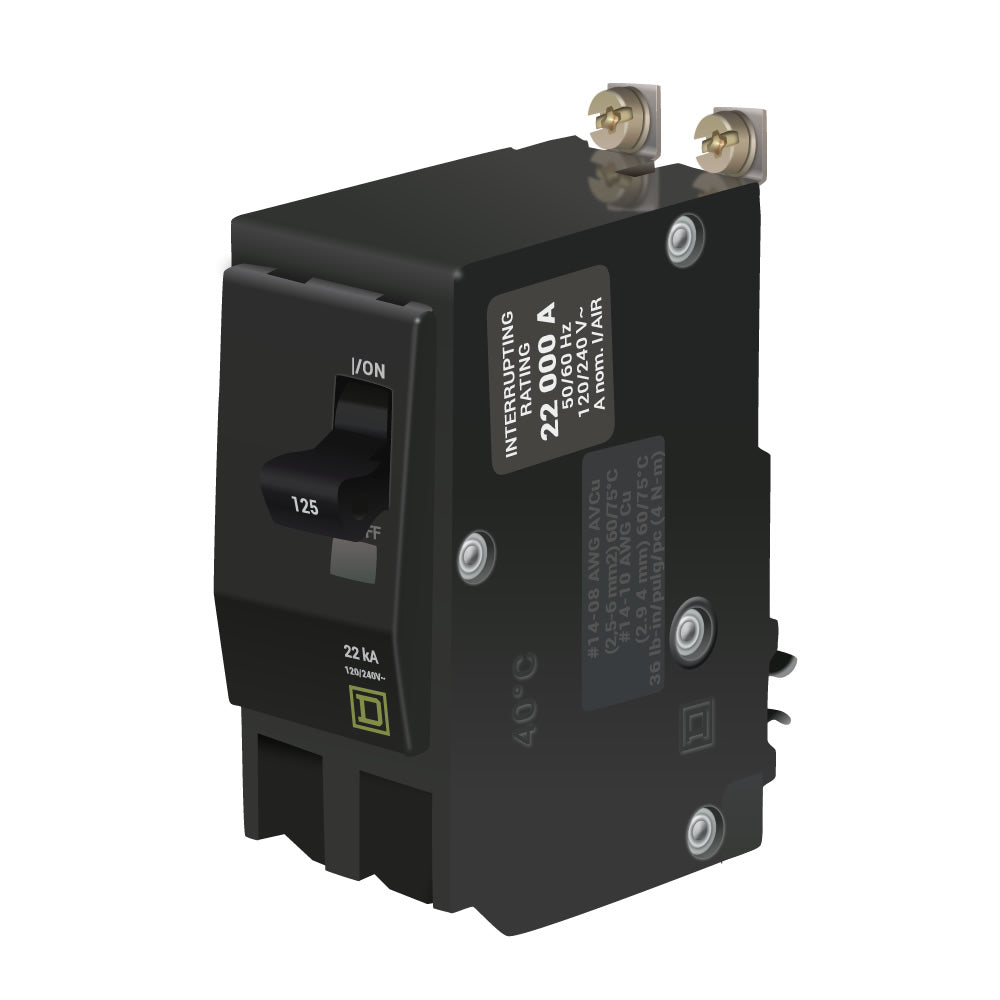

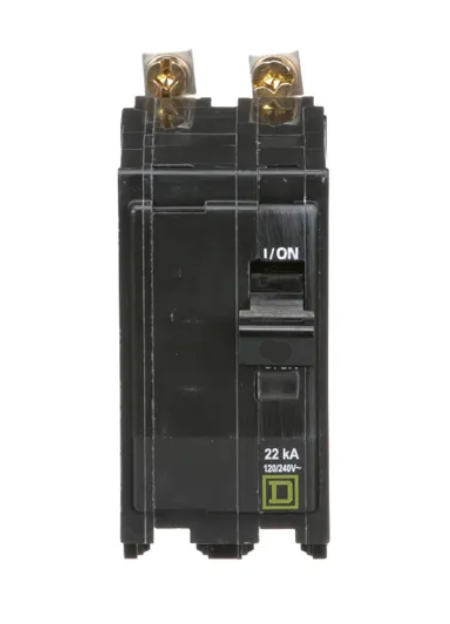

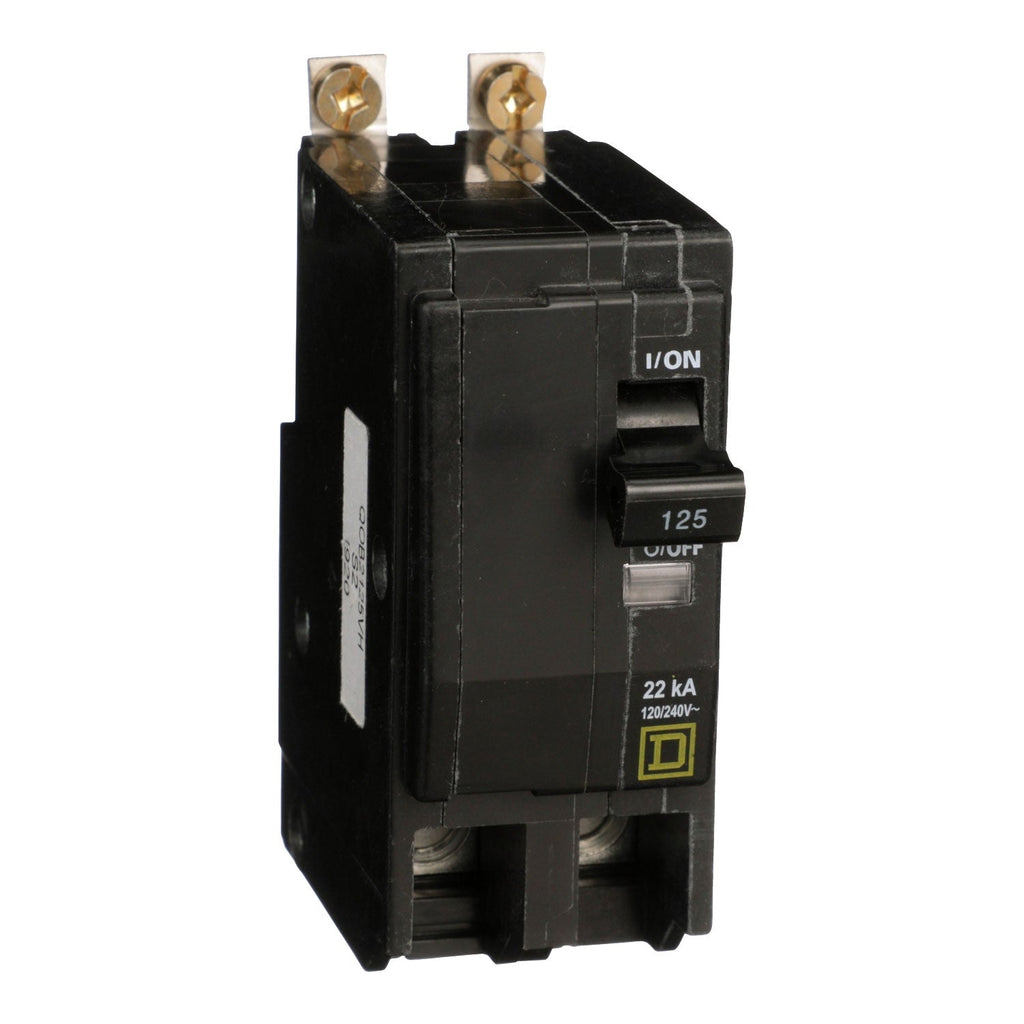

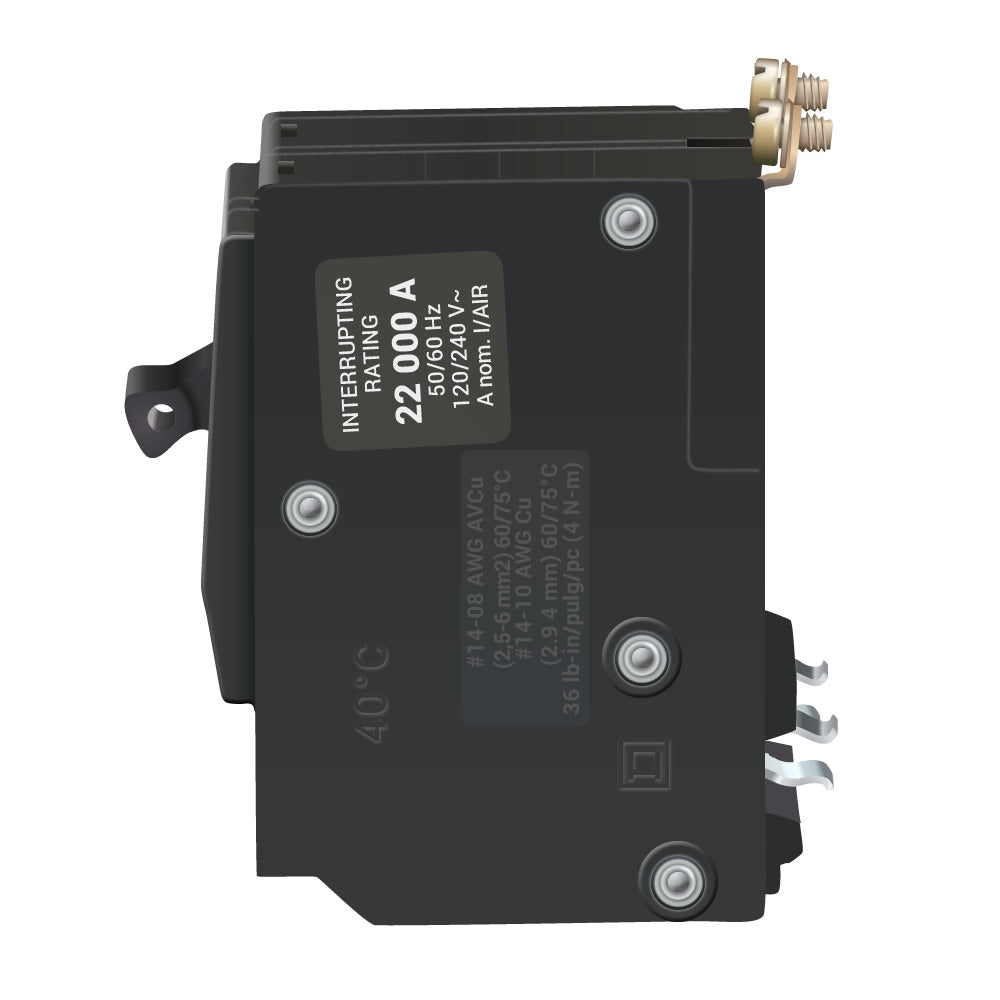

QOB2125VH - Square D Bolt-On 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB2125VH - Square D Bolt-On 125 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply
QOB2125VH - Square D 125A 2P 120/240VAC Bolt-On Circuit Breaker, QOB Frame, 22kAIC, Thermal Magnetic Trip, UL/CSA - Essential Electric Supply

Description

QOB2125VH


QOB2125VH is a Square D 2-pole, bolt-on, miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 125A current rating, 120/240VAC voltage rating, and a robust 22kA interrupting capacity. It is engineered for bolt-on mounting in compatible panelboards, offering both long-time and instantaneous trip protection. The QOB2125VH is UL and CSA approved, HACR rated, and suitable for use with copper or aluminum conductors.

    Key Specifications
  • Part Number: QOB2125VH
  • Manufacturer: Square D
  • Amperage: 125A
  • Voltage: 120/240VAC
  • Poles: 2
  • Mounting Type: Bolt-On
  • Interrupt Rating: 22kAIC at 120/240VAC
  • Series/Frame: QOB
  • Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
  • Certifications: UL, CSA, HACR
  • Connection: Box Lugs
  • Wire Range: AWG 4 to 300 kcmil, Copper or Aluminum
  • Temperature Rating: 40¡C

At Essential Parts, we offer (more...)

Specifications

  • Part Number: QOB2125VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 125
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
  • Breaker Type : High Interrupting Capacity
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901120650
  • GTIN : 00785901120650
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.7
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4 to 300KCmil, Copper or Aluminum
