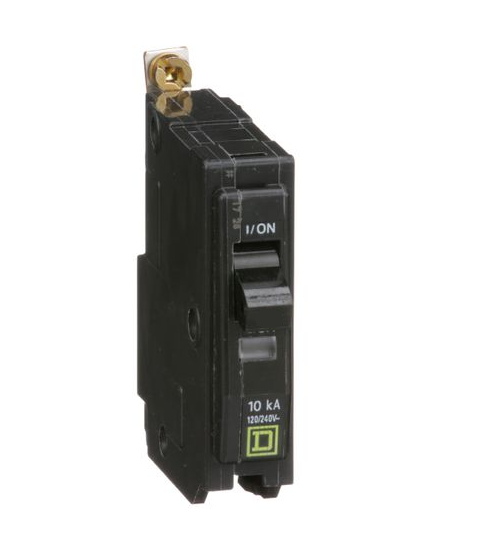

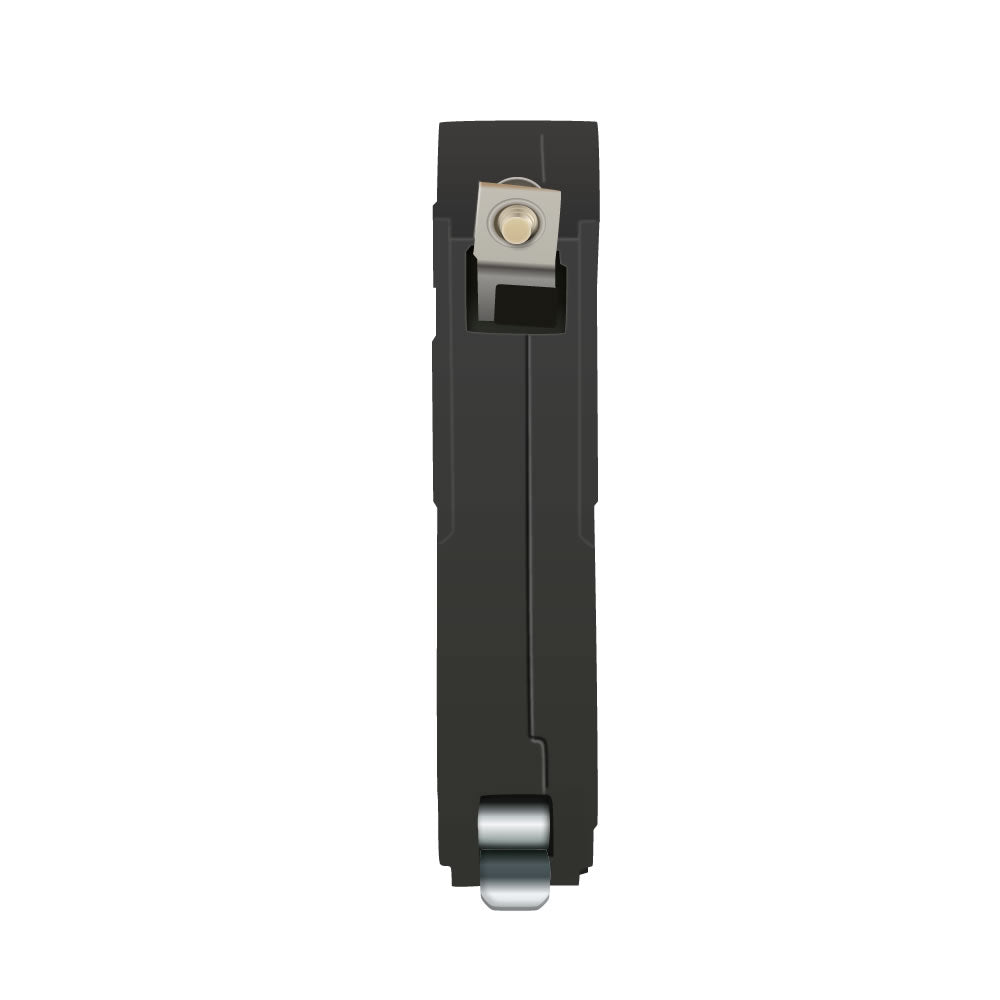

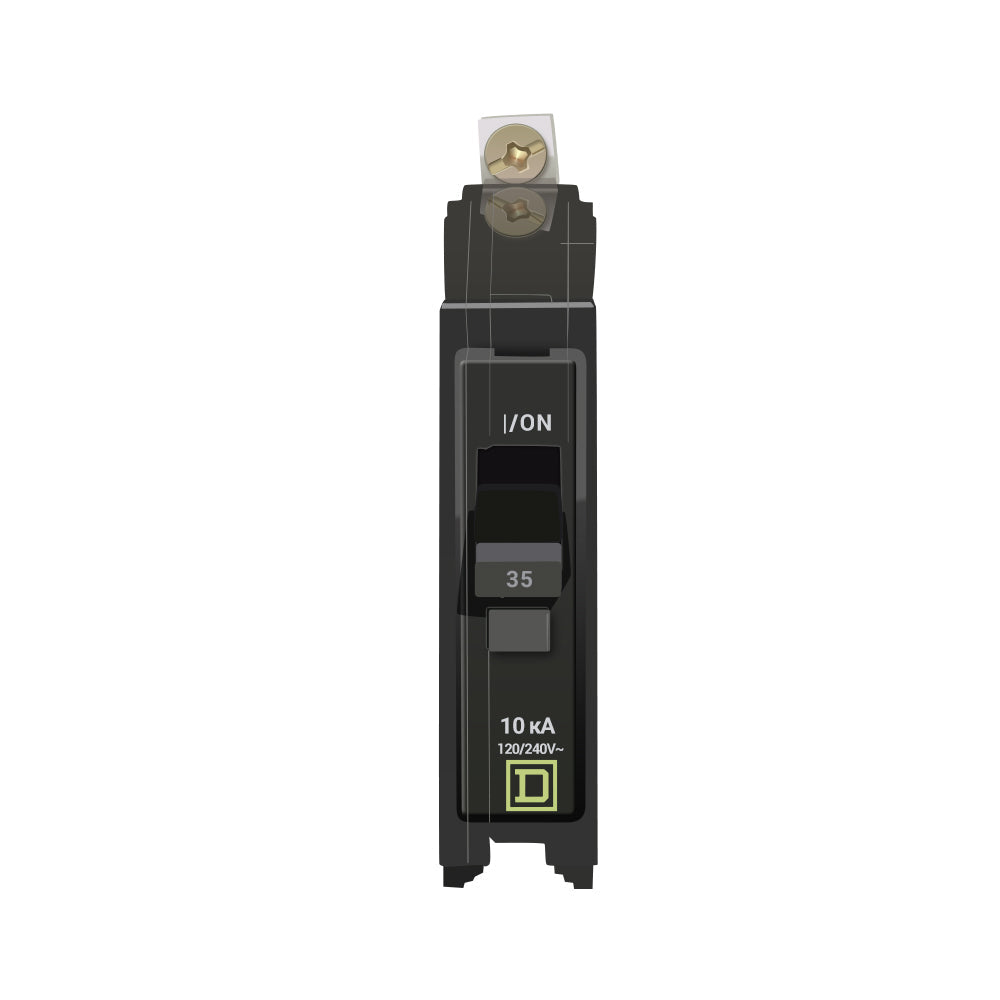

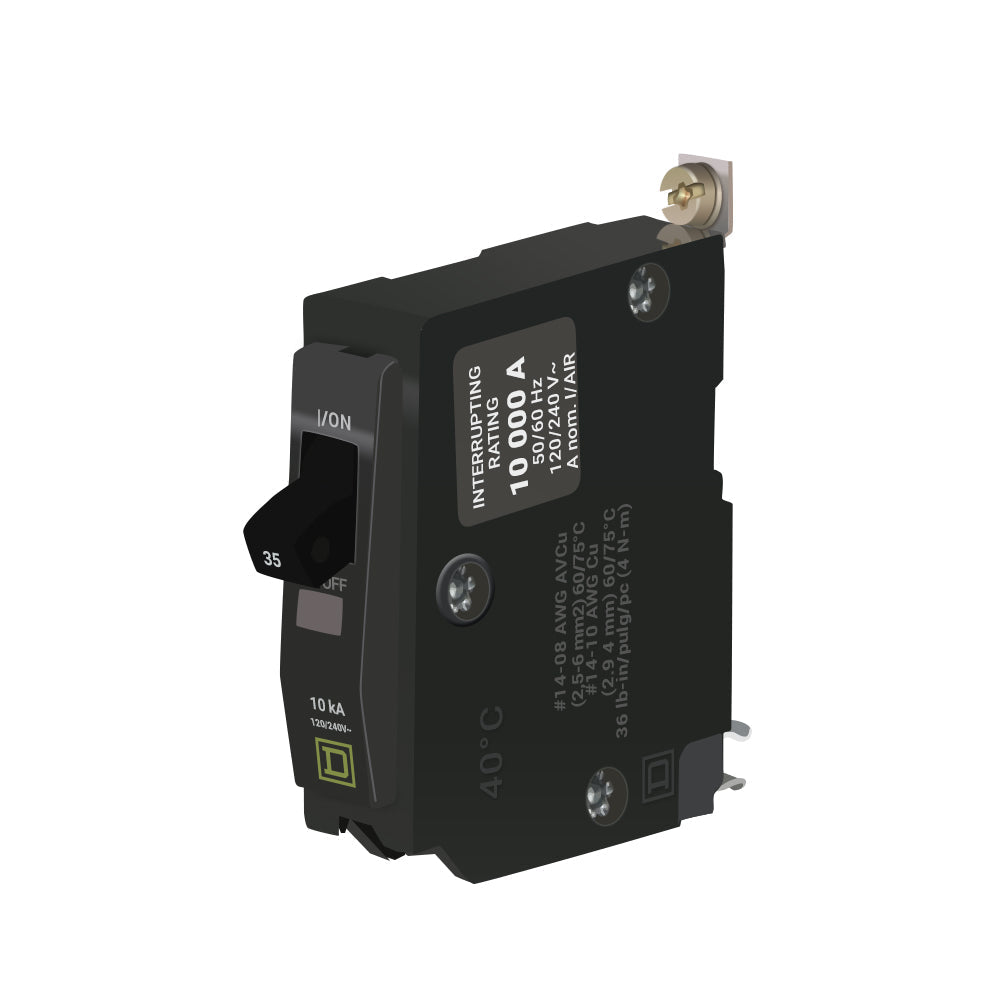

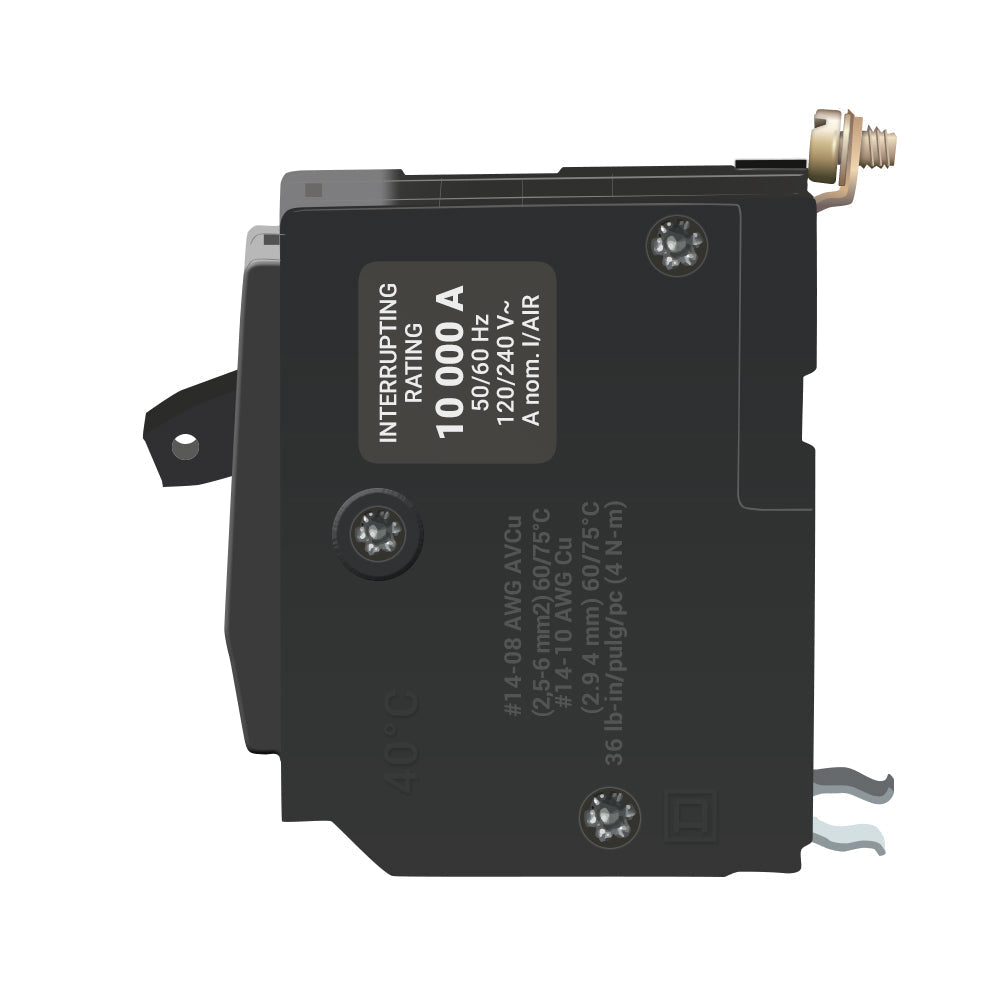

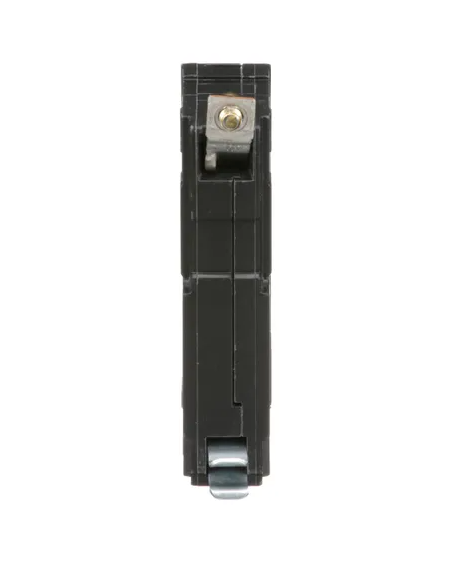

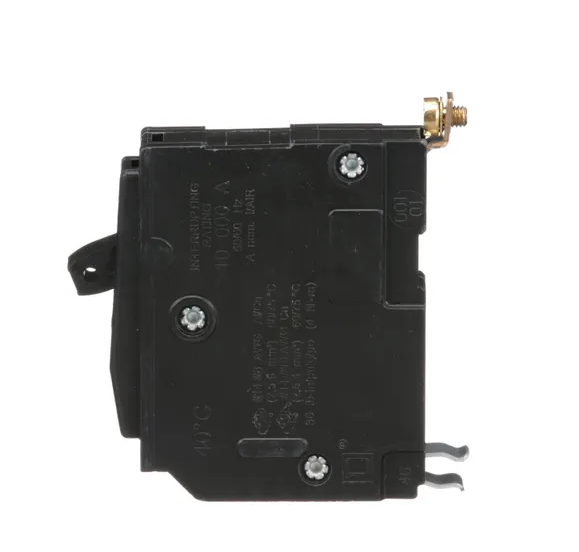

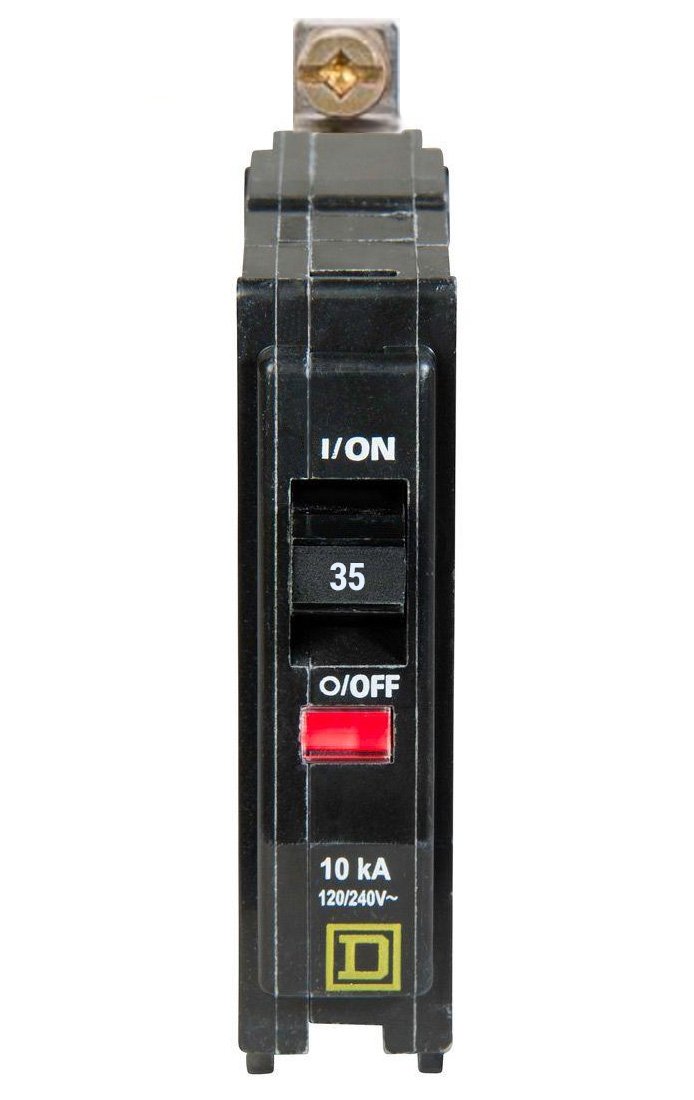

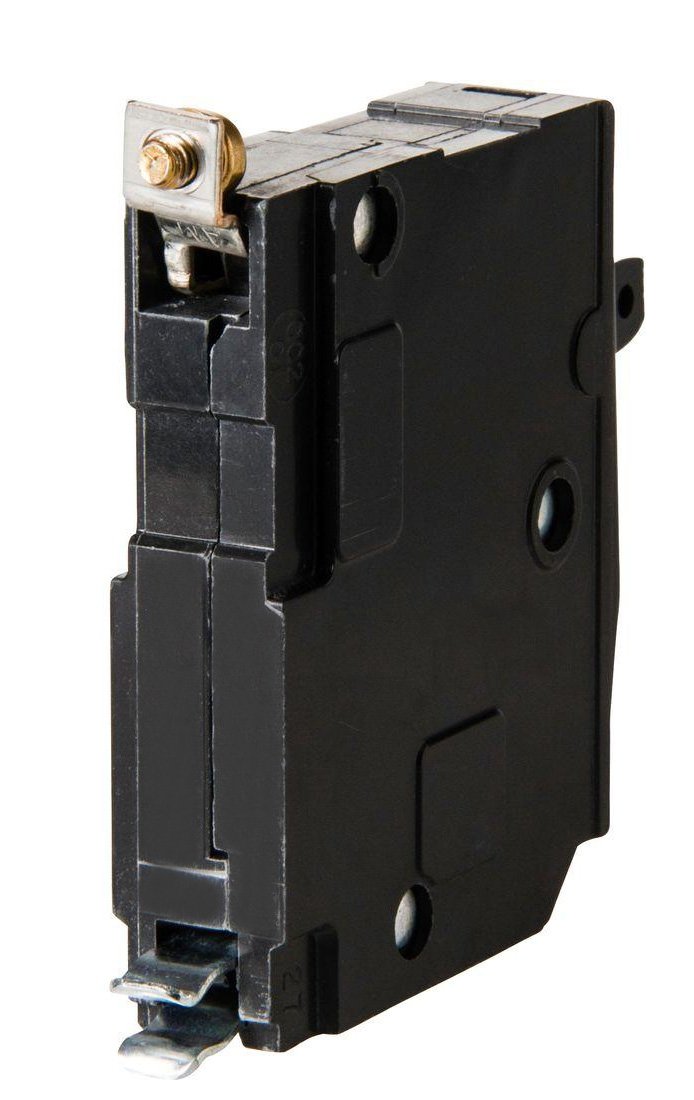

QOB135 - Square D 35A 120/240V 1-Pole Bolt-On Miniature Circuit Breaker 10kA Interrupt

QOB135

QOB135 is a Square D 35 amp miniature circuit breaker designed for reliable electrical protection.This QOB135 breaker features a 1-pole configuration with a 120/240 volt AC rating and a 10 kA interrupt capacity. It uses a thermal magnetic trip unit and is designed for bolt-on mounting. The breaker supports wire sizes from 8 to 2 AWG with box lug connections. It is constructed with fiberglass filled thermoset material and rated for operation up to 40 degrees Celsius. Certified by UL and CSA, this breaker is suitable for single-phase applications and operates at 50/60 Hz frequency.

Key Specifications
• Amperage: 35 A
• Voltage: 120/240 V AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic
• Wire Size: 8 to 2 AWG
• Connection Type: Box Lug
• Material: Fiberglass Filled Thermoset
• Frequency: 50/60 Hz
• Temperature Rating: 40¡C
• Certifications: UL, CSA
At Essential Parts, we offer fast shipping, lowest price, and exp(more...)


Specifications

• Part Number: QOB135
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901509905
• GTIN : 00785901509905
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.3
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Cu/Al
