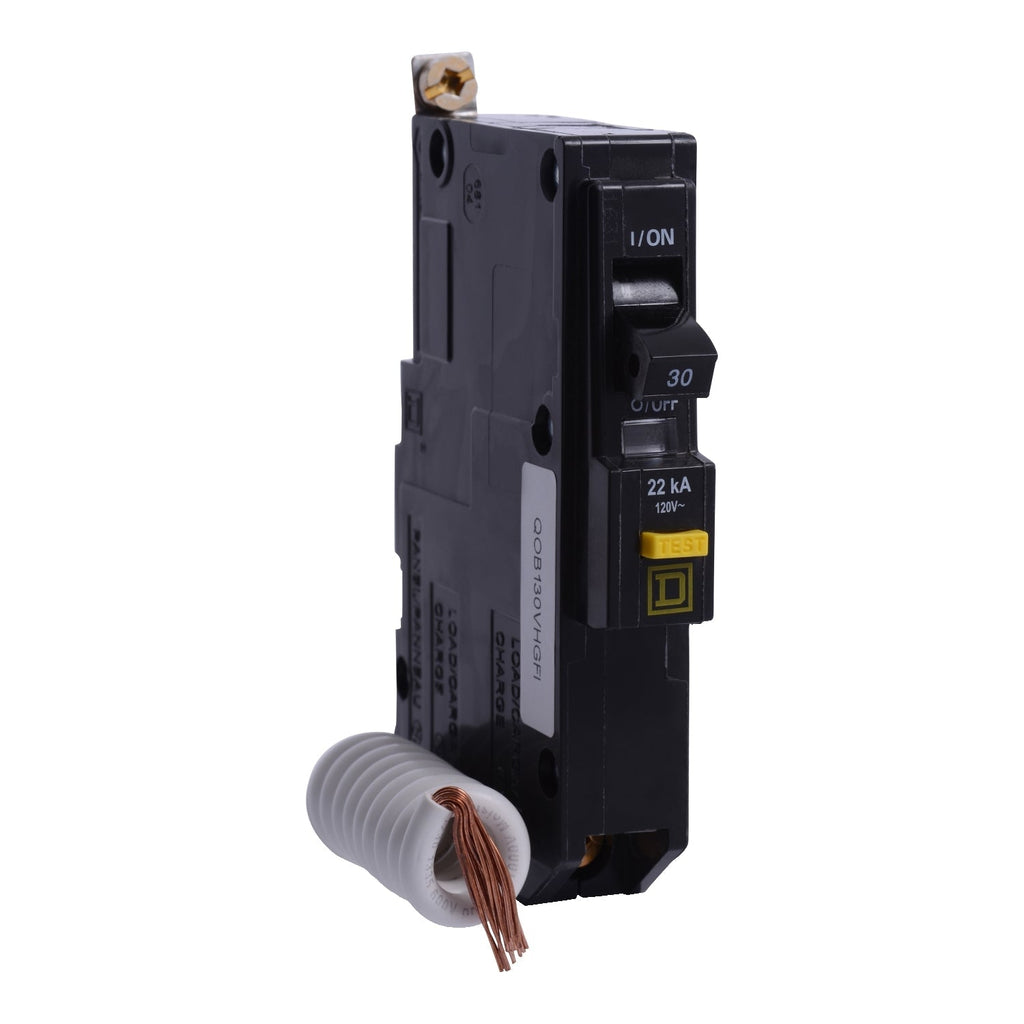

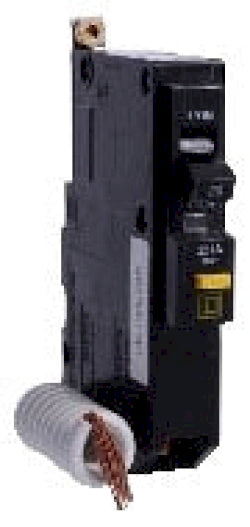

QOB130VHGFI - Square D 30 Amp 120/240V 1-Pole Bolt-On Circuit Breaker Thermal Magnetic

QOB130VHGFI

QOB130VHGFI is a Square D 1-pole circuit breaker rated for 30 Amps and 120/240 Volts AC with bolt-on mounting and thermal magnetic protection.This Square D QOB130VHGFI circuit breaker features a 10kA interrupting rating at 120V, long-time and instantaneous trip functions, and is designed for use in NQOD panelboards. It supports copper or aluminum wire sizes from 14 to 8 AWG and is UL and CSA certified. The breaker is HACR rated and mercury free, suitable for standard circuit protection with a paddle actuator.

• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120V
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Certifications: UL, CSA, RoHS, REACh, HACR
• Wire Size: 14 to 8 AWG Copper or Aluminum
• Breaker Feature: Mercury Free
• Actuator Type: Paddle
• For Use With: NQOD Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help(more...)

Specifications

• Part Number: QOB130VHGFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Protection : Thermal Magnetic

Product Data

• UPC : 785901850793
• GTIN : 00785901850793
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.55
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14, AWG 8 copper, AWG 12, AWG 8 aluminium
