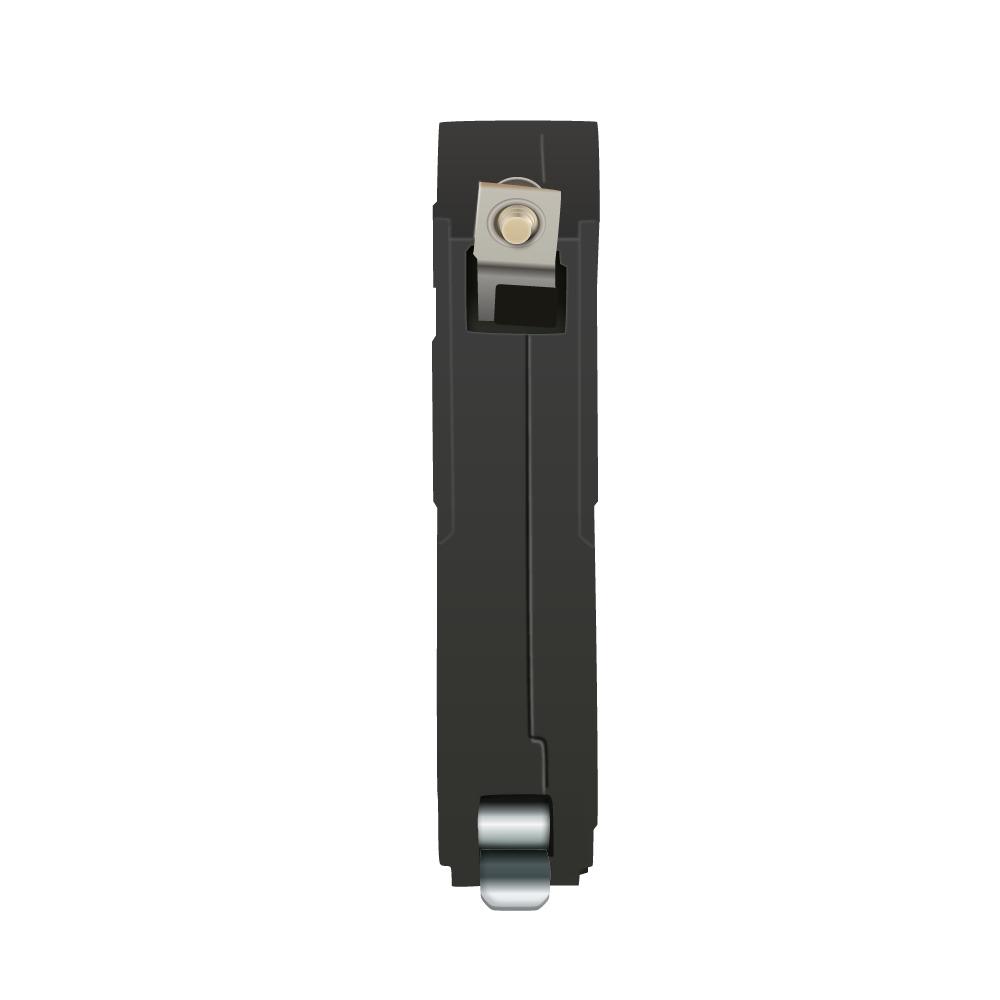

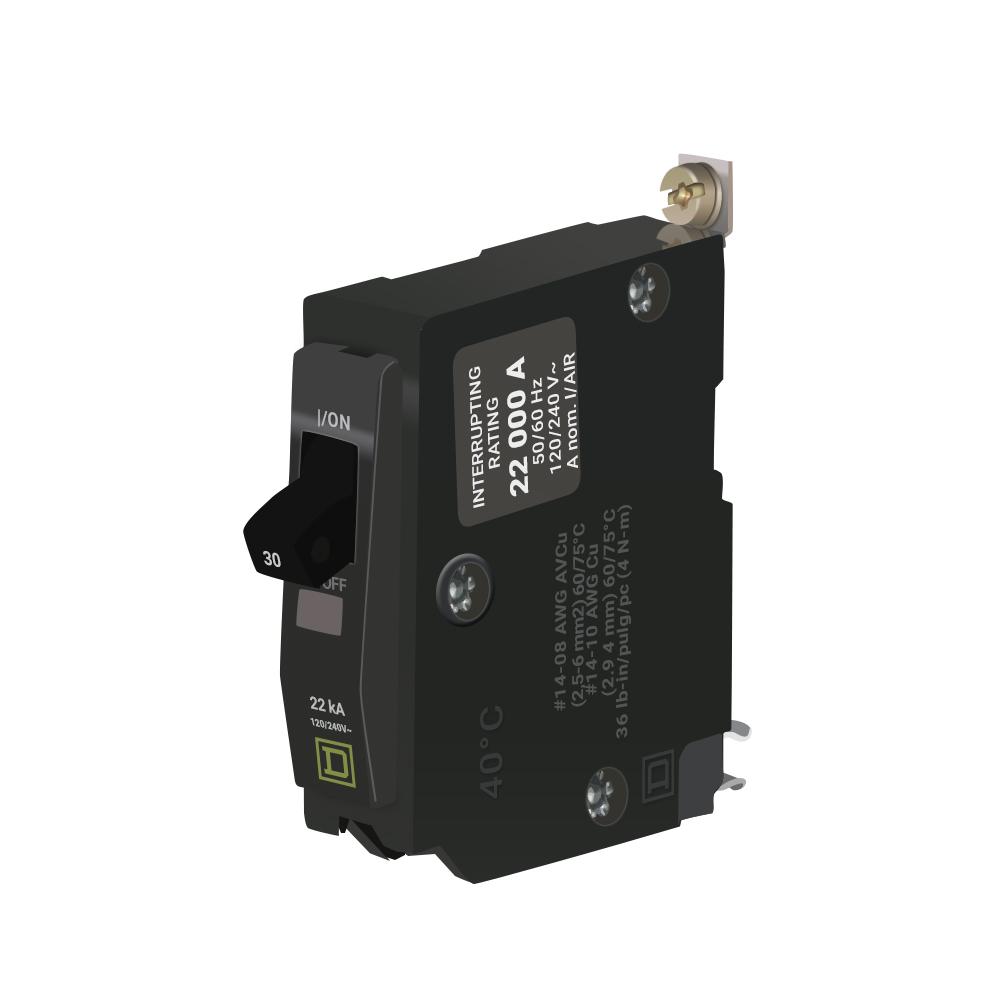

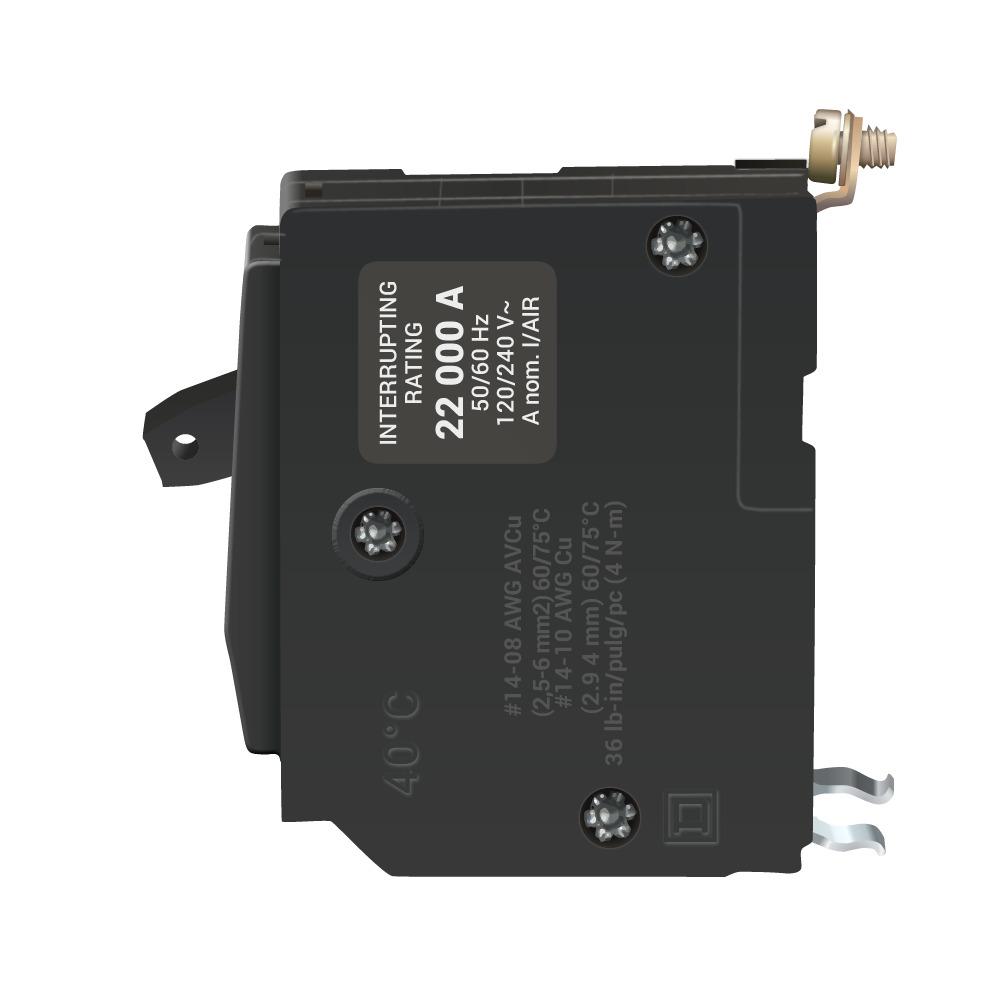

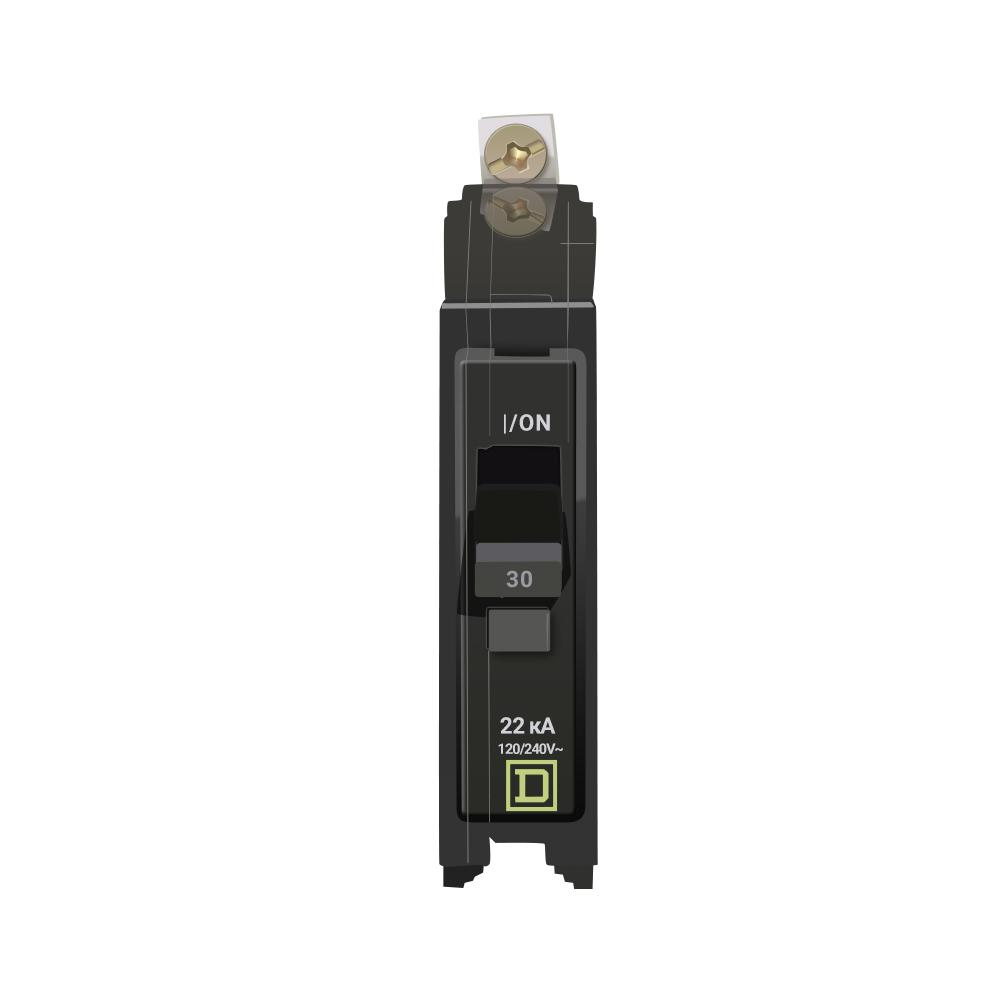

QOB130VH - Square D 30A 120/240V 1 Pole Bolt-On Circuit Breaker 22kA Interrupt Rating

QOB130VH

QOB130VH is a Square D 1 Pole bolt-on circuit breaker rated for 30 Amps and 120/240 Volts AC with a 22kA interrupt rating.

This Square D QOB series circuit breaker features a thermal magnetic trip unit designed for reliable protection in residential and commercial electrical panels. It supports single-phase applications with bolt-on mounting and is UL and CSA certified for safety and performance. The breaker accommodates copper or aluminum wiring and is HACR rated for HVAC equipment compatibility.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240 Volts AC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22,000 Amps (22kA)
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, HACR Rated
• Wire Size: 8 - 2 AWG Copper/Aluminum
• Phase: Single Phase
• UPC/GTIN: 785901371908

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time(more...)

Specifications

• Part Number: QOB130VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371908
• GTIN : 00785901371908
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.3
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
