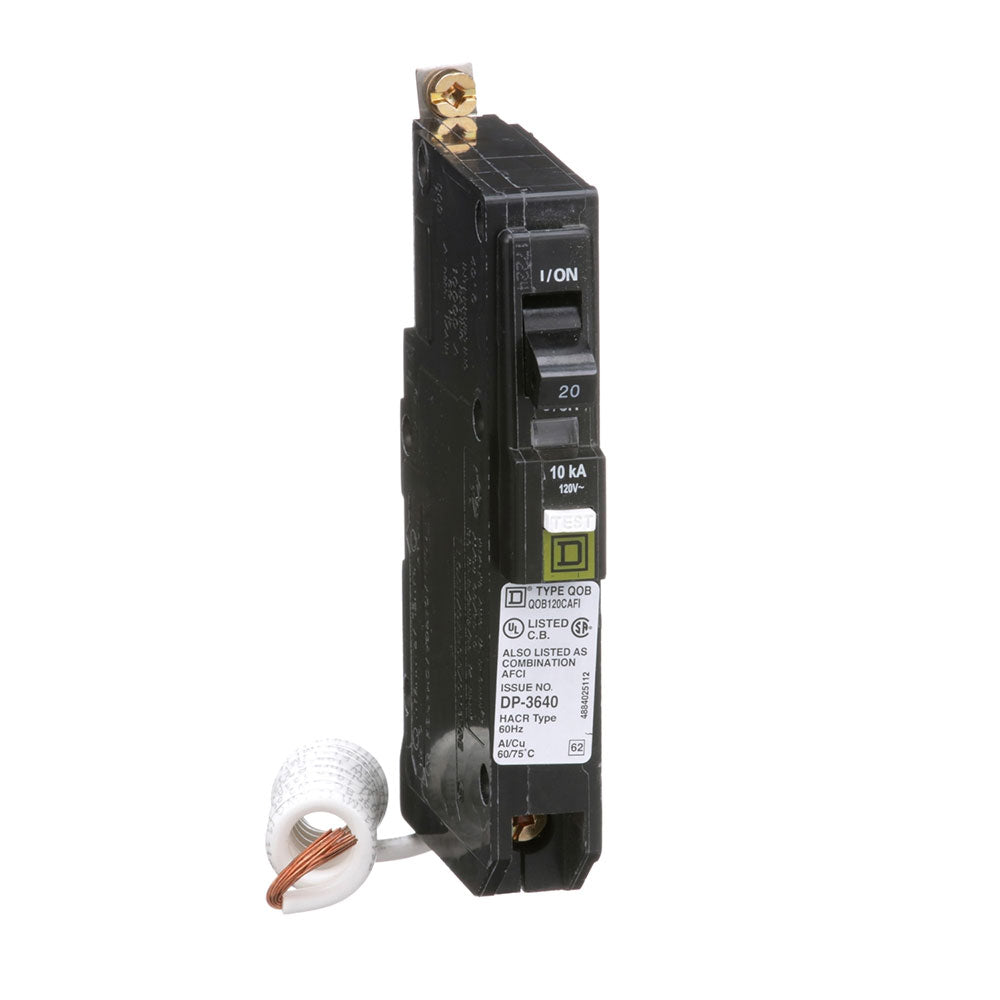

QOB120CAFI - Square D 20 Amp 120/240V 1 Pole Bolt-On Combination Arc Fault Circuit Breaker

QOB120CAFI

QOB120CAFI is a 20 Amp, 1 Pole combination arc fault circuit breaker from Square D designed for 120/240V AC systems with bolt-on mounting.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, providing reliable protection against arc faults and overloads. It has a 10kA interrupt rating and is designed for use in QO and QOB panelboards. The breaker includes a plug-on neutral design for faster installation and is HACR rated for HVAC applications.

Key Specifications
• Amperage: 20 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA
• Trip Unit: Thermal Magnetic
• Type: Combination Arc Fault Circuit Interrupter (AFCI)
• Frame/Series: QOB
• HACR Rated: Yes
• UPC: 785901530602

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB120CAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic

Product Data

• UPC : 785901530602
• GTIN : 00785901530602
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.56
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Cu, Al
