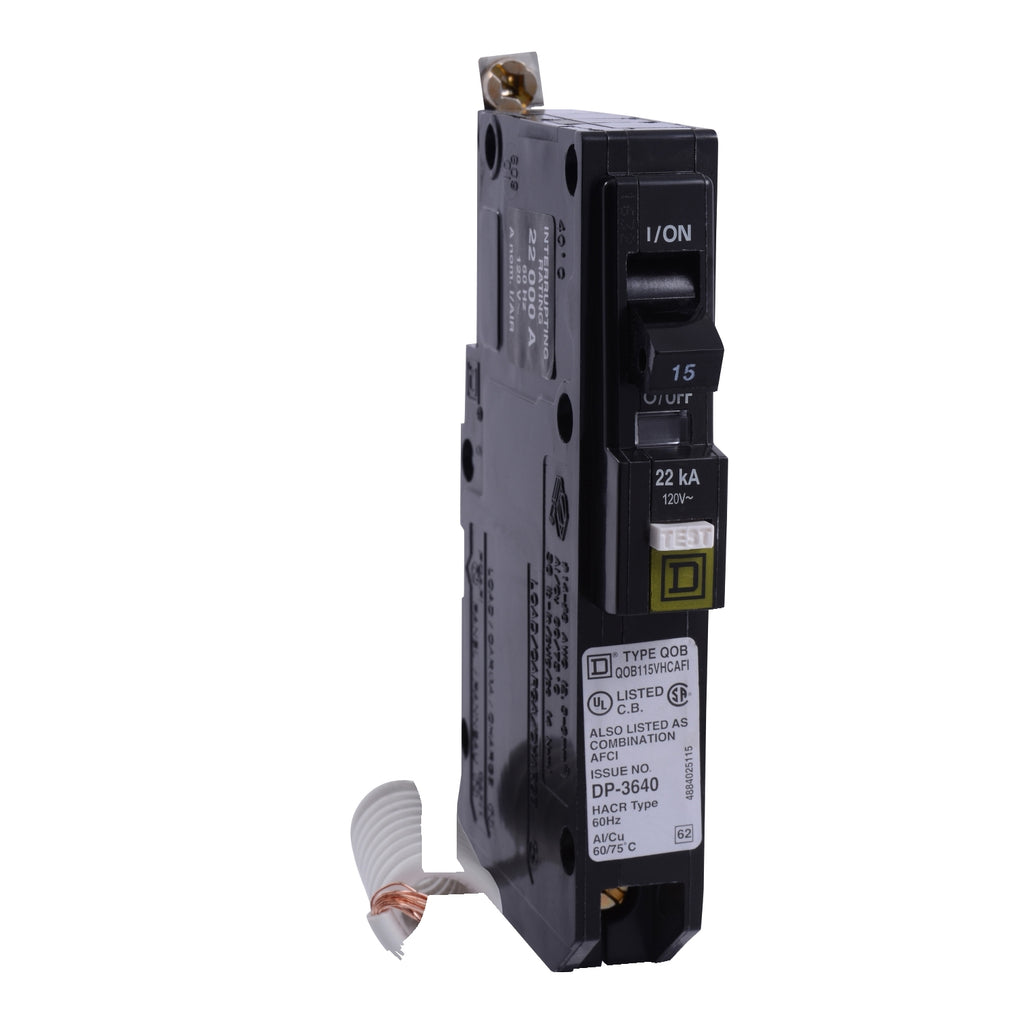

QOB115VHCAFI - Square D 15A 1-Pole 120/240V AC Bolt-On Circuit Breaker QOB Frame

QOB115VHCAFI

QOB115VHCAFI is a Square D 15 Amp, 1-pole miniature circuit breaker designed for reliable circuit protection.This QOB series breaker features a 15A current rating, 120/240V AC voltage rating, and a bolt-on mounting type. It has a 10 kA interrupt rating at 120/240V AC and supports 48V DC operation with a 5 kA interrupt rating. The breaker includes a thermal magnetic trip unit and pressure plate connection, suitable for wire sizes AWG 14 to AWG 8. It is UL listed and CSA certified, designed for single-phase applications with a compact 3 in H x 0.75 in W x 2.91 in D footprint.

Key Specifications
• Amperage: 15 A
• Voltage: 120/240 V AC, 48 V DC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic
• Connection: Pressure Plate
• Wire Size Range: AWG 14 to AWG 8
• Certifications: UL Listed, CSA Certified
• Dimensions: 3 in H x 0.75 in W x 2.91 in D
At Essential Parts, we offer fast shipping, lowest price<(more...)


Specifications

• Part Number: QOB115VHCAFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic



Product Data

• UPC : 606486144261
• GTIN : 03606490000000
• Country of Origin : Mexico
• Dimensions : 4.8 in (121 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.571
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Cu, Al
