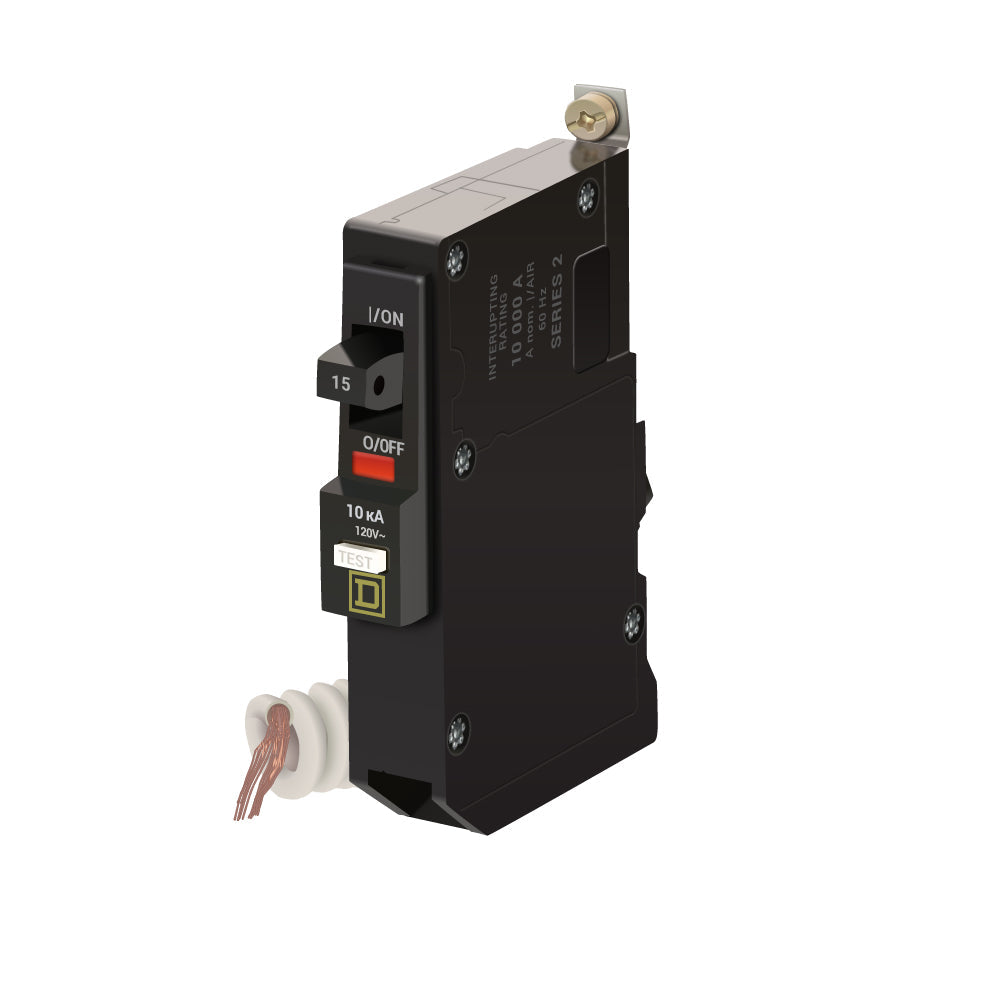

QOB115GFI - Square D 15 Amp 120 Volt 1 Pole Bolt-On Ground Fault Circuit Breaker

QOB115GFI

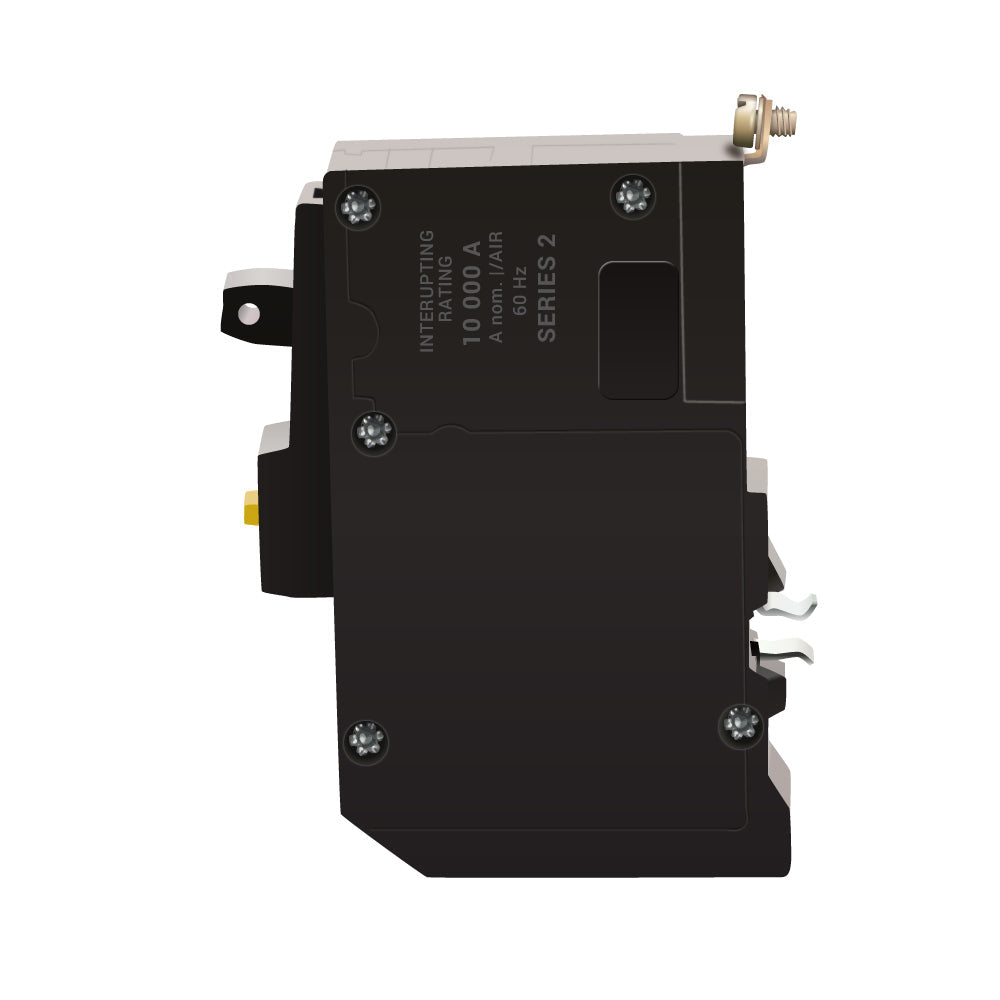

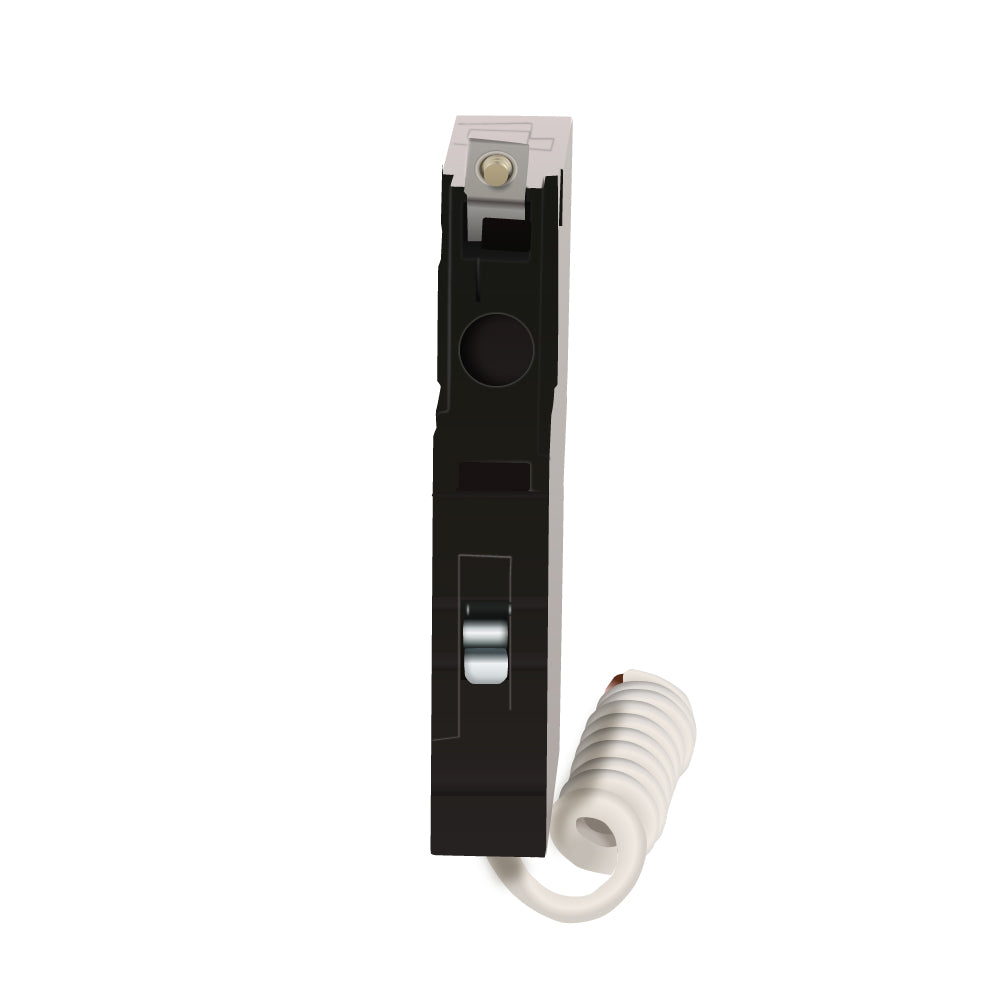

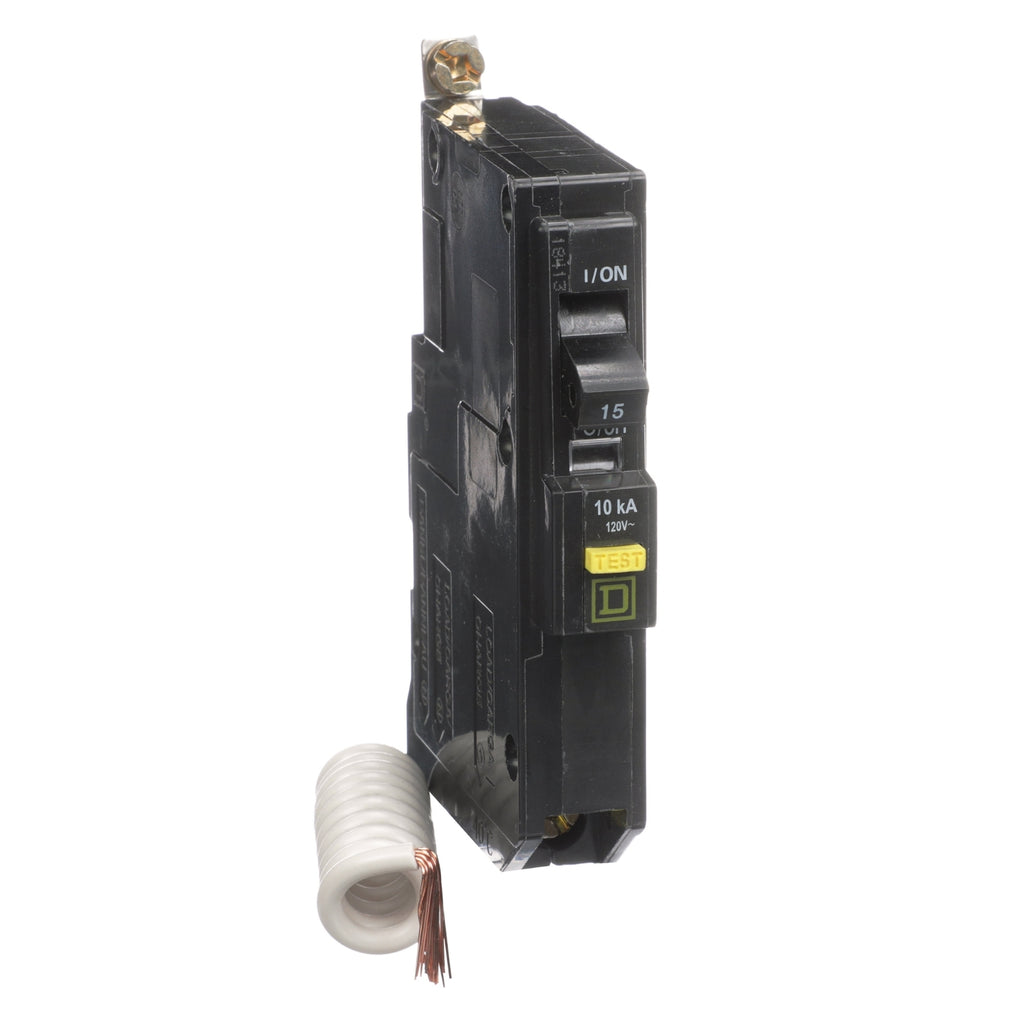

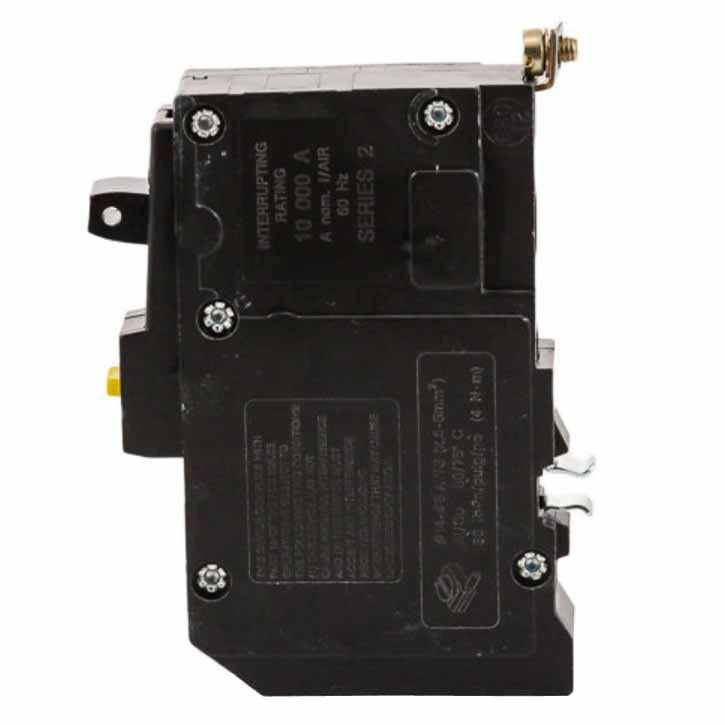

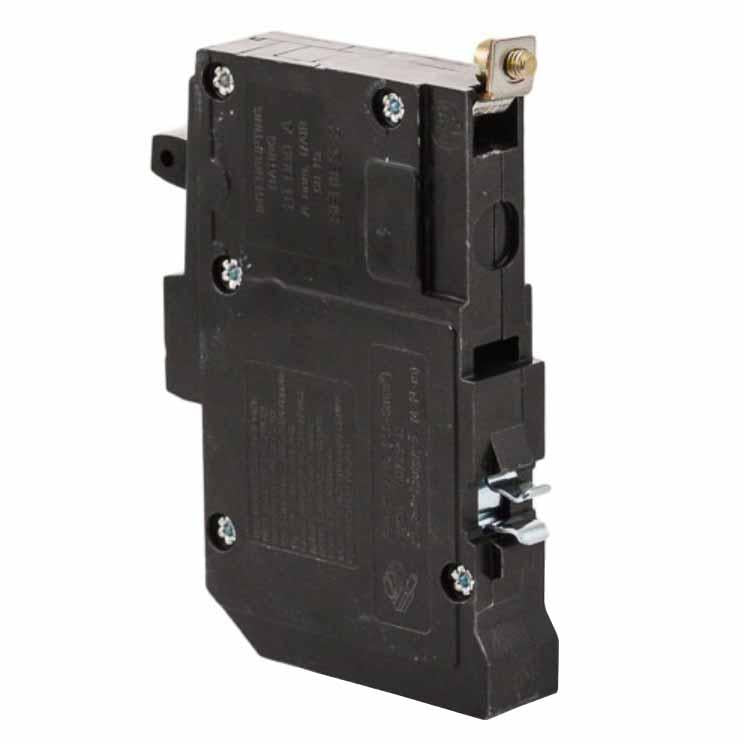

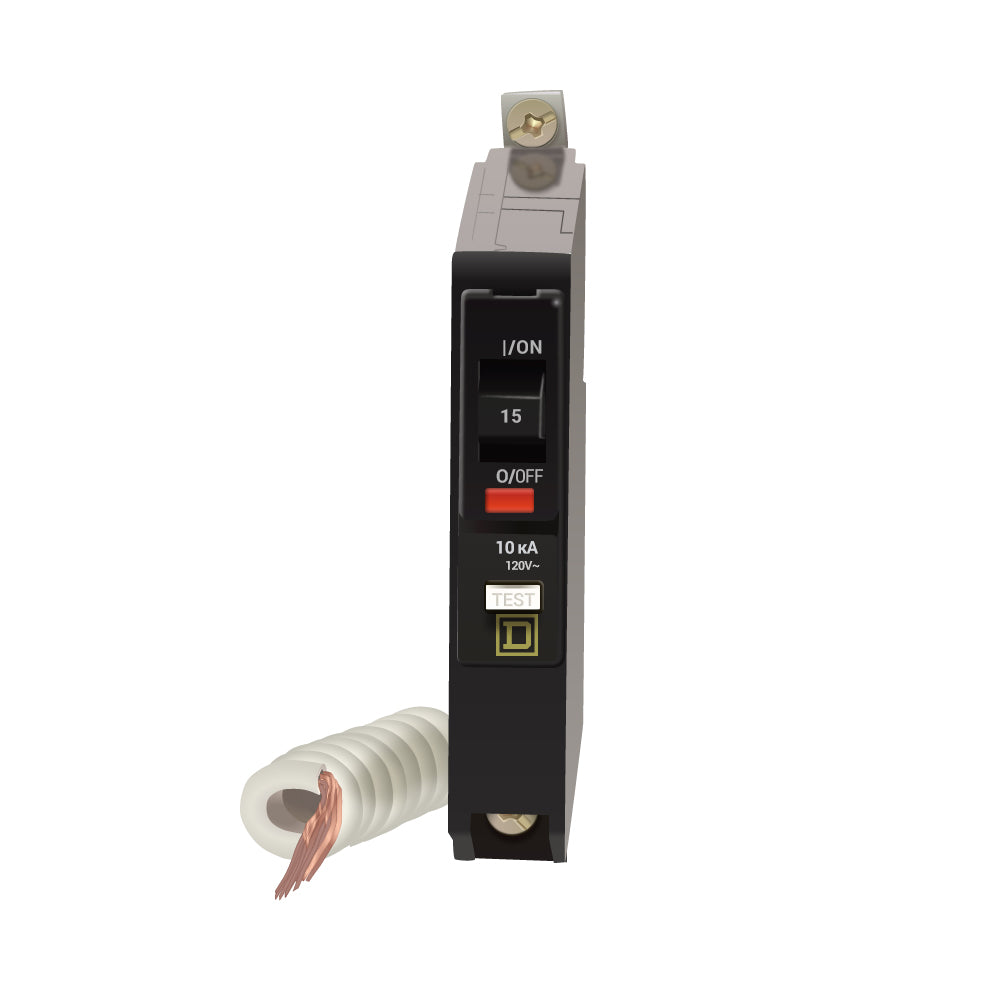

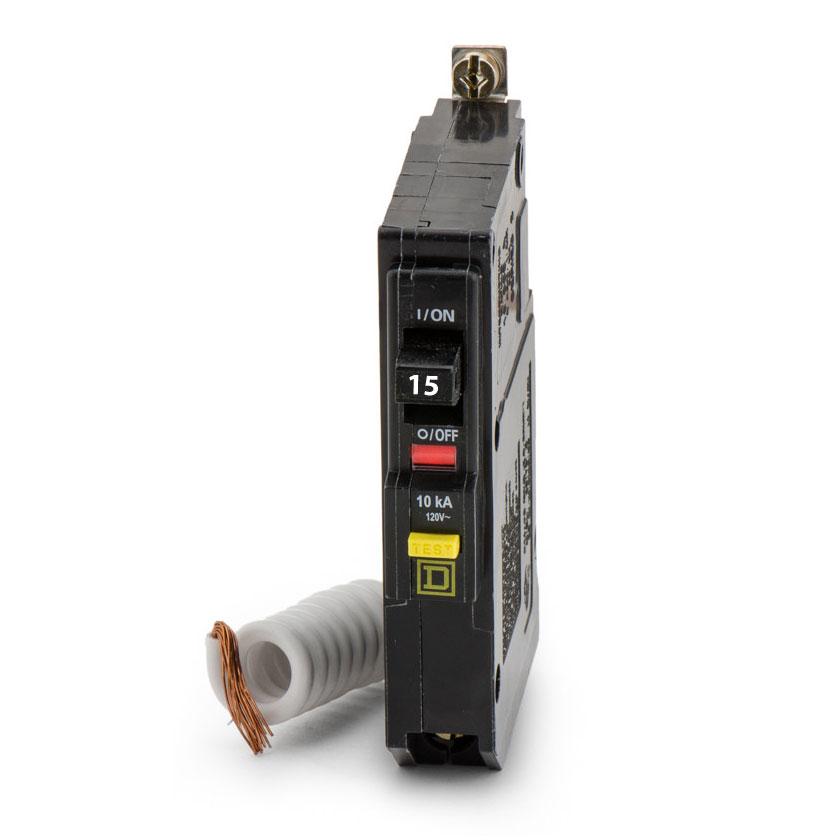

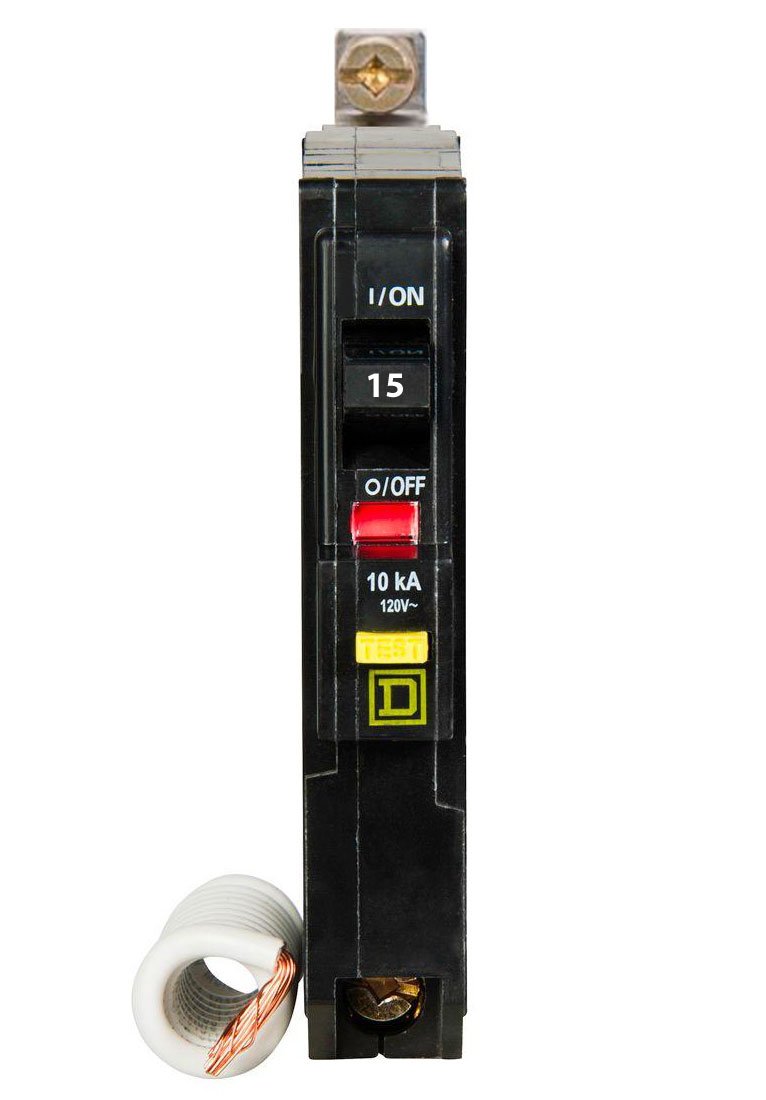

QOB115GFI is a Square D 1 pole bolt-on ground fault circuit breaker rated for 15 amps and 120 volts AC.

This circuit breaker features a thermal magnetic trip unit with a 10,000 amp interrupt rating, designed for reliable ground fault protection in residential and commercial applications. It mounts via bolt-on style compatible with QO panelboards and provides compact, efficient circuit protection with built-in ground fault sensing.

Key Specifications
• Amperage: 15 Amps
• Voltage: 120 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic with Ground Fault
• Certifications: UL Listed
• Dimensions: Approx. 0.75" W x 2.91" D x 4.12" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB115GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901368700
• GTIN : 00785901368700
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.51
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Cu/Al
