Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Load Center
Description
QO816L100F

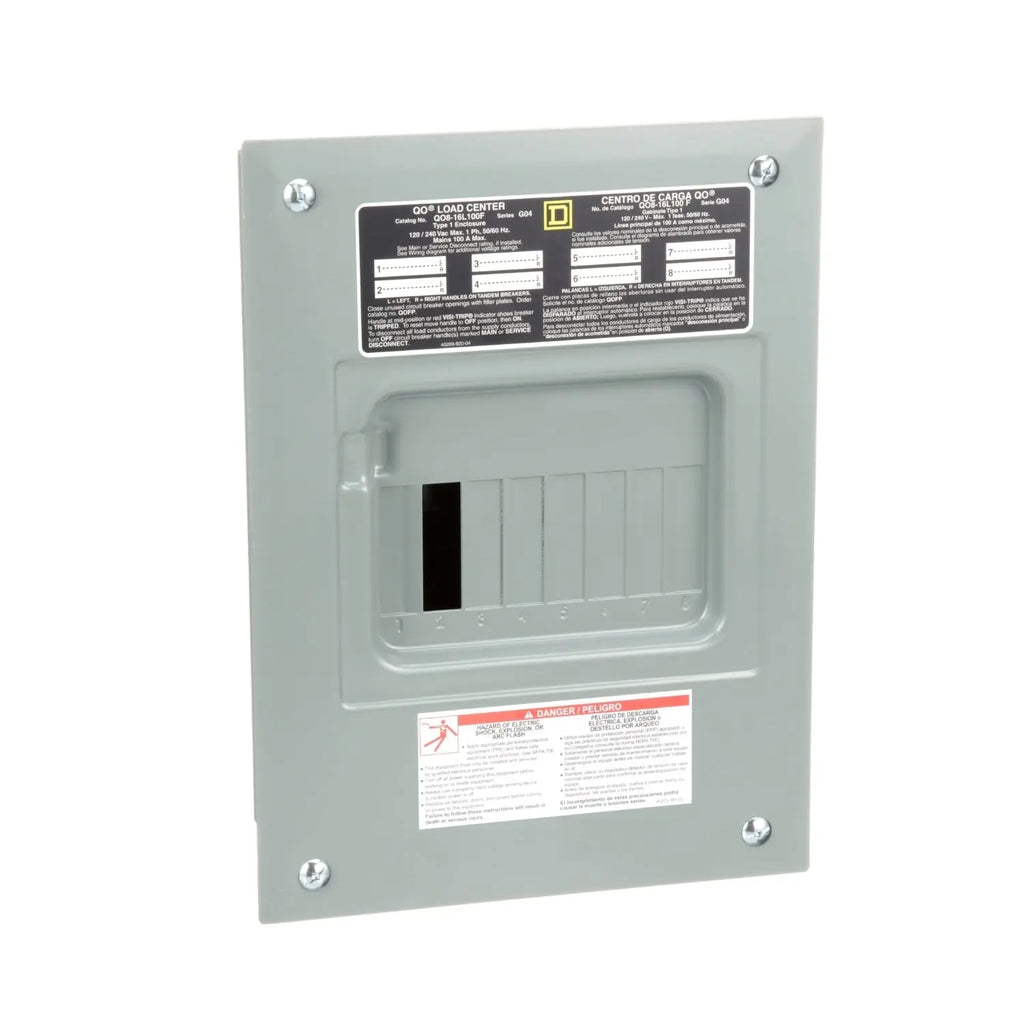

QO816L100F is a Square D main lug load center designed for reliable residential, commercial, and industrial power distribution.
This load center features a fixed main lug design, supports up to 16 circuits in 8 spaces, and is rated for 100 amps at 120/240V single-phase. It is part of the trusted QO series, known for durability and ease of installation. The enclosure is NEMA 1 rated for indoor use and is UL and NOM certified for safety and compliance.
-
Key Specifications
- Amperage: 100A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Flush mount, indoor
- Interrupt Rating: 10kAIC
- Series/Frame: QO
- Trip Unit: Not specified (standard thermal-magnetic)
- Certifications: UL, NOM
- Number of Circuits: 16 max
- Number of Spaces: 8
- Enclosure Type: NEMA 1
- Dimensions: 8.88" W x 3.8" D x 12.57" H
- Operating Temperature: -5°C to 40°C (23°F to 104°F)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QO816L100F
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : QO Series
- Type : QO
- Voltage : 120/240 AC
- Amperage : 100
- Phase : 1
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Bus Type : Aluminum
Product Data
- UPC : 785901785675
- GTIN : 00785901785675
- Country of Origin : Mexico
- Dimensions : 226 mm x 319 mm
- Weight : 7.83
- Certification : UL Listed
- Wire Size : AWG 8 to AWG 1, Aluminum/Copper
